Manual On/Off Remote Control with Timer
INSTALLATION AND OPERATING INSTRUCTIONS
This basic on/off remote control system provides a safe, reliable, and user-friendly remote control for milli-volt
valve gas appliances. The system can be manually turned on and off with the transmitter. Always check with the
home owner's manual of the appliance for additional information, warnings regarding accessory installation before
connecting this remote control system.
Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately contact the
dealer from whom you purchased the kit. Do not attempt to install any part of the kit unless all parts are in good
condition. Please keep this manual for future reference.

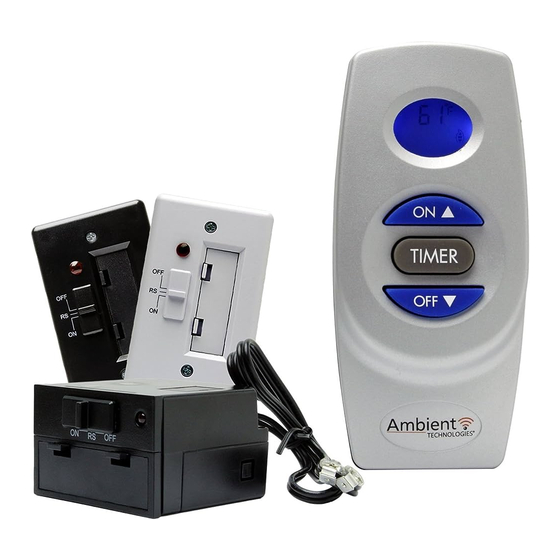

Transmitter
Battery Alkaline AAA (for Transmitter)
Battery Alkaline AA (for receiver)
Receiver (Assembly) consists of :
Receiver Box
Slide Button-Black (On/RS/Off)
Wall Cover Plate-Black
Wall Cover Plate-White
Slide Button-White (On/RS/Off)
Battery Door-White
Plug-In Wiring Assembly – 22" Inches
Velcro (Loop and Hook)
Installation Instructions
#6 3/4" Screws, Zinc
#8 Screws (for fireplace system control covers)
FEATURES/SPECIFICATIONS
• Battery Powered Transmitter and Receiver
• Easy Access Front Battery Door
• Pre-Programmed for Quick Installation
• 16 Security Codes
• Quick Disconnect Wiring Assembly
• Optional 6 hour shutdown timer on receiver
• Low battery indicators for Transmitter and Receiver
50D0103 RCMT Rel 1 02/10/2006
RCMT
CONTENTS OF KIT
Description
Page 1 of 7
Qty
1
3
4
1
1
1
1
1
1
1
1
2
2
Ambient Technologies
A Division Of Monessen Hearth Systems
Advertisement
Table of Contents
Related Manuals for Ambient Technologies RCMT
Summary of Contents for Ambient Technologies RCMT
- Page 1 • 16 Security Codes • Quick Disconnect Wiring Assembly • Optional 6 hour shutdown timer on receiver • Low battery indicators for Transmitter and Receiver 50D0103 RCMT Rel 1 02/10/2006 Page 1 of 7 Ambient Technologies A Division Of Monessen Hearth Systems...
-
Page 2: Important Safety Information
5. Gently, install the slide switch back to the receiver stem. 50D0103 RCMT Rel 1 02/10/2006 Page 2 of 7 Ambient Technologies A Division Of Monessen Hearth Systems... - Page 3 2. The switches on the transmitter and receiver must match in order for the system to work. 3. The system is now ready to operate. 4. See optional 6 hour shutdown on receiver section. 50D0103 RCMT Rel 1 02/10/2006 Page 3 of 7 Ambient Technologies...
- Page 4 10 seconds if no key is pressed. The transmitter will send an off signal after reset. 4. After reset the transmitter is operating in manual mode. The room temperature is shown as above. 50D0103 RCMT Rel 1 02/10/2006 Page 4 of 7 Ambient Technologies A Division Of Monessen Hearth Systems...
- Page 5 When the battery voltage drops to a certain level, which is checked once a minute, the low-battery LED will start to blink and the receiver will automatically turn off the appliance. The receiver will not function again until fresh batteries are installed. 50D0103 RCMT Rel 1 02/10/2006 Page 5 of 7 Ambient Technologies...
-
Page 6: Troubleshooting
3. Receiver cannot detect 1. Receiver is installed in an 1. Make sure the receiver is not located inside signal. enclosure. to tight of an enclosure. 50D0103 RCMT Rel 1 02/10/2006 Page 6 of 7 Ambient Technologies A Division Of Monessen Hearth Systems... - Page 7 Answers to any questions regarding our limited warranty may be obtained by writing our corporate offices. Ambient Technologies warrants each new Ambient Technologies remote control against any defects that are due to faulty material or workmanship to the original owner, for a period of five years after the original date of purchase.
