Operating instructions

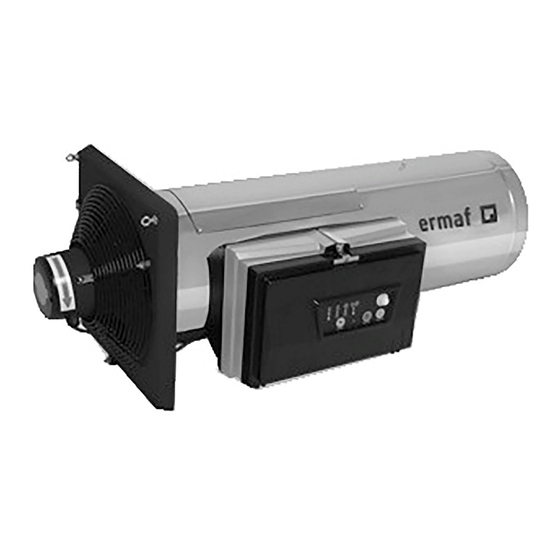

Heater GP 40 ACU
Contents
Contents
Heater GP 40 ACU . . . . . . . . . . . . . . . . . . . . . .
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the usage . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tightness test . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connection diagram. . . . . . . . . . . . . . . . . . . . . . 4
Burner Chip Card (BCC) . . . . . . . . . . . . . . . . . . 6
Setting the switch-on delay . . . . . . . . . . . . . . . . 6
Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . 6
ACU control panel . . . . . . . . . . . . . . . . . . . . . . . 7
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the heater . . . . . . . . . . . . . . . . . . . . . 8
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Assistance in the event of malfunction . . . .
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 8
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical data . . . . . . . . . . . . . . . . . . . . . . . .
Declaration of conformity . . . . . . . . . . . . . . .
Logistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Goods return form . . . . . . . . . . . . . . . . . . . . . 4
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
E
UA
CN
Safety
Safety
Please read and keep in a safe place
Please read through these instructions
carefully before installing or operating. Following the
installation, pass the instructions on to the opera-
tor. This unit must be installed and commissioned
in accordance with the regulations and standards
in force. These instructions can also be found at
www.docuthek.com.
Explanation of symbols
▷
= Instruction
Liability
We will not be held liable for damage resulting from
non-observance of the instructions and non-com-
pliant use.
Safety instructions
Information that is relevant for safety is indicated in
the instructions as follows:
DANGER
Indicates potentially fatal situations.
WARNING
Indicates possible danger to life and limb.
CAUTION
Indicates possible material damage.
All interventions may only be carried out by qualified
gas technicians. Electrical interventions may only be
carried out by qualified electricians.
Persons under the age of 18 as well as persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge are not allowed
to use, clean or service this device. Staying near the
device or its use is prohibited, even if said persons are
supervised or have been instructed on the safe use of
the devices and are aware of the resulting dangers.
Conversion, spare parts
All technical changes are prohibited. Only use OEM
spare parts.
GB-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ermaf GP 40 ACU
Summary of Contents for ermaf GP 40 ACU
-
Page 1: Table Of Contents
Heater GP 40 ACU . . . . . . . . . . . . . . . . . . -
Page 2: Checking The Usage
Checking the usage Installation GP 40 DANGER Heater with direct, open combustion for animal sheds Danger of death! Gases are generated during the and horticultural greenhouses. Depending on the storage of slurry which remain partly dissolved in type and setting, the heater can be operated with the liquid. -
Page 3: Tightness Test
Connecting the gas supply ▷ If the heater is suspended on chains, use an approved flexible gas hose. Disconnect the system from the electrical power supply. Shut off the gas supply. Remove the sealing plug at the inlet tube of the gas combination control CG. -
Page 4: Connection Diagram
Connection diagram Connecting the room thermostat ▷ The burner control unit is fitted with coded con- CAUTION nectors to prevent them being mixed up. To avoid damage to the heater, please observe the following: Potentiom- – Provide post-cooling for the heater. The heater eter requires a continuous supply of 230 V ... - Page 5 max. 5 A max. 2 A max. 264 V max. 264 V Connecting multiple heaters to a room Remote reset Reset thermostat or an environmental control N LT LV N LT LV MFA 1 MFA 2 computer X1 Gas X1 Gas 5 Connect a room thermostat for 230 V AC.
-
Page 6: Burner Chip Card (Bcc)
▷ MFA , status signal (max. 2 A) 6 After completing the wiring, close the cover Possible parameterization options: and the housing cover on the burner control – Fault NO (default setting): unit again. For example, the input for a horn can be set to 7 Switch on the power supply. -
Page 7: Acu Control Panel
ACU control panel 7-segment display: To display error codes, the flame signal or the number of operating cycles. The decimal point indicates that another figure follows. Error code MODE RESET ON/OFF RESET button AUTO Flame signal +AUT ON/OFF MODE (RESET) ... -
Page 8: Setting Mode
Setting mode Adjusting the heater AUTO ▷ Press and hold the MODE selection button when +AUT the heater is switched off to go to Setting mode. Burner gas pressure p ON/OFF MODE (RESET) = Inlet pressure • Switch off the heater ▷... - Page 9 Flame signal G+ K gas* ▷ The flame signal can be displayed while the Wobbe index [MJ/m Gas type [mbar] min. max. burner is operating. G+ K gas 43.46 45.3 13.5 Press the RESET button to display the flame * see page 23 (The Netherlands) signal.
-
Page 10: Cleaning
▷ Do not spray water or chemical cleaning agents Cleaning directly into the space between the fan shaft/ impeller wheel and motor. Do not clean the fan CAUTION shaft/impeller wheel with a high-pressure cleaner. To ensure that no damage occurs during operation and cleaning, please observe the following instruc- tions. - Page 11 ▷ If the vane is moved a little in the direction of the arrow, a quiet click can be heard. This means that the switching path is correct. klick Assembly ▷ Check the burner is functioning faultlessly in nor- mal operation, see page 20 (Checking the safety functions and burner operation).
-
Page 12: Assistance In The Event Of Malfunction
Internal connection diagram Assistance in the event of malfunction WARNING Safety temperature limiter (STL) To avoid harm to persons and animals or damage to the heater, please observe the following: – Electric shocks can be fatal! Before working on possible live components, ensure the unit is disconnected from the power supply. - Page 13 Press the RESET button to reset. The unit then ? Error code P. and 2 flash alternately and the reverts to the last operating mode selected. light is red? ▷ Possible faults: Display Fault type Flame fault Air fault ! During three consecutive restarts, the gas pres- Temperature fault sure switch has tripped during the safety time...
- Page 14 ? Error code A. and 3 flash alternately? • Check the cable connection, cable and terminal boot for damage or moisture. The terminal boot must be fitted correctly. • Check the yellow and green burner ground cable for corrosion and to ensure it is firmly connected. ! The vane switch has not switched on 15 s after ! Air in the gas pipe.
- Page 15 • Check the yellow and green burner ground cable ? Error code C. and 1 flash alternately and the for corrosion and to ensure it is firmly connected. light is red after 5 minutes? ? Error code F. and 2 flash alternately and the light is red? ! Signal from safety temperature monitor (STM).
- Page 16 ? Error code C. and 9 flash alternately and the ? Error code E. and 4 flash alternately and the light is red? light is red? ! Temperature sensor incorrectly connected. ! Limits for fixed parameters not observed. • Check contact at connector X22. •...
- Page 17 ? Error code U. and 2 flash alternately and the ? A circulating dash is displayed rather than light is red? an error code? ▷ After switching on the voltage, a circulating dash is displayed. ! Voltage supply is above the limit (programmable, e.g.
-
Page 18: Maintenance
▷ The vane must not be bent. Maintenance 4 Clean the fan and vane using a cloth. CAUTION To ensure that no damage occurs during operation and maintenance, please observe the following instructions. Otherwise, injuries or damage to the device may occur and/or the function of the device may be impaired. - Page 19 ▷ The device may only be restarted if all safety Check the nozzle for signs of damage and dirt and clean if required. devices have been installed. SW 21 SW 22 SW 21 4 Check the safety functions before commission- 8 Check the electrodes for dirt and if necessary, ing, see page 20 (Checking the safety func- clean using a cloth.
-
Page 20: Checking The Safety Functions And Burner
Checking the safety functions and Accessories burner operation Room thermostat Use a room thermostat with a hysteresis of ± 1°C, WARNING 230 V, Type TH 215. If these checks are not carried out, the gas valves might remain open allowing non-combusted gas to escape. Risk of explosion! AUTO Safety functions + AUT... - Page 21 Connection kit for natural gas Manual valve and gas hose to connect the gas combination control CG to the gas supply. R ½" 1 , 4 0 Rp ½" R ½" Connection kit: R ½" threaded connection, total length = 1.50 m, Order No.: N52600073 Connection kit for propane GP 14/GP 40 Rp ½"...
-
Page 22: Spare Parts
N70300007 Burner Chip Card (BCC) for GP series N70300075 Angle flange, outlet, for GP 40 ACU N70300073 Gas combination control CG 10 for GP 40 ACU N70300088 Complete cable kit for GP ACU N70300080 Angle flange, inlet, for GP 40 ACU... -
Page 23: Technical Data
This means the device is “suitable for G+ gas and H Technical data gas or proven to be suitable for G+ gas and proof Gas types: II2ELL3B/P, has been provided that it can be converted for use natural gas H and L (gases of category 2); with H gas”... -
Page 24: Goods Return Form
Please send returns back to your supplier. Contact Contact Elster s.r.o. Nám. Dr. A. Schweitzera 194 916 01 Stará Turá Slovakia Tel. +421 32 775 26240 We reserve the right to make technical modifications Fax +421 32 776 2658 in the interests of progress. orders.ermaf@elster.com, www.ermaf.nl GB-24...
