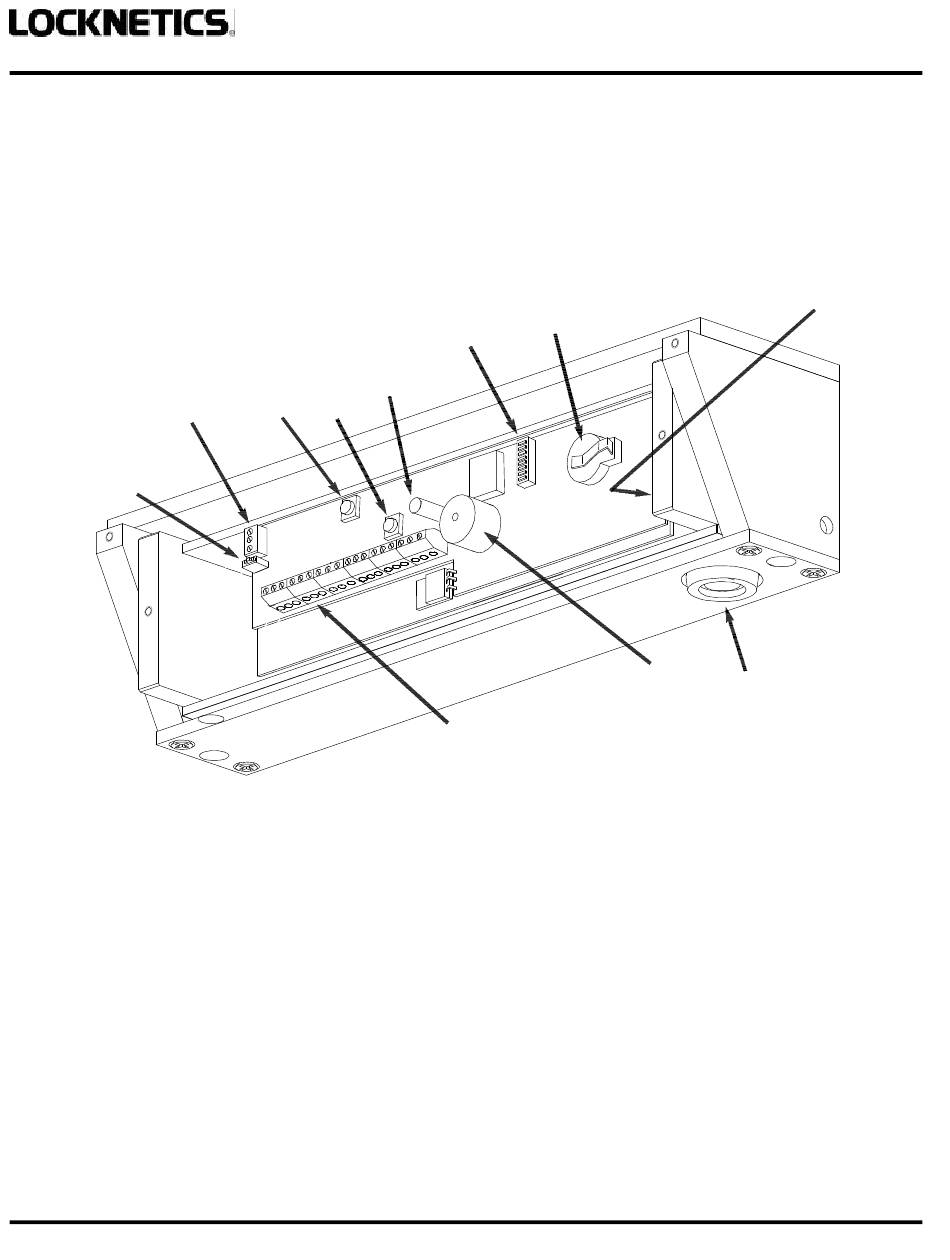

PC BOARD LAYOUT AND FEATURES:

Connect wiring to main terminal strip. If the unit is to be used with a KP70+ series keypad or TR83/84 TouchEntry Key reader (and the required 100CAB adapter cable)
or a TR80 or TR81 see the wiring information on page 12 and the programming information starting on page 14. After wiring, time delay setting, initialization and pro-
gramming have been completed, secure the cover onto the lock.
See next page (9)for terminal layouts and dipswitch settings. Not all terminals will be used in all cases. Note that to get the correct outputs the correct options must have
been ordered and the dipswitches set properly.
IMPORTANT: DO NOT APPLY POWER UNTIL ALL CONNECTIONS HAVE BEEN MADE AND DIPSWITCHES SET AND VERIFIED.
ACCESS CONTROL
TERMINAL BLOCK
(100CAB)
KEYPAD
OR
TEK
READER INPUT
SW-1
FIRE ALARM
INTERFACE
-
CONFIGURA
TION SWITCH
SW-1
SW-2/SW-3
SW-4
Main Terminal Block
Access Control Terminal Block Used to interface Locknetics 3-wire cable/keypad system (100CAB adapter cable with keypad) or to hook up a TR80 or TR81
Horn
LED
On-Board TEK reader
ATR chip/socket
ATS (Anti-Tamper Switch)
FORM 10111 Rev. C
-
LED
SW-2
SW-3
Fire Alarm Interface dipswitch. Configures whether there is a normally open or a normally closed input from the fire panel (see next
page for setting dipswitches).
These switches are used to set the various time delays and for memory reset. (See "Time delay settings" on page 14.)
This bank of 8 dipswitches is used to configure various features of the system. See next page for setting dipswitches. Note that they
are numbered from 1 (on the bottom) to 8 (on the top) and Left is ON and right is OFF.
This terminal block has 18 screw terminals. See page 10 for description of terminal functions and wiring information.
TouchEntry Key reader.
Provides local audible indication of alarm status and programming signals. (See chart on page 20 "Table of Outputs".)
Tri-color LED (red, yellow, green) used to provide local visual indication of alarm status. (See chart on page 20 "Table of Outputs".)
If TouchEntry keys are to be used for egress control and alarm reset the on-board TEK reader is provided.
(Requires computer management) The ATR option provides a record of past access, alarm, and reset events along with the time and
person. If the chip must be added in the field, it must be installed in the socket with the larger side facing away from the PC board.
Once installed, memory will need to be erased before the lock will recognize the chip. See page 14 for memory reset information.
The ATS option monitors the status of the electronics cover. When the cover is removed the unit goes into alarm. It must be reset by
entering a valid code or TEK, or by entering a reset input into terminals 17 &18. (NOTE: on 101+DB and 101-2+ models the ATS on
the slave unit is not wired directly into the PC board, rather, it has form C contacts with flying leads.)
MAGNETIC LOCKING SYSTEM
ATR
CHIP
( )
SW-4
OPTIONAL
( 1-8)
DIP SWITCHES
MAIN TERMINAL BLOCK
8
101+ DELAYED EGRESS
HORN
-
ON BOARD
TEK
READER
ATS
-
ANTI TAMPER
SWITCH LOCATION
( -
OPTIONAL NOT
)
SHOWN
