INSTALLATION PROCEDURE
1. PREP DOOR AND FRAME (FOR STANDARD AND 101-2+ UNITS):
The paper template is the preferable way to prepare the door and frame. If for any reason it is not available, use the dimensions shown below to mark the centerlines of
the holes. Note that the layout is not symmetrical with respect to the centerline of the armature. For 101-2+ units, it does not matter which (master or slave) magnet is
installed on which door. Make sure that wiring can be pulled from one magnet to another. Prep may be shifted to accommodate vertical rod exit devices if necessary.
A. The door should be closed and latched. You should be at the "push" side. Locate the paper template and fold it along the perforated line with the printed
sides facing each other. Place the template against the frame stop and the door. Tape template in place.
B. On the frame stop mark the location of holes "A" from the template. For heavy gauge or reinforced frames, drill and tap for #10-24 thread. For standard
frames, drill 5/32" dia. for #10 self tapping screws. Locate and drill the 3/4" dia. wire hole. (The 3/4" dia. hole is oversized to the 5/8" dia. mounting plate hole to allow the
full range of adjustability.)

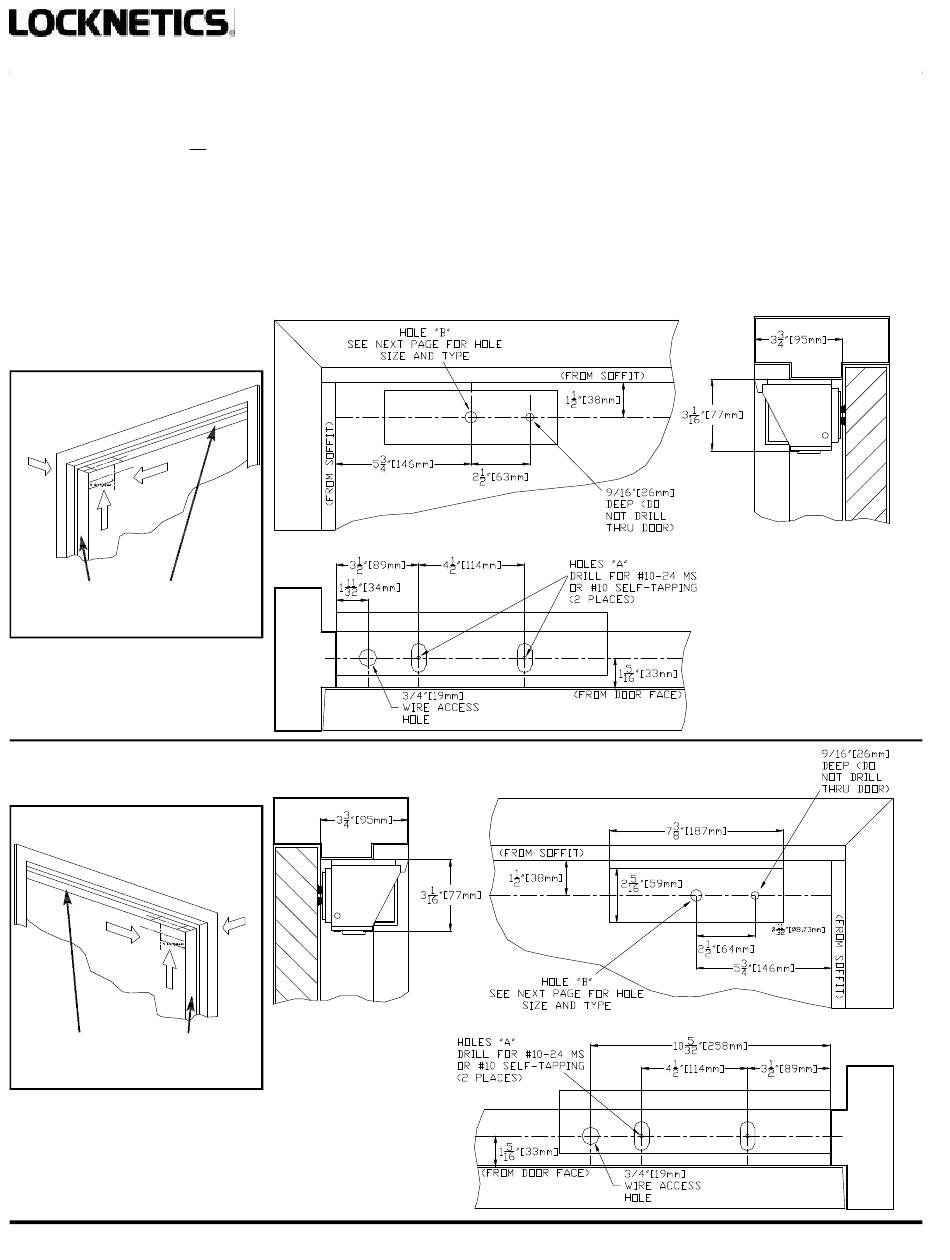

C. On the doors, mark the locations of all holes. Drill (2) 1/4" dia. holes per template for armature guide pins. Armature mounting hole "B" is determined by the
door type (see below).
LH or RHR
VIEW KEY
A
C
B
All dimensions for prep are taken from
the door jamb (soffit) - not the edge of
the door.
RH or LHR
VIEW KEY
C
B
All dimensions for prep are taken from
the door jamb (soffit) - not the edge of
the door.
