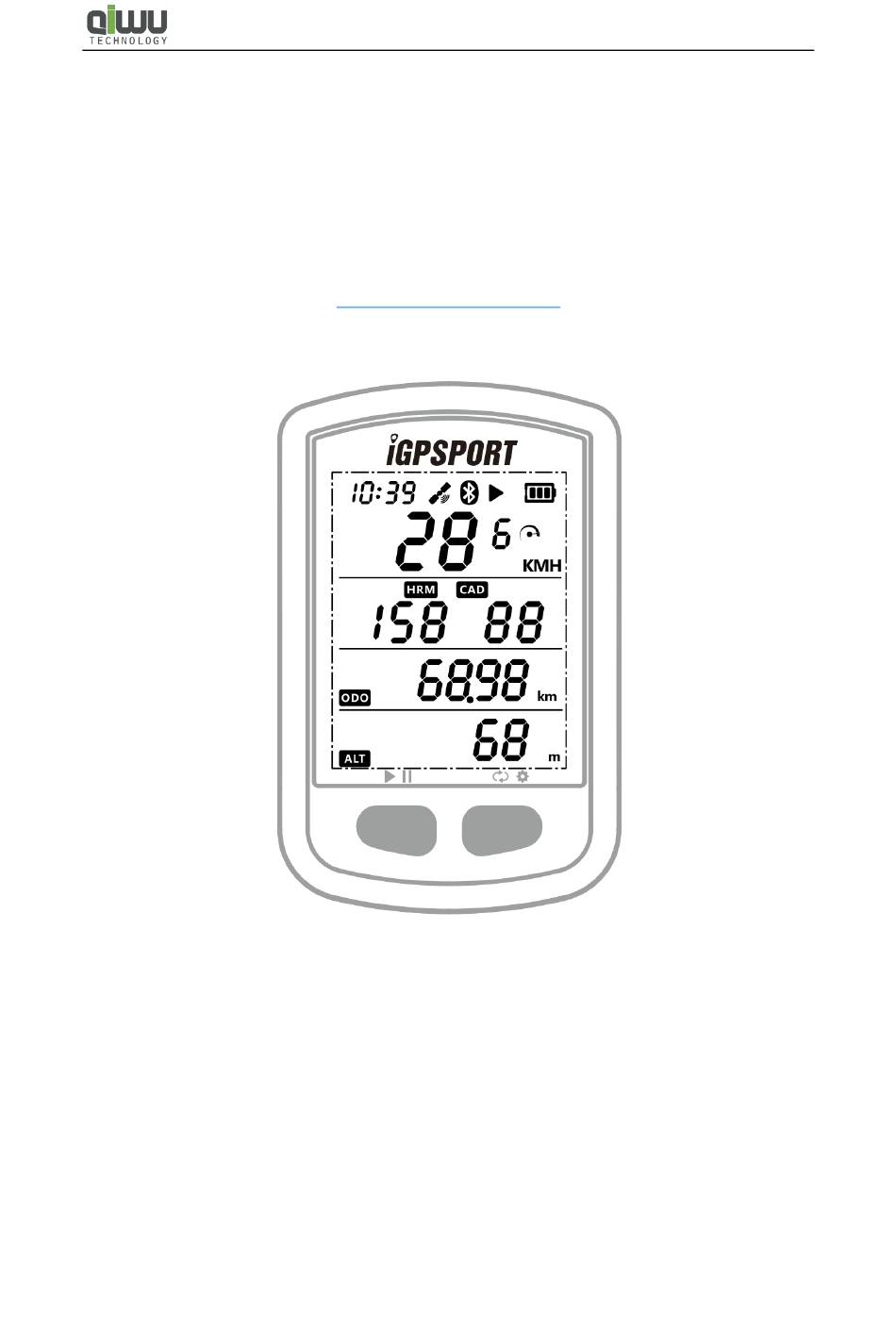

- Page 1 USER MANUAL iGS10 GPS CYCLING COMPUTER www.igpsport.com WUHAN QIWU TECHNOLOGY CO., LTD...
-
Page 2: Standard Package Includes
1. STANDARD PACKAGE INCLUDES iGS10 x1 Micro USB Cable x1 User Manual x1 Standard Bike Mount x1 Bike Mount Pad x1 O-Ring Band x2 2. BUTTONS Display in metric unit Display in imperial unit Power on Select left button Record/Pause Select left button to Record/Pause Power off Hold left button more than 2 seconds... -
Page 3: Status Icons
STATUS ICONS Full battery Mid-capacity battery Low battery out of battery and will shut off automatically soon Recording Pause No satellite signals Normal satellite signals Strong satellite signals Bluetooth Speed sensor 3. INSTALLATION OF BIKE MOUNT... -
Page 4: Acquiring Satellite Signals And Time Setting
4. ACQUIRING SATELLITE SIGNALS AND TIME SETTING Please make sure iGS10 is outdoor and under a clear view of the sky. Usually it may take 5 to 120 seconds to locate satellite signals. Remain stationary when acquiring satellite signals. The time and date will be calibrated automatically after locate satellite signals. 5. - Page 5 iGS10 can be used with ANT+ sensor as below: heart rate monitor, cadence sensor, speed sensor, cadence and speed combined sensor When first time using ANT+ sensors Please search the ANT+ sensors Steps： 1) Wake up ANT+ sensors. Heart rate monitor should be worn directly on skin just around the chest Cadence sensor should be installed on the crank arm of no-drive side, then rotate the crank arm Speed sensor should be installed on the top of front wheel hub, then rotate the front...
- Page 6 4) Select left button to enter E1 mode when E1 is flashing. 5) iGS10 will search ANT+ sensors automatically. 5) When sensors are connected, the icons will light up. 6) iGS10 will exit searching sensors mode in 20 seconds. Note： 1) iGS10 will automatically connect the sensors that have been connected.
- Page 7 Note: 1) The unit of wheel circumference is mm. 2) The setting will be automatically saved if no operation in seconds. Common wheel size and circumference: Wheel Size L (mm) Wheel Size L (mm) 12 × 1.75 26 × 1.75 2023 14 ×...
- Page 8 SETTING TIME ZONE (SETTING MODE E3) Default time zone: UTC/GMT+08:00. Steps: 1) Hold right button more than 2 seconds to enter the setting mode. right button Select to scroll setting mode from E1 to E4. 3) Select left button to enter E3 mode when E3 is flashing. right button Select left button to change digits of hour and minute, select to change...
- Page 9 Hold right button more than 2 seconds to save and exit. Note: The setting will be automatically saved if no operation in seconds. 11. CONNECTING TO SMART PHONE APP Android Smart Phone Requirements: Android 5.0 or above, built-in Bluetooth 4.0 BLE. Download "iGPSPORT"...
- Page 10 3) Hold left and right button at the same time more than 5 seconds until “FA” display on the screen. 4) Disconnect iGS10 to power adaptor. Note: Factory reset will clear out all data, please backup activity files before factory reset. 14.
- Page 11 We reserves the right to change or improve our products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. All rights reserved by Wuhan Qiwu Technology Company, Ltd.
