Induction Dynamics SolidDrive SD1 Installation & Use Manual page 3

2.
STEP
3.
STEP
Make the electrical connections.
Make the electrical connection between the SolidDrive
SD1 and the speaker cable using the Eurostyle connector
attached to the end of the SolidDrive SD1 audio cable.
The polarity of the wiring is clearly indicated (Figure 2).

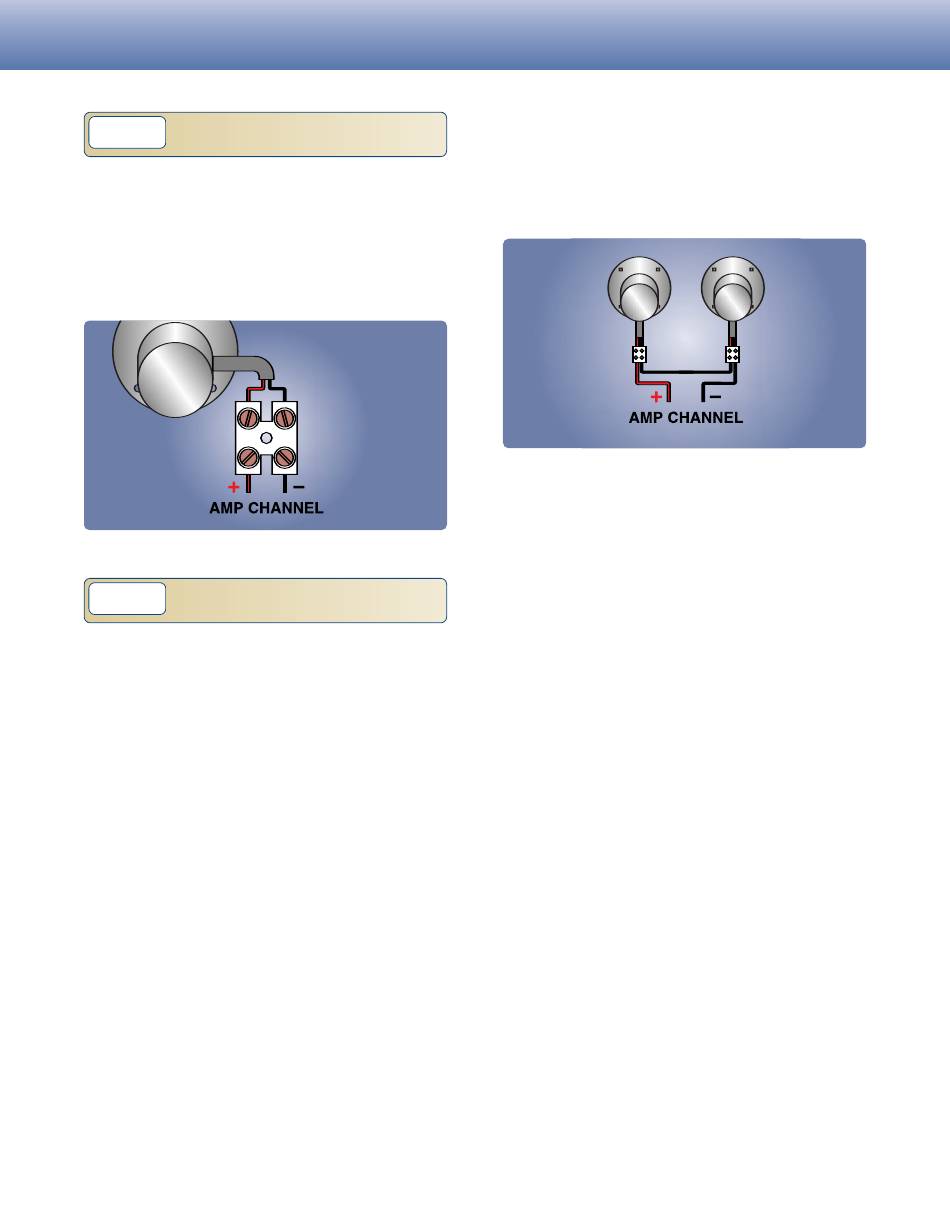

Figure 2. Eurostyle connector
Equalize the SolidDrive SD1 sound system
The surface material plays a key role in the system's
sound performance. To ensure an optimal listening
experience the installer MUST equalize the SolidDrive
SD1 system. Equalization is accomplished by using the
SolidDrive Wood Passive Equalization Module or using
the auto equalization feature available on some
receivers. *Additional information about the
SolidDrive Drywall Passive Equalization Module can
be found on the back cover of this guide.
INSTALLATION IS NOW COMPLETE – ENJOY THE
SOLIDDRIVE SD1 SOUND SYSTEM
Now that you've completed the installation process
and equalization, you can enjoy the True Audio
Perfection of the Induction Dynamics SolidDrive
SD1 sound system.
HIGH OUTPUT INSTALLATIONS
For installations requiring high output, such as a large
conference table or other high output type applications,
two SolidDrive SD1's should be used for each of the
high output channels. For example the left, right, and
center channel of a home theater or the left and right
channels of a high output stereo system. The two
SD1's should be wired in series for each of the high
output channels (Figure 3). For maximum output each
SolidDrive channel should have available at least 20
square feet of surface area.
Figure 3. SolidDrive SD1's wired in series for high output installations
