Induction Dynamics SolidDrive SD1 Installation & Use Manual page 2

INSTALLATION OF SOLIDDRIVE
SD1 ON WOOD, LAMINATE,
AND COMPOSITE SURFACES
By utilizing these three basic installation steps,
you can install the SolidDrive SD1 on wood,
laminate, and composites on desks, counter
tops, conference room tables and other porous
surfaces.
Getting Started with SolidDrive
What's included with the SolidDrive SD1 for
installation on wooden surfaces
A SolidDrive SD1 consists of:
One (1) SolidDrive SD1 unit and attached wiring
harness with Eurostyle connector. *No additional
mounting materials are needed.
For wooden surfaces: The SolidDrive SD1 is
designed with an oversized mounting base which is
pre-drilled for mounting to wood surfaces.
*Installation requires four (4) wood screws up to
#9 (supplied by the installer).
1.
STEP
Mount the SolidDrive SD1 to wood,
laminate, and composite surfaces.
The SolidDrive SD1 can be installed directly to
wooden surfaces to deliver high-quality sound. Even
if your existing offices or conference rooms aren't
wired for audio, the SolidDrive SD1 provides a
convenient solution and installs underneath desks,
counter tops and conference room tables so the sound
source is not visible.
When using the SolidDrive SD1 for a wooden surface
be sure to order it without the mounting bracket
which is for in-wall and in-ceiling installations only.
The oversized mounting base on the SolidDrive SD1
allows it to be screwed directly to the underside of
furniture. For maximum output each SolidDrive
channel should have available at least 20 square feet
of surface area.
The SolidDrive SD1 should be surface mounted with
the oversized mounting base facing the mounting area.
The mounting base is the audio output side opposite the
label. For surfaces made of wood, laminates, and
composites the SolidDrive SD1 should be screwed
directly to the surface.

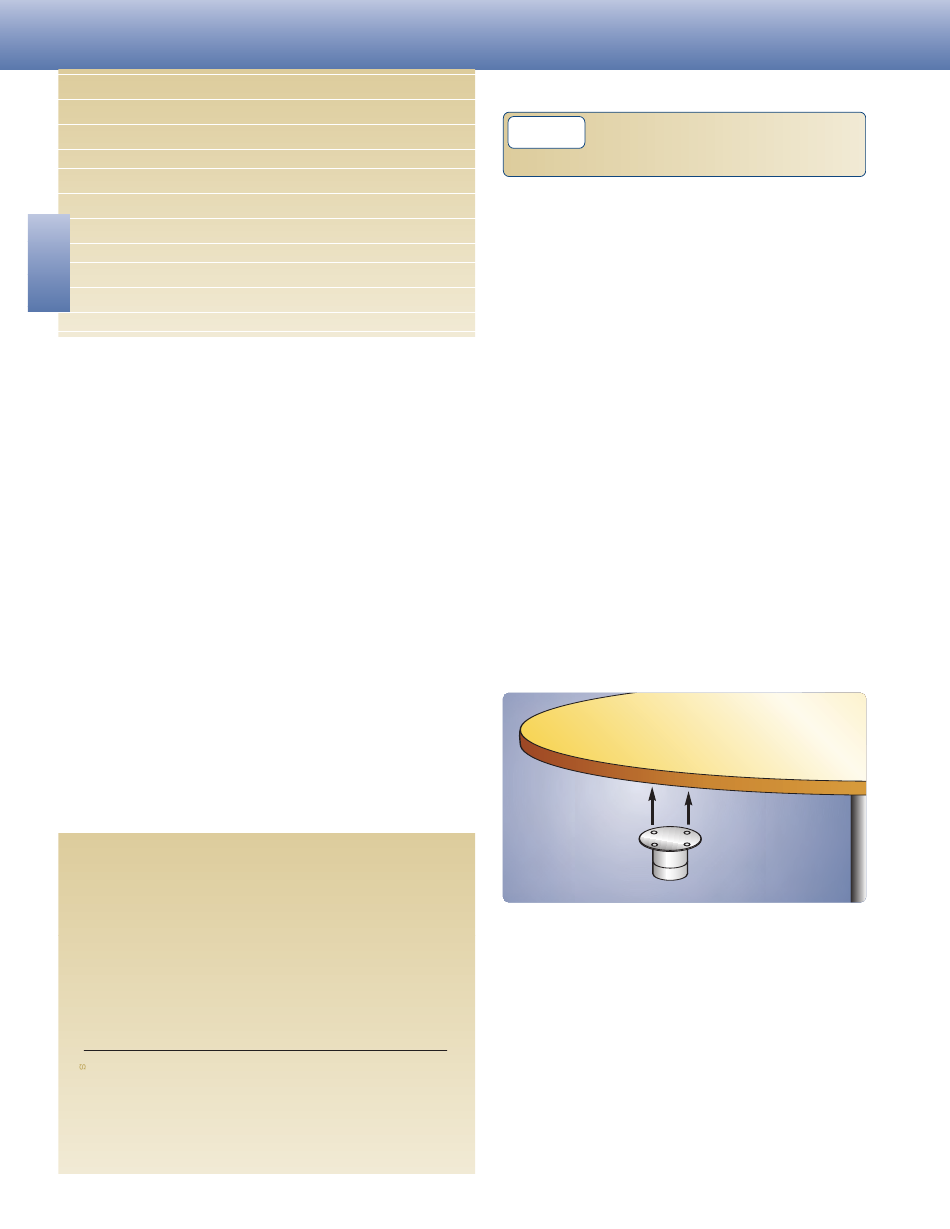

Figure 1. Mounting the SolidDrive SD1 to a table
Once you have determined where to mount the
SolidDrive SD1 use the appropriate length wood
screws to attach it securely to the surface. The best
mounting location is typically out of sight on the
underside or back of desks, counter tops, conference
tables or other office/home furniture. The four
pre-drilled mounting holes on the SolidDrive SD1
oversized mounting base will hold wood screws as
large as #9.
Some installations may require that pilot holes be
drilled into the surface material due to it's hardness
especially if larger, course thread screws are used.
