Vonets VAP11G-300 Quick Setting Manual

I.

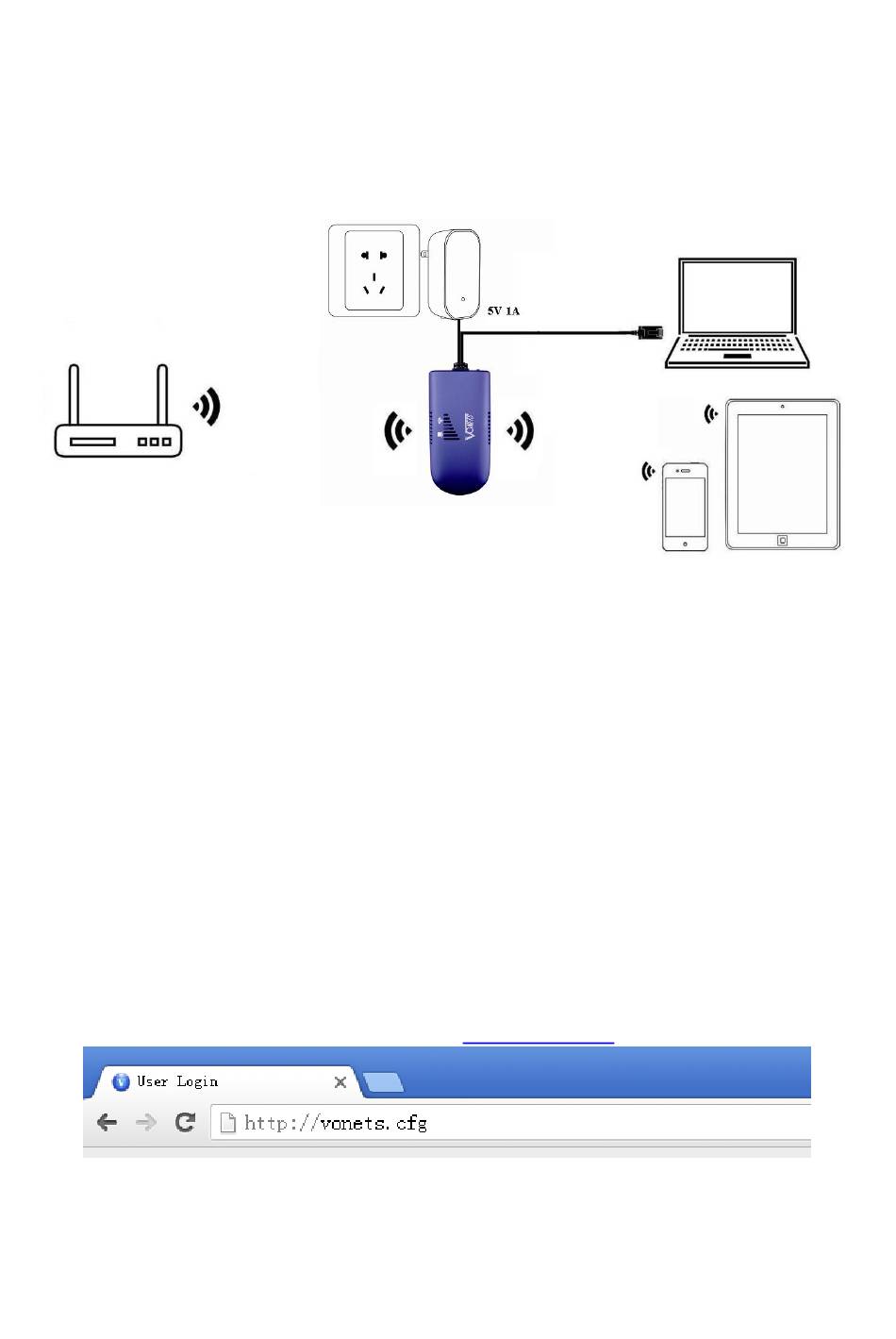

Connect Method:

II.

Set Network:

1. Power on VAP11G-300（5V/1A）;
2. Terminal device connect to VAP11G-300:
① Computer connect the network port of VAP11G-300 by wired;
② Or connect WiFi signal of VAP11G-300 by Smart phone and computer, its
parameters as below:
WiFi SSID:VONETS_******
WiFi password: 12345678
3. Open browser, input configured address:
4. Input user name and password, both are admin, click "Login" to enter configured
page:
VAP11G-300 Quick Setting Guide
http://vonets.cfg
1
( or 192.168.251.254);
