PRODUCT DATA

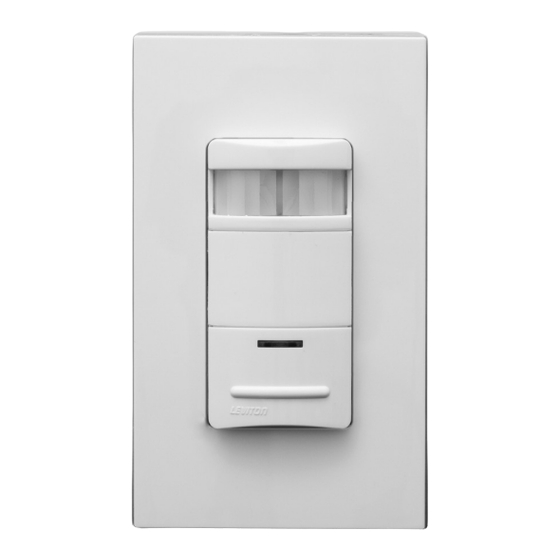

Decora Wall Switch PIR Occupancy
®
Sensor with Self-Adaptive Technology
ODS15-ID

BASIC OPERATION

The ODS15-ID uses passive infrared (PIR) detec-
tion technology to monitor a room for occupancy
through a segmented Fresnel lens. This special-
ized lens divides the field-of-view into sensor
zones. When a person passes into or out of a
sensor zone, the sensor detects motion and
switches the lights ON. The lights will remain ON
as long as there is an occupant moving through
the sensor zones.
A delayed-OFF time adjustment prevents the
lights from switching OFF when the space is
occupied. In order to keep the lights ON, a person
must pass through a sensor zone at least once
during the selected delayed-OFF time interval. An
LED indicator blinks each time the unit detects
activity in the sensor zones. When the space
being monitored by the sensor is unoccupied for
the length of time chosen as the delayed-OFF
interval, the unit will beep 3 times. Ten seconds
after the last warning beep, the unit will switch
the lights OFF.
Leviton Mfg. Co., Inc. Lighting & Energy Solutions
201 N. Service Rd. Melville, NY 11747-3138 Tech Line: 1-800-824-3005 Fax: 1-800-832-9538 www.leviton.com/les
© 2011 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

APPLICATIONS

Leviton's Cat. No. ODS15-ID Wall Switch Passive
Infrared (PIR) Occupancy Sensor is used to provide
automatic lighting control for energy savings and
convenience in a variety of commercial applica-
tions, including:
• Small offices • Heavier loads
• Private Restrooms • Lounges
• Storage areas • Classrooms
• Conference rooms
The ODS15-ID can be used for automatic switching
of incandescent lamps and low-voltage lighting
with electronic and magnetic ballasts. The unit
also features a manual override switch that can
be used to keep lights OFF while an area is occu-
pied, which may be desired in conference rooms
and other areas during slide or film presentations.
The unit installs in place of a single-pole wall
switch and fits in a standard wall box. The unit
requires a ground connection.
