Leviton Decora ODS10-IQ Installation Instructions

WARNINGS AND CAUTIONS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• DO NOT control a load in excess of the specified ratings. Damage to the unit, fire, electric shock, personal injury or death can occur.
Check your load ratings to determine suitability for your application.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
TOOLS NEEDED TO INSTALL YOUR SENSOR
Slotted/Phillips Screwdriver Electrical Tape Pliers
Cutters Small Slotted Screwdriver
FEATURES
• Auto ON/Auto OFF
• Leviton's Decora ® style design
• Switches electronic ballasts
• Low Profile, tamper-resistant lens
• Ambient Light Override
DESCRIPTION

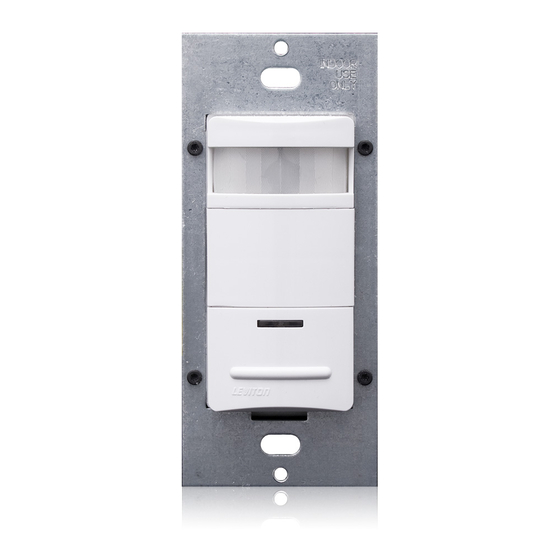

Leviton Cat. No. ODS10-IQ, Designer Wall Switch Occupancy Sensor,
is designed to detect motion from a heat-emitting source (such as
a person entering a room) within its field-of-view (monitored space)
and automatically switch lights ON and OFF. The controlled lights will
remain ON until no motion is detected and the scheduled time-delay
has expired.
Cat. No. ODS10-IQ is UL and cUL listed.
The Occupancy Sensor senses motion within its coverage area of
2100 sq. ft (195.1 m 2 ) maximum and controls the connected lighting.
This is a self-contained device which provides sensing and light
control. The Occupancy Sensor will turn the lights ON when motion
is initially detected, and keep the lights ON for as long as motion is
detected.
The Occupancy Sensor uses a small semiconductor heat detector that
resides behind a multi-zone optical lens. This Fresnel lens establishes
dozens of zones of detection. The sensor is sensitive to the heat
emitted by the human body. In order to trigger the sensor, the source
of heat must move from one zone of detection to another. The device
is most effective in sensing motion across its field-of-view, and less
effective sensing motion towards or away from its field-of-view (refer
to Field-of-View diagrams). Keep this in mind when selecting the
installation location (refer to Field-of-View diagrams).
Note that occupancy sensors respond to rapid changes in
temperature, so care should be taken not to mount the device
near a climate control source (i.e. radiators, air exchanges, and air
conditioners). Hot or cold drafts will look like body motion to the device
and will trigger it if the unit is mounted too close. It is recommended
to mount the Occupancy Sensor at least 6 ft. away from then
climate control source. The device can be mounted in a single gang
wallbox.
In addition, it is also recommended NOT to mount the Occupancy
Sensor directly under a large light source. Large wattage bulbs
(greater than 100W incandescent) give off a lot of heat and switching
the bulb causes a temperature change that can be detected by the
device. Mount the Occupancy Sensor at least 6 ft. away from large
bulbs. If it necessary to mount the device closer, lower the wattage of
the bulb directly overhead.
Incandescent - 800W - 6.67A @ 120V - Fluorescent - 1200VA - 10A @ 120V - Fluorescent - 2700VA - 10A @ 277V - Supplemental - 1/4hp - 5.8A @ 120V
Compatible with electronic and magnetic ballasts, electronic and magnetic low-voltage ballasts, incandescent lamps, and fans.

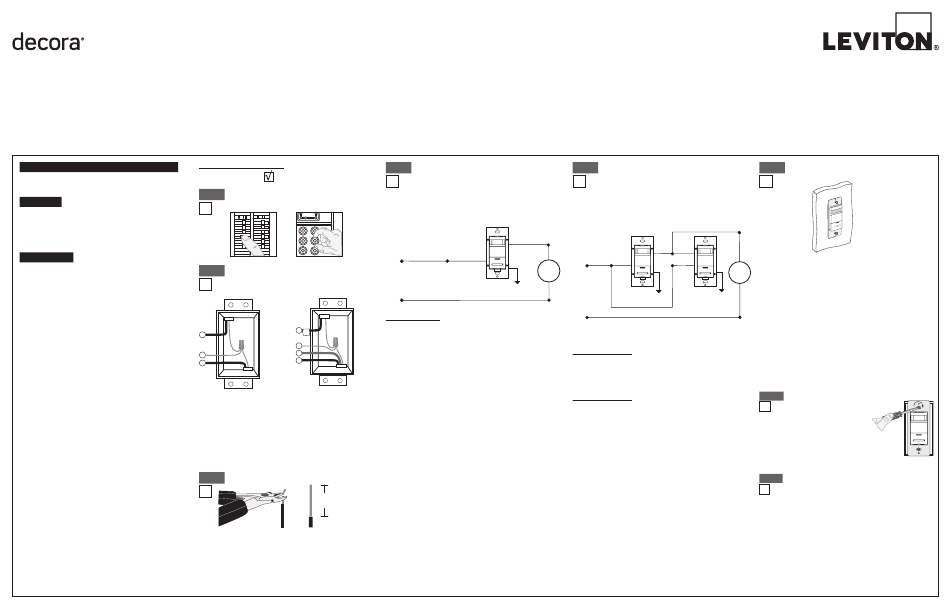

INSTALLING YOUR SENSOR
NOTE: Use check boxes when Steps are completed.
WARNING:
TO AVOID FIRE, SHOCK, OR DEATH; TURN
Step 1
OFF POWER at circuit breaker or fuse and test that power is
off before wiring!
OFF ON
OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
Identifying your wiring application
Step 2
(most common):
1
1
2
3
2
4
3
3-Way
Single-Pole
1. Line or Load (See important* instruction)
1. Line (Hot)
2. Ground
2. Ground
3. First Traveler – note color
3. Load
4. Second Traveler – note color
IMPORTANT: For 3-Way applications, note that one of the screw
terminals from the old switch being removed will usually be a different
color (Black) or labeled Common. Tag that wire with electrical tape and
identify as the common (Line or Load) in both switch wall boxes.
Preparing and connecting wires:
Step 3
Strip Gage
9/16"
(measure bare
(1.4 cm)
wire here)
Cut
(if necessary)
• Pull off pre-cut insulation from sensor leads.
• Make sure that the ends of the wires from the wall box are straight
(cut if necessary).
• Remove insulation from each wire in the wall box as shown.
Single Pole (One Location) or Multi-Location
Designer Wall Switch Occupancy Sensor
Cat. No. ODS10-IQ
No Minimum Load Required
INSTALLATION INSTRUCTIONS
WARNINGS AND CAUTIONS:
• Do not install this unit to control a receptacle.
• Do not touch the surface of the lens. Clean outer surface with a damp cloth only.
• The Cat. No. ODS10-IQ occupancy sensor is intended to replace a standard light switch.
• Use this device ONLY WITH COPPER OR COPPER CLAD WIRE.
Installing your Sensor – Single-Pole Application:
Step 4
NOTE: The Cat. No. ODS10-IQ requires a ground wire to operate
properly. If there is no ground wire, ensure electrical box is grounded and
attach ground wire to box with a screw. If the ground wire is floating this
device will not work.
Sensor
Blue
Black
Hot (Black)
Black
Load
Line
120-277VAC
50/60 Hz
Green
White
Ground
Neutral (White)
WIRING SENSOR:
Connect wires per WIRING DIAGRAM as follows: Screw wire connector
on clockwise making sure there are no bare conductors below the wire
connectors. Secure each connector with electrical tape.
• Green or bare copper wire in wall box to Green lead.
• Line Hot wall box wire to Black lead.
• Load wall box wire to Blue lead.
NOTE: Allow 1 minute for warm-up after connecting and energizing.
Installing your Sensor – 3-Way Wiring Application:
Step 5
NOTE: The Cat. No. ODS10-IQ requires a ground wire to operate
properly. If there is no ground wire, ensure electrical box is grounded and
attach ground wire to box with a screw. If the ground wire is floating this
device will not work.
Sensor 1 Sensor 2
Blue Blue
Black
Hot
(Black)
Black
Black
Load
Line
120-277VAC
Green Green
50/60 Hz
Ground
Ground
White
Neutral (White)
NOTE: Either sensor can turn the lights ON. Both sensors must time out
to OFF.
WIRING SENSOR 1:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Sensor 1 Green lead.
• Line Hot (common) wall box wire identified (tagged) when removing old
switch and First traveler from Sensor 2 to Sensor 1 Black lead.
• Second Traveler wall box wire from Sensor 2 to Sensor 1 Blue lead.
WIRING SENSOR 2:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Sensor 2 Green lead.
• Load wall box wire identified (tagged) when removing old switch and
Second Traveler from Sensor 1 to Sensor 2 Blue lead.
• First Traveler Line Hot from Sensor 1 to Sensor 2 Black lead.
NOTE: Allow 1 minute for warm-up after connecting and energizing.
DI-02X-ODS10-00A
Testing your Sensor prior to completely
Step 6
mounting in wall box:
NOTE: Dress wires with a bend to relieve stress when mounting
device.
• Position all wires to provide room in outlet wall box for device.
• Partially secure device using long mounting screws provided.
• Restore power at circuit breaker or fuse.
NOTE: To avoid PERMANENT DAMAGE to the unit, be careful
NOT TO OVERTURN the control knobs or levers when setting the
Sensor. The controls can be accessed by removing the wallplate
(if applicable) and control panel cover (refer to Control Panel
Diagram). Use a small straight blade screwdriver to adjust knobs
and and a finger to adjust the blinder levers.
NOTE: DO NOT press in on blinder levers or use excessive force
(refer to Control Panel Diagram).
• Attach the Control Panel cover when the desired settings are
complete.
If lights do not turn ON, refer to the TROUBLESHOOTING section.
Device Mounting:
Step 7
TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE.
Installation may now be completed by tightening
mounting screws into wall box. Attach wallplate.
Restore Power:
Step 8
Restore power at circuit breaker or fuse.
Installation is complete.
Leave the room and the lights will turn OFF after the
selected time-out expires.
