STIHL Incorporated
Technical Information

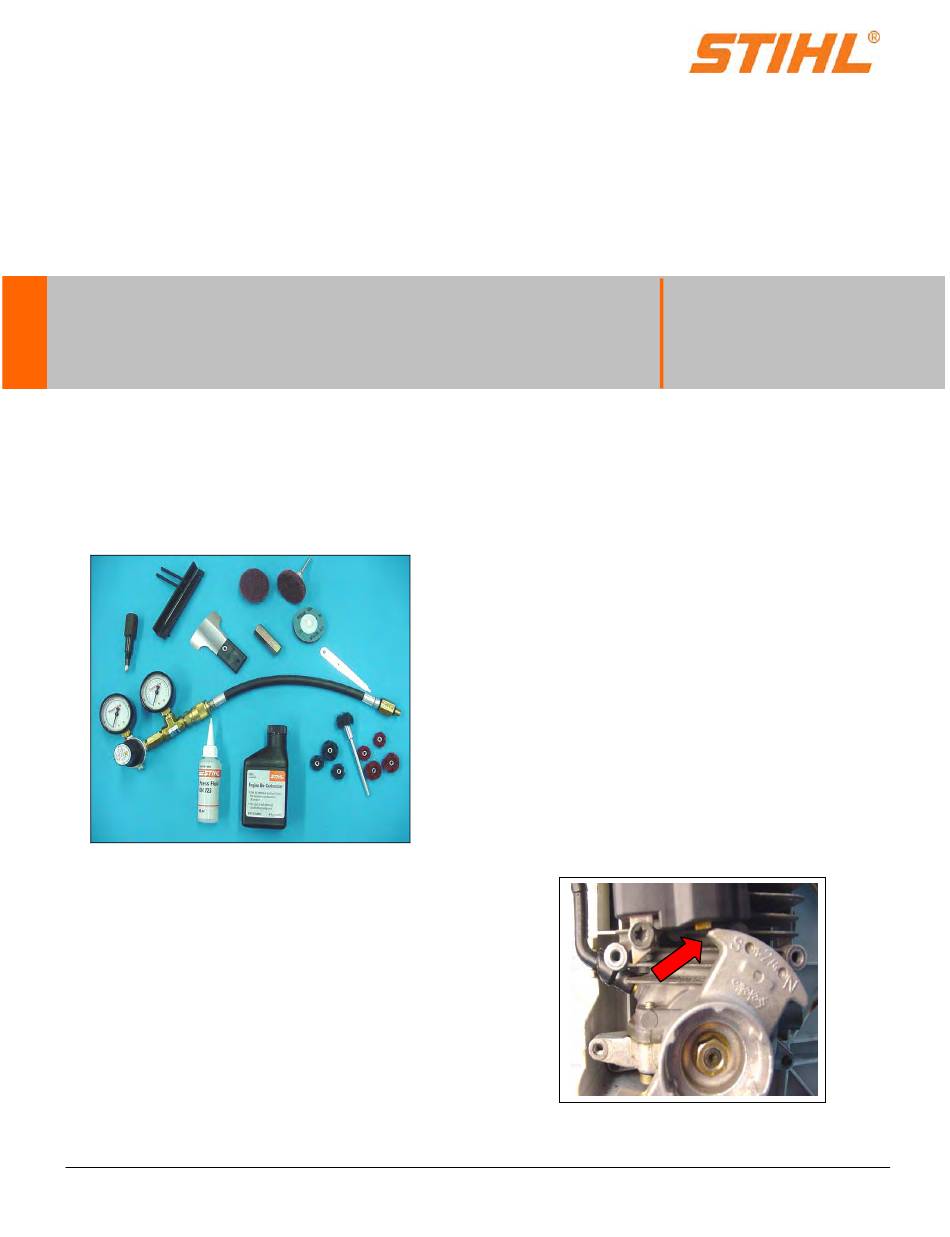

New STIHL Engine Repair Tool Kit part number 5910 890 1700
The new STIHL Engine Repair Kit includes tools to
inspect and clean the cylinder components of all 2-
stroke and 4-stroke cycle engines.
Components included in tool kit:
The main components of the kit include
various abrasive pads for cleaning gasket
surfaces, combustion chambers, valve seats,
and exhaust ports. A cylinder leak-down tester
is also included for checking exhaust and
intake valve sealing on all 4-stroke cycle
engines and also can be used to check piston
ring sealing and piston damage on all 2-stroke
cycle engines. Other useful tools are included
that are further explained in this bulletin. All of
DLR 2007-02 New Special Tools ea 2012.doc
STIHL Incorporated
Bulletin #DLR 2007-02
August 2, 2007
the tools included in the kit are also available
separately (see summary on page 9).
When performing a cylinder leak down test
the flywheel must be blocked at TDC (top
dead center) to avoid rotation of the
crankshaft as high pressure air is introduced
into the cylinder. When using on 4-stroke
cycle engines, the piston should be at TDC
on the compression stroke with both valves
closed.
To use the cylinder leak down tester on
STIHL 4-Stroke engines, remove the valve
cover and index the crankshaft as pictured
below. Verify that the piston is at TDC on the
compression stroke and both intake and
exhaust valves are closed.
BR 500, BR 550, BR 600
Page 1 of 9
Advertisement
Table of Contents
Related Manuals for Stihl 5910 890 1700
Summary of Contents for Stihl 5910 890 1700
- Page 1 Bulletin #DLR 2007-02 Technical Information August 2, 2007 New STIHL Engine Repair Tool Kit part number 5910 890 1700 The new STIHL Engine Repair Kit includes tools to the tools included in the kit are also available inspect and clean the cylinder components of all 2- separately (see summary on page 9).
- Page 2 STIHL 4- Stroke Engine on Shafted STIHL 4- Stroke Engine on Shafted Products Products Slide blocking tool down onto clutch housing. Index arrow between flywheel fins with lower ignition module mounting screw. Examples of the flywheel blocking tool used ®...
- Page 3 Cylinder Leak Down Tester Installation If the exhaust valve is leaking, STIHL To install the tester, thread the adapter hose recommends using STIHL Engine De- into the spark plug opening. Before connecting Carbonizer fluid (part no.
- Page 4 TDC between intake and exhaust 4282 890 2700) designed for use with all strokes at valve overlap with both valves STIHL 4- Stroke engines. The piston stop is slightly open). used to block the crankshaft from rotating • Completely fill the combustion chamber when performing repairs.
- Page 5 To further assist in disassembly, a flywheel removal tool (part no. 1116 893 0800) is included in the tool kit. The abrasive pads work ideally with a small air powered right angle grinder. A standard drill motor can also be used although a drill is slower and requires a little more time to clean the components.
- Page 6 ® • Use ¾” for all STIHL 4-MIX shafted products (both intake and exhaust valve seats). ® • Use ¾” for exhaust valve seat on STIHL 4-MIX blowers ® • Use 1” for intake valve seat on STIHL 4-MIX blowers.
- Page 7 The magnets will draw the ignition module tight against the The setting gauge can be used for all STIHL setting gauge. Tighten the mounting screws 4-Stroke engines. to the recommended torque and remove the setting gauge.
- Page 8 The recommended valve clearance for all STIHL 4- Stroke engines is 0.1 mm to 0.3 mm (0.004” to 0.012”) when the engine is cold. DLR 2007-02 New Special Tools ea 2012.doc Page 8 of 9...
- Page 9 Summary: STIHL Engine Repair Tool Kit components and part numbers: Description Part No. Remarks STIHL Engine Repair Tool Kit 5910 890 1700 Includes: Leak Down Tester 5910 850 0300 Flywheel Blocking Tool 5910 890 8600 Piston Stop 4282 890 2700...
