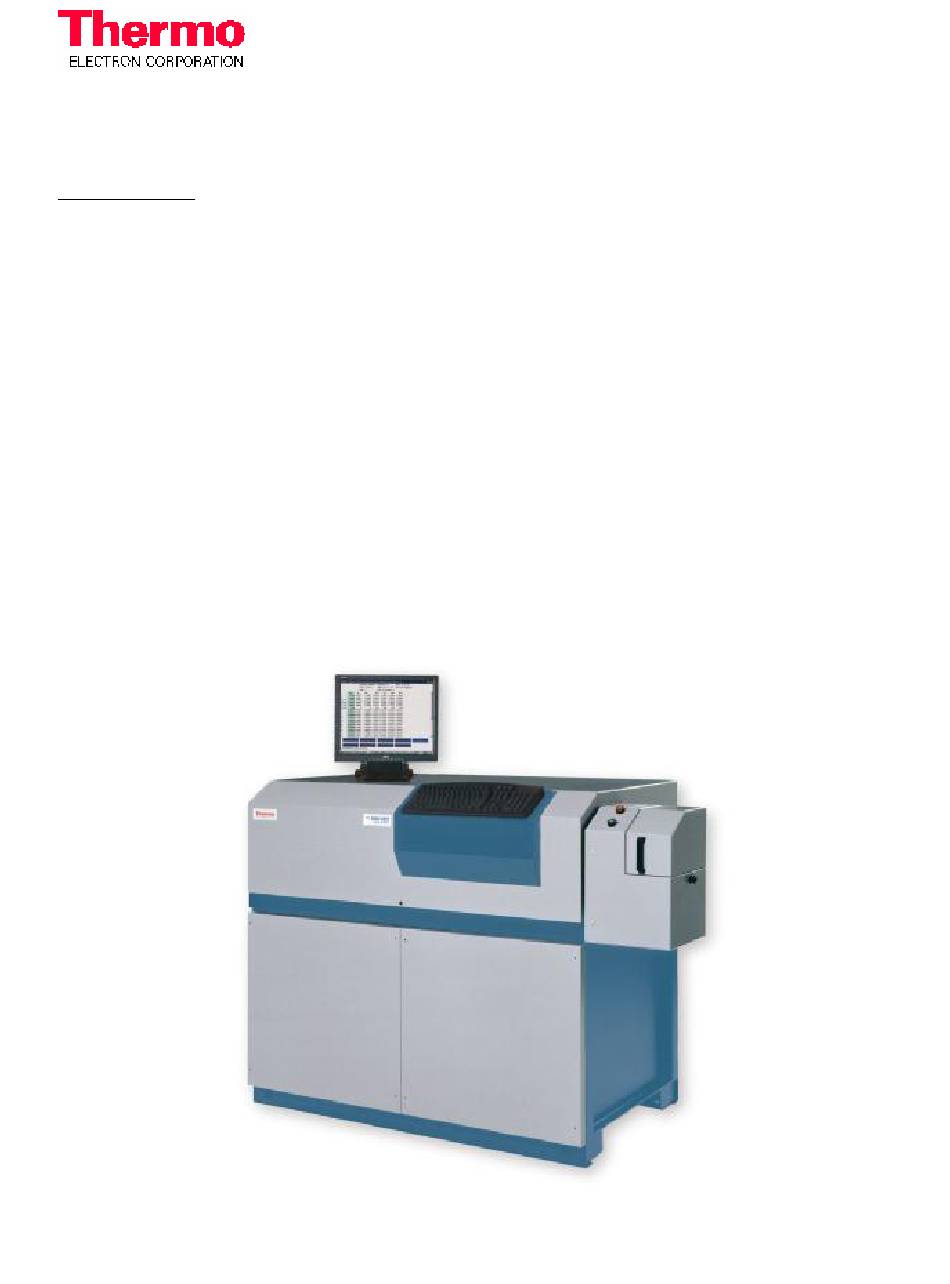

- Page 1 Thermo Electron S.A. En Vallaire Ouest C, case postale CH-1024 Ecublens, Switzerland Tel. (++41) (21) 694 71 11 Fax (++41) (21) 694 71 12 http://www.thermo.com TECHNICAL DESCRIPTION ARL 3460 Metals Analyzer Optical Emission Spectrometer...
-
Page 2: Table Of Contents
Laboratory requirements ....................... 9 1.10 Electrical requirements........................ 10 1.11 Argon requirements........................11 INSTALLATION OF ARL 3460 METALS ANALYSER..............12 SAMPLE PREPARATION......................13 Sample Taking – Moulds......................13 Surface Preparation - Sample Preparation Machines ..............15 ARL 3460 Metals Analyzer Page 2/17... -
Page 3: Specifications
SPECIFICATIONS Function principle The ARL 3460 Metals Analyzer is a simultaneous Quantometer. This means the instrument measures the intensity of several spectral lines simultaneously in the light emitted by the sample, when the atoms that compose it are exited by an external energy source. The analysed light is located approximately into the 150nm to 800nm wavelength range. -

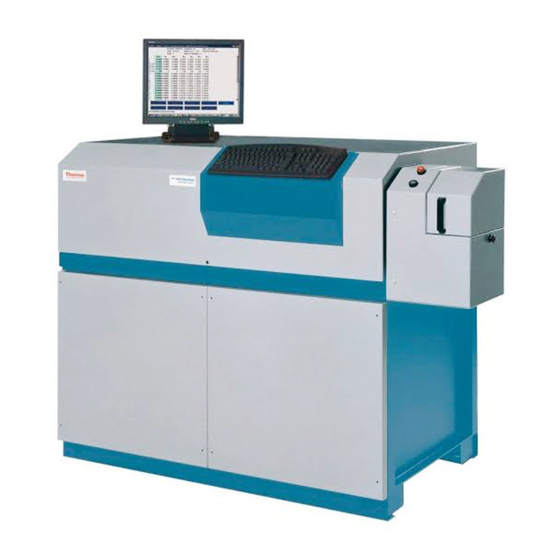

Page 4: Arl 3460 Optical Emission Spectrometer
Business depends on consistently producing high quality metals or metal products, and user needs an analysis system that will not let him down. The model ARL 3460 will go on working 24 hours per day, 7 days per week to keep production facility on track. -
Page 5: Spectrometer Computer System
· Calibration curve determination using multi-variable regression with additives and multiplicatives corrections; · Powerful flexible sample identification; · Manual and automatic result processing; · Multi-purpose analysis result display and printing; ARL 3460 Metals Analyzer Page 5/17 Technical Description... -
Page 6: Technical Description
With concave grating “Paschen-Runge” mounting, cast construction and 1m forcal length. The spectrometer is shock mounted, insulated and temperature controlled to ±0.1°C at 38°C to minimize profiling and standardisation frequency and maximise sample throughput. ARL 3460 Metals Analyzer Page 6/17 Technical Description... - Page 7 170 - 230 0.31 4 th 130 - 205 0.23 1667 220 - 528 0.60 2 nd 160 - 260 0.30 3 rd 130 - 176 0.20 2160 170 - 407 0.47 ARL 3460 Metals Analyzer Page 7/17 Technical Description...
- Page 8 Packing Sealed airfreight packing as follows: Packing Material Gross Dimension Volume weight (cm) 1 case ARL 3460 195 x 140 x 145 3,958 1 case Screen 55 x 53 x 49 0.142 ARL 3460 Metals Analyzer Page 8/17 Technical Description...
-
Page 9: Storage
16 - 30°C, maximum rate of change ± 5°C per hour Humidity: 20 - 80% relative Altitude: 2’500 meters above sea level 400 cm min. 1 Quantometer ARL 3460 2 Table (for computer and peripherals) 3 Office desk 4 Chair 5 Cupboard (for samples, material, docu- mentation) 6 Washbasin min. -
Page 10: Electrical Requirements
General earth of the plant Earth Note *: Stabiliser without link or connection between Input 2 and Output 2. Depending on the design, such a stabiliser may be used as an insulation transformer too! ARL 3460 Metals Analyzer Page 10/17 Technical Description... -
Page 11: Argon Requirements
As far as the supplied Sircal purifier is connected and operational, it is possible to use a lower argon quality, that is: Argon quality Purity Argon 48 99.998% < 10 ppm < 2 ppm ARL 3460 Metals Analyzer Page 11/17 Technical Description... -
Page 12: Installation Of Arl 3460 Metals Analyser
INSTALLATION OF ARL 3460 METALS ANALYSER The actual installation is carried out by the factory service engineer or by local ARL representative's engineer. The service engineer will perform the following tasks: · Check that the delivery conforms to the contract and the delivery packing slip. -
Page 13: Sample Preparation
The mushroom form sample taking mould is the most widely used for non-ferrous metals. There are however segregation risks, and the mould diameter must be adapted accordingly. here useful surface for analysis ARL 3460 Metals Analyzer Page 13/17 Technical Description... - Page 14 The sample is homogeneous on this surface, but for only a few millimetres in depth! useful surface for analysis ARL 3460 Metals Analyzer Page 14/17 Technical Description...
-
Page 15: Surface Preparation - Sample Preparation Machines
For the analysis of soluble-insoluble aluminium, abrasive disks based with zirconium must be used to avoid cross contamination. Note: Copper, aluminium, lead, zinc, magnesium, pure or even very low alloyed, and generally all soft materials, cannot be properly prepared using abrasive paper disks. ARL 3460 Metals Analyzer Page 15/17 Technical Description... - Page 16 Some steel springs can be analysed if prepared as shown in the following picture (flat surface preparation by milling or polishing): screw and nut for squeezing the spring useful flat surface for analysis ARL 3460 Metals Analyzer Page 16/17 Technical Description...
- Page 17 Inductive Furnace Metallic chips can be re-melted in a furnace. This furnace provides solid samples that can be used for spectroscopy analysis. ARL 3460 Metals Analyzer Page 17/17 Technical Description...
