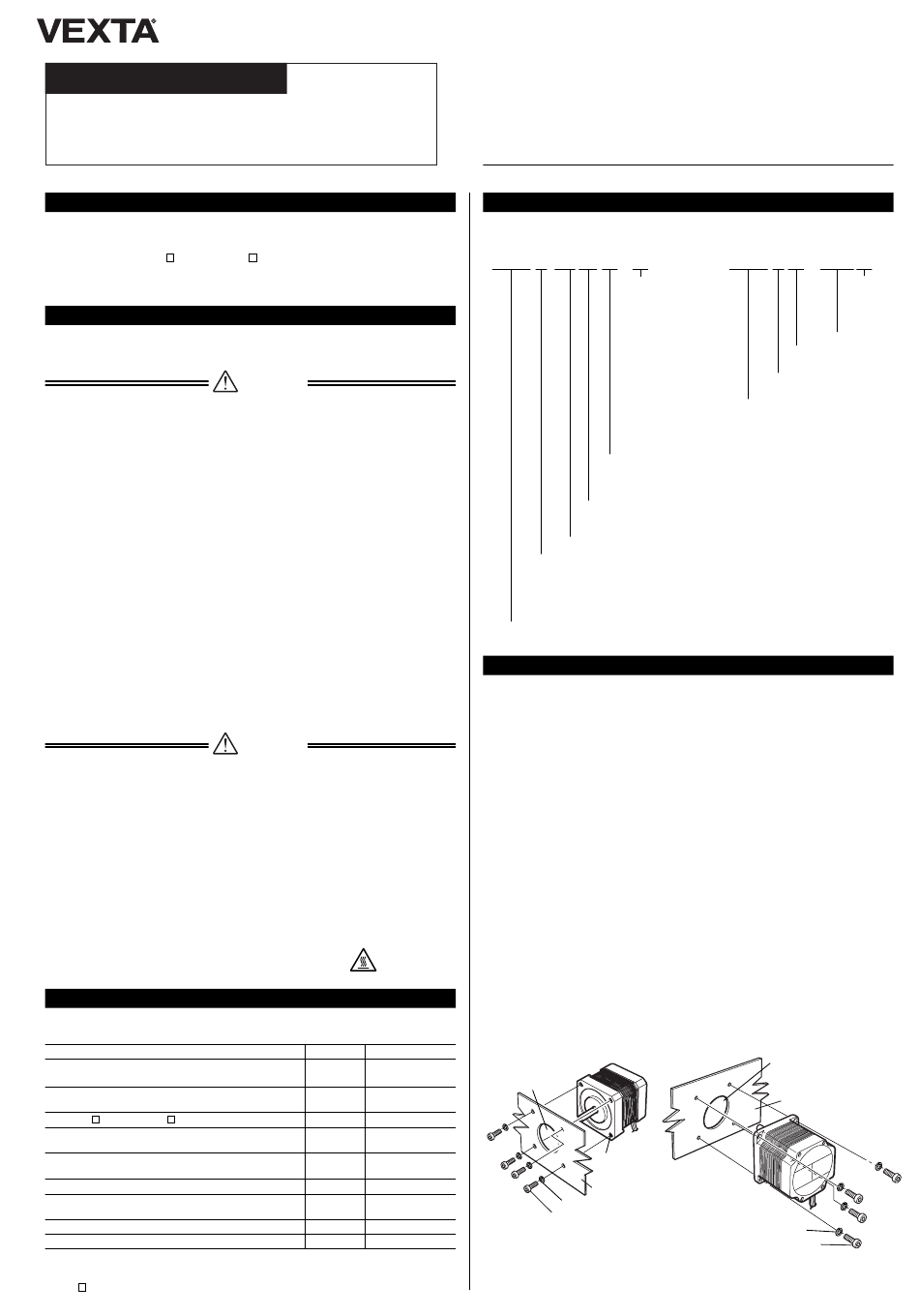

Vexta SMK Series Operating Manual

OPERATING MANUAL
Low-Speed Synchronous Motor
SMK Series
Introduction
This product is UL-recognized (impedance-protected ), and has made self-declaration of the
CE marking (the Low-Voltage Directive). ( This does not apply to the SMK014A-A ,
SMK014A-B, SMK014MA-A, SMK014MA-B, SMK014K-A, SMK014K-B,
SMK014K-AA , SMK0A- A and SMK0A- B.)
I
Installation conditions
II
Overvoltage category , Pollution degree 2, Class

Safety precautions

The precautions described below are intended to ensure the safe and correct use of the prod-
uct, and to prevent the customer or others from exposure to the risk of injury.
Read the body of the text based on a sufficient understanding of its importance.
Failure to observe the warnings contained herein may result in a situation leading to serious
injury or death.
G Do not use the product in explosive or corrosive environments, in the presence of flammable
gases, locations subjected to splashing water, or near combustibles. Doing so may result in
fire, electric shock or injury.
G Qualified personnel are required for the installation, connection, operation and inspection of
this product. Failure to do so may result in fire, electric shock or injury.
G Be sure to turn off the power before installing, connecting or inspecting this product. Failure
to do so may result in electric shock.
G Install the motor in the enclosure to avoid contact with the hands, or provide sufficient ground-
ing. Failure to do so may result in electric shock or injury.
G Connect this product securely and accurately, according to the connection diagrams. Failure
to do so may result in fire or electric shock.
G Be sure to insulate the connection terminals of the capacitor and external resistor. Failure to
do so may result in electric shock.
G Do not forcibly bend, pull or pinch the motor cable. Doing so may result in fire or electric
shock.
G In case of power failure, be sure to turn off the power. Failure to do so may cause the motor
to start suddenly when the power is restored, and could result in injury or damage to the
equipment.
G If this product is used in an elevator application, be sure to provide a measure for the posi-
tion retention of moving parts. The motor loses its retentiveness when the power is turned off.
Failure to provide such a measure may cause the moving parts to fall off, resulting in injury
or damage to the equipment.
G Do not touch the connection terminals of the motor or capacitor immediately after the power
is turned off (for a period of 30 seconds). The residual voltage may cause electric shock.
G Do not disassemble or modify the motor. Doing so may result in electric shock, injury or dam-
age to the equipment.
Failure to observe the following precautions may result in injury or property damage.
G Do not use the motor beyond the specified values. Doing so may result in electric shock,
injury or damage to the equipment.
G Do not hold the motor shaft or motor cable. Doing so may result in injury.
G Be sure to secure the motor onto the metal plate. Failure to do so may result in injury or dam-
age to the equipment.
G Be sure to cover the rotating portion (motor shaft) of the motor. Failure to do so may result in
injury.
G If any abnormality is detected, turn the power off immediately. Failure to do so may result in
fire, electric shock or injury.
G Do not touch the motor or external resistor during operation or immediately after the equip-
ment is stopped, since the surfaces of the motor and external resistor will be extremely hot.
Failure to do so may result in a burn.
G The surface temperature of the motor may exceed 70°C (158°F), even during normal oper-
ation. Be sure to attach a warning label, as shown in the figure, in a clearly visible location if
it is possible for the operator to access the motor during operation.
Failure to do so may result in a burn.
G Dispose of the motor as industrial waste.
Product confirmation
Open the package and verify that the following items are present. If there is any shortage or
damage, contact the sales office from which you purchased the product.
Model
SMK014A-A, SMK014A-B
SMK014MA-A, SMK014MA-B
SMK014K-A, SMK014K-B
SMK014K-AA
∗ ∗
SMK0A- A 1 , SMK0A- B 1
SMK237A-A, SMK237A-B
SMK216A-GN, SMK216A-GNB
SMK5100A-A, SMK5100A-B
SMK5100A-AA, SMK5100A-BA
SMK5100C-A, SMK5100C-B
SMK5160A-A, SMK5160A-B
SMK5160A-AA, SMK5160A-BA
SMK550A-GN, SMK550A-GNB, SMK550A-GNBA
SMK550C-GN, SMK550C-GNB
∗
Mounting screws (4 pieces) are provided.
1
∗
A capacitor cap is provided.
2
A box ( ) of the model is filled with a number to represent the gear ratio.
HM-4006-6
I
equipment
Warning
Caution
Capacitor External resistor
∗
0.6 µ F
2 -
12 µ F
-
∗
0.6 µ F
2 -
∗
1.2 µ F
2 -
∗
2.5 µ F
400 Ω
2
∗
0.6 µ F
1500 Ω
2
∗
2.5 µ F
2 400 Ω
∗
0.6 µ F 400 Ω
2
0.35 µ F 2000 Ω
Thank you for purchasing an ORIENTAL MOTOR product.
This Operating Manual describes product handling procedures and safety precautions.
G
Please read it thoroughly to ensure safe operation.
G
Always keep the manual where it is readily accessible.
Only qualified personnel should work with the product.
This product is designed for incorporation in general industrial machinery, and must not be used
for another purpose. ORIENTAL MOTOR Co., Ltd. is not responsible for any damage caused
through failure to observe this warning.
Product number code
G
Round shaft type
and pinion shaft type
SMK 0 14 M A - A
Speed
M
Blank : 50 Hz 60 r/ min, 60 Hz 72 r/ min
Motor Torque
Motor Frame Size
0 : 42 mm (1.65 in.)sq.
2 : 56.4 mm (2.22 in.)sq.
[ GN type pinion shaft is 60 mm (2.36 in.)sq.]
5 : 85 mm (3.35 in.)sq.
[GN type pinion shaft is 90 mm (3.54 in.)sq.]
Low-Speed Synchronous Motor SMK Series
Installation
I Installation site
The motor is designed and manufactured for incorporation in machinery and equipment. Install
it at the site in consideration of the following to ensure effective ventilation and easy inspec-
tion:
N
In indoor enclosure (where a ventilation port must be provided)
N
Ambient temperature : -10°C ~ +40°C(non-freezing)
[+14°F ~ +104°F ]
N
Ambient humidity : 85% or less (non-condensing)
N
Not in an explosive atmosphere in the presence of hazardous gas (sulfide gas) or liquid
N
Not at a site exposed to sunlight
N
Not at a site exposed to dust or metallic chips and particulate matter
N
Not subject to splashing water (rainstorm and otherwise), oils or other liquids
N
Not at a site containing excessive salt
N
Not subjected to continuous vibration or excessive shock
N
Not exposed to electromagnetic noise (welders and power equipment)
N
Not in the presence of radiation, magnetic fields or a vacuum environment
N
At an elevation not exceeding 1,000 meters
I
Method of installation
Install the motor on a smooth metallic plate offering a high resistance to vibration and excellent
heat-conductive properties.
G
Round shaft type
Using the four installation holes (or tapped holes) located on the motor's installation surfaces,
secure the motor with four bolts (not provided).
The motor's mounting pilot on the motor-installation hole should be inserted into the mounting-
pilot holder, which is countersunk or drilled through.
G SMK0 type
Mounting-pilot holder
(countersunk or
drilled through)
4-M3 P0.5
30W
(4-No.4-40UNC)
30W
Mounting plate
Plain spring washer
30W
Hexagonal-socket set screw
30W
30W
G
Geared type
SMK 0 A - 120 A
Shaft Type
A
: Single Shaft
(metric size)
B
: Double Shaft
(metric size)
AA
: Single Shaft
(inch size)
BA
: Double Shaft
(inch size)
GN : Single GN Type
Motor Frame Size
Pinion Shaft
0 : 42 mm (1.65 in.)sq.
GNB : Double GN Type
Low-Speed Synchronous Motor SMK Series
Pinion Shaft
(metric size)
GNBA: Double GN Type
Pinion Shaft
(inch size)
Voltage
K : Single-Phase24 V
A : Single-Phase100/115 V
C : Single-Phase200/230 V
: 50 Hz 30 r/ min, 60 Hz 36 r/ min
G SMK2, SMK5 type
Plain spring washer
Hexagonal-socket set screw
Shaft Type
A : Single Shaft
(metric size)
B : Double Shaft
(metric size)
Gear Ratio
Voltage
A : Single-Phase100/115 V
Mounting-pilot holder
(countersunk and
drilled through)
Mounting plate
