- Page 1 INSTALLATION MANUAL SIENA +...
- Page 2 CONGRATULATIONS Congratulations and thank you for choosing a Falmec rangehood. To avoid the risks that are always present when you use an electrical appliance it is important that the rangehood is installed correctly and that you read the safety in- structions carefully to avoid misuse and ha- zards.

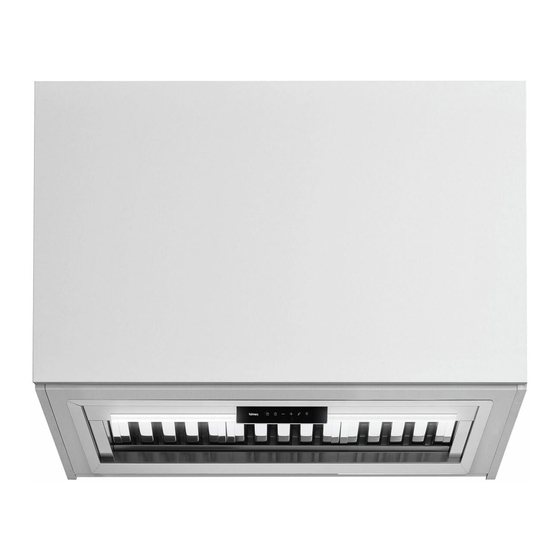

- Page 3 PRODUCT DESCRIPTION & CARTON CONTENTS CARTON 1 - HOOD UNIT INTEGRATED HOOD - ON BOARD HOOD Models include: SIENA + F3SN60S2, SIENA + F3SN90S2, SIENA + F3SND90S2 Included in the carton: 1. Main hood housing including control module and lighting 2.
- Page 4 SIENA + 56 / 87 F3SN60S2 F3SN90S2 379 / 665 505 / 815 541 / 851 541 / 851 512 / 822 EN - HOLE MEASUREMENTS FOR INSTALLATION IT - MISURE FORO PER INCASSO...
- Page 5 SIENA + 87 DEEP F3SND90S2 EN - HOLE MEASUREMENTS FOR INSTALLATION IT - MISURE FORO PER INCASSO...
- Page 6 STEP 1: Minimum distance by cooktop. STEP 2: Wall unit hole. STEP 3: You push the hood in wall unit hole.
- Page 7 STEP 4: STEP 6: You screw the blocking devices. Attach the male plug of the rangehood unit to the main power supply. STEP5: STEP 7: Connect the hood outlet (in the top or back ducted position) Assembling the metal filters. to 150mm ducting leading to an external output.
- Page 8 SEQUENCE FOR REMOVING THE HOOD STEP 8: STEP 10: Remove the metal filters. With your finger enter the hole and pull the lever to unlock the stop. STEP 9: Remove the cover caps.
-
Page 9: Safety Instructions And Warnings
SAFETY INSTRUCTIONS If the equipment is sold or transferred to another person, make sure that the booklet is also supplied so that the new user can be made aware of the hood's operation and relative AND WARNINGS warnings. After the stainless steel hood has been installed, it will need to be cleaned to remove any residues remaining from the protection adhesive as well as any grease and oil stains which, if Installation operations are to be carried out by skilled and qualified in- not removed, can cause irreversible damage to the hood surface. -
Page 10: Operation
OPERATION USING THE RADIO CONTROL OPERATING YOUR CONTROL PANEL WITH THE 6 BUTTON TOUCH CONTROL WARNINGS! Turning the extraction function ON or OFF: • In standby mode, press button 2 to turn on operating mode, then press buttons 3 through Place the hood away from sources of electromagnetic waves (e.g. -
Page 11: Maintenance
MAINTENANCE DISPOSAL AFTER END OF USEFUL LIFE The crossed-out trash or refuse bin symbol on the appliance means that the Before cleaning or carrying out maintenance operations, disconnect the product is WEEE, i.e. “Waste electrical and electronic equipment'' , accordingly it equipment by removing the plug or switching off the main switch. - Page 12 You are also entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. The benefits under FALMEC’s warranty are in addition to other rights you have at law in relation to the appliances or services to which the warranty relates.
- Page 13 NOTE - NOTES...
- Page 14 NOTE - NOTES...
- Page 15 NOTE - NOTES...
