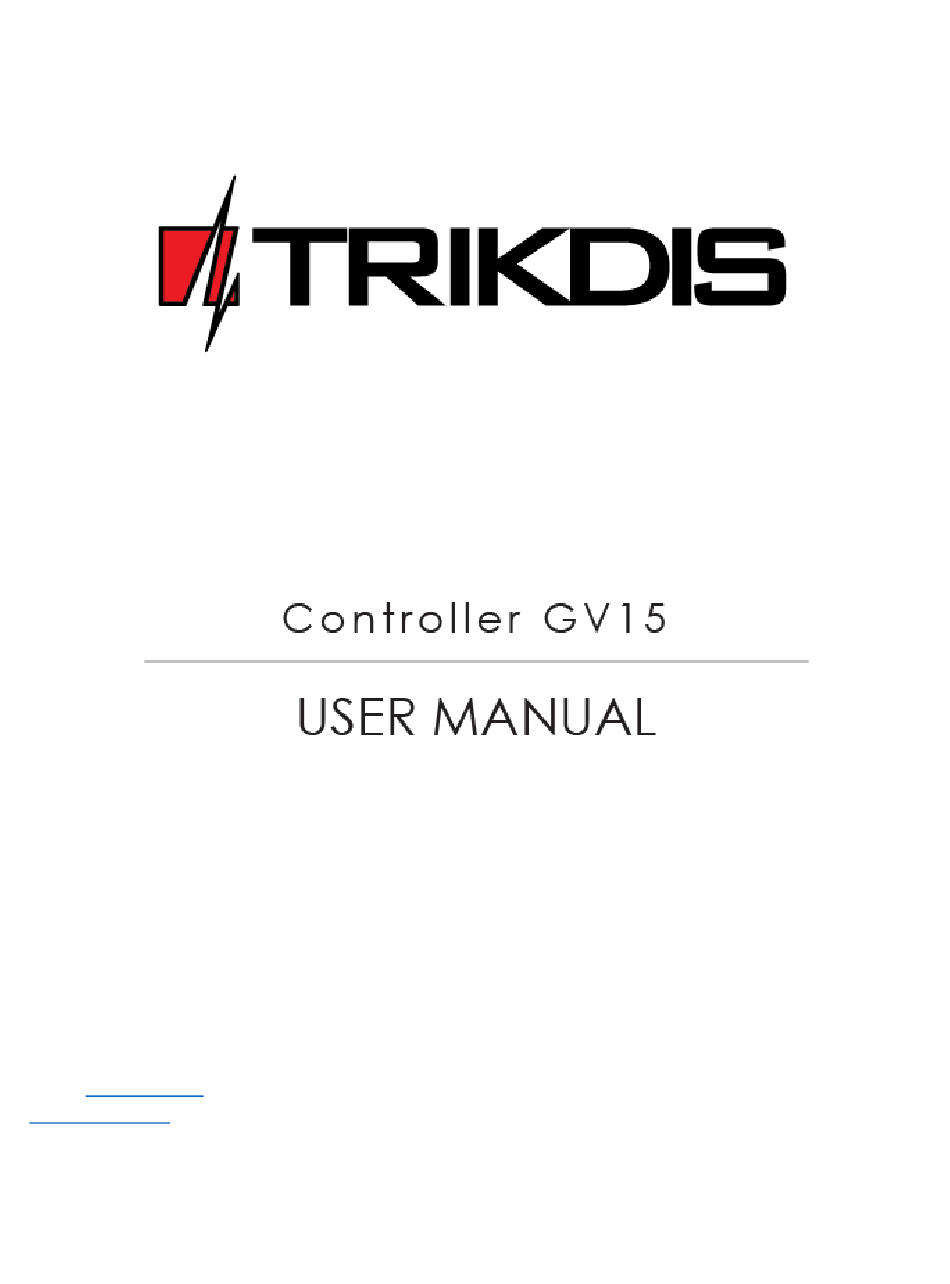

- Page 1 Draugystės g. 17 LT-51229 Kaunas E-mail info@trikdis.lt www.trikdis.com...
- Page 2 This document describes controller GV15, its use, features, operation and setting of operation parameters. Controller GV15 is a remote control device for electro-technical equipment (gate opening or rising, premises heating or ventilation, lawn or greenhouse irrigation, pump, boiler, transporter and other system control).
- Page 3 Controller GV15 Safety requirements Get familiar with this manual prior to the controller usage. Installation and maintenance of the controller shall be subject to qualified specialists having knowledge on GSM equipment performance and relevant safety requirements. External power supply during controller installation works must be switched off! The controller shall be installed in the premises at restricted access zones and safe distance from sensitive electronic devices.
-
Page 4: Table Of Contents
Controller GV15 Contents TECHNICAL PARAMETERS ..........................5 COMPONENT PARTS ..........................5 CONTROLLER COMPONENTS ........................6 ............................6 URPOSE OF TERMINALS ............................... 7 IGHT INDICATION CONTROLLER INSTALLATION ........................8 ............................ 8 NSTALLATION PROCEDURE WIRING DIAGRAMS ........................... 9 ............................9 NPUTS CONNECTION CONTROLLER OPERATION AND CONFIGURATION WITH “TRIKDISCONFIG”... -
Page 5: Technical Parameters
Technical parameters Controller GV15 1 Technical parameters Parameter Description GSM modem frequencies 850 / 900 / 1800 / 1900 MHz Power supply 12-36 V DC or 12-24 V AC Standby – 50 mA Current usage While sending SMS – instantly up to 0,25 A... -
Page 6: Controller Components
Controller components Controller GV15 3 Controller components 1. GSM antenna SMA port 4. SIM card slot 2. Light indicators 5. USB Mini-B connector for controller programming 3. Removable external contact connector Purpose of terminals Name Description +/~ 12-24 V Power supply + terminal or alternating supply voltage terminal... -
Page 7: Light Indication
Controller GV15 Light indication Indicator Status Description Network Controller is turned off or GV15 initiation in progress Blinking Registration to GSM network in progress Lighting for 5 sec. N - relative GSM signal level 3 flashes – minimum sufficient level (30%), + N flashes 10 flashes –... -
Page 8: Controller Installation
Controller installation Controller GV15 4 Controller installation Controller factory settings provide that any user calling to the number of the inserted SIM card can control the first relay. The user of Administrator level can control both relays by sending a message of respective content. In order to have dial control from authorized users or change factory settings, after installation procedure see 6 “Controller... -
Page 9: Wiring Diagrams
Wiring diagrams Controller GV15 5 Wiring diagrams Inputs connection The controller contains two input terminals (IN1 and IN2) for connection of sensor circuits. For setting the input connection type and reports on activations see. 6.4 “Input “. NC, Normally Closed NO, Normally Open ©1997-2015 TRIKDIS... -
Page 10: Controller Operation And Configuration With "Trikdisconfig
6 Controller operation and configuration with “TrikdisConfig” Connection via USB cable to TrikdisConfig 1) Parameter setting software TrikdisConfig should be installed. Software available at www.trikdis.lt, page about controller. 2) After the software is installed, connect the controller and computer with USB cable. Power supply via USB port is sufficient to set the controller operation parameters, so additional supply is not necessary. - Page 11 Controller GV15 Controller operation and configuration with “TrikdisConfig” Menu Main action buttons Name Description Name Button meaning Program Program language selection Read [F4] Read the controller parameters section. Commands Program control actions. Write [F5] Write the controller parameters into the module.
-
Page 12: Access Parameters
Controller GV15 Controller operation and configuration with “TrikdisConfig” Access parameters 6.3.1 Changing Access and SMS password Logon and SMS password is designated for authorized user recognition. By entering the password, the user will be able to change the controller operation parameters via "TrikdisConfig" or SMS messages. The factory default Access and SMS password is 123456. -
Page 13: Input Parameters
Controller GV15 Controller operation and configuration with “TrikdisConfig” Input parameters The controller has two inputs, upon their activation messages will be generated and reported to the administrator level users (if set so). 6.4.1 Input type selection To select input connection type, go to the program menu System settings, field Input options, and choose one of two available connection type (NO, NC) next to Type of inputs IN1, IN2. -
Page 14: User List Parameters
Controller GV15 Controller operation and configuration with “TrikdisConfig” 6.5.2.1 Dial control modes To select dial control mode, go to the program menu System settings, field System Options, next to Dial control from indicate one out of three modes: All – will be controlled by anyone calling to the controller SIM card number. The only first relay is controlled. -
Page 15: Administrator Parameters
Controller GV15 Controller operation and configuration with “TrikdisConfig” Administrator parameters To form a list of administrators authorized for dial control or SMS sending to control both relays, go to the program menu Administrator list, section Administrators. It should be also indicated in the section which relay will be controlled by call and which events will be reported to the administrator by receiving SMS. -
Page 16: Message Text Parameters
Controller GV15 Controller operation and configuration with “TrikdisConfig” 6.7.1 Message text parameters SMS texts sent by the controller may be changed. They can be changed in the program menu Administrator list, section SMS Texts. SMS message encoding may be changed in the field SMS character set. Options available: English, Estonian, Latvian, Lithuanian, Russian. -
Page 17: Controller Operation Firmware Updating
7 Configuration and control by SMS messages Controller GV15 parameters may be set and changed by sending SMS messages from a phone number, which is on Administrator list. In case there are not any entered administrator phone numbers in the controller, become an administrator by sending the following SMS message to the controlled SIM card number: 123456 SETAP APNR1:+NNNNNNN. - Page 18 Controller GV15 reset E. g.: 123456 RESET INFO Inquiry about controller status. E. g.: 123456 INFO New password Controller GV15 password changing. E. g.: 123456 PSW 654321 SETC Permission for dial control: All callers (default) LIST Only those on User and Administrator lists;...
- Page 19 Configuration and control by SMS messages Controller GV15 Deleting the administrator phone numbers; APNR2:DEL 2nd phone number; APNR3:DEL 3rd phone number; APNR4:DEL 4th phone number; APNR5:DEL 5th phone number; APNR6:DEL 6th phone number; APNR7:DEL 7th phone number; E. g.: 123456 SETAP APNR2:DEL...
-
Page 20: Access And Sms Password Recovery
Configuration and control by SMS messages Controller GV15 SETP Entering user name and phone number: +370xxxxxx,<Name> User phone number (up to 16 digits) and name (1-13 symbols). E. g.: 123456 SETP +370654321,Name DELP Deleting user phone number: +370xxxxxx User phone number;... -
Page 21: Controller Sms Messages
Controller SMS messages Controller GV15 8 Controller SMS messages In case of the controller event or controller received SMS control command, the controller will send SMS messages to administrators. Their list is provided below. 1. During the periodic test, the test SMS message shall be sent to administrators:... -
Page 22: Automatics Control
The recommendation is to describe each command as a separate contact in a mobile phone memory to facilitate dial control. While entering Controller GV15 SIM card number it is necessary to enter a pause icon (by pressing and holding "*" phone button) and the command. The phone number will look in such... -
Page 23: B Ysms Message
Automatics control Controller GV15 By SMS message 1. Send SMS message: E. g.: 123456 OUT1 OFF to disable the 1st relay; E. g.: 123456 OUT1 ON to enable the 1st relay. 2. Await for confirmation of command execution (if set by default in configuration): Command OK command completed;...
