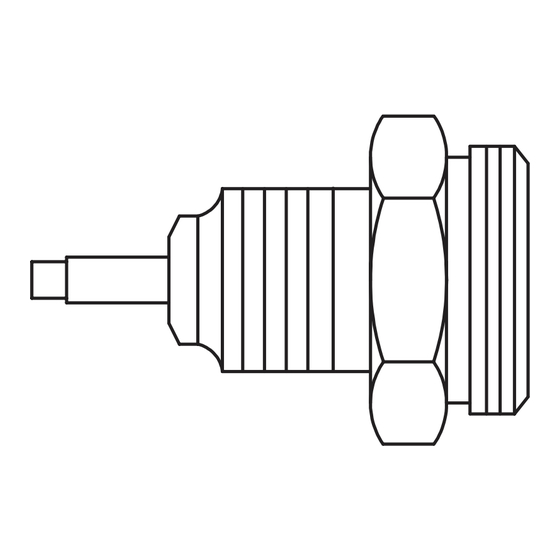

- Page 1 IM-P403-26 4030150/9 EMM Issue 9 CP10 Sensor Installation and Maintenance Instructions 1. Safety information 2. General product information 3. Installation 4. Maintenance 5. Spare parts © Copyright 2017 IM-P403-26 EMM Issue 9 Printed in GB...
-
Page 2: Safety Information
Group 2 of the above mentioned Pressure Equipment Directive. The products’ use on other fluids may be possible but, if this is contemplated, Spirax Sarco should be contacted to confirm the suitability of the product for the application being considered. - Page 3 1.9 Tools and consumables Before starting work ensure that you have suitable tools and / or consumables available. Use only genuine Spirax Sarco replacement parts. 1.10 Protective clothing Consider whether you and / or others in the vicinity require any protective clothing to protect against the hazards of, for example, chemicals, high / low temperature, radiation, noise, falling objects, and dangers to eyes and face.
- Page 4 1.16 Returning products Customers and stockists are reminded that under EC Health, Safety and Environment Law, when returning products to Spirax Sarco they must provide information on any hazards and the precautions to be taken due to contamination residues or mechanical damage which may present a health, safety or environmental risk.
- Page 5 The unit is supplied with an S-type stainless steel gasket. Electrical connection is via an IP65 connector (supplied separately). The CP10 sensor and PT2 plug tail are intended for use with a low voltage limited power source. These are approved by Underwriters Laboratory as Listed accessories for use with Spirax Sarco controllers.
-
Page 6: Electrical Installation
The TP20 has a taper thread, and may be installed using PTFE sealing tape if required. The CP10 sensor is provided with an S-type stainless steel gasket for sealing. PTFE tape may be used on the CP10 threads, but check that the resistance to earth is less than 1 after installation. - Page 7 Inspect the insulator and sensor tip for erosion, damage, or pitting, and refit or replace as necessary. Retighten the CP10 sensor to a torque of 60 N m (44 lbf ft). Note: Always fit a new gasket. 5. Spare parts The spare parts available are detailed below.
- Page 8 IM-P403-26 EMM Issue 9...
