2.4 Operation Range

Cooling operation
Heating operation
Heat recovery operation

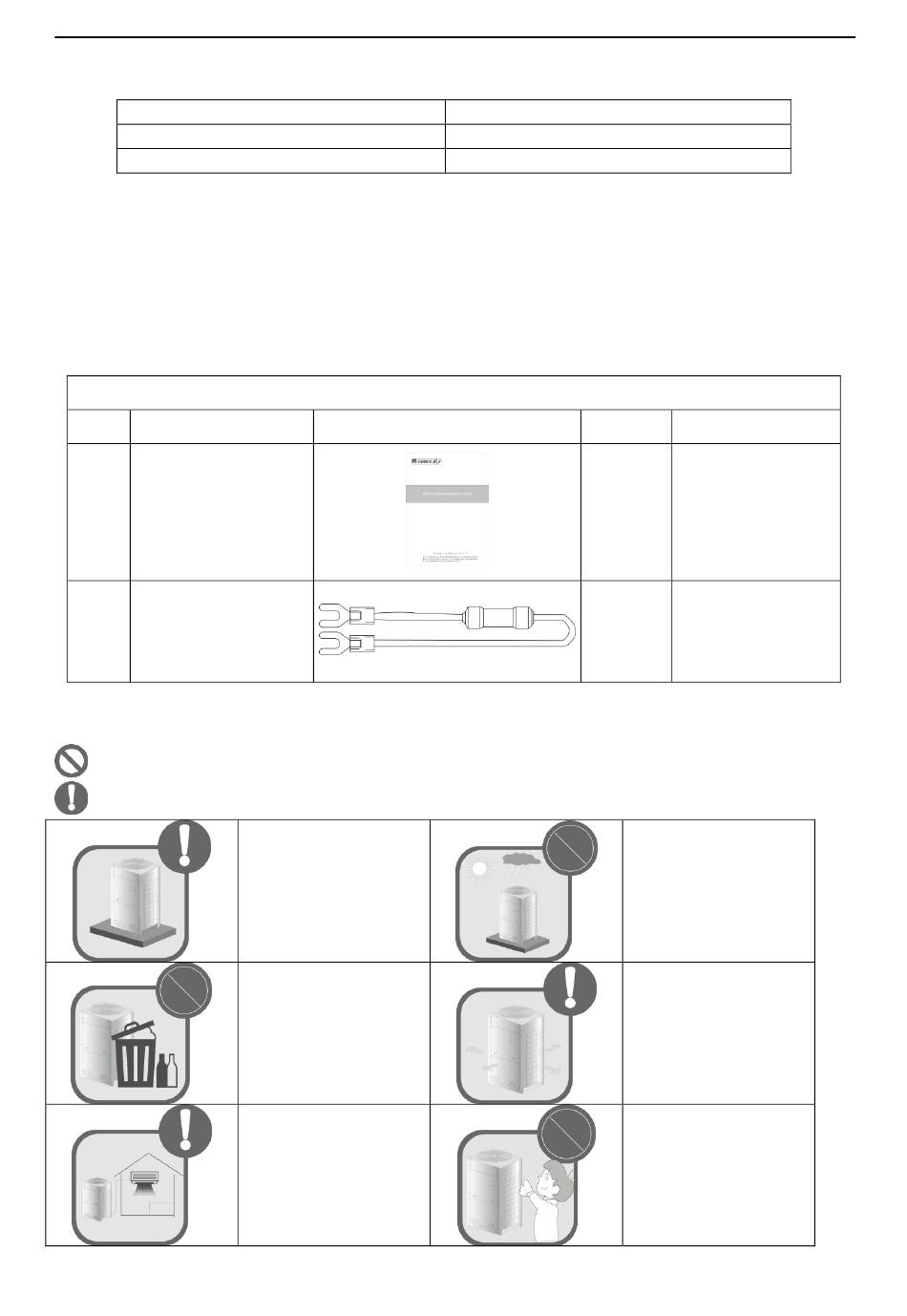

3 Preparation before Installation

Note: Graphics here are only for reference. Please refer to actual products. Unspecified dimensions
are all in mm.

3.1 Standard Parts

Please use the supplied standard parts as required.
No.
Name
1
User Manual
Wire (match with
2
resistance)

3.2 Installation Site

Never do this! This symbol indicates the possibility of death or serious injury.
Always do this! This symbol indicates the possibility of personal injury or property damage.
Parts of Outdoor Unit
Appearance
Select a location which is
strong enough to hold
unit's weight so that unit
can stand still and erect.
Please keep the unit away
from inflammable,
explosive and corrosive
gas or waste gas.
ODU and IDU should stay
together as close as
possible to shorten the
length of refrigerant pipe
and reduce bend angles.
Heat Recovery DC Inverter Multi VRF Unit
Outdoor temperature -5℃~50℃
Outdoor temperature -20℃~24℃
Outdoor temperature -10℃~20℃
Qty
1( pc)
1( pc)
6
Remarks
Must be connected to
the last heat pump
mode exchanger of
communication
connection
Make sure the unit is not
exposed to sun and rain.
And the location can resist
dust, typhoon and
earthquake.
Make sure the location
has space for heat
exchange and
maintenance so that unit
can operate reliably with
good ventilation.
Select a location which is
out of children's reach.
Keep the unit away from
children.
