NU130
Installation and Use
Introduction
This manual includes information for the
installation, operation and maintenance of the

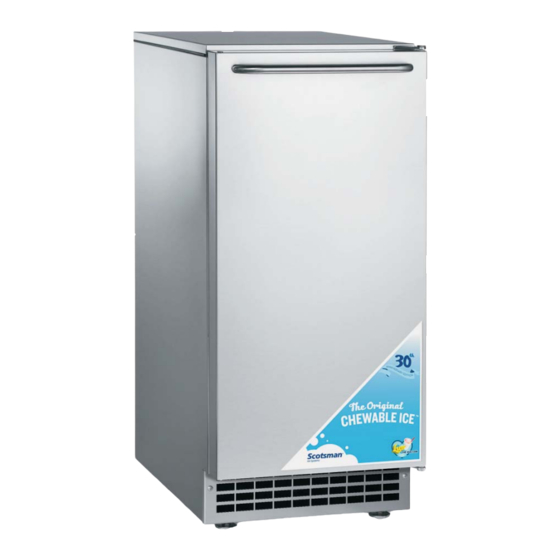

NU130 residential ice machine.
The NU130 was developed to offer fans of
Scotsman's Nugget Ice form the ability to have that
ice in a smaller unit. Previously Nugget Ice was
only available in commercial establishments, where
it developed a strong following because of the
chewable nature of the ice. This machine makes
authentic Nugget ice, using the same process as
the larger commercial machines.
Product Description: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Cabinet Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Location Recommendations: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Familiarization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Door Swing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Plumbing - Pump Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Plumbing: Gravity Drain Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Electrical and Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
How to remove scale from the ice making system. . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12
Outdoor Use Notice:
Keep from freezing. Severe damage will occur to the unit if left in or operated in temperatures beyond
the limits listed in this manual. That damage is NOT covered by warranty.
Keep dry. Do not locate in low lying areas where puddles will accumulate.
Provide Shade: Heat gain from the sun will reduce the unit's ability to make and store ice, and
ultraviolet radiation from the sun can potentially damage the unit's plastic components.
Water Supply: Avoid a long run of hose or tubing exposed to the sun. Plastic water supply tubing
should be rated for potable water and include UV protection. Copper tubing is recommended.
Back Flow Prevention: The unit includes back flow prevention, no additional check valve is required.
Drainage: Do Not drain into swimming pool or onto grounds.
Table of Contents
July 2011
Page 1
