Summary of Contents for Westinghouse WMF2302SA

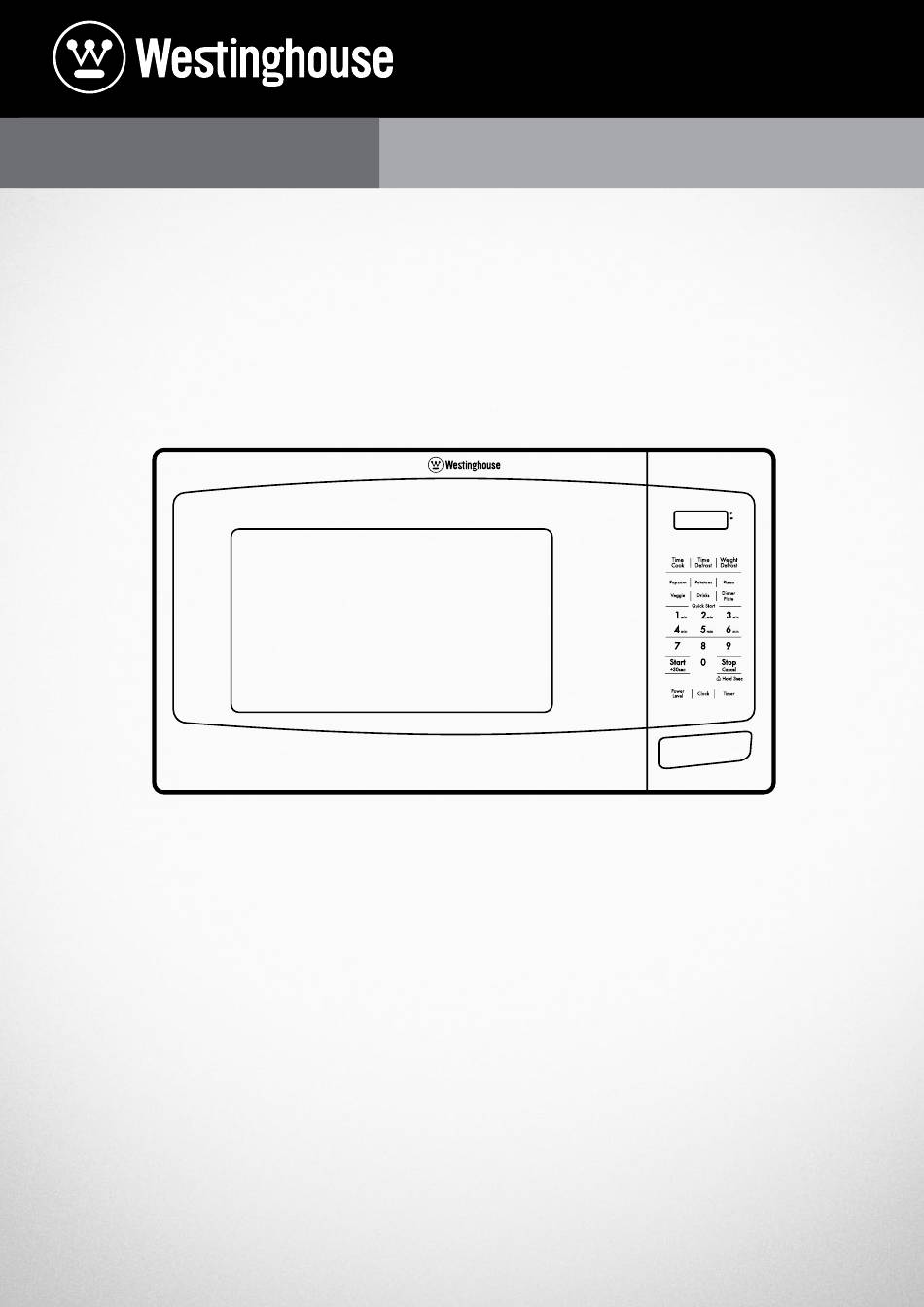

- Page 1 USER MANUAL FREESTANDING MICROWAVE WMF2302SA, WMF2302WA...
-
Page 2: Table Of Contents
Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Westinghouse manufacturer’s warranty in the event that your product fault is due to failure to adhere this manual. -
Page 3: General Warnings
GENERAL WARNINGS Please read the user manual carefully and store in a handy • Only use utensils that are suitable for use in place for later reference. Pass the user manual on to microwaves. possible new owners of the appliance. •... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Installation Care and cleaning WARNING WARNING Only a qualified person must install this appliance. Risk of injury, fire or damage to the appliance. • Remove all the packaging. • Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. •... - Page 5 Specifications Model: WMF2302SA / WMF2302WA Rated Voltage: 230-240V~ 50Hz Rated Input Power (Microwave): 1200-1250W Rated Output Power (Microwave): 750-800W Oven Capacity: Turntable Diameter: 270mm External Dimensions: 485x375x293 mm Net Weight: Approx. 13 kg...
-
Page 6: Before First Use
BEFORE FIRST USE Make sure that all the packing materials are removed • Do not operate the microwave without glass tray, from the inside of the door. roller support, and shaft in their proper positions. • Make sure that the power supply cord is undamaged and does not run under the microwave or over any WARNING hot or sharp surface. -
Page 7: Microwave Cooking Principles
icrowave cooking principles COOKWARE MICROWAVE • Arrange food carefully. Place thickest areas towards Heat–resistant glass outside of dish. Non heat–resistant glass • Watch cooking time. Cook for the shortest amount Heat–resistant ceramics of time indicated and add more as needed. Food severely overcooked can smoke or ignite. -
Page 8: Product Description
PRODUCT DESCRIPTION CONTROL PANEL Model WMF2302SA, WMF2302WA Control panel Turntable shaft Turntable ring Glass tray Observation window Oven door Safety interlock system Accessories Display window Time/ Weight Defrost Turntable set Quick touch presets Glass cooking tray and roller guide. STOP: Cancel Hold 3 seconds: Before cooking starts,press to clear all previous settings. -
Page 9: Daily Use
DAILY USE Defrosting butter or similar WARNING • Do not fully defrost the food in the appliance, but Refer to the safety chapters. let it defrost at room temperature. This gives a more even result. Fully remove all metal or aluminium packaging before defrosting. - Page 10 DAILY USE (CONTINUED) Suitable cookware and materials MICROWAVE COOKWARE / MATERIAL DEFROSTING HEATING COOKING Ovenproof glass and porcelain (with no metal components, e.g. Pyrex, heat- proof glass) Non-ovenproof glass and porcelain Glass and glass ceramic made of ovenproof / frost-proof material (e.g.
-
Page 11: Operation
OPERATION Power level • 11 power levels are available. The default power level is 10 ( 100%). Prior to or during cooking, press Power Level pad or a number pad to select a different power level. LEVEL POWER 100% DISPLAY PL 10 PL 9 PL 8... - Page 12 OPERATION (CONTINUED) Weight defrost function Dinner plate Press , “dEF1” will display. Press repeatedly until the number you wish appears in the display, “250”, “350”, “500”g. will Press number pads to input weight to be defrosted. display in order. Input the weight range between 100 to 2000g. Press to cook, oven beeps once.
-
Page 13: Using The Accessories
USING THE ACCESSORIES Multi stage cooking function WARNING At most, 2 stages can be set for cooking. In multi-stage Refer to the safety chapters. cooking, if one stage is defrosting, then defrosting will occur first automatically. Note: Auto cooking cannot work in the multi-stage CAUTION cooking function. -
Page 14: Helpful Hints And Tips
HELPFUL HINTS AND TIPS Power setting table PROBLEM REMEDY You cannot find details for the amount of food prepared. Look for a similar food. Increase or shorten the length of the cooking times according to the following rule: Double the amount = almost double the time Half the amount = half the time The food got too dry. -
Page 15: Troubleshooting
TROUBLESHOOTING WARNING Refer to the safety chapters. PROBLEM POSSIBLE CAUSE REMEDY Electrical cord for oven is not Plug into the outlet. Oven will not start plugged in. Door is open. Close the door and try again. Wrong operation is set. Check instructions. -
Page 16: Installation
INSTALLATION 7.5cm CAUTION 30cm Do not block the air vents. If you do that, the appliance can overheat. CAUTION Do not connect the appliance to adapters or extension 7.5cm leads. This can cause overloading and risk of fire. • Put the appliance far away from steam, hot air and water splashes. - Page 17 Electrical installation WARNING Only a qualified person must do the electrical installation. IMPORTANT The manufacturer is not responsible if you do not follow the safety precautions from the chapter “Safety Instructions”. This appliance is supplied with a main cable and main plug.
-
Page 18: Installation
NOTES... -
Page 19: Warranty
(c) ‘ASC’ means Electrolux’s authorised serviced centres; (a) the Appliance has been, or Electrolux reasonably believes that the (d) ‘Westinghouse ’ is the brand controlled by Electrolux Home Products Appliance has been, used for purposes other than those for which Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004... - Page 20 The Electrolux Group to consumers including delivery, home service and spare parts. and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved. © 2018 Electrolux Home Products Pty Ltd.
