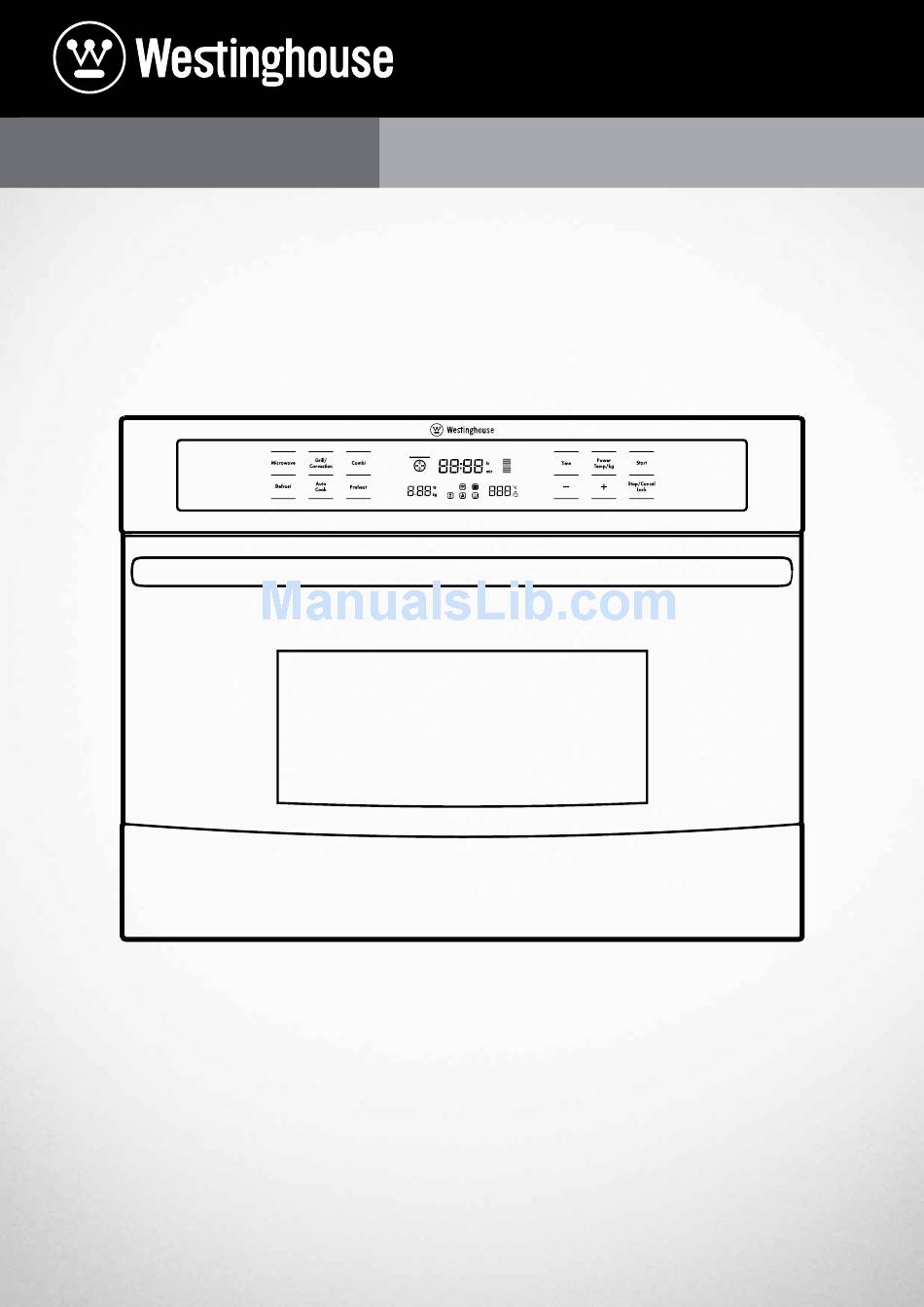

Page 1: Microwave Oven
USER MANUAL MICROWAVE OVEN WMB4425SA... -
Page 2: Table Of Contents
CONTENTS CONGRATULATIONS Dear customer, General warnings .................3 Important safety instructions ............4 Congratulations on the purchase of your new microwave. Product description ................5 Before you use the microwave, we recommend that you Control panel ..................5 read through the whole user manual which provides the description of the microwave and its functions. -
Page 3: General Warnings
GENERAL WARNINGS Please read the user manual carefully and store in a handy • Do not heat liquids and other foods in sealed place for later reference. Pass the user manual on to containers. They are liable to explode. possible new owners of the appliance. •... -
Page 4: Important Safety Instructions
SAFETY INSTRUCTIONS Installation Care and cleaning WARNING WARNING WARNING WARNING Only a qualified person must install this appliance. Risk of injury, fire or damage to the appliance. • Remove all the packaging. • Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. •... -
Page 5: Product Description
PRODUCT DESCRIPTION Control panel Grill element Light Door glass Hinge Turntable shaft Short Grill Rack Long Grill Rack Grill Pan Control panel SYMBOL FUNCTION DESCRIPTION Function pads To set various cooking functions Function display Displays cooking function active Time display Displays cooking time or clock function Time To set clock or cooking time... -
Page 6: Before Using Your Appliance For The First Time
BEFORE FIRST USE WARNING WARNING Refer to the safety chapters. Initial cleaning and heating Removing the microwave oven all of the protection foil on the front. For more information see the chapter “CARE AND CLEANING”. Before the first use of the appliance, •... -
Page 7: Daily Use
DAILY USE Defrosting meat, poultry, fish: WARNING WARNING • Put the frozen, unwrapped food on a small upturned Refer to the safety chapters. plate with a container below it so that the defrosting liquid collects in the container. WARNING • Turn the food after half of the defrosting time. - Page 8 DAILY USE (CONTINUED) Suitable cookware and materials MICROWAVE GRILLING/ COOKWARE / MATERIAL CONVECTION DEFROSTING HEATING COOKING Ovenproof glass and porcelain (with no metal components, e.g. Pyrex, heat-proof glass) Non-ovenproof glass and porcelain Glass and glass ceramic made of ovenproof / frost-proof material (e.g.
- Page 9 DAILY USE (CONTINUED) Cooking guide MICROWAVE FOOD COOKING FUNCTION TEMP (ºC) TIME (MIN) POWER (W) Scones Fan Bake Cup Cakes Fan Bake Sponge cake Fan Bake Soup Microwave 5 min on 450W then 5 min on 900W Rice Microwave 5 min on 900W, stir then 5 min on 900W Pasta Microwave 5 min on 900W, stir then 5 min on 900W...
-
Page 10: Automatic Programmes
AUTOMATIC FUNCTIONS Microwave Cooking To adjust the microwave power press again until the default microwave power of 300W flashes. Press the button to activate the microwave function. Microwave power, blinks in the display and Press to select 700W, 450W, 300W the microwave icon appears. - Page 11 AUTOMATIC FUNCTIONS (CONTINUED) Auto Cook Preheating Function There are 12 automatic cooking programs. You only have The preheating function can be activated after you to choose the program and set the weight. The power, the have chosen the functions: Convection, Grill fan, MW- time and the temperature are already set.
-
Page 12: Using The Accessories
USING THE ACCESSORIES ADDITIONAL FUNCTIONS Lock-out Function for Children WARNING WARNING Lock: Refer to the safety chapter. In waiting state, press for 3 seconds, there will be a long “beep” denoting entering into the children-lock state WARNING CAUTION indicator will light. Do not cook food without the turntable set. -
Page 13: Helpful Hints And Tips
HELPFUL HINTS AND TIPS Power setting table PROBLEM REMEDY You cannot find details for the amount of food prepared. Look for a similar food. Increase or shorten the length of the cooking times according to the following rule: Double the amount = almost double the time, Half the amount = half the time The food got too dry. -
Page 14: Troubleshooting
TROUBLESHOOTING WARNING WARNING Refer to the safety chapters. PROBLEM POSSIBLE CAUSE REMEDY The appliance does not operate. • The appliance is deactivated. • Activate the appliance. • The appliance is not plugged in. • Plug in the appliance. • The fuse in the fuse box is blown. •... -
Page 15: Installation
Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire. • Model WMB4425SA is for built-in use only. Side view 45mm • The fitted cabinet must not have a back wall behind the appliance. - Page 16 INSTALLATION (CONTINUED) Side view Built-in furniture – proud fit 45mm The built-in cabinet must not have a rear wall behind the appliance and must have a minimum installation height of 850mm. Do not cover ventilation slots and air intake points. NOTE: Your appliance must be mounted on a flat surface for the full width and depth of the product.
- Page 17 WARNING CAUTION Do not block the air vents. If you do, the appliance can overheat. WARNING CAUTION Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire. This appliance comes with a supply cord but no plug. Electrical connection must be made by a qualified electrician.
-
Page 18: Electrical Installation
INSTALLATION (CONTINUED) ELECTRICAL INSTALLATION • Electrolux Home Products cannot accept responsibility for damage caused by installation into WARNING WARNING low temperature tolerant cabinets. Only a qualified person must do the electrical installation. • After installation, test and ensure that the appliance operates correctly before handing it over to the TIPS &... -
Page 19: Warranty
Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: MICROWAVE 24 MONTH PROVISION This document sets out the terms and conditions of the product 7. You may not make a claim under this warranty unless the defect claimed warranties for Electrolux Appliances. It is an important document. is due to faulty or defective parts or workmanship. - Page 20 Westinghouse. We are part of the Electrolux family. Share more of our thinking at www.electrolux.com , and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license. All Rights Reserved. © 2014 Electrolux Home Products Pty Ltd.
