Moog One Manual page 21

REAR PANEL
(Continued)
additional software drivers) into Moog One operations. The USB port found here allows Moog One to
communicate directly with your computer via USB, sending and receiving MIDI and other system data.
NOTE: Keep in mind that these pedal jacks can also be used to receive CV signals (via 1/4" TS cables)
from other synth modules, Eurorack systems, etc.

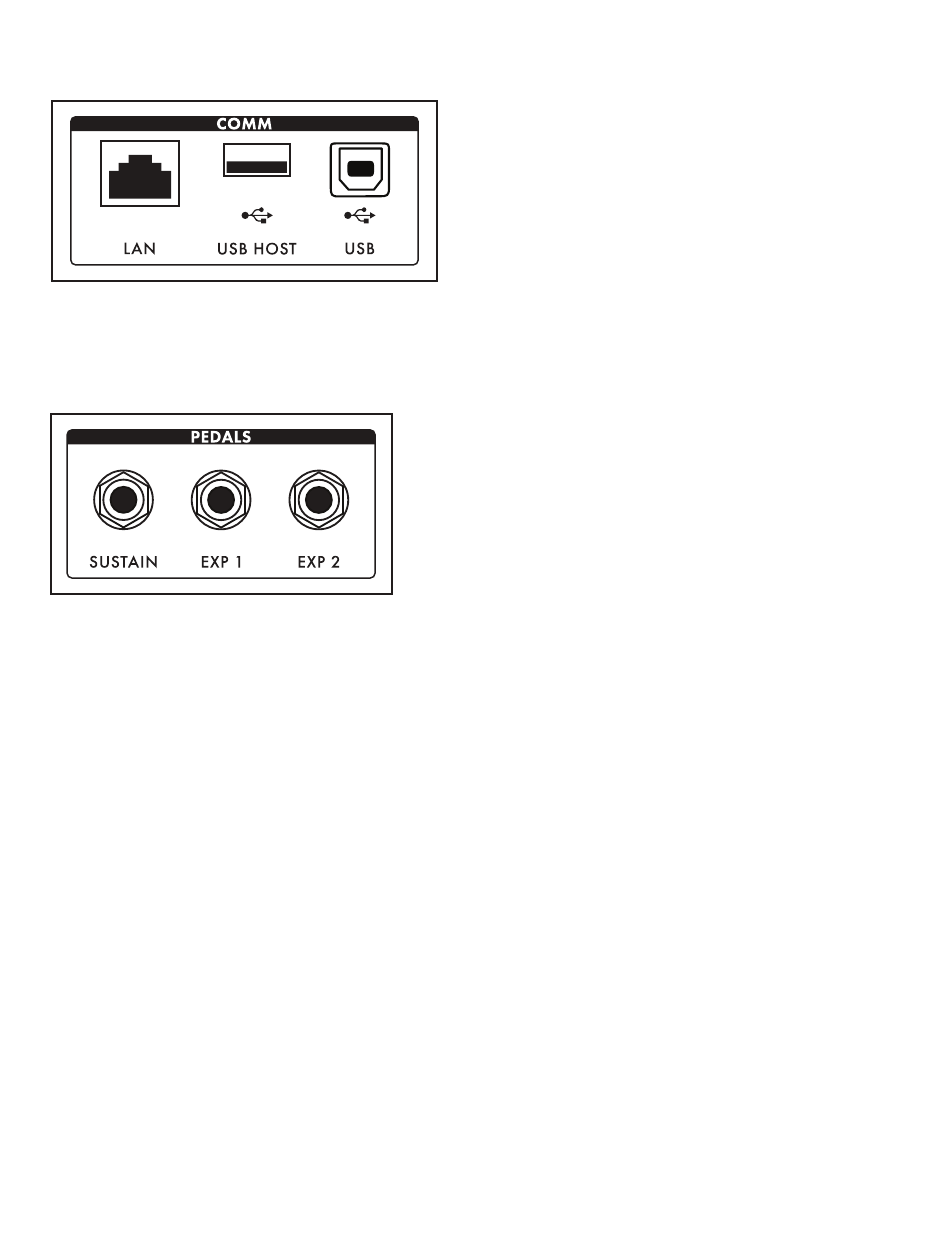

COMM (COMMUNICATION PORTS)
The LAN port enables Moog One to connect
directly to a computer network using a CAT-5
cable, which allows for remote servicing and
future expansion. The USB HOST port provides
a convenient way to backup instrument data
onto portable USB drives for safe keeping and
backline applications. Additionally, the USB
HOST port can also incorporate any class-
compliant MIDI device (one that requires no
PEDAL JACKS
Moog One includes three pedal input jacks. One
is configured as a sustain (SUSTAIN) pedal input,
and the other two as expression (EXP 1, EXP 2)
pedal inputs. These inputs can be used to control
nearly any Moog One parameter, allowing for a
tremendously expressive performance.
21
