FILTER MORE PAGE

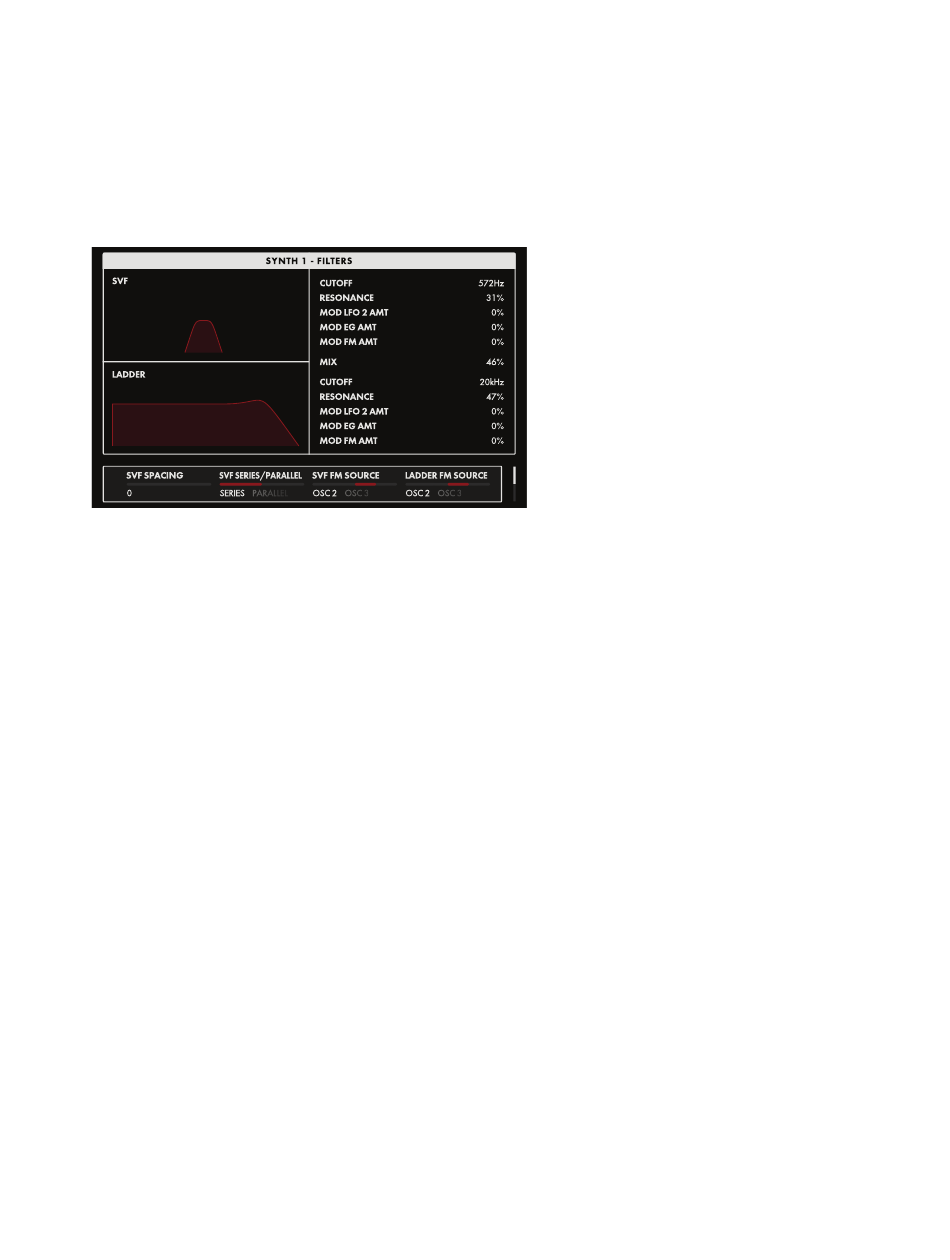

Pressing the triangular MORE button in the upper right corner of the Filter Module will reveal a second
level of parameters that can be accessed and modified using the interactive portion of the Center
Console. These additional parameters are displayed in the bottom portion of the screen. The left pane
offers a visual representation of the two filter modules. The right pane shows the current value of the
Front Panel hardware parameters for this module. Tweaking these panel controls will update their
values here.
NOTE: Pressing the (now) illuminated MORE button will exit the MORE page and recall the HOME screen.
SELECTING A ROW
The scroll bar at the right edge indicates the current row. Rotate the Master Encoder to the right to
highlight the next row of parameters. Rotating the Master Encoder to the left will select a previous row.
Again, rotate the Soft Knob below a parameter to change its value.
SVF SPACING
(-100% to 0 to +100%)
This parameter sets up an offset in the Cutoff Frequency value between the two filter elements that
comprise the State Variable Filter. The SVF Cutoff Frequency sets the value of filter element A; the
SVF SPACING parameter sets the Cutoff Frequency of element B above or below that value. When
the value of this parameter is set to 0, the Cutoff Frequency of the two elements is the same. Positive
values raise the Cutoff Frequency of element B in relation to element A; negative values will lower it.
SVF SERIES/PARALLEL
This parameter determines how the two filter elements that comprise the SVF module will arrange
themselves. When Series is selected, the output of element A will feed the input of element B. By
selecting Parallel, the two filters will operate side by side.
NOTE: Although sharing similar attributes, this parameter has a different function than the SER / PAR
ROUTE button on the Front Panel. That button specifies whether the SVF and Ladder Filter are running in
Series or Parallel. The SVF SERIES / PARALLEL selection only affects the elements inside the SVF module.
SVF FM SOURCE
(OSC 1, OSC 2, OSC3)
This parameter determines which Oscillator will serve as the Frequency Modulation source for the SVF.
When applying FM, the SVF MOD button needs to be On (lit), and the FM AMT knob sets the amount.
LADDER FM SOURCE
This parameter determines which Oscillator will serve as the Frequency Modulation source for the
Ladder filter. When applying FM, the LADDER MOD button needs to be On (lit), and the FM AMT knob
sets the amount.
(SERIES, PARALLEL)
(OSC 1, OSC 2, OSC3)
The onscreen MORE page parameters are
edited using the four Soft Knobs below
the screen.
CHANGING THE VALUE
Rotate the Soft Knob below the parameter
name to change its value. In some cases,
the Soft Knob simply turns a function on
or off. In other cases, the Soft Knob may
choose from a list of values or settings,
and in other cases, the Soft Knob is
dialing in a value – either absolute or a
percentage.
