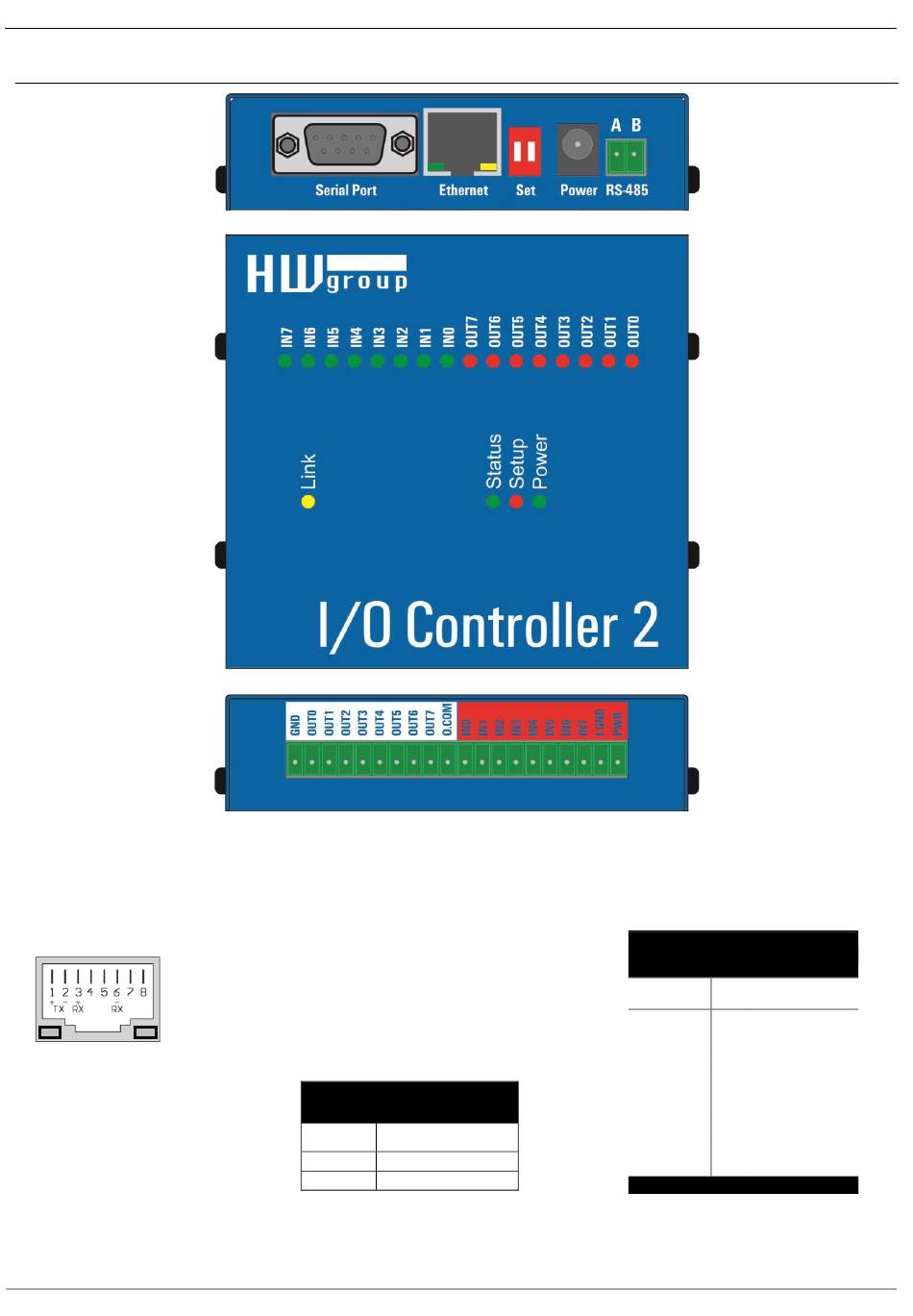

I/O Controller 2 Manual
Connectors
Connector pinout
Power
LINK
www.HW-group.com
RS-485 Port
Pin
Signal
A
+ (A>B)
B
-
HW group
RS-232 Port
Pin
Signal
1 <-
CD
2 <-
RxD
3 ->
TxD
4 ->
DTR
5 --
GND
6 <-
DSR
7 ->
RTS
8 <-
CTS
9 <-
RI
Cannon 9 - Male
6/ 42
