Damocles MINI – starting guide
Damocles MINI
Starting Guide – Damocles MINI
First steps for I/O control with Damocles

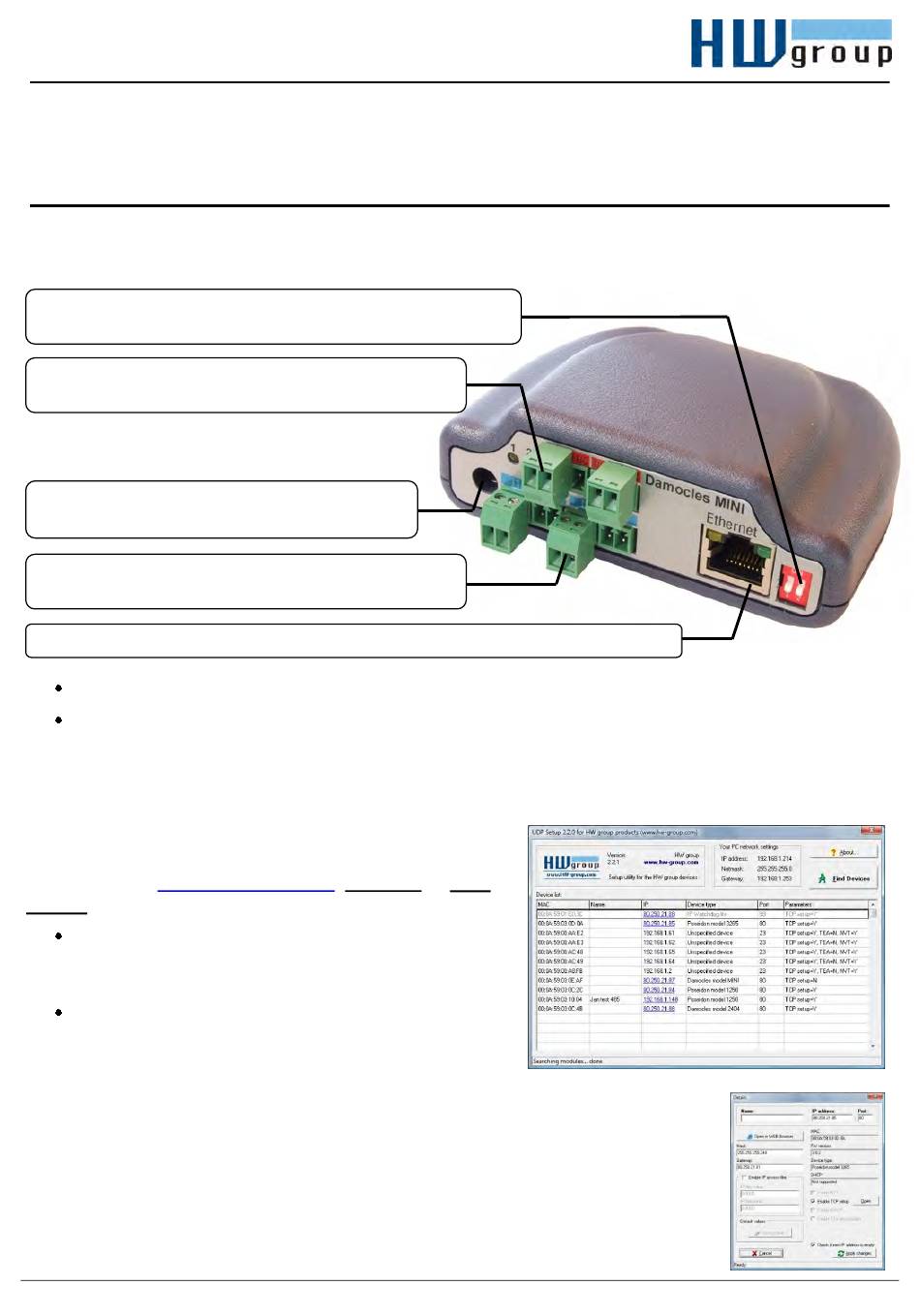

1) Connecting the Damocles MINI
1.1) Check the DIP switches. For installation, set them as shown
in the picture (DIP1=Off, DIP2=Off).
1.2) Output (double-throw relay contact) to turn on/off
external devices (fans, A/C, heating, horn, etc.)
1.3) Connect the power adapter to an outlet (230 /
110V) and to the 12V power supply connector.
1.4) Dry contact inputs to connect sensors with Dry
Contact outputs (buttons, relay contacts, door contacts).
1.5) Connect Damocles to the Ethernet (patch cable to switch, or cross-over cable to
PC)
Green POWER LED on the RJ45 socket lights up – power supply is OK
Yellow LED on the RJ45 socket flashes – connection to 10 Mbit network is OK
2) Configuring the IP address – UDP Config
The UDP Config executable is located in the root of the
supplied CD (Windows and Linux version), or it can be
downloaded at www.HW-group.com, Software -> UDP
Config.
Click the icon to run UDP Config. The program
automatically starts searching for connected
devices.
Click the Find Devices button to start searching
for devices.
The program looks for devices on your local network. To
identify a particular Poseidon unit, look at its MAC address (printed on the label
at the bottom of the unit). Double click a MAC address to open a dialog window
with basic device settings.
Click the Apply Changes button to save the settings.
Note: Contact your network administrator if you are unsure about these
settings.
