I/O Controller 2 Manual

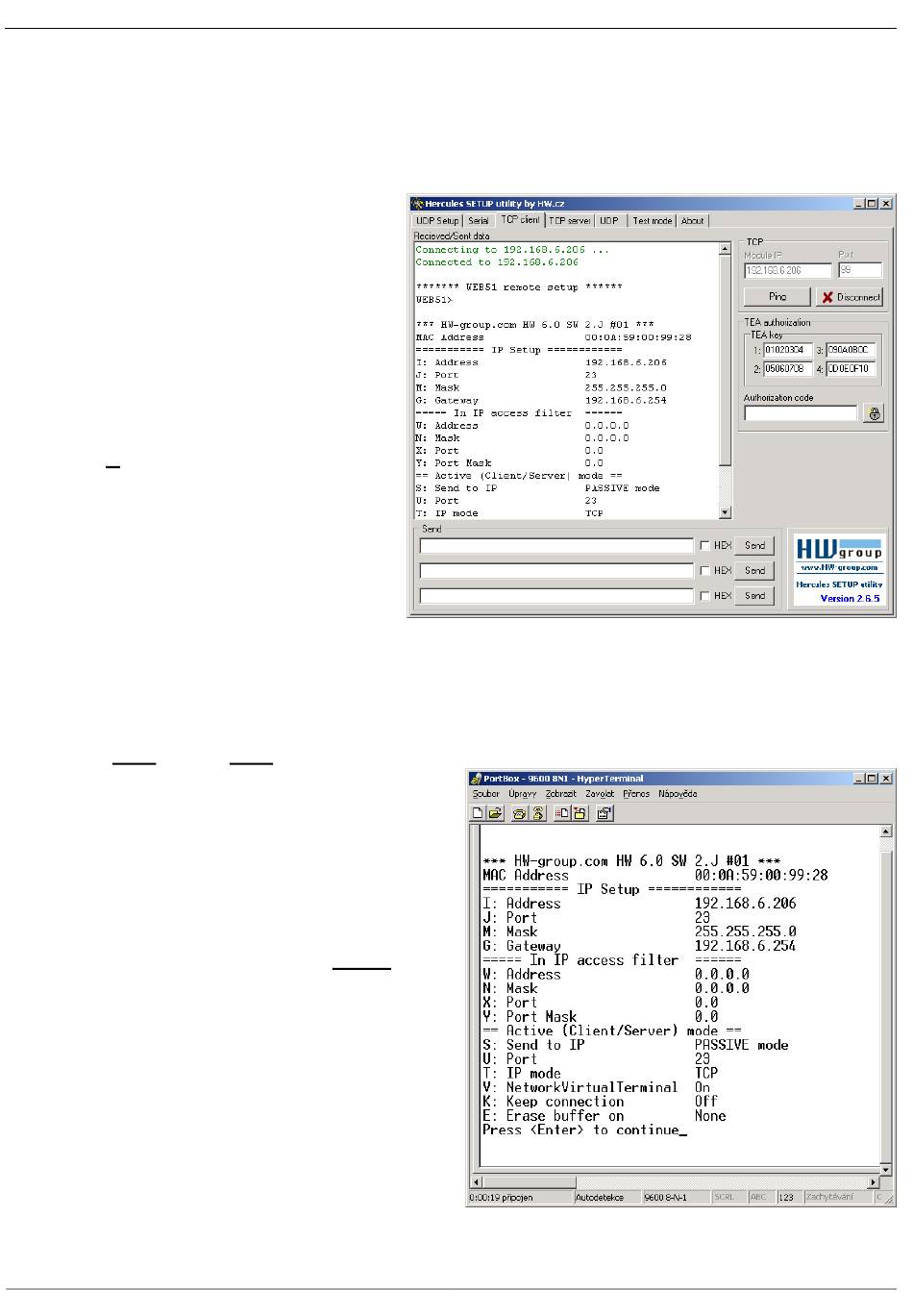

Setting up the device using TCP Setup
•
Change to the "TCP Client" tab and enter the configured IP address. Set the TCP Port to 99.
•
Click "Connect". The listing on the left displays the "WEB51>" prompt. Click inside this pane
and press ENTER. The window displays the current configuration.
•
To set a parameter, enter the
corresponding letter and the desired
value (for example "I192.168.6.8" to
set the device IP address). To show
the help for a command, enter the
command and a question mark, and
press ENTER – for example, "I?
<Enter>". All the settings are
described in detail later in this
manual.
•
After setting the parameters, use R
for Reboot and press "Disconnect"
to disconnect from the device. The
device restarts.
•
Note: TCP Setup can be disabled
with the "Enable TCP setup" option.
When unchecked, the device
refuses connections to port 99.
Setting up the device using a RS-232 terminal
If you do not have Windows or our Hercules utility available, you can set up the device over RS-232
using any terminal.
•
Set DIP1 = ON, DIP2 = OFF.
•
Connect RS-232 (port 1) to a PC using the
supplied LapLink cable.
•
Open your favorite terminal program (e.g.
Hyperterminal), choose the correct serial
port and configure it to 9600 8N1.
•
Connect the power adapter to the
electrical outlet and to the device.
•
If the power is OK, the green Power LED
lights up.
•
If the serial cable and terminal program
are working, the text menu for configuring
the device appears.
Continue by following the steps as in the previous
case.
