Features and Controls
Read the Operator's Manual and safety rules before operating your electric pressure washer.

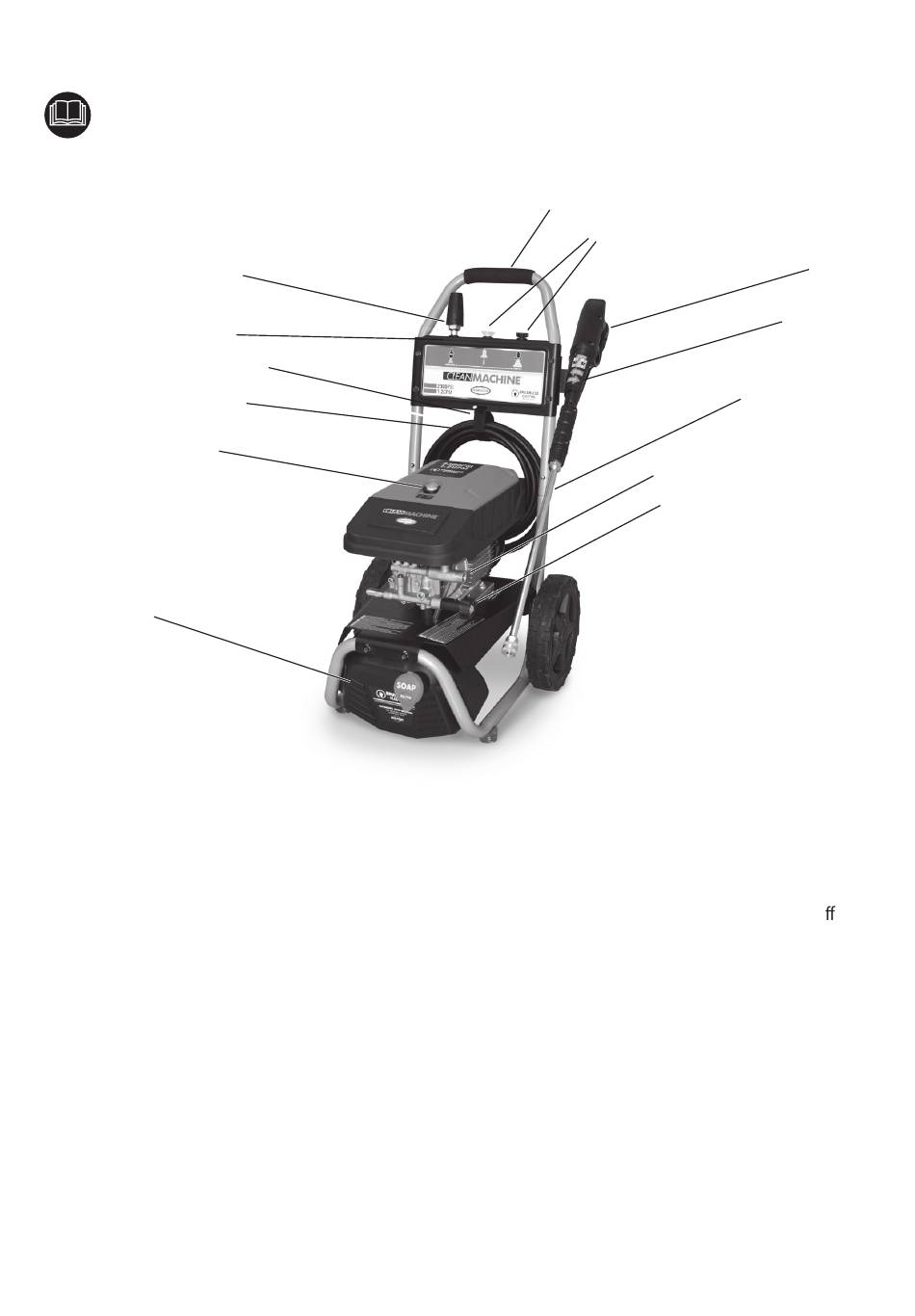

Compare the illustrations with your electric pressure washer to familiarize yourself with the locations of various controls
and adjustments. Save this original manual for future reference.
B
C
L
A - Handle
B - Accessory Storage — Provides convenient storage
for standard and optional accessories.
C - Master ON/OFF Switch — Push switch in to turn pressure
washer ON. Push switch to turn pressure washer OFF.
D - Water Supply Inlet — Connect to water supply using a
50 ft. (15.24 m) maximum garden hose, 30 ft. max if water
source is a well. source is a well.
E - High Pressure Water Outlet — Connection for high
pressure hose.
F - High Pressure Hose — Connect one end to high pressure
water outlet and the other end to spray gun.
G - Electric Cord with GFCI
washer and operator is protected by a ground fault circuit
interrupter (GFCI). (not shown, see page 12)
K
B
F
— T e h e c e l c i r t r p
A
H - Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock.
I - Spray Wand — Allows you to switch between di erent
spray tips.
J - Spray Tips — Quick Connect (QC) spray tips
Yellow High Pressure Nozzle with 15° Fan Spray Pattern
Black Low Pressure Nozzle to apply detergent to surfaces
K - Turbo Spray Tip— Whirls a powerful pin-point jet of
water for intense cleaning.
L - Detergent Tank — Prepare detergent solution as
required by job.
