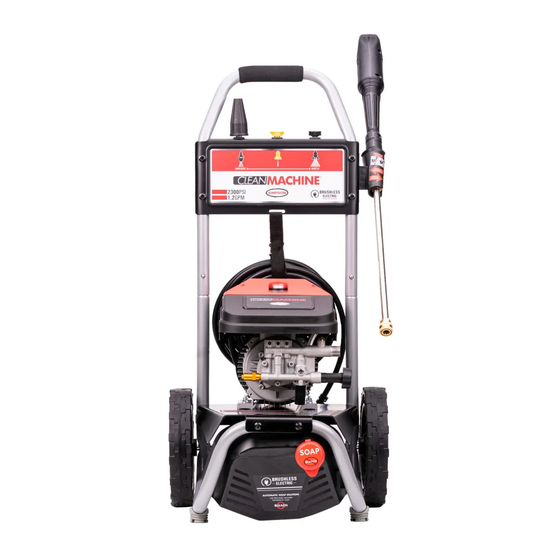

PRESSURE WASHER
USE AND CARE MANUAL
READ THIS MANUAL CAREFULLY BEFORE OPERATION
Failure to follow the instructions and safety precautions in this manual can result
in property damage, serious injury and/or death.
If your pressure washer is not working or if there are parts missing or broken, please DO NOT
RETURN IT TO THE PLACE OF PURCHASE. Contact our Customer Service Department by calling
1-877-362-4271 or emailing cservice@fna-group.com
SAVE THIS MANUAL FOR FUTURE REFERENCE
NOTE: Photographs and line drawings used in this manual are for reference only and may not
represent your specific model.
Part Number 7111613 / ENGLISH
CM60976
REV 8 - 6/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM60976 and is the answer not in the manual?

Questions and answers

Related Manuals for Simpson CM60976

Summary of Contents for Simpson CM60976

  • Page 1 PRESSURE WASHER USE AND CARE MANUAL CM60976 READ THIS MANUAL CAREFULLY BEFORE OPERATION Failure to follow the instructions and safety precautions in this manual can result in property damage, serious injury and/or death. If your pressure washer is not working or if there are parts missing or broken, please DO NOT RETURN IT TO THE PLACE OF PURCHASE.
  • Page 2 NOTES THIS PAGE WAS INTENTIONALLY LEFT BLANK Page II...
  • Page 3 SAVE THIS MANUAL FOR FUTURE USE Keep this manual for future reference. This manual should be considered a permanent part of the product and stay with it. This manual should be available to anyone operating the product(s) it covers. This manual should remain with the product(s) it covers if sold to a new owner.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS Ground Fault Circuit Interrupter Protection Grounding Instructions Motor Overload Thermal Relief Valve UNPACKING 5 ASSEMBLY 5 Assemble the Spray Gun Organize Accessories COMPONENT LOCATION 7 CONNECTING HOSES 9 PURGING AIR FROM THE PUMP 10 NOZZLES 11 Nozzle Selection Nozzle Installation OPERATING CHECKLIST 12...

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS READ THIS MANUAL BEFORE OPERATING This manual contains important safety information and instructions. Do not operate this product until you have read, and completely understand all safety, operation, and maintenance instructions listed in this manual. Failure to follow the information contained in this manual will result in property damage, injury, and/or death.

  • Page 6: Ground Fault Circuit Interrupter Protection

    WARNING: WARNING: OPERATOR SAFETY Failure to read and follow the operator’s manual and all of its instructions before using the product could result in DEATH or SERIOUS INJURY. Read this manual carefully and become failure with your electric pressure washer. Know its applications, its limitations and any hazards involved.

  • Page 7: Unpacking

    UNPACKING Follow the steps outlined in this section to unpack and assemble your pressure washer. If you have any questions regarding the unpacking or assembly of your pressure washer, please have your model number and serial number ready, then contact customer support at 1-877-362-4271 or email cservice@fna-group.com.

  • Page 8: Assemble The Spray Gun

    Assemble the spray gun Thread the lance into the spray gun. Organize accessories Place the spray gun and lance assembly into the holder on the dashboard. Push nozzles into rubber grommets dashboard. Note: the dashboard label indicates correct nozzle placement. Hang the high-pressure hose with the strap holder.

  • Page 9: Component Location

    COMPONENT LOCATION 1 - Handle 2 - Accessory Storage - Provides convenient storage for the included nozzles and strap to hold the high-pressure hose and electrical cord. 3 - Master ON/OFF - Push the switch in to turn the pressure washer Switch ON.
  • Page 10 6 - Spray Wand - Allows you to switch between different spray nozzles. 7 - High-Pressure - Thread the high-pressure hose onto this Water Outlet connection. 8 - Water Supply Inlet - Connect the water supply using a 50ft (15.24m) maximum length garden hose, 30ft (9.14m) maximum if the source is a well.

  • Page 11: Connecting Hoses

    CONNECTING HOSES Before connecting a water supply hose, be sure the water supply is capable of providing an uninterrupted source of clean, cold water at a minimum rate of 5 gallons per minute (GPM) and 20 pounds per square inch (PSI) of pressure. Once a proper water supply is secured, follow the instructions below to connect both the water supply and high-pressure hoses to the pressure washer.

  • Page 12: Purging Air From The Pump

    PURGING AIR FROM THE PUMP NOTICE PUMP PURGING Running a pressure washer pump without water will severely damage the pump seals and other internal components. To avoid this hazard, make sure your water supply is uninterrupted and at least 5 GPM at 20 PSI, and always purge the air your pressure washer pump before starting the engine.

  • Page 13: Nozzles

    NOZZLES Nozzle Selection The nozzles supplied with the pressure washer have specific spray patterns designed to clean different surfaces. Using the incorrect nozzle can damage surfaces. Refer to the table below to select the correct nozzle before using the pressure washer. NOTE: The selection of nozzles included may vary with pressure washer models.

  • Page 14: Operating Checklist

    OPERATING CHECKLIST Location Place the pressure washer on a level surface outside. Never use an extension cord with the electric pressure washer. If the power supply cord will not reach a receptacle, move the pressure washer closer to the receptacle. Operating Conditions Before each use, check for loose or damaged parts, leaks, and/or any other condition that may affect proper operation.

  • Page 15: Starting The Pressure Washer

    WARNING: WARNING: INJECTION INJURY The high pressures created by a pressure washer can cause fluid injection injuries, severe lacerations, amputations, and / or death. To avoid these hazards, always aim the spray gun and lance in a safe direction when using the pressure washer and never attempt to touch a leak in a high-pressure hose or fitting.
  • Page 16 DANGER: DANGER: ELECTROCUTION HAZARD Use of an extension cord could cause shock or burn resulting in death or serious injury. DO NOT use an extension with this electric pressure washer. Your home’s electrical circuit receptacle or extension cord may not provide lifesaving ground fault circuit interrupting protection.

  • Page 17: Using Chemicals

    USING CHEMICALS NOTICE VOLATILE LIQUIDS Pressure washing with volatile, flammable, or corrosive liquids could cause pressure washer damage, fire, or explosion resulting in severe injury and/or death. To avoid these hazards, use only approved soaps and chemicals, do not attempt to pressure wash with volatile, flammable, or corrosive liquids, and NEVER use bleach.

  • Page 18: Operation Tips

    OPERATION TIPS Terms ● PSI – Stands for pounds per square inch and measures the water pressure or stripping power produced by the pressure washer. The higher the PSI number, the greater the pressure and stripping power produced. ● GPM – Stands for gallons per minute and measures the flow rate of the water. The higher the GPM, the greater the flow or rinsing power produced.

  • Page 19: Troubleshooting

    TROUBLE SHOOTING Issue Possible Cause Solution The power supply cord is Plug the cord into a 120 not connected. volt, 15 ampere receptacle. The house circuit breaker is Reset the circuit breaker. tripped. The GFCI equipped Reset the GFCI by pushing receptacle (if applicable) is the RESET button.

  • Page 20: Maintenance

    MAINTENANCE For safety reasons, the manufacturer recommends all pressure washer service and repairs be performed by an authorized service center. All warranty replacements or repairs must be performed by an authorized distribution or service center. To find an authorized service center near you, make a warranty claim, or get authorized warranty repair, call 1-877-362- 4271 or email cservice@fna-group.com.

  • Page 21: Nozzle Cleaning

    Nozzle Cleaning If a nozzle becomes clogged, the pump may pulsate and spray patterns could change. If the nozzle is not cleaned, excessive pressure may develop possibly damaging the pump, or other accessories. Inspect nozzles before using them and follow the instructions in this section for the proper nozzle cleaning procedure.

  • Page 22: Pump Maintenance

    Store the pressure washer and its accessories in a cool, dry location out of direct sunlight. * SIMPSON Pump Guard (not included) is the best way to maintain the health of your high- pressure pump. It lubricates and protects the seals during long-term storage while filling the pump with a non-freezing solution.

  • Page 23: Limited Warranty

    RESPONSIBILITY OF ORIGINAL PURCHASER (INITIAL USER): To process a warranty claim on your SIMPSON® pressure washer, report the concern to 1-877-362- 4271 or cservice@fna-group.com for authorization and direction to the nearest authorized service center in your area.
  • Page 24 WARRANTY COVERAGE PERIODS ENGINE AND EMISSIONS CONTROL SYSTEM • Covered by engine manufacturer warranty. See engine manual. HIGH PRESSURE PUMP (DEFECTS IN MATERIAL AND WORKMANSHIP) • AAA Pumps: One (1) year from date of purchase • OEM Pumps: One (1) year from date of purchase •...
  • Page 25 NOTES THIS PAGE WAS INTENTIONALLY LEFT BLANK Page 23...
