7121746 Rev C 10/2023 96802-KG
ASSEMBLY, CARE AND
USE INSTRUCTIONS

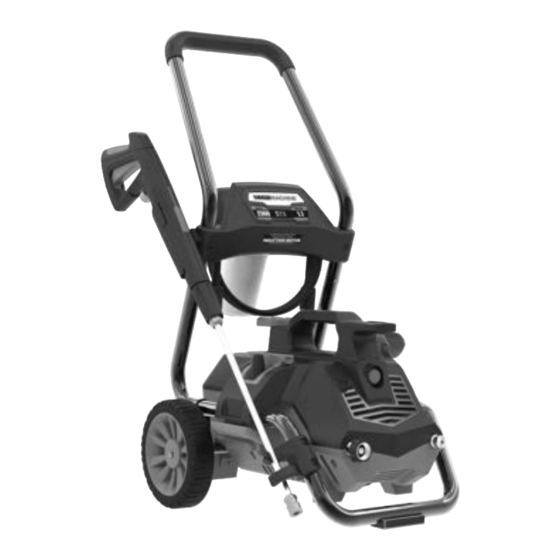

Model CM61352
READ CAREFULLY
IMPORTANT:
RETAIN THESE INSTRUCTIONS AND
ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE.
WARNING:
This product can expose you to chemicals
including lead, DEHP, DINP, Molybdenum trioxide which
is known to the State of California to cause cancer and
or lead to birth defects. For more information go to
www.P65Warnings.ca.gov
244964
Questions, problems, missing parts?
If your pressure washer is not working or if there are parts
missing or broken, please DO NOT RETURN IT TO THE PLACE OF
PURCHASE. Contact our Customer Service Department by calling
1-877-362-4271 or emailing cservice
fna-group.com
@

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM61352 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpson CM61352

Summary of Contents for Simpson CM61352

  • Page 1 ASSEMBLY, CARE AND USE INSTRUCTIONS Model CM61352 READ CAREFULLY IMPORTANT: RETAIN THESE INSTRUCTIONS AND ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE. WARNING: This product can expose you to chemicals including lead, DEHP, DINP, Molybdenum trioxide which is known to the State of California to cause cancer and or lead to birth defects.

  • Page 2: Table Of Contents

    Pump Guard ............................16 Troubleshooting ........................... 17 Limited Warranty ..........................18 PRODUCT SPECIFICATIONS SPECIFICATIONS Model Rated Working Working Cold Volts Frequency Amps Weight pressure Pressure Flow Water (Hz) (lbs.) (PSI) (PSI) (GPM) (MPa) (MPa) (LPM) CM61352 2300 1950 42.3 ✔ (15.9) (13.4) (4.2)

  • Page 3: Package Contents

    PACKAGE CONTENTS PACKAGE CONTENTS PW95824 15° – Yellow 25° – Green PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Hose Holder Spray Gun Handle Spray Gun Trigger Lock Rotary Nozzle Spray Gun Holster O-Ring Replacement Kit High Pressure Hose High Pressure Foam Cannon Quick Connect Nozzles Nozzle Cleaning Wire Power Washer Unit...

  • Page 4: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION Please read and understand this entire manual before attempting to slippery when using a detergent or cleaner. assemble and operate the product. 11. NEVER operate the power washer in bare feet, sandals, or open-toed shoes. This manual contains information that relates to PROTECTING 12.
  • Page 5 35. NEVER use lances or other parts that are not compatible for pressure washer. this specific SIMPSON unit. IT IS NOT RECOMMENDED TO USE AN EXTENSION 36. NEVER spray any electrical outlet with your power washer.
  • Page 6 SAFETY INFORMATION CAUTION CAUTION: CAUTION: SLIP / TRIP HAZARDS When pressure washing in public areas, signs should be posted that indicate to stay clear of the area as high-pressure washing is being performed. Also, signs should be posted that the surface may be slippery and trip hazards may be present.

  • Page 7: Assembly Instructions

    PREPARATION PREPARATION Before beginning assembly of product, make sure all parts are Tools Required for Assembly (not included): #2 Phillips present. Compare parts with package contents list and hardware screwdriver. contents list. If any part is missing or damaged, DO NOT attempt to assemble the product.
  • Page 8 ASSEMBLY INSTRUCTIONS Install lance holder (H) to lower frame (G). Secure with two screws (BB). Hardware Used: Screws Axle Pins Screws Cotter Pins Qty. 2 Qty. 2 Cant. 2 Press buttons on lower frame (G) extensions and install handle (B). Lower frame extensions will click when handle is in proper position.
  • Page 9 ASSEMBLY INSTRUCTIONS Place power washer unit (F) into position on the lower frame (G). Pull upward on latches that are located on sides of lower frame (G). Once upper latch is flush with the lower lip, push down until lower latch clicks into place. Locked Unlocked Pull back on collar at one end of high pressure hose (N).Push...
  • Page 10 ASSEMBLY INSTRUCTIONS Pull back on collar of lance (*I), attach nozzle (E) and rotary nozzle (*C) into end of lance (*I) by pressing selected nozzle into place. It will make a “click” sound when firmly in place. Extension Lance Installation While spray gun (K) is in the locked position, insert lance (*I) DO NOT use if a “click”...
  • Page 11 ASSEMBLY INSTRUCTIONS Pull back on collar of lance (*I) and attach foam cannon (O) into end of lance by pressing cannon into place. It will make a “click” sound when firmly in place. Foam Cannon Storage Note: Always lock spray gun when changing the foam cannon to Store the foam cannon (O) on the back of the power washer unit ensure it does not eject with force.

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS ASSEMBLY INSTRUCTIONS Attach a garden hose to built in garden hose adapter. The water is now connected to your power washer. Note: Flush out garden hose before connecting to garden hose adapter. You have now completed the assembly and are ready to begin using your electric power washer.
  • Page 13 OPERATING INSTRUCTIONS • Push the power button to turn the unit on (red power light will turn on). The unit will turn on for 1 - 2 seconds and shut off. This is a normal function of the auto start feature. •...

  • Page 14: Care And Maintenance

    OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS Operation Tips off, etc. You can vary the force of your power washer by • Note: Test the GFCI (For US unit only) before each use: controlling: 1. Plug GFCI into power outlet. Indicator should turn green to 1.
  • Page 15 When the water freezes and expands, your pressure washer will be damaged and become inoperable. OR, if storing outdoors, it is recommended you use SIMPSON Pump Guard (not included) to protect the pump.

  • Page 16: Pump Guard

    Leaving water inside the pump during freezing weather will cause severe damage to the pump. To avoid costly ® damage, always treat the pump with SIMPSON Pump Guard to remove the trapped water and to fill the pump with a lubricating, antifreeze solution.

  • Page 17: Troubleshooting

    TROUBLESHOOTING If you have any questions regarding this product, please contact our Customer Service Department by calling 1-877-362-4271 or emailing cservice fna-group.com. PROBLEM CORRECTIVE ACTION 1. Make sure the power washer is OFF. Plug in the electrical cord to a grounded 120 volt outlet. If the Unit will not turn on.

  • Page 18: Limited Warranty

    TROUBLESHOOTING LIMITED WARRANTY The Warranty of this product is covered by SIMPSON. This product has the following warranty coverage periods from the date of purchase: HIGH-PRESSURE PUMP – 1 year ELECTRIC MOTOR – 1 year FRAME – 1 year ACCESSORIES – 90 days (nozzles, hoses, spray guns, wands, tires, rubber feet) Please read the following carefully to understand what each warranty entails: This product is under warranty to the original retail consumer against defects in material and workmanship.
