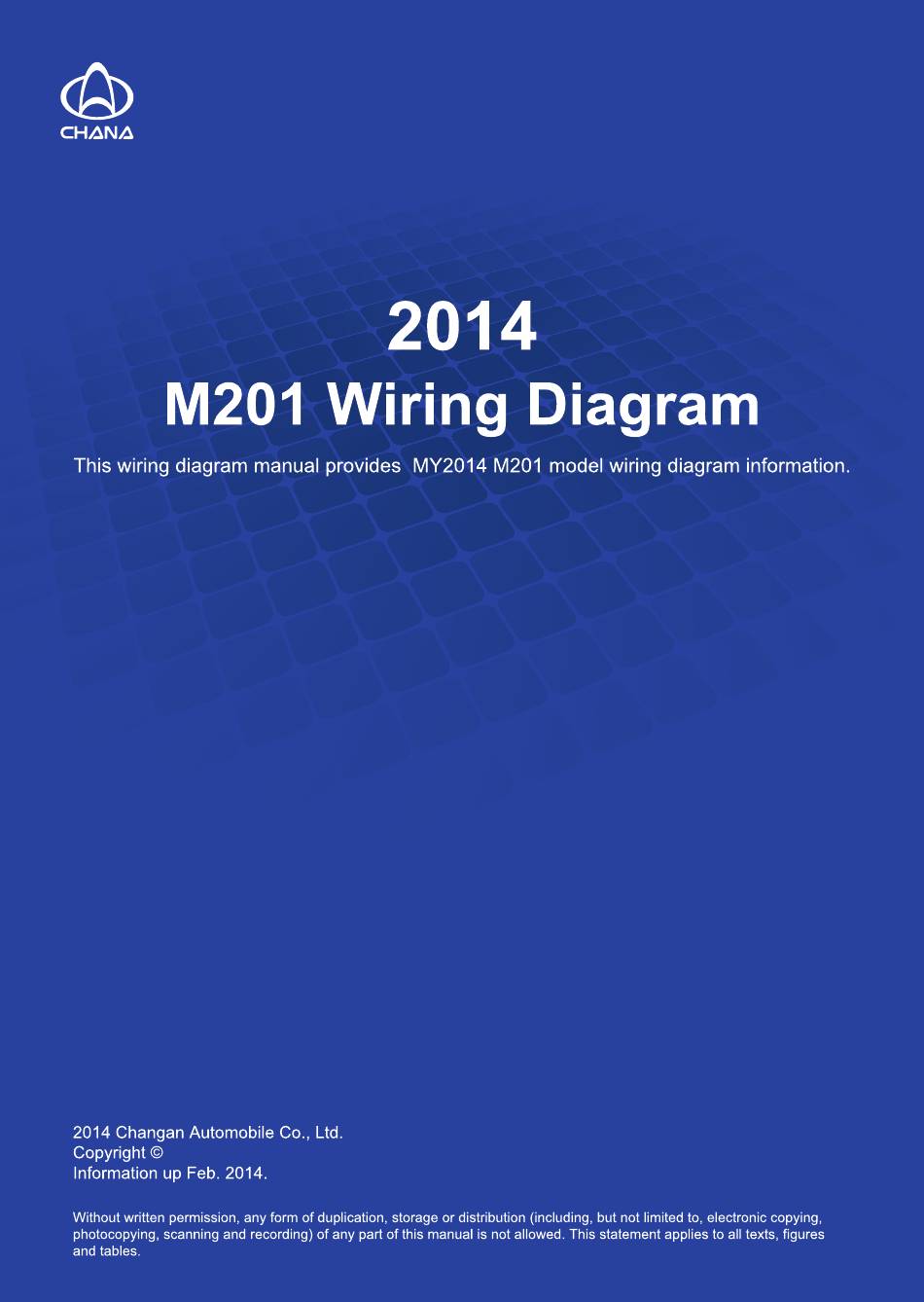

Changan M201 2014 Wiring Diagram

Changan M201 2014 Wiring Diagram

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M201 2014 and is the answer not in the manual?

Questions and answers

Naveed Ahmed
May 17, 2025

Engine is start but not getting off by switch what is the problem and main fuse is also damaged

0
1 comments:
Mr. Anderson
May 22, 2025

If the engine of a Changan M201 2014 starts but does not turn off with the switch, and the main fuse is damaged, possible problems include:

- A short circuit in the ignition switch or related wiring, causing continuous power to the ignition system even when the switch is turned off.
- Faulty engine control module (ECM) not responding to the ignition switch signal.
- Grounding faults at key terminals (e.g., terminals 5, 43, or 48), preventing proper shutdown.
- A damaged or bypassed ignition relay or starting circuit that keeps the system powered.

Inspect the ignition switch, wiring, grounding, ECM, and replace the main fuse after repairs.

This answer is automatically generated

0
Светлана
June 17, 2025

Changan CS35 Luxe год выпуска 2014 модель Changan CS 7164В двигатель 1.6L JL478QEE DC9F062549 VIN LS5A3DDE9EA920832 ЕСМ Bosch ME7 с 81-контактным разъёмом MOTRONIC 8679 0219 3600010-W19 Е10R0102 + коннектор с пинами Delphi Периодически на ходу глохнет двигатель и запускается с большим трудом. Тестируем проблему. **** должна быть между пинами 6 и 14 при включенном зажигании?

0

Subscribe to Our Youtube Channel

Related Manuals for Changan M201 2014

Summary of Contents for Changan M201 2014

  • Page 3 Power Supply/Sensor/Actuator................... 4.1.1-4 4.2.2 Instrument Cluster....................4.2.2-1 Power Supply and Signal....................4.2.2-2 Signal Lamp........................4.2.2-4 Lighting Signal Lamp ......................4.2.2-6 4.2.3 Horn ........................4.2.3-1 4.2.4 Cigarette Lighter ....................4.2.4-1 4.2.5 Information and Entertainment System.............. 4.2.5-1 Power Supply........................4.2.5-2 Speaker..........................4.2.5-3 M201 2014.01...
  • Page 4 I/P Power Supply Distribution 2................... 6.1.2-2 I/P Power Supply Distribution 3................... 6.1.2-3 6.1.3 Fuse Details ......................6.1.3-1 6.1.4 Grounding Distribution..................6.1.4-1 6.1.5 Wiring Harness Connector Location View............6.1.5-1 6.1.6 Grounding Location View..................6.1.6-1 6.1.7 Wiring Harness Connector Terminal View ............6.1.7-1 6.1.8 Abbreviation ......................6.1.8-1 M201 2014.01...
  • Page 5 Injector 2 Injector 3 Injector 4 Fuel Pump 2 E09 2 E06 2 E04 2 E02 Refer to 3.1.12 4 X07 Electronic Control System 32 E18 50 E18 63 E18 49 E18 64 E18 60 E18 G201 M1101001 M201 2014.01...
  • Page 6 8. Grounding number. The grounding number starts with G. For grounding details, please 6. Wiring harness color and width. The following refer to grounding layout views. table shows the color code. Wiring Harness Color Code Legend Color Black Brown M201 2014.01...
  • Page 7 For details, please refer to the relay table. 13. Filling grey shade means the electronic component, represents wiring 0.5 RD/YE harness connector code. 14. Circuit differences different models, M1101006 engines or specifications are noted by dashed lines and texts beside the circuit. M201 2014.01...
  • Page 9 Capacitor Sensor Relay Solenoid Double Throw Cigarette Lighter Relay Solenoid Resistor Antenna Light Load Potentiometer Normal Open Fuse Switch Moderate Load Rheostat Normal Close Fuse Switch Double Throw Heavy Load Ignition Coil Switch Fuse Heater Knock Sensor M1102001 M201 2014.01...
  • Page 10 1.1.2-2 Symbol 1.1.2-2 (Unshielded Diode Bulb Twisted Pair) Photodiode Horn Starting Motor Light Emitting Clock Spring Oxygen Sensor Diode Motor Airbag Stopper Switch Not Spliced Spliced Cross Cross Circuit Circuit M1102002 M201 2014.01...

  • Page 11: Diagnostic Procedure

    4. Repair Fault Repair the fault. Refer to the wiring diagram and the description for fault treatment in repair manual. For example, the diagnostic procedure for poor grounding and the wiring harness connector treatment. M201 2014.01...
  • Page 12 3. Jumper Wire with Fuse M1103004 Voltage testing is to test the voltage at a certain point. When testing certain connector terminal, insert the positive probe into the wiring harness from the connector back without assembling wiring harness connector. M1103003 M201 2014.01...
  • Page 13 Do the careful inspection from the place Ω, it means the component has good closest to the fuse. continuity. If the bulb is lit or ohmmeter has value display less than 5 Ω, it means the short circuit to the ground. M201 2014.01...
  • Page 14 The voltmeter will display the voltage difference between the two test points. If the voltage difference is more than 0.1 V (less than 50 mV for 5 V voltage circuit), it means a circuit fault. Inspect for loose, oxidized or corrosive circuit. M201 2014.01...
  • Page 15 After that, install the new airbag. This process can guarantee a safe airbag operation. M201 2014.01...
  • Page 16 1. Remove the terminal pin. M1103014 2. Separate the clip with wiring harness terminal repair tool. Wiring Harness Terminal Clip Wiring Harness Terminal Repair Tool M1103015 3. Pull out the wiring harness terminal from the rear of connector. M1103016 M201 2014.01...
  • Page 17 1.1.3-7 Circuit Fault Diagnosis 1.1.3-7 4. Adjust and clean the wiring harness terminal contact plate pulled out from connector. M1103017 M201 2014.01...
  • Page 18 2. Clean the two surfaces (both bolt side and vehicle contact side) of the copper ring with abrasive cloth until the oxide completely cleared. M1103019 3. Clean the grounding surface on the vehicle with abrasive cloth until it is completely cleaned. M1103020 M201 2014.01...
  • Page 19 1.1.3-9 Circuit Fault Diagnosis 1.1.3-9 4. Reinstall the wiring harness and retaining bolt of grounding. Tighten to specified torque. Torque for M6 bolt: 8 Nm Torque for M8 bolt: 20 Nm M1103021 M201 2014.01...
  • Page 20 3.1.4 Cooling System 3.1.4-1 Cooling System 3.1.4-1 Cooling System Main Fuse Box P01 I/P Fuse Box P40 IR05 IR03 IR04 15 X05 19 X05 23 X05 Condenser Radiator G105 G103 32 E18 52 E18 M3104001 M201 2014.01...

  • Page 21: Cooling System

    IF04) → Condenser fan relay-terminal 63 → Condenser fan relay closing contact → Condenser fan relay-terminal 64 → Condenser connector P13-terminal 1 → Condenser fan motor → Condenser fan connector P13-terminal 2 → Grounding G103 Condenser fan motor is powered on and fan starts to work normally. M201 2014.01...
  • Page 22 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 23 Cooling System 3.1.4-4 I/P Wiring Harness to Engine Wiring Harness Engine Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Radiator Fan Condenser Fan M201 2014.01...
  • Page 24 Injector 2 Injector 3 Injector 4 Fuel Pump 2 E09 2 E06 2 E04 2 E02 Refer to 3.1.12 4 X07 Electronic Control System 32 E18 50 E18 63 E18 49 E18 64 E18 60 E18 G201 M3107001 M201 2014.01...

  • Page 25: Fuel System

    Connector X04-terminal 16 → Connector X07-terminal 3 → Fuel pump connector S01-terminal 4 → Fuel pump motor → Fuel pump connector S01-terminal 2 → Connector X07-terminal 4 → Grounding G201 Fuel pump motor is powered on to start work and ECM controls fuel pump running through fuel pump relay. M201 2014.01...
  • Page 26 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 27 21 22 23 24 25 26 I/P Wiring Harness to Engine Wiring Harness Engine Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 M201 2014.01...
  • Page 28 3.1.7-5 Fuel System 3.1.7-5 Chassis Wiring Harness to Fuel Pump Wiring Harness Fuel Pump Wiring Harness to Chassis Wiring Harness Fuel Injector 1 Fuel Injector 2 Fuel Injector 3 Fuel Injector 4 M201 2014.01...
  • Page 29 3.1.7-6 Fuel System 3.1.7-6 Fuel Pump M201 2014.01...
  • Page 30 1 E17 3 E08 2 E08 3 E07 2 E07 3 E05 2 E05 3 E03 2 E03 G303 G303 G303 G303 40 E18 47 E18 19 E18 32 E18 3 E18 6 E18 7 E18 1 E18 M3108001 M201 2014.01...

  • Page 31: Ignition System

    69 → Connector X05-terminal 1 → Ignition coil 4 connector E03-terminal 1 → Ignition coil → Ignition coil 4 connector E03-terminal 2 → Grounding G303 Ignition time of ignition coil is controlled by ECM according to the engine operating condition. M201 2014.01...
  • Page 32 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 33 I/P Wiring Harness to Engine Wiring Harness Engine Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Ignition Coil 1 Ignition Coil 2 Ignition Coil 3 Ignition Coil 4 M201 2014.01...
  • Page 34 3.1.8-5 Ignition System 3.1.8-5 Crankshaft Position Sensor M201 2014.01...
  • Page 36 3.1.9 Starting System 3.1.9-1 Starting System 3.1.9-1 Starting System I/P Fuse Box P40 4 P31 Ignition Switch 6 P31 Main Fuse Box P01 15.0 RD 1 S17 1 S16 1 S19 Battery Starting Motor 1 S20 M3109001 M201 2014.01...

  • Page 37: Starting System

    Starting motor solenoid switch is powered on to close two contacts of solenoid switch. Current from the battery positive → Connector S17-terminal 1 → Solenoid switch closing contact → Starting motor coil → Starting motor grounding Controlled by starting switch, starting motor starts to work. M201 2014.01...
  • Page 38 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 39 I/P Wiring Harness to Chassis Wiring Harness Chassis Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Ignition Switch Starting motor Switch Starting motor Battery Positive M201 2014.01...
  • Page 40 3.1.9-5 Starting System 3.1.9-5 Battery Negative M201 2014.01...
  • Page 42 3.1.10 Charging System 3.1.10-1 Charging System 3.1.10-1 Charging System I/P Fuse Box P40 Instrument Cluster Main Fuse Box P01 1 P04 1 S19 2 P03 3 P03 Battery Alternator 1 S20 M3110001 M201 2014.01...
  • Page 43 Connector P04-terminal 1 → Main fuse box (main fuse EF01) → Connector S19-terminal 1 → Battery When the alternator is working, alternator regulator and rotor coil supply power to all electrical devices in vehicle on one hand and charge battery on the other hand. M201 2014.01...
  • Page 44 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 45 3.1.10-4 Charging System 3.1.10-4 Alternator Connector Alternator Positive Instrument Cluster Battery Positive Battery Negative M201 2014.01...
  • Page 46 Front Oxygen Sensor Evaporator Thermistor Rear Oxygen Sensor IF37 Crankshaft Position Sensor Diode Terminal 1 Tristate Instrument Pressure Cluster Switch Diode A Terminal 1 Throttle Diode B Position Terminal 1 Sensor Terminal 15 Knock G301 Sensor G301 G302 M3112005 M201 2014.01...
  • Page 47 Refer to 4.1.1 G301 G302 Heating, Ventilation Heating, Ventilation Heating, Ventilation Heating, Ventilation and Air Conditioning and Air Conditioning and Air Conditioning and Air Conditioning Power Supply/ Power Supply/ Power Supply/ Compressor Control/ Sensor/Actuator Sensor/Actuator Sensor/Actuator Sensor M3112001 M201 2014.01...
  • Page 48 Oxygen Oxygen Solenoid Sensor Sensor 2 E13 3 E01 1 E01 1 S14 2 S14 17 X04 7 X04 10 X05 16 X05 32 E18 37 E18 2 E18 45 E18 39 E18 4 E18 29 E18 M3112002 M201 2014.01...
  • Page 49 Signal from rear oxygen sensor → Rear oxygen sensor connector S14-terminal 2 → Connector X04- terminal 7 → ECM connector E18-terminal 29 → ECM and rear oxygen sensor → Connector X04- terminal 19 → Connector X05-terminal 22 → ECM connector E18-terminal 39 → ECM M201 2014.01...
  • Page 50 Refer to 3.1.12 0.5 YE/GN Electronic Control System HO2S/EVAP G301 26 E18 39 E18 18 E18 30 E18 31 E18 22 E18 36 E18 35 E18 21 E18 1 E14 4 E14 3 E14 2 E14 Stepper Motor M3112003 M201 2014.01...
  • Page 51 E18-terminal 21 → ECM → Grounding When D phase is working, current from ECM → ECM connector E18-terminal 36 → Stepper motor connector E14-terminal 4 → Stepper motor → Stepper motor connector E14-terminal 1 → ECM connector E18-terminal 22 → ECM → Grounding M201 2014.01...
  • Page 52 Refer to 4.2.11 Refer to 4.2.2 Refer to 4.2.2 Refer to 4.2.2 Refer to 4.2.6 Instrument Cluster On-board Network Instrument Cluster Instrument Cluster Instrument Cluster Lighting System Signal Lamp System Signal Lamp Signal Lamp Power Supply and Signal Headlamp M3112004 M201 2014.01...
  • Page 53 Operating circuit analysis of coolant temperature sensor is as follows: Current from ECM →ECM connector E18-terminal 41 →Coolant temperature sensor connector E11- terminal 2 → Coolant temperature sensor → Coolant temperature sensor connector E11-terminal 1 → ECM connector E18-terminal 40 → ECM → Grounding M201 2014.01...
  • Page 54 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 55 21 22 23 24 25 26 I/P Wiring Harness to Engine Wiring Harness Engine Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 M201 2014.01...
  • Page 56 3.1.12-11 Electronic Control System 3.1.12-11 Front Oxygen Sensor Coolant Temperature Sensor Knock Sensor Carbon Canister Solenoid Stepper Motor Air Intake Pressure/Temperature Sensor M201 2014.01...
  • Page 57 3.1.12-12 Electronic Control System 3.1.12-12 Throttle Position Sensor Crankshaft Position Sensor Rear Oxygen Sensor Evaporator Thermistor M201 2014.01...
  • Page 59 IR02 IF33 G106 G103 Heater Motor Governor Resistor A/C Controller Overhead Blower Overhead Evaporator Overhead Blower Resistor G106 Lighting Combination Switch Terminal 8 Tristate Pressure Switch Diode G105 IR01 Relay IR05 Terminal 69 IF08 Compressor Evaporator Thermistor M4101004 M201 2014.01...
  • Page 60 4.1.1-2 Compressor and Sensor Control Operation Main Fuse Box P01 I/P Fuse Box P40 IR05 IR01 Evaporator Thermistor 1 P39 2 P39 15 X05 24 X05 Compressor 21 X05 14 X05 40 E18 13 E18 32 E18 M4101001 M201 2014.01...
  • Page 61 Current from battery positive → Main fuse box (main fuse EF01) → I/P fuse box (compressor fuse IF18) → Compressor relay-terminal 48 → Compressor relay closing contact → Compressor relay- terminal 49 → Compressor connector P02-terminal 1 → Compressor → Grounding The compressor starts to work when electromagnetic clutch is engaged. M201 2014.01...
  • Page 62 10 P26 3 P26 9 P26 2 P26 1 P09 2 P09 2 P22 Tristate Pressure Diode Switch 3 P09 4 P09 1 P22 20 X05 G106 8 X05 7 X05 G105 44 E18 10 E18 12 E18 M4101002 M201 2014.01...
  • Page 63 1 X08 2 L03 Overhead Blower 1 L03 2.0 BK/YE 1 L04 Overhead Blower Resistor 2 L04 3 L04 4 L05 3 L05 1 L05 Overhead Evaporator Switch High Medium 2 L05 2 X08 4 X03 G106 M4101003 M201 2014.01...
  • Page 64 L03-terminal 2 → Overhead blower → Overhead blower connector L03-terminal 1 → Overhead evaporator switch connector L05-terminal 4 → Overhead evaporator switch (high speed contact) → Overhead evaporator switch connector L05-terminal 2 → Connector X08- terminal 2 → Connector X03-terminal 4 → Grounding G106 M201 2014.01...
  • Page 65 (low speed contact) → Overhead evaporator switch connector L05-terminal 2 → Connector X08-terminal 2 → Connector X03-terminal 4 → Grounding G106 Overhead blower is controlled by the overhead blower switch, whose speed can be changed by changing the current magnitude of motor. M201 2014.01...
  • Page 66 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 67 Roof Wiring Harness to I/P Wiring Harness I/P Wiring Harness to Engine Wiring Harness Engine Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 M201 2014.01...
  • Page 68 4.1.1-10 Heating, Ventilation and Air Conditioning 4.1.1-10 Roof Wiring Harness to Overhead Evaporator Wiring Harness to Overhead Evaporator Wiring Harness Roof Wiring Harness Compressor Tristate Pressure Switch Diode A/C Controller M201 2014.01...
  • Page 69 4.1.1-11 Heating, Ventilation and Air Conditioning 4.1.1-11 Heater Motor Governor Resistor Evaporator Thermistor M201 2014.01...
  • Page 70 4.1.1-12 Heating, Ventilation and Air Conditioning 4.1.1-12 Overhead Evaporator Blower Blower Resistor Blower Switch M201 2014.01...
  • Page 71 Terminal 74 Brake Fluid Level Switch Instrument Cluster G104 Front Left Door Signal Lamp Switch Seat Belt Switch Front Right Door Signal Lamp Switch G202 Rear Left Door Signal Lamp Switch Rear Right Door Signal Lamp Switch G104 M4202004 M201 2014.01...
  • Page 72 Engine Oil Seat 2 P19 5 X04 Pressure Belt Brake Switch Switch Fluid Refer to 3.1.10 Refer to 3.1.12 Level 1 S05 Charging System Electronic Control System Switch 1 P19 1 S18 Parking Brake Switch G104 G202 M4202001 M201 2014.01...

  • Page 73: Instrument Cluster

    P21-terminal 7 → Instrument cluster (seat belt unfastened warning lamp ) → Instrument cluster connector P21-terminal 22 → Connector X04-terminal 9 → Seat belt switch connector S05-terminal 2→Seat belt switch (closing contact)→Seat belt switch connector S05-terminal 1→Grounding G202 The seat belt unfastened warning lamp is turned on. M201 2014.01...
  • Page 74 3 X05 9 X05 26 X05 3 X04 20 X04 1 X07 56 E18 9 E18 57 E18 1 S12 3 S12 Fuel Level Vehicle Speed Sensor Sensor 1 S01 2 S12 0.5 BK/YE 10 X04 G104 M4202002 M201 2014.01...
  • Page 75 P21-terminal 5 → Connector X05-terminal 26 → ECM connector E18-terminal 57 → ECM Input: Signal from vehicle speed sensor → Vehicle speed sensor connector S12-terminal 3 → Connector X04-terminal 20 → Instrument cluster connector P21-terminal 11 → Instrument cluster (control unit inside instrument cluster) M201 2014.01...
  • Page 76 Indicator Indicator Indicator Indicator Rear Low Beam High Beam Door Open Indicator Indicator Indicator Indicator 4 P21 3 P21 21 P21 18 P21 Refer to 4.2.6 Lighting System Refer to 4.2.6 G104 Roof Lamp Lighting System Headlamp M4202003 M201 2014.01...
  • Page 77 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 78 21 22 23 24 25 26 I/P Wiring Harness to Engine Wiring Harness Engine Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 M201 2014.01...
  • Page 79 4.2.2-9 Instrument Cluster 4.2.2-9 Chassis Wiring Harness to Fuel Pump Wiring Harness Fuel Pump Wiring Harness to Chassis Wiring Harness Engine Oil Pressure Switch Brake Fluid Level Switch Instrument Cluster M201 2014.01...
  • Page 80 4.2.2-10 Instrument Cluster 4.2.2-10 Fuel Pump Seat Belt Switch Vehicle Speed Sensor Parking Brake Switch M201 2014.01...
  • Page 82 4.2.3 Horn 4.2.3-1 Horn 4.2.3-1 Horn Main Fuse Box P01 I/P Fuse Box P40 IR09 1 P32 Horn Horn Switch G105 M4203001 M201 2014.01...
  • Page 83 88 → Horn relay closing contact → Horn relay-terminal 89 → Horn connector P12- terminal 2 → Horn → Horn connector P12-terminal 1 → Grounding G105 Controlled by the horn switch through horn relay, horn is powered on to work. M201 2014.01...
  • Page 84 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 85 4.2.3-4 Horn 4.2.3-4 Electrical Horn Horn Switch M201 2014.01...
  • Page 86 4.2.4 Cigarette Lighter 4.2.4-1 Cigarette Lighter 4.2.4-1 Cigarette Lighter I/P Fuse Box P40 0.85 WH/BK 1.25 WH/BK Refer to 4.2.5 Refer to 4.2.10 Information and Body Control System Entertainment System 1 P37 Cigarette Lighter 1 P36 G106 M4204001 M201 2014.01...

  • Page 87: Cigarette Lighter

    IF02) → Ignition switch connector P31-terminal 4 → Ignition switch ACC contact → Ignition switch connector P31-terminal 1 → I/P fuse box (cigarette lighter & radio fuse IF40) → Cigarette lighter connector P37-terminal 1 → Cigarette lighter → Cigarette lighter connector P36-terminal 1 → Grounding G106 M201 2014.01...
  • Page 88 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 Cigarette Lighter Negative Cigarette Lighter Positive M201 2014.01...
  • Page 90 4.2.5 Information and Entertainment System 4.2.5-1 Information and Entertainment System 4.2.5-1 Information and Entertainment System Lighting Combination Switch Front Left Speaker Terminal 8 IF40 Front Right Speaker RADIO IF07 Antenna G106 M4205003 M201 2014.01...
  • Page 91 4.2.5-2 Power Supply Main Fuse Box P01 I/P Fuse Box P40 RADIO Refer to 4.2.10 Refer to 4.2.4 Refer to 4.2.6 Refer to 4.2.2 Body Control System Cigarette Lighter Lighting System Instrument Roof Lamp Cluster G106 Antenna M4205001 M201 2014.01...
  • Page 92 4.2.5-3 Information and Entertainment System 4.2.5-3 Speaker RADIO 7 P34 2 X01 3 X01 2 X02 Refer to 4.2.6 Lighting System Position Lamp Front Left Speaker Front Right Speaker M4205002 M201 2014.01...
  • Page 93 Front right speaker：Radio → Radio connector P34-terminal 2 → Connector X02-terminal 1 → Front right speaker connector D05-terminal 2 → Front right speaker → Front right speaker connector D05- terminal 1 → Connector X02-terminal 2 → Radio connector P34-terminal 7 → Radio M201 2014.01...
  • Page 94 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 95 4.2.5-6 Information and Entertainment System 4.2.5-6 Radio Front Left Speaker Front Right Speaker I/P Wiring Harness to Front Left Door Wiring Harness Front Left Door Wiring Harness to I/P Wiring Harness M201 2014.01...
  • Page 96 4.2.5-7 Information and Entertainment System 4.2.5-7 I/P Wiring Harness to Front Right Door Wiring Harness Front Right Door Wiring Harness to I/P Wiring Harness M201 2014.01...
  • Page 98 Rear Right Position Lamp G201 Flasher Relay G201 Left License Plate Lamp G202 G105 IF21 Hazard Right License Plate Lamp Warning IF33 G201 Lamp Radio Switch Terminal 6 A/C Controller Terminal 5 Instrument G106 Cluster Terminal 17 M4206010 M201 2014.01...
  • Page 99 Main Fuse Box P01 I/P Fuse Box P40 Combination Switch 5 P08 5 P14 Headlamp Headlamp (Right) (Left) Low Beam Lamp High Beam Lamp Overtaking Lamp 2 P23 17 X05 G103 24 E18 3 P03 4 P03 M4206001 M201 2014.01...
  • Page 100 Lighting Power Regulator Motor Control Switch 6 P41 1 P41 0.5 BN 51Ω 0.5 BK 0.5 WH/YE 510Ω Left Low Beam 820Ω Regulator Motor 0.5 YE 51Ω 0.5 BK 3 P41 2 P41 0.5 WH/BU 0.5 WH/BU G106 M4206002 M201 2014.01...
  • Page 101 IF09) → Right headlamp connector P08-terminal 5 → Right headlamp (high beam bulb) → Right headlamp connector P08-terminal 6 → Combination switch connector P30- terminal 9 → Combination switch (high beam/overtaking lamp contact) → Combination switch connector P30-terminal 7 → Grounding G103 M201 2014.01...
  • Page 102 Switch 2 P20 4 X04 3 X06 2 D13 2 S10 2 S08 Rear Left Rear Right High Mounted Combination Combination Stop Lamp Lamp Lamp 1 D13 1 S10 1 S08 6 X06 0.85 BK G201 G202 M4206003 M201 2014.01...
  • Page 103 IF10) → Brake lamp switch connector P20-terminal 1 → Brake lamp switch (closing contact) → Brake lamp switch connector P20-terminal 2 → Connector X04-terminal 4 → Rear right combination lamp connector S08-terminal 2 → Rear right combination lamp → Rear right combination lamp connector S08-terminal 1 → Grounding G202 M201 2014.01...
  • Page 104 Main Fuse Box P01 I/P Fuse Box P40 0.5 BK P25 7 Hazard Warning Lamp Switch G106 0.85 BK Flasher Relay G105 Refer to 4.2.6 Lighting System Position Lamp Combination Switch Turn Lamp Switch 0.5 GN/YE 0.5 GN/RD M4206004 M201 2014.01...
  • Page 105 Lamp Lamp Lamp 2 P06 1 S08 2 P16 1 S10 Refer to 4.2.2 Refer to 4.2.10 Refer to 4.2.2 Refer to 4.2.10 Instrument Body Control Instrument Body Control Cluster System Cluster System G105 G202 G103 G201 M4206005 M201 2014.01...
  • Page 106 12 → Combination switch (turn lamp switch L) → Combination switch connector P30-terminal 11 → Connector X04-terminal 13 → Rear right combination lamp connector S08-terminal 3 → Rear right combination lamp → Rear right combination lamp connector S08-terminal 1 → Grounding G202 M201 2014.01...
  • Page 107 P25-terminal 1 → Hazard warning lamp switch (closing contact) → Hazard warning lamp switch connector P25-terminal 2 → Connector X04-terminal 13 → Rear right combination lamp connector S08-terminal 3 → Rear right combination lamp → Rear right combination lamp connector S08-terminal 1 → Grounding G202 M201 2014.01...
  • Page 108 (Right) (Left) Lamp Lamp Refer to 4.2.5 Refer to 4.2.2 Information and Instrument Cluster Entertainment System Refer to 4.2.6 Refer to 4.1.1 Lighting System Heating, Ventilation and Turn Lamp Signal Air Conditioning G201 G202 G201 G105 G103 M4206006 M201 2014.01...
  • Page 109 → Combination switch connector P30-terminal 8 → Connector X04-terminal 2 → Connector X06-terminal 4 → Right license plate lamp connector D10-terminal 1 → Right license plate lamp → Right license plate lamp connector D10-terminal 2 → Connector X06-terminal 6 → Grounding G201 M201 2014.01...

  • Page 110: Fog Lamp

    Lamp Rear Fog Lamp G103 11 X04 Rear Left Rear Right Front Left Front Right Fog Lamp Fog Lamp Fog Lamp Fog Lamp Refer to 4.2.2 Instrument Cluster Refer to 4.2.2 Instrument Cluster G201 G202 G103 G106 M4206007 M201 2014.01...
  • Page 111 1 → Combination switch (rear fog lamp contact) → Combination switch connector P30- terminal 2 → Connector X04-terminal 11 → Rear right fog lamp connector S09-terminal 1 → Rear right fog lamp → Rear right fog lamp connector S09-terminal 2 → Grounding G202 M201 2014.01...

  • Page 112: Backup Lamp

    I/P Fuse Box P40 1 S15 3 X04 Backup Lamp Switch 2 S15 0.5 YE/BN Refer to 4.2.2 Instrument Cluster 1 X06 2 D12 2 D09 Left Right Backup Backup Lamp Lamp 1 D12 1 D09 6 X06 G201 M4206008 M201 2014.01...
  • Page 113 (closing contact) → Backup lamp switch connector S15-terminal 2 → Connector X06-terminal 1 → Right backup lamp connector D09-terminal 2 → Right backup lamp → Right backup lamp connector D09-terminal 1 → Connector X06-terminal 6 → Grounding G201 M201 2014.01...

  • Page 114: Interior Lamp

    Refer to 4.2.2 8 X04 Instrument Cluster 1 S02 1 S06 1 S13 1 S03 Front Right Door Front Left Door Rear Left Door Rear Right Door Signal Lamp Switch Signal Lamp Switch Signal Lamp Switch Signal Lamp Switch M4206009 M201 2014.01...
  • Page 115 → Connector X03-terminal 1 → Reading lamp connector L02-terminal 2 → Reading lamp → Reading lamp connector L02-terminal 1 → Connector X03-terminal 2 → Connector X04-terminal 8 → Rear left door signal switch connector S03-terminal 1 → Rear right door signal switch → Body grounding M201 2014.01...
  • Page 116 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 117 Roof Wiring Harness to I/P Wiring Harness I/P Wiring Harness to Chassis Wiring Harness Chassis Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 M201 2014.01...
  • Page 118 4.2.6-21 Lighting System 4.2.6-21 Chassis Wiring Harness to Back Door Wiring Harness Back Door Wiring Harness to Chassis Wiring Harness Alternator Connector Front Right Fog Lamp Right Turn Lamp Right Low Beam Regulator Motor M201 2014.01...
  • Page 119 4.2.6-22 Lighting System 4.2.6-22 Right Headlamp Left Headlamp Left Low Beam Regulator Motor Left Turn Lamp Front Left Fog Lamp Brake Lamp Switch M201 2014.01...
  • Page 120 4.2.6-23 Lighting System 4.2.6-23 Diode A Diode B Hazard Warning Lamp Switch Flasher Relay Combination Switch (Lighting) Lighting Power Control Switch M201 2014.01...
  • Page 121 4.2.6-24 Lighting System 4.2.6-24 Right Backup Lamp Right License Plate Lamp Left License Plate Lamp Left Backup Lamp High Mounted Stop Lamp Front Right Door Signal Lamp Switch M201 2014.01...
  • Page 122 4.2.6-25 Lighting System 4.2.6-25 Rear Left Door Signal Lamp Switch Front Left Door Signal Lamp Switch Rear Right Combination Lamp Rear Right Fog Lamp Rear Left Combination Lamp Rear left Fog Lamp M201 2014.01...
  • Page 123 4.2.6-26 Lighting System 4.2.6-26 Rear Left Door Signal Lamp Switch Backup Lamp Front Interior Lamp Rear Interior Lamp M201 2014.01...

  • Page 124: Front Wiper

    INT1 INT2 MIST Wiper Intermittent Control Module 7 P33 6 P33 2 P33 4 P33 3 P33 5 P33 1 P17 Front Washer Motor 2 P17 0.5 YE/BU 1 P11 2 P11 3 P11 Front Wiper Motor G103 M4207001 M201 2014.01...
  • Page 125 P31-terminal 5 → I/P fuse box (wiper& washer fuse IF25) → Front washer motor connector P17-terminal 2→Front washer motor→Front washer motor connector P17-terminal 1→Combination switch connector P33-terminal 7 → Combination switch (washer level closing contact) → Combination switch connector P33-terminal 6 → Grounding G103 M201 2014.01...

  • Page 126: Front Wiper Motor

    IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 Front Wiper Motor Front Washer Motor Combination Switch (Wiper) M201 2014.01...
  • Page 128 12 X01 10 X02 Front Left Front Right Rear Left Rear Right Door Door Door Door Fastener Fastener Fastener fastener fastener Switch 2.0 BK 0.5 BK 9 X01 9 X02 21 X04 11 X01 0.85 BU G103 M4208001 M201 2014.01...
  • Page 129 Connector X04-terminal 21 → Rear left door fastener connector S07-terminal 2 → Rear left door fastener (motor) → Rear left door fastener connector S07-terminal 1 → Connector X04-terminal 24 → Central lock controller connector P29-terminal 8 → Central lock controller M201 2014.01...
  • Page 130 Connector X04-terminal 21 → Rear right door fastener connector S04-terminal 2 → Rear right door fastener (motor) → Rear right door fastener connector S04-terminal 1 → Connector X04-terminal 24 → Central lock controller connector P29-terminal 8 → Central lock controller M201 2014.01...
  • Page 131 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 132 Central Door Lock 4.2.8-5 I/P Wiring Harness to Front Left Door Wiring Harness Front Left Door Wiring Harness to I/P Wiring Harness I/P Wiring Harness to Front Right Door Wiring Harness Front Right Door Wiring Harness to I/P Wiring Harness M201 2014.01...
  • Page 133 Chassis Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Central Lock Controller Front Left Door Fastener Front Right Door Fastener Rear Right Door Fastener M201 2014.01...
  • Page 134 4.2.8-7 Central Door Lock 4.2.8-7 Rear Left Door Fastener M201 2014.01...
  • Page 136 P/W P SW 9 X01 Relay 2.0 RD/WH 4 D07 1 D07 3 D07 8 D02 2.0 BK G103 1 D03 2 D06 1 D06 Front Left Front Right Door Power Door Power G105 Window Motor Window Motor M4209001 M201 2014.01...
  • Page 137 Front right door power window motor connector D06-terminal 2→Front right door power window switch connector D07-terminal 1 → Front right door power window switch (relay normal close contact) → Front right door power window switch connector D07-terminal 4 → Connector X02-terminal 7 → Grounding G105 M201 2014.01...
  • Page 138 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 I/P Wiring Harness to Front Left Door Wiring Harness Front Left Door Wiring Harness to I/P Wiring Harness M201 2014.01...
  • Page 139 I/P Wiring Harness to Front Right Door Wiring Harness Front Right Door Wiring Harness to I/P Wiring Harness Front Left Door Power Window Switch Front Left Door Power Window Motor Front Right Door Power Window Motor Front Right Door Power Window Switch M201 2014.01...
  • Page 140 4.2.10 Body Control System 4.2.10-1 Body Control System 4.2.10-1 Body Control System I/P Fuse Box P40 Main Fuse Box P01 1 P29 Central Lock Controller G105 M4210001 M201 2014.01...

  • Page 141: Body Control System

    ACC contact → Ignition switch connector P31-terminal 1 → I/P fuse box (cigarette lighter & radio fuse IF40) → Central lock controller connector P29-terminal 5 → Central lock controller → Central lock controller connector P29-terminal 2 → Grounding G105 M201 2014.01...
  • Page 142 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 143 4.2.10-4 Body Control System 4.2.10-4 Central Lock Controller M201 2014.01...
  • Page 144 4.2.11 On-board Network System 4.2.11-1 On-board Network System 4.2.11-1 DLC (Data Link Connector) I/P Fuse Box P40 Main Fuse Box P01 0.5 PK/BU 0.5 PK/BU 15 E18 8 P35 15 P35 G106 M4211001 M201 2014.01...
  • Page 145 IF21 IF20 IF19 IF18 IF17 IF16 IF15 IF14 IF13 IF12 IF11 IF10 IF09 IR01 IR02 IR03 IR04 IR05 IF40 IF39 IF38 IF37 IF36 IF35 IF34 IF33 IF32 IF31 IF30 IF29 IF28 IF27 IF26 IF25 IR06 IR07 IR08 IR09 IR10 M201 2014.01...
  • Page 146 4.2.11-3 On-board Network System 4.2.11-3 I/P Wiring Harness to Engine Wiring Harness Engine Wiring Harness to I/P Wiring Harness 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 M201 2014.01...
  • Page 147 6.1.1 Fuses and Relays 6.1.1-1 Fuse and Relay 6.1.1-1 Main Fuse Box EF01 Main Fuse Box Fuse Code Application Rated Current (A) Description EF01 Main Fuse M201 2014.01...

  • Page 148: Fuse And Relay

    Code Application Description IR01 A/C Compressor Relay IR02 Heater Relay IR03 Radiator Fan Relay IR04 Condenser Fan Relay IR05 Main Relay IR06 Front Fog Lamp Relay IR07 Rear Defroster Relay IR08 Fuel Pump Relay IR09 Horn Relay IR10 M201 2014.01...
  • Page 149 IF22 Central Controller IF23 IF24 IF25 Wiper & Washer IF26 Blower & Rear Defroster IF27 Left Power Window IF28 Right Power Window IF29 IF30 Oxygen Sensor IF31 IF32 Backup Lamp & IF33 Vehicle Speed Sensor IF34 Turn Lamp M201 2014.01...
  • Page 150 6.1.1-4 Fuse and Relay 6.1.1-4 Code Application Rated Current (A) Description IF35 Instrument Cluster IF36 Alternator IF37 IF38 IF39 IF40 Cigarette Lighter & Radio M201 2014.01...
  • Page 151 19 10A IF10 21 10A IF11 IR09 23 15A 0.85 RD 0.85 RD IF12 0.5 RD IR06 27 15A 1.25 LG/BK IF14 31 10A IF16 IR02 33 30A 2.0 GN/WH IF17 41 15A IF21 43 20A IF22 M6102001 M201 2014.01...
  • Page 152 2.0 RD/BU IF15 IF30 0.5 WH/YET IR03 5 30A 2.0 RD/BU IF03 0.5 RD/BU IR04 7 20A 2.0 BU/WH IF04 0.5 RD/BU IR01 35 10A 0.85 OG/BK IF18 0.5 RD/BU IR08 37 15A 1.25 RD/YE IF19 0.5 RD/BU M6102002 M201 2014.01...
  • Page 153 I/P Fuse Box P40 65 10A 3.0 YE/BK IF33 79 15A 1.25 BU 67 10A IF40 IF34 49 20A 3.0 BK/BU IF25 69 10A 31 10A IF35 IF26 71 15A 33 30A IF36 IF27 73 10A 35 20A IF37 IF28 M6102003 M201 2014.01...
  • Page 155 15 15A 1.25WH/BU IF08 Right Headlamp 17 15A 1.25WH/RD IF09 Brake Lamp Switch 19 10A 0.5GN/YE IF10 Engine ECM 21 10A 0.5PK/BU 0.5PK/BU IF11 Electrical Horn IR09 23 15A 0.85RD 0.85 WH/GN IF12 0.5RD 0.5YE Horn Switch M6103001 M201 2014.01...
  • Page 156 0.5 LG/RD 31 10A 0.5 YE/RD IF16 Overhead Evaporator Motor 2.0 RD/GN 2.0 RD/GN Heater Motor IR02 2.0 GN/WH 2.0 RD/GN IF17 0.5 BK G103 0.5BK/WH IF26 Hazard Warning Lamp Switch 0.85RD/BK IF21 Central Lock Controller 1.25RD/WH IF22 M6103002 M201 2014.01...
  • Page 157 35 10A 0.85 OG/BK 0.85 OG IF18 0.5 RD/BU Engine ECM 0.5 BK/YE 0.5 BK/RD Fuel Pump IR08 37 15A 1.25 RD/YE 1.25 BU/WH 1.25 BU/WH 1.25 BU/WH IF19 0.5 RD/BU Engine ECM 0.5 YE/RD 0.5 YE/RD M6103003 M201 2014.01...
  • Page 158 1.5 RD/BU Carbon Canister Solenoid 0.85 RD/BU Engine ECM 1.25 RD/BU 0.5 RD/BU Fuel Injector 1 1.0 RD/BU Fuel Injector 2 1.0 RD/BU Fuel Injector 3 1.0 RD/BU Fuel Injector 4 1.0 RD/BU Engine ECM 0.5 BN/WH 0.5BN/WH M6103004 M201 2014.01...
  • Page 159 A/C Controller 31 10A 0.5 BK/WH IF26 Heater Relay 0.5 YE/GN Front Left Door Power Window Switch 33 30A 2.0 WH/BN 2.0 WH/BN IF27 Front Right Door Power Window Switch 35 20A 36 2.0 BU/YE 2.0 BU/YE IF28 M6103005 M201 2014.01...
  • Page 160 IF35 Alternator Connector 71 15A 1.25 BK/BU IF36 Engine ECM 73 10A 0.5 BU 0.5 BU IF37 Cigarette Lighter Positive 79 15A 1.25 WH/BK 1.25 WH/BK 1.25 BU IF40 Central Lock Controller 1.25 WH/BK Radio 0.85 WH/BK M6103006 M201 2014.01...
  • Page 161 2 P18 2 P16 2 D01 7 P30 9 X01 G103 Instrument Cluster Vehicle Speed Sensor Brake Fluid Level Switch Fuel Pump 9 P21 18 P08 2 S12 1 S01 1 P19 2 X07 10 X04 G104 M6104001 M201 2014.01...
  • Page 162 Evaporator Motor A/C Controller Lamp Switch 10 P26 3 L03 2 L02 Cigarette 4 P25 13 P35 Lighter Negative Front Right Fog Lamp Front Interior Lamp Radio 2 P05 1 L01 1 P36 4 P34 4 X03 G106 M6104002 M201 2014.01...
  • Page 163 Plate Lamp Rear Left Fog Lamp 2 S01 2 D11 2 S11 1 D12 4 X07 6 X06 G201 Rear Right Seat Belt Switch Combination Lamp Rear Right Fog Lamp 1 S05 1 S08 2 S09 G202 M6104003 M201 2014.01...
  • Page 164 6.1.4-4 G301 G302 G303 Engine ECM Engine ECM 5 E18 43 E18 48 E18 G301 G302 Ignition Coil 1 Ignition Coil 2 Ignition Coil 3 Ignition Coil 4 2 E08 2 E07 2 E05 2 E03 G303 M6104004 M201 2014.01...
  • Page 165 6.1.5 Wiring Harness Connector Location View 6.1.5-1 Wiring Harness Connector Location View 6.1.5-1 Connector Joining wiring Harness and wiring Harness (X--) M6105001 M201 2014.01...
  • Page 166 6.1.5-2 Wiring Harness Connector Location View 6.1.5-2 M6105002 M201 2014.01...
  • Page 167 6.1.5-3 Wiring Harness Connector Location View 6.1.5-3 M6105003 M201 2014.01...
  • Page 168 6.1.5-4 Wiring Harness Connector Location View 6.1.5-4 M6105014 M201 2014.01...
  • Page 169 Back Door Wiring Harness to Chassis Wiring Harness Harness Chassis Wiring Harness to Fuel Pump Wiring Fuel Pump Wiring Harness to Chassis Wiring Harness Harness Roof Wiring Harness to Overhead Evaporator Overhead Evaporator Wiring Harness to Roof Wiring Harness Wiring Harness M201 2014.01...
  • Page 170 6.1.5-6 Wiring Harness Connector Location View 6.1.5-6 Engine Wiring Harness Connector (E--) M6105004 M201 2014.01...
  • Page 171 Fuel Injector 2 Ignition Coil 2 Ignition Coil 1 Fuel Injector 1 Engine Oil Pressure Sensor Coolant Temperature Sensor Knock Sensor Carbon Canister Solenoid Stepper Motor Air Intake Pressure/Temperature Sensor Throttle Position Sensor Crankshaft Position Sensor Engine ECM Transmission Grounding M201 2014.01...
  • Page 172 6.1.5-8 Wiring Harness Connector Location View 6.1.5-8 I/P Wiring Harness Connector (P--) M6105005 M201 2014.01...
  • Page 173 6.1.5-9 Wiring Harness Connector Location View 6.1.5-9 M6105006 M201 2014.01...
  • Page 174 6.1.5-10 Wiring Harness Connector Location View 6.1.5-10 M6105007 M201 2014.01...
  • Page 175 Brake Lamp Switch Instrument Cluster Diode Diode A Diode B Hazard Warning Lamp Switch A/C Controller Flasher Relay Heater Motor Central Lock Controller Combination Switch (Lighting) Ignition Switch Horn Switch Combination Switch (Wiper) Radio Cigarette Lighter Negative Cigarette Lighter Positive M201 2014.01...
  • Page 176 6.1.5-12 Wiring Harness Connector Location View 6.1.5-12 Connector Name Definition Governor Resistor Evaporator Thermistor Fuse Box Lighting Power Control Switch M201 2014.01...
  • Page 177 6.1.5-13 Wiring Harness Connector Location View 6.1.5-13 Floor Wiring Harness Connector (S--) M6105008 M201 2014.01...
  • Page 178 6.1.5-14 Wiring Harness Connector Location View 6.1.5-14 M6105013 M201 2014.01...
  • Page 179 Rear Right Fog Lamp Rear Left Combination Lamp Rear Left Fog Lamp Vehicle Speed Sensor Rear Left Door Signal Lamp Switch Rear Oxygen Sensor Backup Lamp Switch Starting Motor Switch Starting Motor Parking Brake Switch Battery Positive Battery Negative M201 2014.01...
  • Page 180 6.1.5-16 Wiring Harness Connector Location View 6.1.5-16 Door Wiring Harness Connector (D--) M6105009 M201 2014.01...
  • Page 181 6.1.5-17 Wiring Harness Connector Location View 6.1.5-17 M6105010 M201 2014.01...
  • Page 182 6.1.5-18 Wiring Harness Connector Location View 6.1.5-18 M6105011 M201 2014.01...
  • Page 183 Front Left Speaker Front Right Speaker Front Right Door Power Window Motor Front Right Door Power Window Switch Front Right Door Fastener Right Backup Lamp Right License Plate Lamp Left License Plate Lamp Left Backup Lamp High Mounted Stop Lamp M201 2014.01...
  • Page 184 6.1.5-20 Wiring Harness Connector Location View 6.1.5-20 Roof Wiring Harness Connector (L--) M6105012 Roof Wiring Harness Connector (L) Chart Connector Name Definition Front Interior Lamp Rear Interior Lamp Overhead Evaporator Blower Blower Resistor Blower Switch M201 2014.01...
  • Page 185 6.1.6 Grounding Location View 6.1.6-1 Grounding Location View 6.1.6-1 GND1 GND1 M6106001 M201 2014.01...
  • Page 186 6.1.6-2 Grounding Location View 6.1.6-2 GND191 G301 G302 G303 GND191 G303 G301 G302 M6106002 M201 2014.01...
  • Page 187 6.1.6-3 Grounding Location View 6.1.6-3 G103 G104 D105 G106 G106 G104 G105 G103 M6106004 M201 2014.01...
  • Page 188 6.1.6-4 Grounding Location View 6.1.6-4 G201 G202 G202 G201 M6106003 M201 2014.01...
  • Page 189 2.0 GN/WH Passenger Side Door Glass Down Control 2.0 BK Grounding 2.0 RD/WH Passenger Side Door Glass Up Control Front Left Door Lock Motor Locking Power 0.85 BU Supply Front Left Door Lock Motor Unlocking Power 0.85 WH Supply M201 2014.01...
  • Page 190 2.0 GN/WH by Driver Side 2.0 BK Grounding Passenger Side Glass Up Signal Controlled by 2.0 RD/WH Driver Side Front Right Door Lock Motor Locking Power 0.85 BU Supply Front Right Door Lock Motor Unlocking Power 0.85 WH Supply M201 2014.01...
  • Page 191 Roof Wiring Harness to I/P Wiring Harness X03 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 WH Interior Roof Lamp Power Supply 0.3 BK/RD Interior Roof Lamp DR Position Signal Output 2.0 RD/GN Overhead Evaporator Motor Power Supply 2.0 BK Grounding M201 2014.01...
  • Page 192 Rear Left Turn Lamp Power Supply 1.25 BU/WH Fuel Pump Power Supply 0.5 WH/RD Rear Oxygen Sensor Heating Signal 0.3 YE/RD Fuel Level Sensor Power Supply 0.5 YE/GN Rear Oxygen Sensor Grounding 0.3 GN Vehicle Speed Sensor Signal M201 2014.01...
  • Page 193 6.1.7-5 Wiring Harness Connector Terminal View 6.1.7-5 Pin No. Wire Diameter/Color Function 0.85 BU Rear Door Lock Motor Locking Power Supply 0.85 WH Rear Door Lock Motor Unlocking Power Supply M201 2014.01...
  • Page 194 0.5 BN/WH Main Relay 0.5 YE Rear Oxygen Sensor 0.5 RD/YE Headlamp Switch Signal 0.3 VT/YE MIL Lamp 0.5 BK/WH Radiator Fan Relay 0.5 PK/BK A/C Switch Signal 0.5 BU/RD Sensor Grounding 2 0.5 YE/GN Sensor Grounding 1 M201 2014.01...
  • Page 195 6.1.7-7 Wiring Harness Connector Terminal View 6.1.7-7 Pin No. Wire Diameter/Color Function 0.5 BK/RD A/C Condenser Fan Relay 0.5 BK/YE A/C Compressor Relay 0.5 YE/RD Fuel Pump Relay 0.3 YE/GN Vehicle Speed Signal M201 2014.01...
  • Page 196 Back Door Wiring Harness to Chassis Wiring Harness X06 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 RD Backup Lamp Power Supply 0.5 GN/WH High Mounted Stop Lamp Power Supply 0.5 RD/YE Rear License Plate Lamp Power Supply 0.5 BK Grounding M201 2014.01...
  • Page 197 Chassis Wiring Harness to Fuel Pump Wiring Harness X07 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.3 YE/RD Fuel Level Sensor Power Supply 0.5 BK/YE Fuel Level Sensor Grounding 1.25 BU/WH Fuel Pump Power Supply 1.25 BK Fuel Pump Grounding M201 2014.01...
  • Page 198 6.1.7-10 Roof Wiring Harness to Overhead Evaporator Overhead Evaporator Wiring Harness to Roof Wiring Harness Wiring Harness X08 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 2.0 BK/RD Overhead Evaporator Motor Power Supply 2.0 BK Grounding M201 2014.01...
  • Page 199 0.85 RD/GN Front Oxygen Sensor Heating Power Supply Fuel Injector 4 E02 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function Fuel Injector 4 Power Supply (+B, Main Relay 1.0 RD/BU Control) 0.5 WH/BK Fuel Injector 4 Signal M201 2014.01...
  • Page 200 Ignition Coil 4 Grounding 1.5 BK/RD Ignition Coil 4 Signal Fuel Injector 3 E04 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function Fuel Injector 3 Power Supply (+B, Main Relay 1.0 RD/BU Control) 0.5 WH/GN Fuel Injector 3 Signal M201 2014.01...
  • Page 201 Ignition Coil 3 Grounding 1.5 BK/BU Ignition Coil 3 Signal Fuel Injector 2 E06 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function Fuel Injector 2 Power Supply (+B, Main Relay 1.0 RD/BU Control) 0.5 WH/YE Fuel Injector 2 Signal M201 2014.01...
  • Page 202 Ignition Coil 2 Signal Ignition Coil 1 E08 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 1.5 RD/BU Ignition Coil 1 (+B, Main Relay Control) 1.0 BK Ignition Coil 1 Grounding 1.5 BK/YE Ignition Coil 1 Signal M201 2014.01...
  • Page 203 Fuel Injector 1 Power Supply (+B, Main Relay 1.0 RD/BU Control) 0.5 WH/BN Fuel Injector 1 Signal Engine Oil Pressure Sensor E10 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 YE/BK Engine Oil Pressure Switch Power Supply M201 2014.01...
  • Page 204 0.5 BU/RD Coolant Temperate Sensor Grounding 0.5 BN/YE Engine Coolant Temperate Sensor Signal Knock Sensor E12 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 RD Knock Sensor A 0.5 GN Knock Sensor B 0.5 BK Grounding M201 2014.01...
  • Page 205 E14 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 GY/GN Idle Control Valve Signal A 0.5 GY/YE Idle Control Valve Signal B 0.5 GY Idle Control Valve Signal C 0.5 GY/BK Idle Control Valve Signal D M201 2014.01...
  • Page 206 Air Intake Pressure Sensor Signal Throttle Position Sensor E16 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 YE/GN Throttle Position Sensor Internal Grounding 0.5 BU/BN Throttle Position Sensor 5 V Power Supply 0.5 BU/WH Throttle Position Sensor Signal M201 2014.01...
  • Page 207 E18 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 1.25 BK/RD Ignition Coil for 4th Cylinder 0.85 YE/WH Front Oxygen Sensor Heating 1.25 BK/YE Ignition Coil for 1st Cylinder 0.85 WH Rear Oxygen Sensor Heating 2.0 BK Grounding M201 2014.01...
  • Page 208 Knock Sensor Side B 0.5 BN/WH Main Relay 0.5 GY Stepper Motor Phase C 0.5 GY/BK Stepper Motor Phase D 0.5 RD/WH Carbon Canister Valve 0.5 YE/GN Sensor Grounding 1 0.5 BU/RD Sensor Grounding 2 0.5 BN/YE Engine Coolant Temperature Sensor M201 2014.01...
  • Page 209 0.5 BK/RD A/C Condenser Fan Relay 0.5 WH/YE Fuel Injector 4 (2nd Cylinder) 0.5 WH/BK Fuel Injector 3 (4th Cylinder) Transmission Grounding E19 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 15.0 BK Engine & Transmission Grounding M201 2014.01...
  • Page 210 P02 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.85 OG A/C Compressor Clutch Power Supply Alternator Connector P03 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 1.25 BK/BU Ignition Switch ON Signal 0.3 RD/WH Charging Indicator Signal M201 2014.01...
  • Page 211 Pin No. Wire Diameter/Color Function 8.0 WH Battery Charging Power Supply Output Front Right Fog Lamp P05 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 1.25 LG Front Right Fog Lamp Power Supply 1.25 BK Grounding M201 2014.01...
  • Page 212 Right Low Beam Regulator Motor P07 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 BK Right Light Regulator Motor Grounding 0.5 GN Right Low Beam Lamp Height Signal 0.5 WH/RD Right Light Regulator Motor Power Supply M201 2014.01...
  • Page 213 High Beam Lamp Signal Output Tristate Pressure Switch P09 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 GN/BU A/C Signal Input 0.5 PK/WH A/C Signal Output 0.5 BK Medium Pressure Signal Grounding 0.5 BU/BK Medium Pressure Signal Input M201 2014.01...
  • Page 214 Pin No. Wire Diameter/Color Function 1.25 BU Front Wiper Motor Low Speed Level Signal 1.25 BU/RD Front Wiper Motor High Speed Level Signal 1.25 YE/GN Front Wiper Motor Power Supply (IG2) 1.25 BU/WH Front Wiper Motor Intermittent Level Signal M201 2014.01...
  • Page 215 P12 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.85 BK Grounding 0.85 WH/GN Horn Power Supply Condenser Fan P13 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 2.0 RD/BK Condenser Fan Motor Power Supply 2.0 BK Grounding M201 2014.01...
  • Page 216 Left Low Beam Regulator Motor P15 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 BK Left Light Regulator Motor Grounding 0.5 YE Left Low Beam Lamp Height Signal 0.5 WH/BU Left Light Regulator Motor Power Supply M201 2014.01...
  • Page 217 Pin No. Wire Diameter/Color Function 0.5 GN/RD Left Turn Lamp Power Supply 0.5 BK Grounding Front Washer Motor P17 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 GN/YE Grounding 0.5 YE/BU Front Washer Motor Power Supply M201 2014.01...
  • Page 218 Function 1.25 LG Front Left Fog Lamp Power Supply 1.25 BK Grounding Brake Fluid Level Switch P19 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.3 BK Grounding 0.3 RD/BK Brake Oil Level Switch Power Supply M201 2014.01...
  • Page 219 P21 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.3 GN/YE Right Turn Lamp Signal 0.3 GN/RD Left Turn Lamp Signal 0.3 RD High Beam Indicator Signal 0.3 RD/WH Low Beam Indicator Signal 0.3 YE/GN Instrument Cluster Power Supply (IG1) M201 2014.01...
  • Page 220 Door Open Indication Signal 0.3 GY/BK Seat Belt Unfastened Warning Signal 0.3 YE/BK Engine Oil Pressure Signal 0.3 WH/RD Battery Charging Indication Signal Brake Fluid Level & Parking Brake Indication 0.3 RD/BK Signal 0.3 VT/YE Engine Fault Indication Signal M201 2014.01...
  • Page 221 0.5 LG/RD A/C Load Signal Output 0.5 PK/WH A/C Load Signal Diode A P23 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 RD/YE High Beam ON Signal Input 0.5 RD High Beam ON Signal Output M201 2014.01...
  • Page 222 0.5 BK Background Lamp Grounding Hazard Warning Lamp & Background Lamp 0.5 RD/YE Power Supply 0.85 YE Turn Lamp Power Supply Input (IG1) 0.85 RD/BK Turn Lamp Power Supply Input (B+) 0.85 GN Turn Lamp Power Supply Output M201 2014.01...
  • Page 223 Air Volume ON Signal 2.0 BK Grounding Flasher Relay P27 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.85 YE/GN Turn Lamp Combination Switch Signal Input 0.85 GN Turn Lamp Relay Power Supply 0.85 BK Grounding M201 2014.01...
  • Page 224 Central Lock Controller Grounding 1.25 WH/BK Central Lock Controller Power Supply (ACC) 0.5 GN/YE Right Turn Lamp 0.5 GN/RD Left Turn Lamp 0.85 WH Door Unlocking Power Supply 0.85 BU Door Locking Power Supply 0.5 BK/RD Door Signal Switch M201 2014.01...
  • Page 225 2.0 BK Grounding Position Lamp & Background Lamp Power 0.5 RD/YE Supply Output 1.25 RD High Beam Signal 1.25 RD/WH Low Beam Signal 0.5 GN/YE Right Turn Lamp 0.5 YE/GN Turn Lamp Power Supply 0.5 GN/RD Left Turn Lamp M201 2014.01...
  • Page 226 Ignition Switch Power Supply 1 3.0 RD/BK Ignition Switch Power Supply 2 3.0 BK/BU Ignition Switch IG2 2.0 BK/YE Ignition Switch ST Horn Switch P32 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 YE Horn Signal M201 2014.01...
  • Page 227 Front Wiper Motor Intermittent Speed Level 1.25 BU/WH Signal Output 1.25 BK Grounding 0.5 GN/YE Front Washer Motor Signal Radio P34 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 WH Radio Power Supply (+B) 0.5 BU/RD Front Right Speaker Positive M201 2014.01...
  • Page 228 Backup Lamp Power Supply 0.5 BU/BK Front Right Speaker Negative 0.5 RD/BK Front Left Speaker Negative P35 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 PK/BU DLC Power Supply 0.5 BK Grounding 0.5 BK Grounding 0.5 LG/WH K-line M201 2014.01...
  • Page 229 6.1.7-41 Cigarette Lighter Negative P36 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 1.25 BK Grounding Cigarette Lighter Positive P37 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 1.25 WH/BK Cigarette Lighter Power Supply M201 2014.01...
  • Page 230 Heater Motor Low Speed Level Output 2.0 PK/BU Heater Motor High Speed Level Output Evaporator Thermistor P39 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 BU/RD Evaporator Thermistor Internal Grounding 0.5 LG/BK Evaporator Thermistor Signal M201 2014.01...
  • Page 231 0.5 BK Lighting Control Grounding 0.5 WH/BU Lighting Control Power Supply 0.5 BK Background Lamp Grounding 0.5 BN Right Low Beam Lamp Height Signal 0.5 YE Left Low Beam Lamp Height Signal 0.5 RD/YE Background Lamp Power Supply M201 2014.01...
  • Page 232 0.5 YE/RD Fuel Level Sensor Power Supply 1.25 BU/WH Fuel Pump Power Supply Front Right Door Signal Lamp Switch S02 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 BK/RD Front Right Door Signal Lamp Switch Signal M201 2014.01...
  • Page 233 Rear Right Door Signal Lamp Switch Signal Rear Right Door Fastener S04 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function Rear Right Door Lock Motor Unlocking Power 0.85 WH Supply Rear Right Door Lock Motor Locking Power 0.85 BU Supply M201 2014.01...
  • Page 234 0.5 BK Seat Belt Switch Grounding 0.5 GY/BK Seat Belt Switch Power Supply Front Left Door Signal Lamp Switch S06 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 BK/RD Front Left Door Signal Lamp Switch Signal M201 2014.01...
  • Page 235 S08 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 1.25 BK Grounding 0.5 GN/WH Rear Right Brake Lamp Power Lamp 0.5 GN/YE Rear Right Turn Lamp Power Supply 0.5 RD/YE Rear Right Position Lamp Power Supply M201 2014.01...
  • Page 236 S10 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 1.25 BK Grounding 0.5 GN/WH Rear Left Brake Lamp Power Supply 0.5 GN/RD Rear Left Turn Lamp Power Supply 0.5 RD/YE Rear Left Position Lamp Power Supply M201 2014.01...
  • Page 237 Rear Left Fog Lamp Power Supply 0.5 BK Grounding Vehicle Speed Sensor S12 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 YE/BN Vehicle Speed Sensor Power Supply 0.5 BK Grounding 0.5 GN Vehicle Speed Sensor Signal M201 2014.01...
  • Page 238 S14 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 WH/RD Rear Oxygen Sensor Heating Signal 0.5 YE Rear Oxygen Sensor Signal 1.25 RD/GN Rear Oxygen Sensor Heating Power Supply 0.5 YE/GN Rear Oxygen Sensor Grounding M201 2014.01...
  • Page 239 Wire Diameter/Color Function 0.5 YE/BN Backup Lamp Power Supply Input 0.5 RD Backup Lamp Power Supply Output Starting Motor Switch S16 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 2.0 BK/YE Starting Motor Switch Power Supply M201 2014.01...
  • Page 240 Starting Motor S17 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 15.0 RD Starting Motor Power Supply Parking Brake Switch S18 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 RD/BK Parking Brake Switch Signal M201 2014.01...
  • Page 241 Wiring Harness Connector Terminal View 6.1.7-53 Battery Positive S19 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 15.0 RD Battery Power Supply Battery Negative S20 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 15.0 BK Battery Grounding M201 2014.01...
  • Page 242 D02 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 2.0 BK Grounding 2.0 RD/WH Passenger Side Door Glass Up Control 2.0 GN/WH Passenger Side Door Glass Down Control 2.0 RD Driver Side Door Glass Up Power Supply M201 2014.01...
  • Page 243 Driver Side Door Glass Down Power Supply 2.0 RD Driver Side Door Glass Up Power Supply Front Left Speaker D04 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 RD/BK Front Left Speaker Negative 0.5 RD Front Left Speaker Positive M201 2014.01...
  • Page 244 Front Right Speaker Positive Front Right Door Power Window Motor D06 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function Passenger Side Door Glass Down Power 2.0 GN Supply 2.0 RD Passenger Side Door Glass Up Power Supply M201 2014.01...
  • Page 245 2.0 BU/YE Supply Front Right Door Fastener D08 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function Front Right Door Lock Motor Locking Power 0.85 BU Supply Front Right Door Lock Motor Unlocking Power 0.85 WH Supply M201 2014.01...
  • Page 246 Wire Diameter/Color Function 0.5 BK Grounding 0.5 RD Right Backup Lamp Power Supply Right License Plate Lamp D10 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 RD/YE Right License Plate Lamp Power Supply 0.5 BK Grounding M201 2014.01...
  • Page 247 Wire Diameter/Color Function 0.5 RD/YE Left License Plate Lamp Power Supply 0.5 BK Grounding Left Backup Lamp D12 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 BK Grounding 0.5 RD Left Backup Lamp Power Supply M201 2014.01...
  • Page 248 6.1.7-60 Wiring Harness Connector Terminal View 6.1.7-60 High Mounted Stop Lamp D13 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 BK Grounding 0.5 GN/WH High Mounted Stop Lamp Power Supply M201 2014.01...
  • Page 249 0.5 BK/RD Front Roof Lamp DR Signal Output Reading Lamp L02 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.5 BK/RD Reading Lamp DR Signal Output 0.5 WH Reading Lamp Power Supply 0.5 BK Reading Lamp Grounding M201 2014.01...
  • Page 250 Blower Power Supply Output 2.0 RD/BK Blower Power Supply Input Blower Resistor L04 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 2.0 BK/YE Blower Resistor Power Supply 0.85 LU Blower Resistor 2 0.85 VT Blower Resistor 1 M201 2014.01...
  • Page 251 6.1.7-63 Blower Switch L05 Wiring Harness Connector Pin Definition Pin No. Wire Diameter/Color Function 0.85 VT Blower Power Supply Input 1 2.0 BK Grounding 0.85 LU Blower Power Supply Input 2 2.0 BK/YE Blower Power Supply Input 3 M201 2014.01...

  • Page 253: Abbreviation List

    Front Wheel Drive 前轮驱动 Global Positioning System 全球定位系统 Gross Vehicle Mass 车辆总重量 Hydraulic Control Unit 液压控制单元 Hands Free Module 免提电话模块 High Intensity Discharge 高强度放电 HO2S Heated Oxygen Sensor 氧传感器 HVAC Heating, Ventilation and Air Conditioning 暖风、通风和空调总成 Instrument Panel 仪表板 M201 2014.01...
  • Page 254 Steering Angle Sensor 转向角度传感器 SCCM Steering Column Control Module 转向管柱控制模块 Supplemental Diagnostic Module 安全气囊控制模块 Sequential Fuel Injection 顺序燃油喷射 SOHC Single Overhead Camshaft 单顶置凸轮轴 Service Reminder Indicator 维修提示指示灯 Supplemental Restraint System 安全气囊系统 Torque Converter Clutch 变矩器离合器 Transmission Control Module 变速器控制模块 M201 2014.01...
  • Page 255 Transmission Range Sensor 变速器档位传感器 Technical Service Bulletin 技术服务公报 Three-way Catalyst 三元催化转换剂 Vacuum Fluorescent Display 真空荧光显示器 Vehicle Identification Number 车辆识别码 Vehicle Speed Sensor 车速传感器 Wheel Speed Sensor 轮速传感器 Caution：For abbreviations not in this list, please refer to the M201 Service Manual. M201 2014.01...

Table of Contents

Save PDF
