BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 31

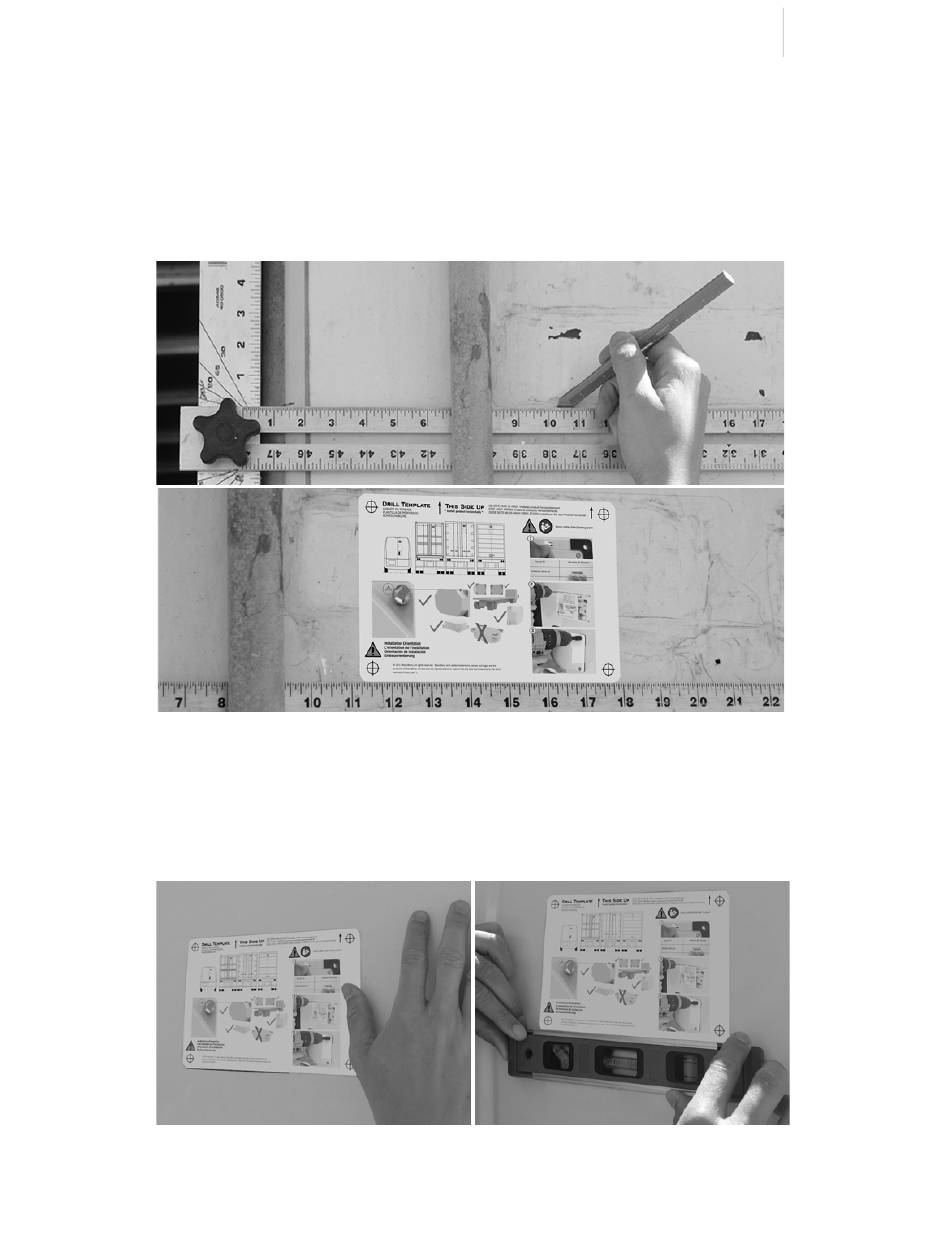

It is recommended that you install the module as level as possible on the asset. To
help ensure the device is level, you may try one of the following techniques.
Technique 1: Position the T-square along the edge of the door. Using the T-square
as a guide, draw a horizontal line approximately 5" (13 cm) in length, in the area you
plan to install the device, with your pencil or marker. Align the bottom edge of the
template to the line.
Tip: To avoid leaving a permanent mark on your trailer or container after the device
installation is complete, we recommend using a pencil or non-permanent marker to
create the guideline.
Technique 2: Visually, place the template in the desired installation location. Using
a level, check that the template is level.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2 ITC100-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Blackberry H2 ITC100-1

Summary of Contents for Blackberry H2 ITC100-1

  • Page 1 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 31 It is recommended that you install the module as level as possible on the asset. To help ensure the device is level, you may try one of the following techniques. Technique 1: Position the T-square along the edge of the door. Using the T-square as a guide, draw a horizontal line approximately 5”...
  • Page 2 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 4. Using a drill bit, drill a hole through each of the cross hairs on the template. This will create four holes you will use to mount the module. Drilling tips for intermodal installations Due to the thicker, harder steel used on intermodal containers, you may wish to follow these suggestions.
  • Page 3 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 33 5. Remove the template. You now have four holes in the door. If there are any burrs around the holes, remove them at this time. Also, remove any dust or debris left over from the drilling or de-burring operations.
  • Page 4 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE Do not over-tighten the fastener. Over-tightening can over-compress the mounting gasket, which can damage the gasket. Do not tighten fastener beyond 3lb-ft. (4Nm). Gasket Compression Level Gasket Compression Level Recommended Not Recommended 8. Close both doors. Installation is complete.
  • Page 5 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 35 3.4.6 Roll-up door installation procedure If you wish to monitor door open/close events with your BlackBerry Radar-L module, you will need to mount it on the door. Recommended module placement on roll-up doors is as follows.
  • Page 6 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 2. Evaluate the amount of clearance you will have once your module is installed. This will help you determine the best mounting location for your asset. You can perform a clearance check, prior to drilling any mounting holes in your door, by securing the module to the door with tape and moving the door through its complete range of travel, to ensure there is no interference.
  • Page 7 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 37 3. Once you have identified the desired mounting location for your asset, mark the height where the device will be installed on the door of the trailer/container. It is recommended that you install the module as level as possible on the asset. To help ensure the device is level, you may try this technique.
  • Page 8 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 5. Using a drill bit, drill a hole through each of the cross hairs on the template. This will create four holes you will use to mount the module. Drilling tips for one person installation on a roll-up door...
  • Page 9 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 39 6. Remove the template. You now have four holes in the door. If there are any burrs around the holes, remove them at this time. Also, remove any dust or debris left over from the drilling or de-burring operations.
  • Page 10 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE Lower door placement Insert your fastener of choice into the holes. • Use the appropriate tools to secure the module to the asset. Do not tighten • fastener beyond 3lb-ft. (4Nm) to avoid over compressing the mounting gasket.
  • Page 11 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 41 3.4.7 Chassis/flatbed/heavy equipment installation procedure If you are using BlackBerry Radar-L to track an asset without doors, or do not wish to monitor door open/close events for your asset, you may mount the module on any flat, vertical or horizontal surface that offers enough mounting area for the device.
  • Page 12 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 2. After selecting the best installation location for your van, remove the adhesive from the rear of the template and place the template in the desired installation location. The adhesive at the back of the template ensures that it stays on the door surface for accurate drilling of your holes.
  • Page 13 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 43 Drilling tips for chassis and frame installations Due to the thicker, harder steel used on chassis and trailer frames, you may wish to follow these suggestions. Tip 1: To shorten drilling time and prolong the life of your drill bit, you may wish to use cutting tool lubricant during the drilling process.
  • Page 14 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 5. Place the module on the chassis, aligning the holes on the module with the holes you drilled into the chassis. 6. Insert your fastener of choice into the holes and use the appropriate tools to secure the module to the asset.

  • Page 15: Prepare For Activation

    The BlackBerry Radar modules, when activated, send data to the BlackBerry Radar Dashboard application, and the application allows users to monitor asset activities on its website. The success of this communication requires two things: The BlackBerry Radar modules must be installed and powered on. See instructions in • Section 3.

  • Page 16: Verify Presence Of Assets

    Click Sign In. A permission request page opens, requesting access to your profile and other information. e. On the permission request page, under Do you approve?, click Allow access. The image below shows an example of the BlackBerry Radar Dashboard user interface. 2. Click the menu button at the upper left corner to display the Dashboard main menu.
  • Page 17 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 47 3. Click Assets to open the Assets list. 4. Make sure that all the assets that you need to pair with the modules are on the list. 5. Click the search button at the upper right corner, on the black navigation bar 6.
  • Page 18 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 4.3 Verify presence of modules 1. From the main menu, click Modules to open the Modules list. 2. Check Unassociated to display only modules not yet associated with any asset. 3. Make sure all the modules that you need to pair with assets are on the list.

  • Page 19: Locate The Asset On The Map

    BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 49 4.5 Locate the asset on the map Note: It could take up to 20 minutes for asset data to become available. On the black navigation bar, click the search button at the upper right corner.

  • Page 20: Troubleshoot Error Conditions

    Verify that no errors are seen in the Status section of the asset’s Details tab. • If you are still unable to locate the asset, contact the BlackBerry Radar support team at 1-844-RADAR-BB, or visit blackberry.com/support.

  • Page 21: Removal Tools

    UN certified Dangerous Goods packaging. If you are returning the battery, or battery with module to BlackBerry, you may request this UN- certified packaging from your representative. The Radar H2 module, when shipped without the battery, is not considered Dangerous Goods and can be shipped in any package.

  • Page 22: Module Removal

    BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 5.2 Module removal 1. Remove the module from the asset by removing the four fasteners from the corners of the module and removing the module.

  • Page 23: Battery Removal And Replacement

    BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 53 5.3 Battery removal and replacement Battery removal 1. Remove the six screws from the back of the product and remove the cover to access the battery compartment. Retain the screws as all six screws will be required to re- attach the battery door to the module.
  • Page 24 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE Battery replacement 1. Place the battery into the battery compartment. 2. Connect the battery cable to the battery connector. The LED will flash to indicate the module is active. 3. Place the battery cover onto the module and install all six screws.
  • Page 25 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 55 Preparing battery for shipment If you do need to ship the battery, along with the module, please follow this procedure. IMPORTANT: Never ship the device with the battery cable connected. Battery must be shipped inside the module with battery cable disconnected and the battery cable placed inside the connector nest.
  • Page 26 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 5.4 Door repair After the module has been removed from the door, there will be holes in the door. There are a number of techniques that can be used to repair the holes. This section will discuss some approaches you may wish to use.
  • Page 27 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 57 Method 2: Sealant Note: This method works particularly well with thicker doors like dry van and roll-up doors. 1. With the module removed, you’ll have four holes. 2. Fill the holes with a weatherproof sealant. If desired, you may use 100% Silicone Exterior Grade caulk or Polyurethane Sealant.
  • Page 28 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE Method 3: Fasteners Note: This method works particularly well with thicker doors like dry van and roll-up doors. 1. With the module removed, you’ll have four holes. 2. Insert the nuts and bolts into the holes. For added protection, place a washer between...
  • Page 29 BLACKBERRY RADAR H2 ITC100-1 INSTALLATION GUIDE 59 6 Support If you run into any problem during the installation process, contact the BlackBerry Radar support team at 1-844-RADAR-BB.

  • Page 30: Legal Notice

    The terms of use of this documentation and any BlackBerry product or service are set out in a separate license or other agreement with BlackBerry applicable thereto. Certain features...
