7.2.

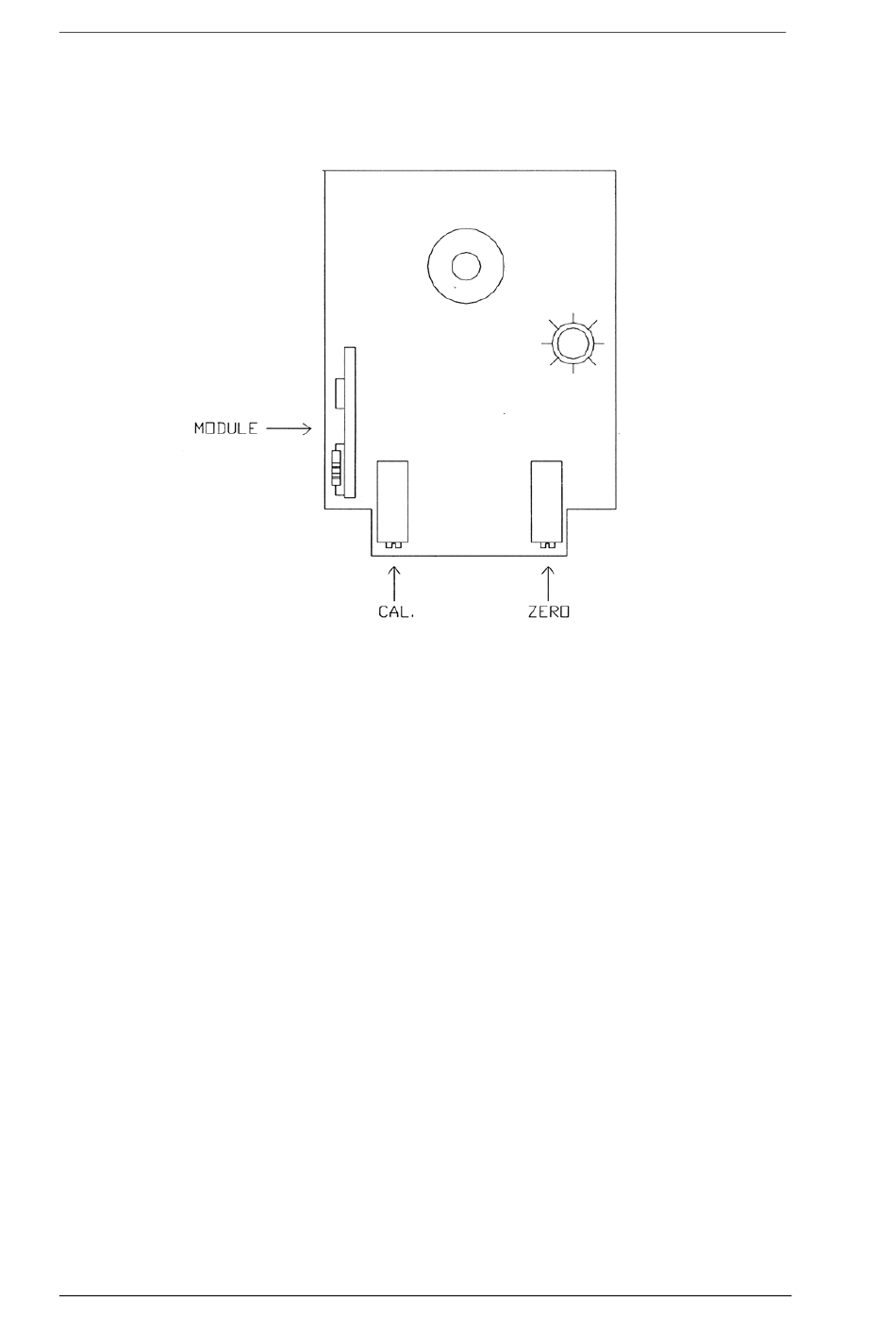

Module and Trimmer Location

Fig. 2
11
Turn the output adjustment pot. to full scale, and adjust the full scale calibration
trimmer until the DVM reads 100mV.
The full scale for the instrument is then set up correctly.
The other ranges do not normally require calibration, and therefore are not fitted
with trimmers.
Should calibration become necessary, adjust or replace the resistors listed
below.
10mV F.S.
10mA F.S.
100mA F.S.
12
The instrument can now be reassembled.
1030 Technical Manual
14
R6
R9
R5
P a g e
| 14
