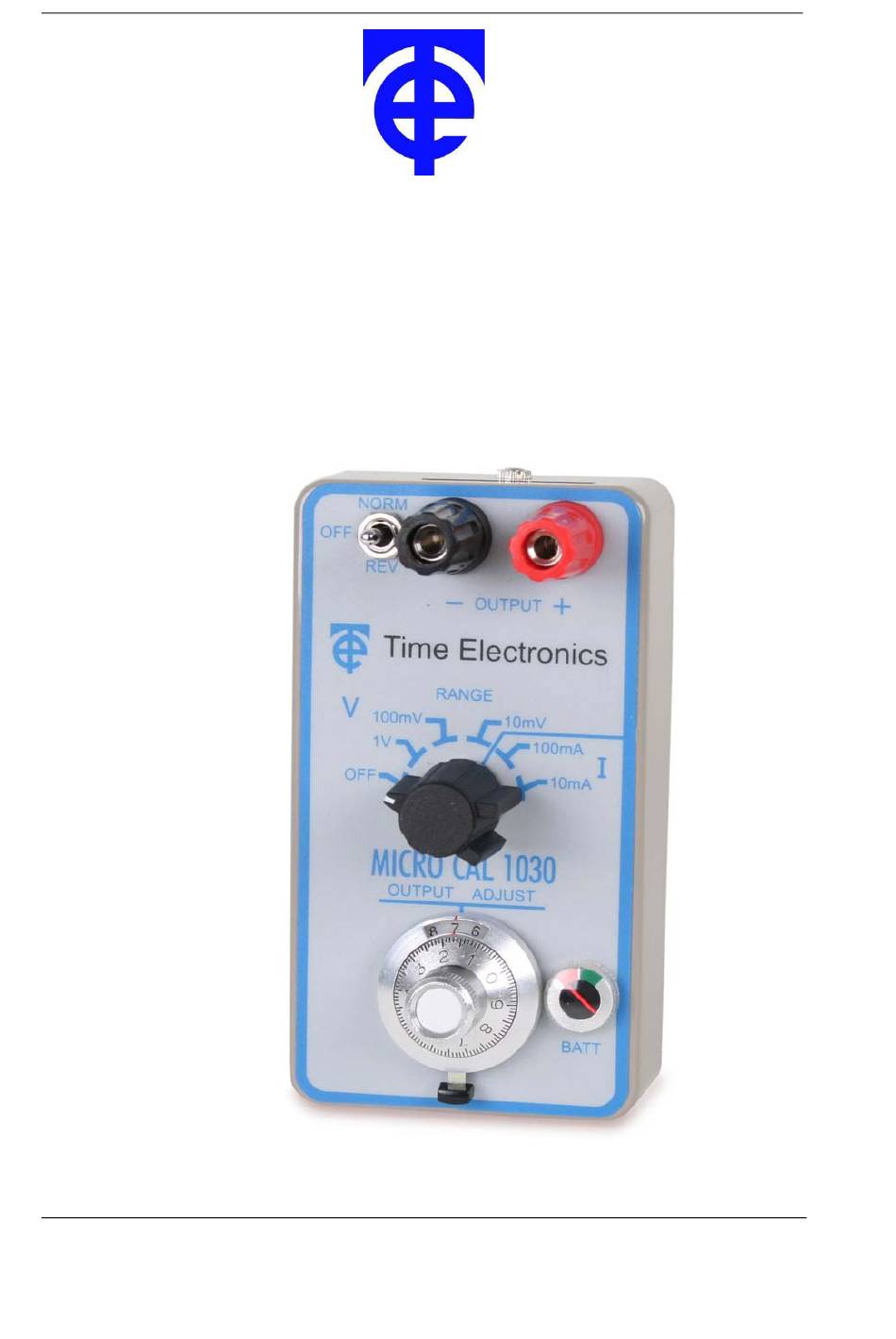

- Page 1 Time Electronics 1030 MicroCal Voltage & Current Source. Technical Manual V3.2 01/11/10 Time Electronics Ltd Botany Industrial Estate, Tonbridge, Kent, TN9 1RH Tel: +44(0)1732 355993 Fax: +44(0)1732 770312 Email: mail@TimeElectronics.co.uk Web Site: www.TimeElectronics.com...
-
Page 2: Table Of Contents
8.3. Repair ....................... 15 G uarantee & S ervic ing ................16 All Time Electronics' instruments are subject to continuous development and improvement and in consequence may incorporate minor detail changes from the information contained herein. 1030 Technical Manual P a g e... -
Page 3: Introduc Tion

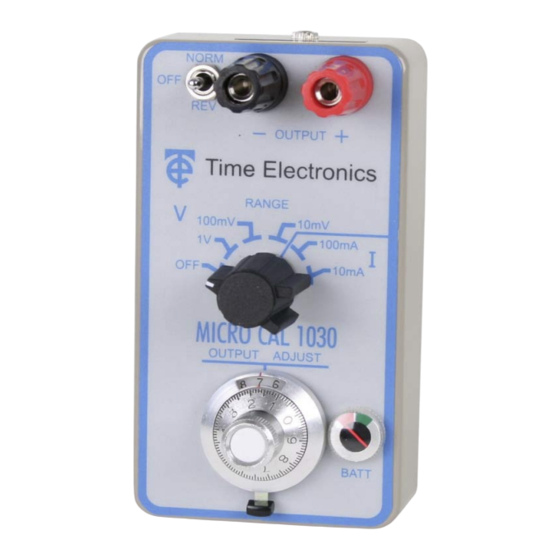

1. Introduc tion • 3 Voltage Ranges up to 1 Volt • Extremely Compact • 2 Current Ranges up to 100 mA • 0.1% Accuracy • Uses a single PP3 Battery 1.1. General Description The 1030 is a compact, low cost, portable voltage and current calibrator for general purpose signal injection. -
Page 4: S Pec Ific Ations
2. S pec ific ations Voltage Ranges: 0 - 1V (1mV resolution). 0 - 100 mV (100µV resolution). 0 - 10 mV (10µV resolution). 8 Volts (10mV resolution) using external precision 1KΩ resistor supplied. Current Ranges: 0 - 100mA (100µA resolution), 0 - 10mA (10µA resolution). -
Page 5: Ordering Information And Optional Extras
Output Resistance: 0.2 ohm on 1V and 100mV ranges. 10 ohm on 10mV range. 1K ohm when using the current shunt resistor. Dimensions: 115mm x 62mm x 55mm. Carry Case: A black carry case is supplied. 2.1. Ordering Information and Optional Extras Order Code Description 1030... -
Page 6: C Ontrols
3. C ontrols 3.1. Controls Diagram and Key 1) Black 4mm terminal Negative output terminal. 2) Red 4mm terminal Positive output terminal. 3) 3 Position switch Selects Normal/Off/Reverse output 4) 6 Position rotary switch Selects range and turns instrument on 5) 10 turn potentiometer Selects required output 6) Potentiometer lock... -
Page 7: Description Of Controls
3.2. Description of Controls 1 / 2. Output Terminals Output Voltage and Current is available on two front panel terminals which are suitable for either wire compression or 4mm 'wander' plug insertion. 3. Polarity Switch Normal or reverse polarity is selected by a toggle switch. The centre position is OFF which provides an open circuit on the output terminals. -
Page 8: Operation
4. Operation 4.1. Voltage Ranges Suggested operation procedure is as follows: Select Off position on output switch. Turn on, and select required range. Check battery level indicator for high enough reading (see ‘Battery Replacement’). Select required output on the ten turn potentiometer, which can then be locked by pushing the lever at the bottom to the left. -
Page 9: Current Ranges
4.3. Current Ranges On the current ranges, the drive voltage available at the terminals is governed by the battery voltage. Care should be taken not to exceed the 1030 voltage limit, as large errors will result if the load/current product exceeds the 1030 8V drive capability. This can easily be checked by either measuring the voltage across the 1030’s terminals when under load, or by checking that R x I is less than 8 volts. -
Page 10: Applic Ations
5. A pplic ations 5.1. Four Terminal Resistance Measurements Accurate measurements of low ohm values, such as P.R.T, can be performed by using the 1030 as a current source and measuring the voltage across the LOAD with a DVM. From Ohms Law : V/I=R Resistance vs Temperature Relationship for Platinum Resistance Thermometer Detector Element (DIN 43760) Ω... -
Page 11: Thermocouple Simulation
5.2 Thermocouple Simulation The 10mV range of the 1030 is ideal for simulation of all types of thermocouple. Just find the voltage required from the British Standard tables, (common values given below), and set up on the 1030’s dial. Do not forget to allow for the Cold Junction temperature. -
Page 12: B Attery R Eplac Ement & R Ec Harging
6. B attery R eplac ement & R ec harging The battery capacity for rechargeable types is approx. 110mAH, whereas non- rechargeable types are approx. 70mAH. The 1030 circuitry takes 2mA, and will operate over a battery voltage range of 7-12 volts. The battery life is primarily dependent on the output current used. -
Page 13: C Alibration
7. C alibration The instrument is calibrated before it leaves the factory and the calibration controls will not normally require adjustment. If re-adjustment is considered necessary, and the trimmer range is found to be insufficient for recalibration, there is a fault with the instrument. To calibrate the instrument a DVM of 0.1% accuracy is required. -
Page 14: Module And Trimmer Location
7.2. Module and Trimmer Location Fig. 2 Turn the output adjustment pot. to full scale, and adjust the full scale calibration trimmer until the DVM reads 100mV. The full scale for the instrument is then set up correctly. The other ranges do not normally require calibration, and therefore are not fitted with trimmers. -
Page 15: Maintenanc E And R Epair
8. Maintenanc e and R epair. 8.1. Dismantling the Instrument Remove rubber protection boot and then removal of four 6BA screws enables the cover to be taken off which provides access to all parts of the instrument. 8.2. Battery Replacement. Remove protection cover and then removal of four screws enables the cover to be taken off which provides access to the battery lift battery out of holder and careful disconnect battery connector, connect new battery and replace into case replace case... -
Page 16: G Uarantee & S Ervic Ing
We maintain comprehensive after sales facilities and the unit can, if necessary be returned to us for servicing. During this period, Time Electronics Ltd will, at its discretion, repair or replace the defective items. For servicing under guarantee, the instrument type and serial number must always be quoted, together with details of any fault and the service required.
