Peavey DPE 2P Operating Manual

Peavey DPE 2P Operating Manual

Bi-amplified class d powered speaker system

Advertisement

Quick Links

DPE
2P-4P
Bi-Amplified Class D Powered Speaker System
Operating
Manual
www.peavey.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the DPE 2P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Peavey DPE 2P

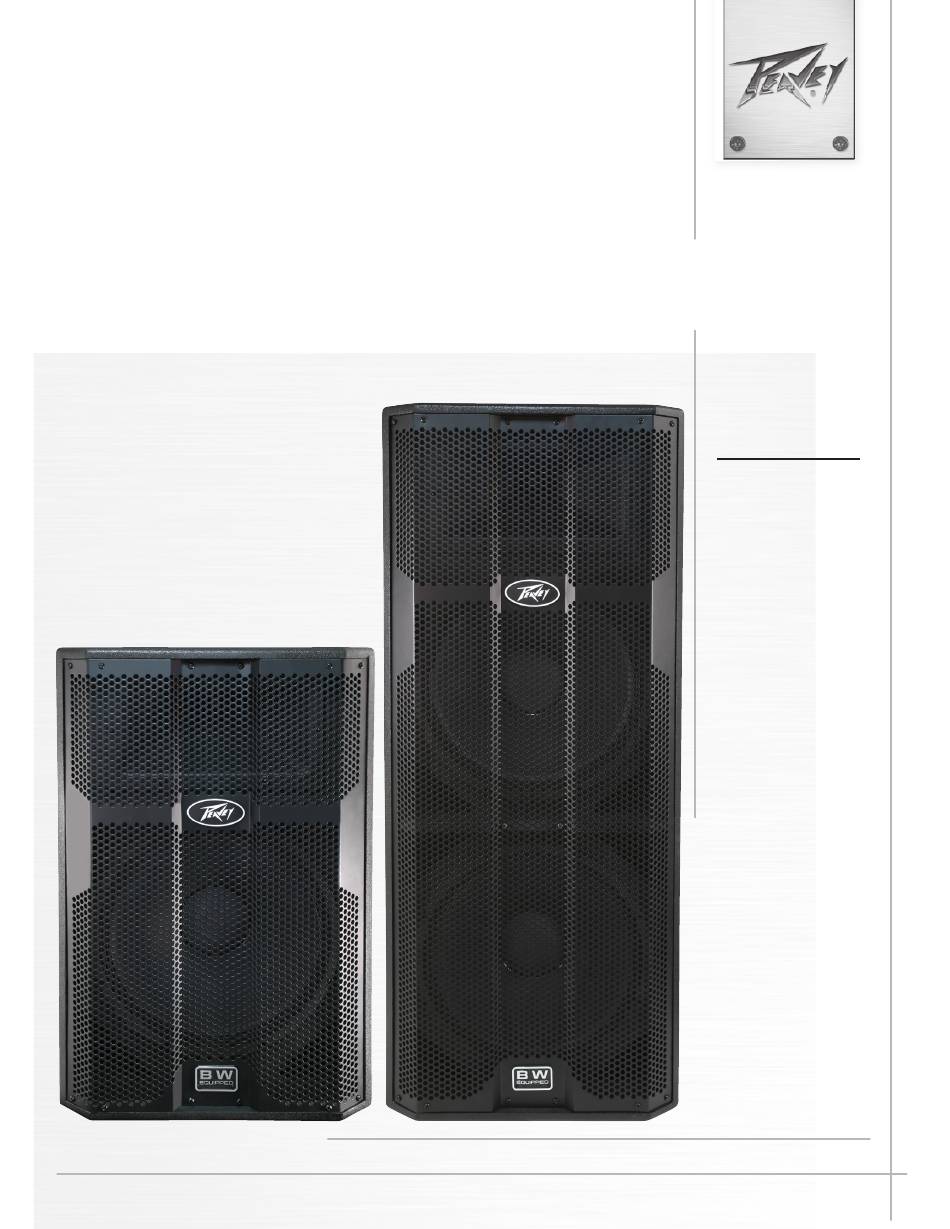

  • Page 1 2P-4P ™ Bi-Amplified Class D Powered Speaker System Operating Manual www.peavey.com...
  • Page 2 FCC/ICES Compliancy Statement  This device complies with Part 15 of the FCC rules and Industry Canada license‐exempt RSS Standard(s).  Operation is  subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must  accept any interference received, that may cause undesired operation.  Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de  licence.  L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de  brouillage, et (2) I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le  brouillage est susceptible d’en compromettre le fonctionnement.  Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the  user’s authority to use the equipment.  Note – This equipment has been tested and found to comply with the limits for a Class B digital device,  pursuant to Part 15 of the FCC Rules.  These limits are designed to provide reasonable protection against  harmful interference in a residential installation.  This equipment generates, uses, and can radiate radio  frequency energy and, if not installed and used in accordance with the instructions, may cause harmful  interference to radio communications.  However, there is no guarantee that interference will not occur in a  particular installation.  If this equipment does cause harmful interference to radio or television reception,  which can be determined by turning the equipment off and on, the user is encouraged to try and correct the  interference by one or more of the following measures.  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is ...
  • Page 3 Quadratic Throat Waveguide™ with a coverage pattern of 100˚ horizontal by 50˚ vertical. The DPE 2P-4P is capable of up to 131 dB peak SPL. The enclosure utilizes plywood in a modified-trapezoidal form, with a coated perforated steel grille to offer an attractive yet durable powered speaker system. The cabinet and grille are black.
  • Page 4: On/Off Switch

    2P-4P has a variety of applications, including sound reinforcement, public address, side fill system, karaoke and music playback. A typical signal source for the line-level inputs of the Peavey DPE 2P-4P would be a sound reinforcement mixing console (mixer) or the output from a CD player, MP3 player or tape deck. A dynamic microphone can be connected directly as well.
  • Page 5: Ground Lift Switch

    COOLING FAN VENTS (4) The DPE 2P-4P is equipped with an internal cooling fan. In order to avoid damage, DO NOT block the cooling vents! UPPER REAR PANEL...
  • Page 6 The "Speech" position is useful for direct interface of a dynamic microphone to the inputs of the DPE 2P-4P. When the Music/Speech switch is pushed in, and the Speech mode is engaged, the LED (16) to the upper right glows green.
  • Page 7 IN position and while setting the microphone level, or very loud feedback will occur! Damage to the system is likely if this occurs! DO NOT connect the inputs of the DPE 2P-4P to the output of a power amplifier. The inputs are meant to be driven from a mic or line-level signals.
  • Page 8 The best option is a shielded, balanced XLR cable no longer than necessary to reach the DPE 2P-4P. It is usually a good idea to leave some slack at the input to the DPE 2P-4P and also to tape the cables down or run them under a cable guard to avoid anyone tripping over them or pulling the DPE 2P-4P over when stand mounted.
  • Page 9 It is not good practice to turn the Gain control(s) on the DPE 2P-4P all the way up and then try to control level only from the mixer, as this approach would tend to pick up excess noise. The best practice would be to run a "hot" signal from the mixer down the cable to the DPE 2P-4P, and then turn the DPE 2P-4P Gain control up only as much as necessary to reach full desired output.
  • Page 10: Care And Maintenance

    Ground Lift switch (5). Check to make sure light dimmers are not on the same circuit as the DPE 2P-4P, the mixer or any source devices. If light dimmers are used, it may be necessary to turn them full ON or full OFF to eliminate or reduce hum.
  • Page 11 The outside dimensions shall be: 46.13" (117.2 cm) tall x 18.75" (47.6 cm) wide x 16.88" (42.9 cm) deep, and the weight shall be 103 lbs. Power requirements shall be: 700 Watts nominal, 100-120 VAC, 50/60 Hz Domestic and 220-240 VAC, 50/60 Hz (Export). The loudspeaker system shall be called a Peavey DPE ™...
  • Page 12 Greater than 100 @ 1000 Hz, 8 ohms One combo female XLR/ 1/4" phone jack providing balanced operation, with switch-selectable mic- or line-level sensitivity Power Requirements of Peavey DPE 2P-4P System: Nominal 700 watts Input 2: One combo female XLR/ 1/4" phone jack providing balanced operation, with switch-selectable mic- or line-level sensitivity.
  • Page 13 Operating voltage: 100 - 120VAC 50/60 Hz (domestic) 220 - 240VAC 50/60 Hz (export) All power measurements made at 120 VAC and 240 VAC. *Specifications subject to change without notice.
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...

This manual is also suitable for:

Dpe 4p
