4.2.5 Profile Switch Drive Axis: Default – 1
Sets which axis is driven when the profile switch function is Drive Axis
1 ... 32
4.2.6 Left Button: Default – Mode Drive/Outputs
Sets the functionality of the left button
See Profile Switch for detailed information about the different functionalities.
4.2.7Left Button Drive Axis: Default – 1
Sets which axis is driven when the Left Button function is Drive Axis
1 ... 32
4.2.8 Right Button: Default – Next
Sets the functionality of the right button
See Profile Switch for detailed information about the different functionalities.
4.2.9 Right Button Drive Axis: Default – 1
Sets which axis is driven when the Right Button function is Drive Axis
1 ... 32
Programming manual Compact Joystick Advanced R-net
Document Number: 205314-UK-0 Edition 2 2009-10 (0033-8009a-0100a)

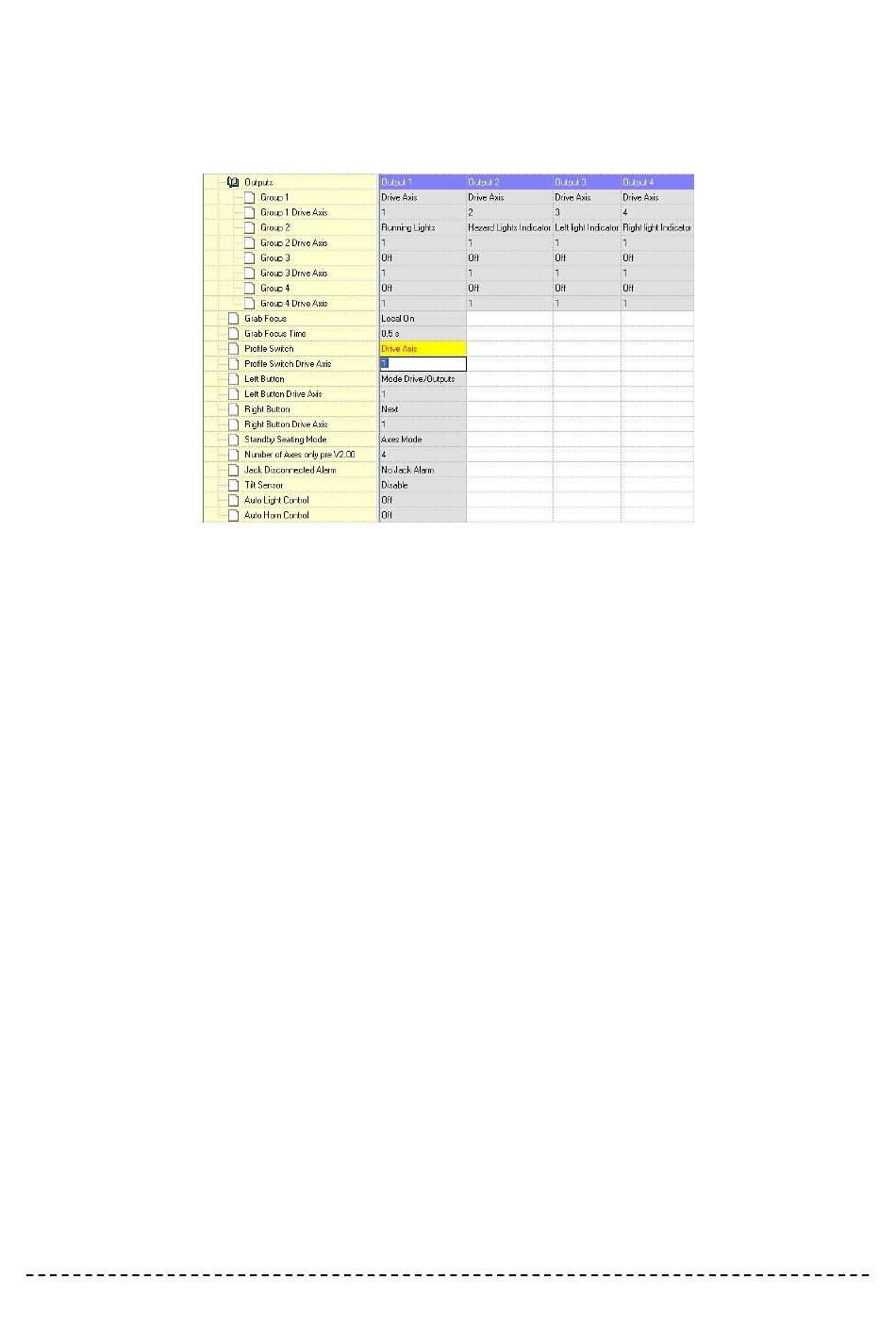

This number represents the axis that will be operated
when you have selected 'Drive Axis' in 'Profile Switch'
This number represents the axis that will be operated
when you have selected 'Drive Axis' in 'Left Button'
This number represents the axis that will be operated
when you have selected 'Drive Axis' in 'Right Button'
Page: 9/15
