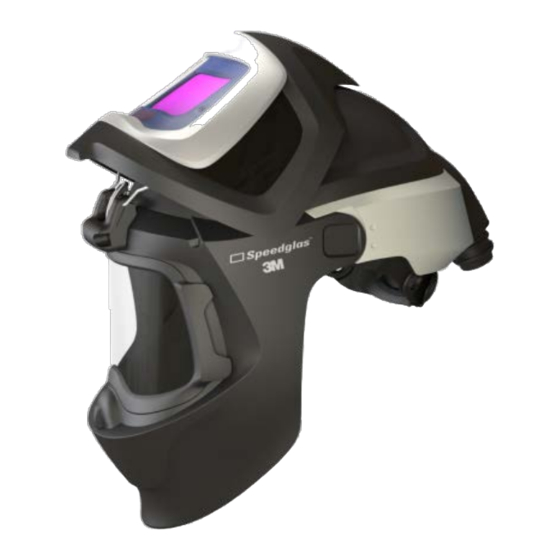

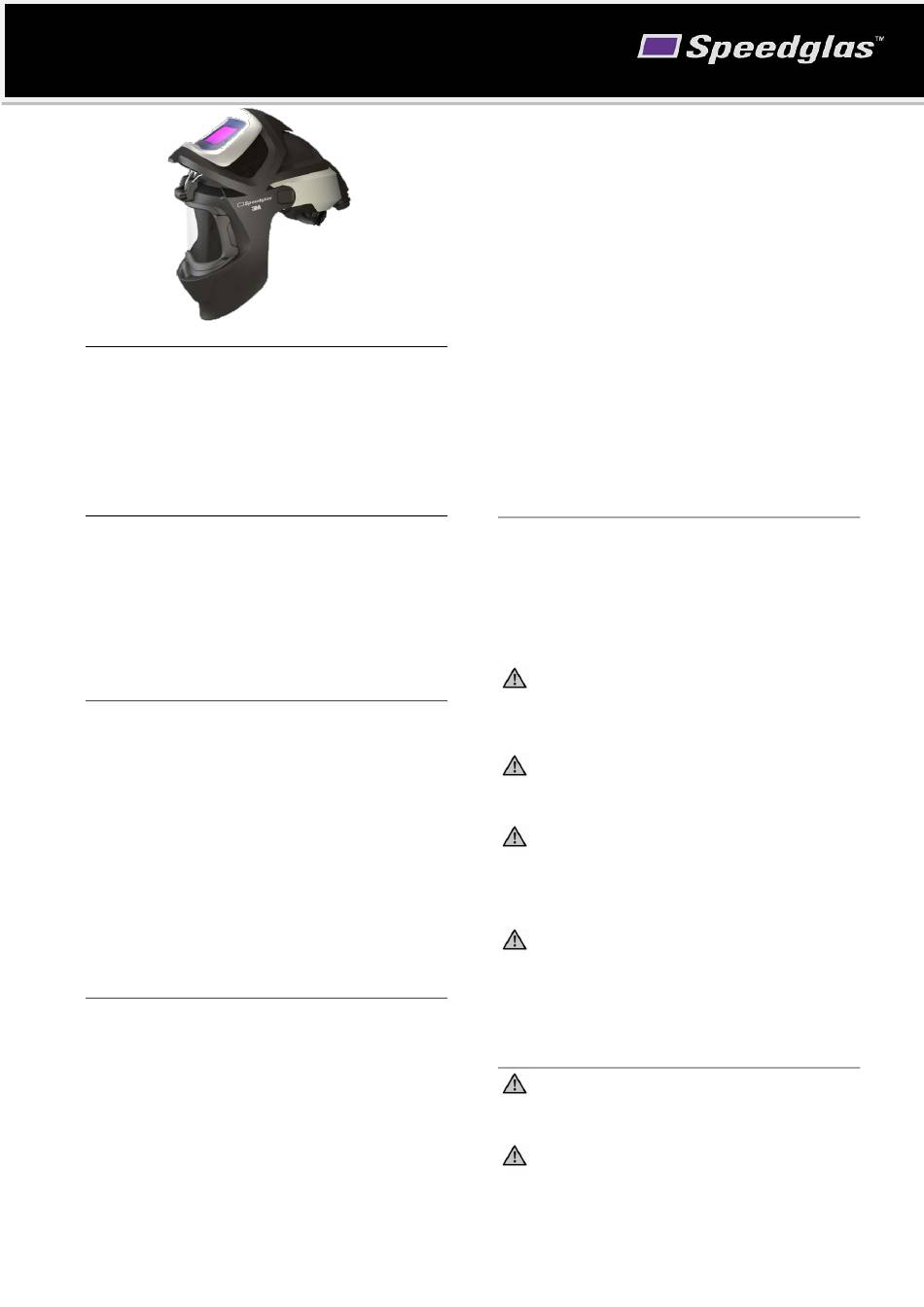

3M Speedglas 9100 MP Operating Instructions

Description:
• Multi Protection - 5 levels of protection: Eye, Face, Head,
Respiratory and Hearing (optional accessory)
• Easy to operate and maintain.
• 3M™ Speedglas™ 9100 Series Welding Filters and protection
plates
• Large Clear Visor (Same as 3M™ Speedglas™ 9100 FX Welding
Helmet)
• SideWindows
Applications:
The Speedglas 9100 MP Welding & Safety Helmet together with 9100
Series Welding Filters are designed for most welding processes, such
as MMA, MIG/MAG, TIG, plasma welding and oxyacetylene
welding/cutting.
The Speedglas 9100 MP Welding & Safety Helmet is excellent for
welding preparations such as grinding thanks to the large clear
viewing area. The Speedglas 9100 Welding & Safety Helmet is
designed to be used with 3M Air Delivery Units. See appropriate
reference leaflet for approved combinations.
Approvals:
The product meet the requirements of the European Community
Directive 89/686/EEC (Personal Protective Equipment Directive) and
is thus CE marked. The product comply with the harmonized
European Standards EN 175, EN 166 and EN 397. Certification under
Article 10, EC Type-Examination has been issued by INSPEC
International Ltd (Notified body number 0194). The complete 3M™
Speedglas™ 9100 MP Respiratory Systems complies with the
harmonized standards EN 12941 and EN 14594.
Speedglas 9100 MP Welding Helmet with powered air respirators or
supplied air regulators units marked CE0194 have had certification
under Article 10, EC-Type Examination and Article 11, EC Quality
Control issued by INSPEC international Ltd.
Speedglas 9100 MP Welding Helmet with powered air respirators or
supplied air regulators units marked CE0086 have had certification
under Article 10, EC-Type Examination and Article 11, EC Quality
Control issued by BSI.
Equipment Marking:
3M EN175B (medium energy impact B)
3M EN166B (medium energy impact B)
3M 1 BT N (1= optical class, BT=medium energy impact at extremes
of temperatures (-5°C and +55°C), N=Resistance to fogging)
3M EN12941 TH3 (nominal protection factor 500, higher strength
requirement for breathing hose and couplings)
3M EN12941 TH2 (nominal protection factor 50, medium strength
requirement for breathing hose and couplings)
3M EN14594 3B (nominal protection factor 200, higher strength
requirement)
3M Speedglas 9100 MP Welding Helmet with M-300 helmet shell
meet the requirements of EN 397
Page 1 (of 2)
Technical Datasheet
3M Speedglas 9100 MP Welding & Safety Helmet
™ ™
LD=Lateral Deformation, 440 V a.c.=Electrical Insulation
Additional markings on the product refer to other standards.
Mechanical Strength
EN 166, EN 175
No symbol Minimum robustness
S Increased robustness
F Low energy impact (45 m/s)
B Medium energy impact (120 m/s)
T Tested at extremes of temperature
(-5°C and +55°C)
Operating instructions:
Adjust the Speedglas 9100 MP Welding Helmet according to your
individual requirements to reach the highest comfort and protection.
(see fig B:1 - B:3).
Adjust and fit the air delivery unit as outlined in the appropriate User
Instruction. Adjust the face seal to suit the shape of the face. (see fig
G:7) If needed, lift the visor and adjust the airflow deflector. When fully
opened, more airflow is directed across the face. When partially
closed, a portion of the air is directed towards the visor. (see fig H:1)
It is important that the face seal is correctly mounted and fitted
to provide the correct protection factor. Do not remove the welding
helmet or turn off the air supply until you have vacated the
contaminated area.
Headtops used in aggressive environments or outside in direct
sunlight may need to be replaced more frequently than headtops used
occasionally indoors.
3M recommends a maximum life (shelf-life plus in-use life) of 3
years from the date of manufacture when stored in accordance with
the recommended storage conditions for the head protection part
(helmet).
Note: date of manufacture is molded on the helmet plastic part.
When working in environments with intense light radiation that
gives heat, environments with welding spatter or when high visibility is
required, 3M Speedglas Safety Helmet Cover shall be used.
Limitations of use:
Only use with original 3M spare parts and accessories listed in
the reference leaflet
and within the usage conditions given in the Technical Specifications.
The use of substitute components, decals, paint or other
modifications not specified in these user instructions might seriously
impair protection and may invalidate claims under the warranty or
cause the product to be noncompliant with protection classifications
and approvals.
© 3M 2015-02-12 All rights reserved
Rev 2013-02-05
