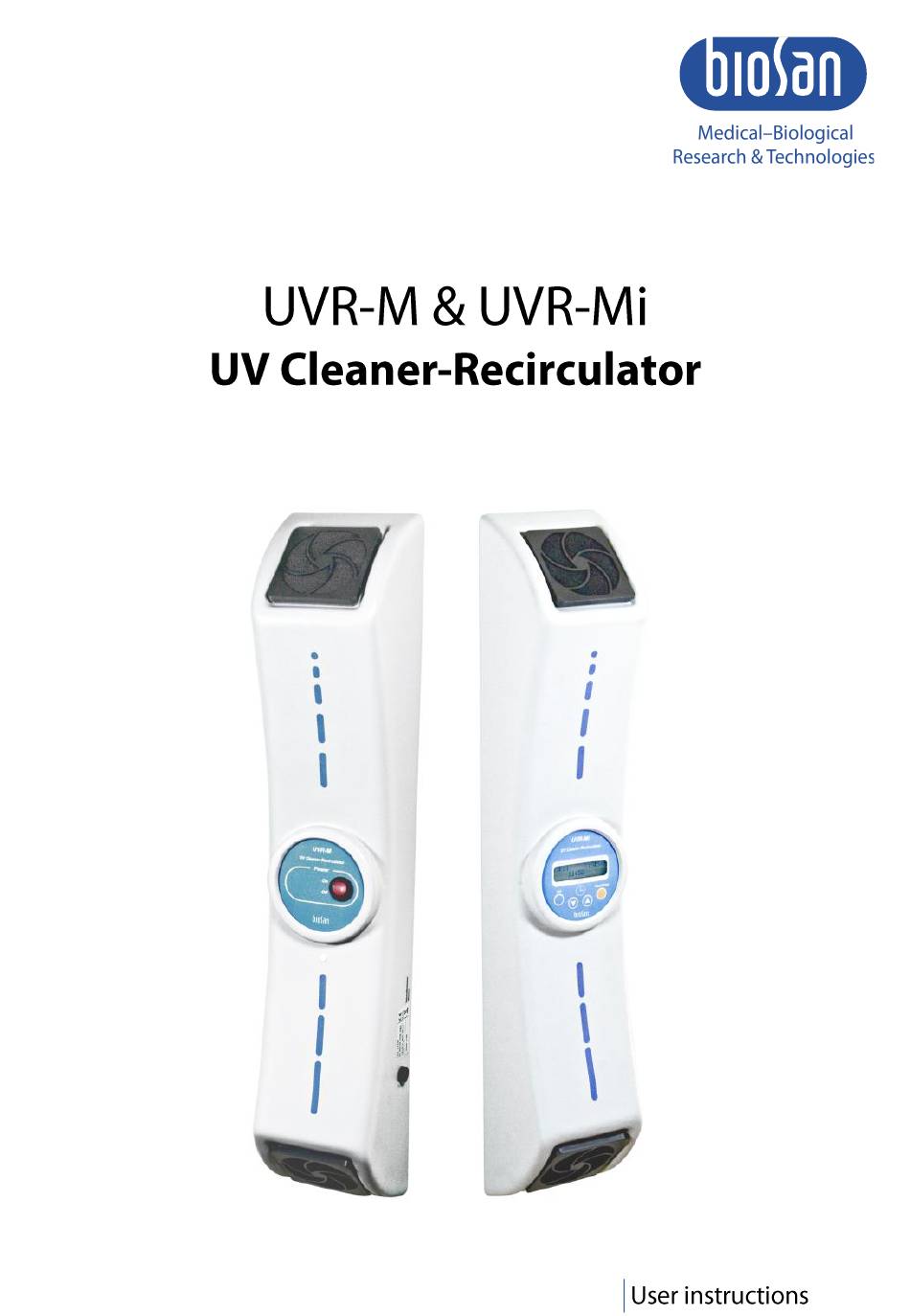

Biosan UVR-Mi User Instructions

Uv cleaner-recirculator
Hide thumbs Also See for UVR-Mi:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UVR-Mi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Biosan UVR-Mi

  • Page 2: Table Of Contents

    EU Declaration of conformity .................. 11 About this edition of user instructions The current edition of the user instructions applies to the following models and ver- sions of UV Cleaner-Recirculators:  UVR-M ....versions V.2AA, V.2AB, V.2AC, V.2A3  UVR-Mi ....... versions V.2AA, V.2AB, V.2A3...
  • Page 3: Safety Precautions

    Safety precautions The following symbols mean: Caution! Make sure you have fully read and understood the present Manual before using the equipment. Please pay special attention to sections marked by this symbol. Caution! Do not switch on the unit with the cover removed or without filters! UV lamp must be covered at all times during operation.
  • Page 4: General Information

    1. Low ozone 25 W G13 lamps with 9000-hour lifetime are used, one in the UVR-M model and two in the UVR-Mi model. The UVR-Mi model provides the scheduling option for switching on and off and the estimation of lamp overall operating time and condition.
  • Page 5: Getting Started

    4.2. Complete set. Package contents: 4.2.1. Standard set: UVR-M / UVR-Mi, UV Cleaner-Recirculator ............. 1 pce. Spare dust filters ....................2 pcs. Spare fuse ....................... 1 pce. Screw with dowel ..................... 1 pce. Operating manual, declaration of conformity ..........1 copy 4.2.2.
  • Page 6: Operation

    12% is recommended in order to achieve the desired air cleaning result. Figure 4. UVR-M overview Figure 5. UVR-Mi control panel and overview 5.1. Working with model UVR-M. 5.1.1. Plug the power cord into a grounded mains socket. Switch on the power switch (fig.
  • Page 7 5.2. Working with model UVR-Mi. 5.2.1. Plug the power cord to a grounded mains socket. Switch on the power switch (fig. 5/9) on the side to the right. 5.2.2. The following parameters appear on the display: Air flow recirculation start time in the automatic mode - Time On (fig. 5/1);...
  • Page 8: Specifications

    80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C. Biosan is committed to a continuous programme of improvement and reserves the right to alter design and specifications of the equipment without additional notice.
  • Page 9: Care And Maintenance

    (fig. 4/2 or 5/8) to check UV lamps inside the recirculator. If the indicator is alight while the switch is ON, then the UV lamps are functioning. If it is not, replace the lamp, single lamp in case of UVR-M, both - in case of UVR-Mi. Caution! Do not switch on the unit with the cover removed or without filters! UV lamp must be covered at all times during operation.
  • Page 10: Warranty

    Extended warranty.  For UVR-Mi, the Premium class model, one year of extended warranty is available free of charge after registration, during 6 months from the date of sale. Online regis- tration form can be found in section Warranty registration on our website at the link below.
  • Page 11: 10. Eu Declaration Of Conformity

    10. EU Declaration of conformity Unit type UV airflow cleaners-recirculators Models UVR-M, UVR-Mi Serial number 14 digits styled XXXXXXYYMMZZZZ, where XXXXXX is model code, YY and MM – year and month of production, ZZZZ – unit number. Manufacturer SIA BIOSAN Latvia, LV-1067, Riga, Ratsupites str.
  • Page 12 Biosan SIA Ratsupites 7, build.2, Riga, LV-1067, Latvia Phone: +371 67426137 Fax: +371 67428101 http://www.biosan.lv Edition 2.07 – November of 2018...
