- Page 2 If you have any feedback on our products or services, we would like to hear from you. Please send all feedback to: Manufacturer: SIA Biosan Ratsupites 7 k-2, Riga, LV-1067, Latvia Phone: +371 674 261 37 Fax: +371 674 281 01 https://biosan.lv...
-
Page 3: Table Of Contents
About this edition of user instructions The current edition of the user instructions applies to the following models: Model and name Version FTA-1, aspirator with trap flask V.4AW FTA-2i, aspirator with trap flask V.1A01 Edition 1.-4.03 – July of 2022... -
Page 4: Safety Precautions
Safety precautions Caution! Make sure you have fully read and understood the present Manual before using the equipment. Please pay special attention to sections marked by this symbol. Icons used on the unit and packaging CE marking, manufacturer affirms conformity with European health, safety, and environmental protection standards, see 12.1 WEEE directive marking, see 12.1 Polarity of the power connector... - Page 5 During operation • Do not operate the unit in environments with aggressive or explosive chemical mix- tures. Please contact manufacturer for possible operation of the unit in specific at- mospheres. • Do not operate the unit if it is faulty or has been installed incorrectly. •...
-
Page 6: General Information

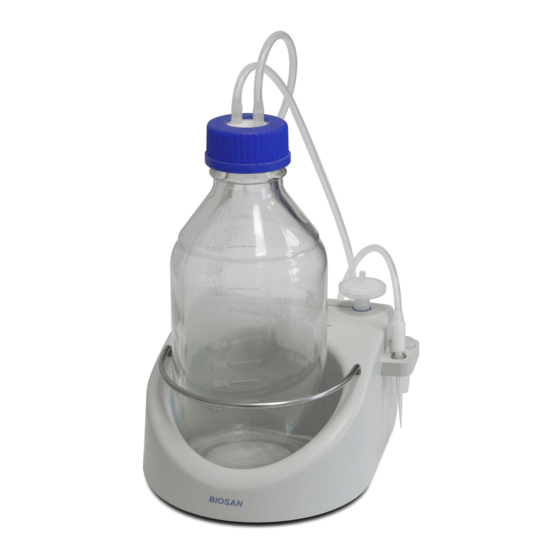

Model FTA-1 has a 1 L glass trap flask and is designed to be a low-cost solution. Aspiration is possible with a single standard 200 μL tip and the 8-tipped MA-8 adapter. -
Page 7: Getting Started
The warranty does not cover in-transit damage. Warranty covers only the units transported in the original package. Complete set. Package contents: 4.2.1 FTA-1: FTA-1, aspirator with trap flask ................ 1 pce. Hydrophobic filter set ..................1 set Aspiration tips, 200 µL ..................50 pcs. Holder tubes (1.5 ml) ..................10 pcs. - Page 8 Figure 5. MA-U, universal adapter Figure 6. FTA-2i filter setup Figure 7. FTA-2i rear panel FTA-1 setup. Place the unit on horizontal even working surface. Install the trapping flask (fig. 1/5) on the unit. Assemble the lid, aspiration tubing and filter set (fig. 1/2). Attach aspiration tip (fig.
- Page 9 4.3.1 Optional MA-8 aspiration tip installation. Remove microtubes and aspiration tip from the holder (fig. 1/4). Place MA-8 storing holder (fig. 2/1) into the holder. Remove aspiration tip (fig. 1/6) from the aspiration tubing and connect the MA-8 aspiration tip (fig.
-
Page 10: Operation
Operation Connect the external power supply to the mains. Turn the Power switch (fig. 1/3 or 7/2) to the position I (on). The pump starts working. (For model FTA-2i) Regulate the aspiration intensity with the regulator knob on the front panel of the unit (fig. 3/4). Clockwise turning direction increases power, counter clockwise –... -
Page 11: Specifications
50% relative humidity at 40°C. Operating altitude above sea level is up to 2000 m. Biosan is committed to a continuous programme of improvement and reserves the right to alter design and specifications of the equipment without additional notice. -
Page 12: Ordering Information
Ordering information Models and versions available: Model Version Catalogue number FTA-1, aspirator with trap flask V.4AW BS-040108-AAG FTA-2i, aspirator with trap flask V.1A01 BS-040120-A02 To inquire about or order the optional accessories or the replacement parts, contact Biosan or your local Biosan representative. - Page 13 Figure 8. Optional accessories and replacement parts Edition 1.-4.03...
-
Page 14: Chemical Compatibility
Different aerosols and vapours from volatile and hazardous agents can have a dam- aging effect on the specific parts of the units. Please see below for FTA-1 and FTA- 2i material compatibility tables 1 and 2 with different common laboratory chemicals. - Page 15 Table 2. FTA-2i chemical resistance chart Parts Material Tubing Silicone Bottle 2L Polypropylene Polypropylene Lid seal Level detection pins Stainless steel Fittings Polypropylene Quick couplings Housing Pump head housing Nylon Pump head membrane EPDM Pump valve EPDM Filter membrane PTFE Edition 1.-4.03...
-
Page 16: Care And Maintenance
Insert a new filter and reconnect the adapters. Caution! Observe the orientation of the filter: • For model FTA-1, the IN marking should be facing towards the unit (figure 1). • For model FTA-2i, the IN marking should be facing away from the unit (figure 6). -
Page 17: Storage And Transportation
Troubleshooting. Problem Possible reason Troubleshooting Check external power supply and con- No power nector Sensor shut down the motor. Empty the Unit not working (FTA-2i) Trapping flask full trapping flask according to 5.6. (FTA-2i) Sensor not connected Check sensor cable and attachments properly (FTA-2i) Aspiration intensity set to Turn the regulator knob clockwise to in-... -
Page 18: Warranty
Warranty registration on our website at the link below. • For FTA-1, the Basic Plus class model, extended warranty is a paid service. Contact your local Biosan representative or our service department through the Technical support section on our website at the link below. -
Page 19: Eu Declaration Of Conformity
12. EU Declaration of conformity 12.1 Aspirators with trap flasks FTA-1 and FTA-2i are in conformity with the following rel- evant Union legislations: LVS EN 61010-1:2011 Safety requirements for electrical equipment for LVD 2014/35/EU measurement, control, and laboratory use. General requirements. - Page 20 SIA Biosan Ratsupites 7 k-2, Riga, LV-1067, Latvia Phone: +371 67426137 Fax: +371 67428101 https://biosan.lv/ Edition 1.-4.03 – July of 2022...
