Summary of Contents for ARAG BRAVO30 Series

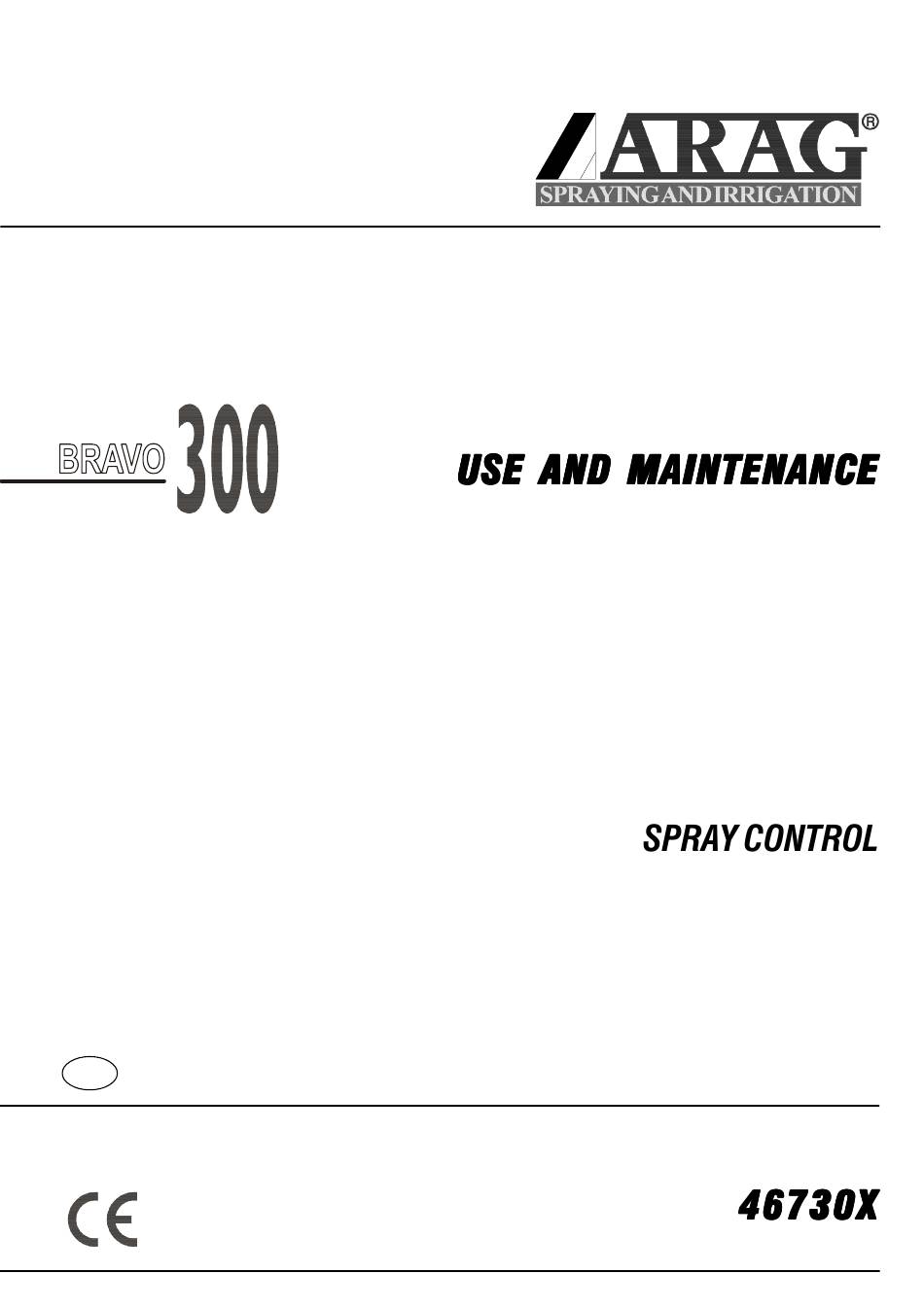

  • Page 1 Software No. 54...
  • Page 2 - Use only genuine ARAG spare parts and accessories. The illustrations and technical data contained in this publication refer to the date of printing. ARAG reserve the right to modify the specifications and instructions at any time without notice. For any requests for spare parts or after-sales service, please call your...
  • Page 3: Table Of Contents

    Table of Contents Table of contents ....................3 Introduction ......................4 Composition of Kit ....................4 Overall dimensions ....................5 Technical and operating particulars ..............5 Main assembly diagram ..................6 Control panel illustration ..................6 Description of keys and symbols ................7 Control keys ......................
  • Page 4: Introduction

    Introduction BRAVO30X is a computer capable of controlling distribution of chemical products on sprayers equipped with valve control unit from 1 to 5 section valves. It is composed of a control panel, to be kept within the operator's reach, allowing control of all the valves.
  • Page 5: Main Assembly Diagram

    Main assembly diagram Control panel Starter key Speed sensor Magnets Pressure sensor (opt.) Flowmeter Foam marker Loading pump Filling up flowmeter (or rpm sensor) General valve Adjustment valve 1 - 5 Section valves The sensor (S) detects the speed of the tractor by means of the magnets (C) and at the same time sends the data to the fig.1 assembly diagram flow-meter (F) and/or pressure trasducer (M) so that the...
  • Page 6: Control Keys

    fig.2 BRAVO305 control panel Control keys Distribution value setting Alternates display of the following data on the display: Distance travelled Time worked Surface area treated Access to the user programming menu Alternates display of the following data on the display : Tank level Liquid distributed Battery voltage...
  • Page 7: Adjustment Keys

    Selects automatic or manual operation Increase key In Manual mode: Increases the quantity for distribution In Automatic mode :Increases the quantity for distribution in steps of 5% Decrease key In Manual mode: Decreases the quantity for distribution In Automatic mode :Decreases the quantity for distribution in steps of 5% Opens/Closes main valve Controls opening/closing of sections...
  • Page 8 Switching on To activate BRAVO30X, position the starter key on "start"; BRAVO30X performs a display test, lighting up all the symbols (fig.3). After two seconds it displays the software release (fig. 4) and then switches to the main menu page (fig. 5). Fig.3 Setting the contrast Display test...
  • Page 9: User Programming

    User Programming Introduction Before starting treatment, some settings are necessary to inform the BRAVO30X about the characteristics of the vehicle on which it is installed (by means of the wheel constant), the characteristics of the liquid distributed (by means of the density), the type of flow-meter connected and the type of nozzle fitted.
  • Page 10: Wheel Constant Menu

    Wheel constant menu To modify the wheel constant, the user programming menu must be accessed by pressing the key until the screen shown on the left (menu 1.0) appears. Manual setting Fig.6 key can be pressed to insert the value calculated for the Wheel constant display wheel constant directly: use the modification keys to change and confirm the new value (the value set on the display is...
  • Page 11: Density Programming Menu

    Fig.8 Density factor programming N.B.: The ARAG ORION model flow-meter is unaffected by this menu problem. Density factor programming menu...
  • Page 12 Nozzle Flow-Rate If the computer is not connected to a pressure transducer, it may still be able to calculate and display the pressure on the basis of the flow-rate value measured by the flow-meter and the nozzle flow-rate data. N.B. For correct pressure measurement, the nozzles must be in good condition, so that the real flow-rate is the same as the Fig.10 rated flow-rate.
  • Page 13: Settings Preliminary To Treatment

    Settings preliminary to treatment Before each treatment, the following operations should be carried out: Set the field number Reset the field counters Set the amount of liquid put in the tank Select the nozzle to be used. Fig.12 Set the distribution value. Resetting the counters Field number BRAVO30X automatically records of the space travelled, time...
  • Page 14: Selecting The Nozzle

    Pressing the keys sets the tank level at the maximum filling level envisaged by the manufacturer. To set a level different from the maximum filling value, press so that the liquid in tank value flashes and use the modification keys to change it. Filling the tank by means of the flowmeter So the computer stores the exact quantity of liquid put into the tank, it is possible to fill the tank up with the specific flowmeter.
  • Page 15: Valves With Calibrated Returns

    If the operator wishes to use a non-ISO nozzle but still be able to select the ISO nozzles directly, he can access a nozzle known as "USER" in which he can set the data of the nozzle in use. To do this, display the nozzle selection screen as described earlier and bring the flashing nozzle symbol into the posi- tion (fig.16);...
  • Page 16: Setting The Litres/Hectare To Distribute

    return is shown beside (In the example if fig. 19, this is 8.8). At this point the calibrated return has to be adjusted so that the two values are the same: when they coincide the section valve can be reopened and the operation can be repeated for all the other section valves.
  • Page 17: Foam Marker

    Start of treatment in the automatic mode To perform a treatment in automatic mode, proceed as follows: Check that the symbol in the centre of the display has illuminated, or press the key so that it appears. Fig.21: Open the section valves using the relative keys. Controls for varying the Go to the beginning of the field for treatment.
  • Page 18: Displaying The Counters

    Automatic mode: If the foam marker function has been set for automatic opera- tion, the foam marker stops automatically when the master valve is closed and restarts from the opposite side when it is reopened. The active side of the foam marker is indicated by the flashing row symbol above the boom symbol (fig.22).
  • Page 19 Counters printout If the printer (code 467001) or the download software of data on the personal computer (code 467002) is connected to BRAVO30X, it will be possible to print the data of the field counters. Press keys until the screen page depicted in Fig. 24 appears.
  • Page 20: Operating Errors

    Operating errors BRAVO30X monitors all distribution parameters constantly. In case of a malfunction, the following error messages appear on the display: ERROR MESSAGE CAUSE REMEDY - Reduce vehicle speed During treatment it is not possible to distribute the Use nozzles capable of higher delivery quantity of liquid per unit of rates area set...
  • Page 21: Troubleshooting

    Troubleshooting S " y t l y t l c i f F " “ ” y t l " t y t i y t l t n i “ ” l l a “ ” F " “ ”...
  • Page 22 Appendix Unit of measure EU t Surface Hectare (Ha) Hectare(Ha) Acre Dist. travell. Mile Time Hours Hours Hours Capacity Litres Tons Gallons Voltage Volt Volt Volt Pressure Flow rate Litres/min t/min Gal/min Speed Km/h Km/h Miles/h Distribution Litres/Ha t/Ha Gal/Acre Sect.width metres metres...
  • Page 23: Terms Of Warranty

    5. No one is authorized to change the terms and conditions of warranty or to issue other statments or writings 6. ARAG shall not be held liable for any damage caused to persons or things by failure or forced suspension of using the equipment 7.
  • Page 24 42048 RUBIERA (Reggio Emilia) ITALY Via Palladio, 5/A Tel. 0522.622011 Fax 0522.628944 Home page: http://www.aragnet.com E-Mail: info@aragnet.com...
