Summary of Contents for Gaggenau CM 470711

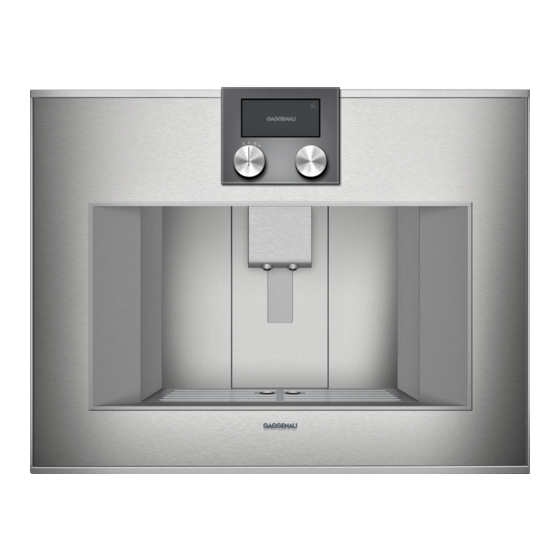

- Page 1 Use and care manual CM 470711 Fully Automatic Espresso Machine...
-
Page 2: Table Of Contents
Water filter Additional information on products, accessories, Operation with or without water filter replacement parts and services can be found at Inserting the water filter www.gaggenau.com and in the online shop www.gaggenau.com/zz/store Filling the bean container Preparing beverages Beverage selection... -
Page 3: How To Use These Instructions
en-us Safety Definitions 9 Safety Definitions How to use these instructions WARNING S a f e t y D e f i n i t i o n s You can open up the front cover of this instruction manual. There you will find illustrations of the appliance This indicates that death or serious injuries may with each part numbered. -
Page 4: Important Safety Precautions
9 IMPORTANT SAFETY PRECAUTIONS READ AND SAVE THESE INSTRUCTIONS Do not place unit or components on or IMPORTANT SAFETY PRECAUTIONS W hen using electrical appliances, basic near a cooktop or range, or in a heated R E A D A N D S A V E T H E S E I N S T R U C T I O N S safety precautions should always be oven. - Page 5 9 IMPORTANT SAFETY PRECAUTIONS READ AND SAVE THESE INSTRUCTIONS WARNING WARNING To reduce risk of fire and electric shock:! To avoid the risk of injury:! Installation Do not drink or come into contact with cleaning or descaling materials. Connect and operate the appliance Keep cleaning materials and only according to the rating plate descaling tablets out of the reach of...
-
Page 6: State Of California Proposition 65 Warnings
9 IMPORTANT SAFETY PRECAUTIONS READ AND SAVE THESE INSTRUCTIONS CAUTION CAUTION To avoid the risk of injury: To avoid the risk of influence electronic implants: Do not reach into the grinding unit. The appliance contains permanent Be careful not to pinch your fingers magnets that may influence when closing the door. -
Page 7: Environmental Protection
en-us Environmental protection Environmental protection S aving energy E n v i r o n m e n t a l p r o t e c t i o n If the appliance is not being used, switch it off. ▯... -
Page 8: Getting To Know Your Appliance
en-us Getting to know your appliance Getting to know your appliance G e t t i n g t o k n o w y o u r a p p l i a n c e Further information about the appliance, such as how to U se this section to familiarize yourself with your new change the opening angle of the door, can be found in appliance. -
Page 9: Assembly And Components
en-us Getting to know your appliance Assembly and components... -
Page 10: Displays And Controls
en-us Getting to know your appliance Display and controls Rotary selector With the rotary selector you can select the desired bever- Shelf, e.g. for a cup age and make other settings. Water tank with lid Function selec- You can use the function Accessory drawer (for quick reference guide selector to call up beverages and accessories) -
Page 11: Colors And Display
en-us Getting to know your appliance Additional information ( and ) Colors and display By touching the ( symbol, you can call up additional Colors information. The various colors serve to guide you in the various adjustment situations. During operation, you will, for example, receive information regarding the number of beverages already Orange First settings... - Page 12 en-us Getting to know your appliance The appliance is equipped with the following accessories as standard: Measuring spoon For adding ground coffee. Milk hose set For connecting the milk con- tainer. Milk tube For inserting into the milk con- tainer, milk cartons and milk bot- tles or for running a service program.
-
Page 13: Switching The Appliance On And Off
In the general settings, you can set whether the off. ▯ Gaggenau logo is to be displayed during sleep mode. If the appliance is switched off at the main switch, the ~ "General settings" on page 23 power supply is interrupted. -
Page 14: Setting Up The Appliance
en-us Setting up the appliance Setting water hardness Setting up the appliance It is important to set the water hardness correctly, so that the appliance indicates accurately when the descaling S e t t i n g u p t h e a p p l i a n c e N ote: Only use the appliance in frost-free rooms. -
Page 15: Water Filter
en-us Water filter Inserting the water filter Water filter New water filters must always be rinsed after being fitted. Rotate the function selector to S. O peration with or without water filter W a t e r f i l t e r Select "Change water filter"... -
Page 16: Filling The Bean Container
en-us Filling the bean container Filling the bean container Preparing beverages B everage selection F i l l i n g t h e b e a n c o n t a i n e r P r e p a r i n g b e v e r a g e s U sing your appliance, you can prepare coffee using freshly ground coffee beans or ground coffee. -
Page 17: Preparing Coffee Using Freshly Ground Beans
en-us Preparing beverages You may be able to select further options depending on Use the rotary selector to select the desired beverage, your choice of beverage: e.g. coffee. ¦ Capacity Small - Medium - Large - Extra large ˆ Strength Very mild - Mild - Medium - Strong - Very strong - Extra strong etc., not available for... -
Page 18: Preparing Two Cups At The Same Time
en-us Preparing beverages Notes Preparing coffee using ground coffee While the beverage is dispensed, the & symbol is ▯ The appliance must be switched on. displayed. Touch this symbol to stop the beverage being prepared. Important: Remove cups or glasses before opening the Using the ‡... -
Page 19: Preparing Coffee With Milk
en-us Preparing beverages Preparing coffee with milk Using a milk carton or other container: Open the door. ▯ WARNING Push the beverage dispenser down completely. ▯ Remove the cover of the beverage dispenser towards ▯ Risk of burns! the front. The milk system becomes very hot. -
Page 20: Preparing Milk Froth And Warm Milk
en-us Preparing beverages Touch the C symbol. Preparing milk froth and warm milk Set the size using the rotary selector. Touch the C symbol. WARNING Set the temperature using the rotary selector. Risk of burns! Press ™ to confirm. The milk system becomes very hot. After use, Start with I. -
Page 21: Changing Bean Type
en-us Individual beverages Changing bean type Individual beverages If you are using a new type of bean, the Empty grind function allows you to run the grinding unit until empty of I n d i v i d u a l b e v e r a g e s Y ou can define and store instructions for up to 8 your previous bean type. -
Page 22: Child Lock
en-us Child lock Child lock C h i l d l o c k T he appliance has a child lock to prevent children operating it accidentally. Notes You must set the child lock to "Available" in the ▯ general settings. ~ "General settings" on page 23 Save with ™... -
Page 23: General Settings
Stages 1, 2, 3, 4, 5*, 6, 7, 8 Setting display brightness Sleep mode With logo*/Without logo Sleep mode display with or without GAGGENAU logo Display screen Minimized*/Standard When ‘Minimized’ is set, only the most important details are displayed after a short time. - Page 24 en-us General settings Capacity unit ml/fl.oz.* Set the capacity unit Capacity +/-5 ml (0,2 fl.oz.) to 60 ml (2 fl.oz.) Adjust the capacity to individual cup sizes. First select the beverage and then set the capacity. Unit of weight g / oz* Set the unit of weight Milk container Standard*/Individual...
-
Page 25: Setting The Milk Container Weight
en-us General settings Setting the milk container weight Messages Using the weight, the appliance detects the quantity of Depending on the setting in "General settings" or when milk in the milk container to ensure that there is always dispensing a beverage with milk, various reminders or sufficient milk to dispense a Latte Macchiato, for messages may be shown on the display: example. -
Page 26: Daily Care And Cleaning
en-us Daily care and cleaning Remove the ground coffee drawer, clean it under Daily care and cleaning running water and dry it thoroughly. Wipe out the inside of the appliance (drip tray holder and ground coffee drawer) and the collecting tray and D aily care D a i l y c a r e a n d c l e a n i n g dry them. - Page 27 en-us Daily care and cleaning Cleaning the milk system automatically Detach the milk hose, dismantle the top and bottom sections of the beverage dispenser. Rotate function selector to S. Use the rotary selector to select "Clean milk frothing system". Touch the ™ symbol. The cleaning program starts.
-
Page 28: Cleaning The Brewing Unit
en-us Daily care and cleaning Cleaning the milk container Remove the cover and clean the filter under running water. For reasons of hygiene, the milk container should be cleaned regularly. Only the individual parts of the lid are suitable for dishwasher use. Clean the stainless steel milk container by hand using a gentle cleaning agent. -
Page 29: Service Programs
en-us Service programs Notes Service programs Caution! Do not drink or come into contact with ▯ cleaning or descaling materials. Keep cleaning S e r v i c e p r o g r a m s materials and descaling tablets out of the reach of ( See also the quick reference guide) children. -
Page 30: Cleaning
en-us Service programs Cleaning Remove the milk tube from the milk container, wipe it down and insert the end of the milk tube into the hole on the coffee residue container. Duration: approx. 5 minutes Clean the brewing unit before the start of the service program. -
Page 31: Cleaning And Descaling
en-us Service programs Touch the I symbol. Cleaning and descaling The program will run for approx. 19 minutes. Duration: approx. 26 minutes Note: If there is too little descaling solution in the The cleaning and descaling program combines the water tank, the message "Fill water tank with water individual cleaning and descaling functions. -
Page 32: Emptying Program
en-us Emptying program Emptying program Technical specifications E m p t y i n g p r o g r a m T he emptying program is a service program which is Power connection with 120 V AC - 60 Hz used to remove coffee bean residue and to prevent transformer type 8001010566 damage caused by frost during transportation and... -
Page 33: Simple Troubleshooting
en-us Simple troubleshooting Simple troubleshooting S i m p l e t r o u b l e s h o o t i n g Problem Cause Remedial action The personally selected capacity is The grinding level is too fine. Adjust the grinding level to a coarser set- not reached. - Page 34 en-us Simple troubleshooting Problem Cause Remedial action The brewing unit cannot be inserted. Brewing unit in the wrong Insert the brewing unit as described in the instructions. ~ "Cleaning the position. brewing unit" on page 28 Unlock brewing unit. ~ "Cleaning the Brewing unit is locked.
-
Page 35: Aqua-Stop Pledge
en-us Simple troubleshooting Problem Cause Remedial action Display screen "Switch off appli- Appliance is too warm. Let the appliance cool down. ance" Brewing unit soiled. Clean the brewing unit. Display screen "Contact customer The appliance has encoun- Please contact the hotline. service".
