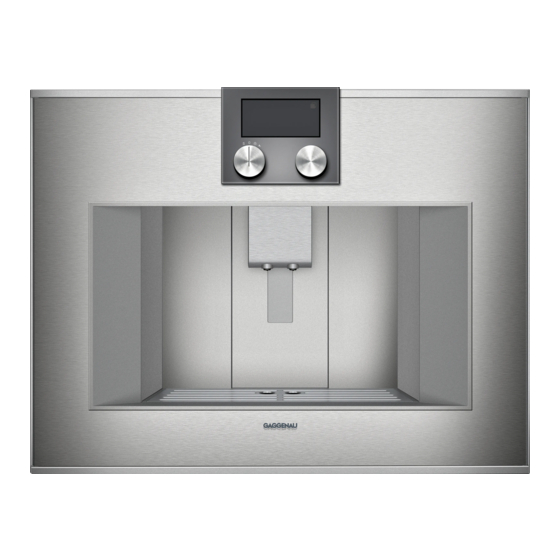

- Page 1 Instruction manual CM 470 Fully Automatic Espresso Machine...
-
Page 2: Table Of Contents
Hibernate mode Activating the appliance Additional information on products, accessories, replacement parts and services can be found at Setting up the appliance www.gaggenau.com and in the online shop www.gaggenau.com/zz/store Initial settings Setting the water hardness Water filter Operation with or without a water filter... -
Page 3: Intended Use
Intended use Intended use Important safety information C heck the appliance for damage after I n t e n d e d u s e unpacking it. Do not connect the appliance if it P lease read carefully, follow and retain the I m p o r t a n t s a f e t y i n f o r m a t i o n has been damaged in transport. -
Page 4: E Nvironmental Protection
Environmental protection Risk of electric shock! Never immerse the appliance or mains cord E nvironmental protection ▯ in water. Risk of electric shock! The plug and socket connection of the ▯ S aving energy E n v i r o n m e n t a l p r o t e c t i o n appliance must not come into contact with ▯... -
Page 5: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance Familiarising yourself with your appliance U se this section to familiarise yourself with your new F a m i l i a r i s i n g y o u r s e l f w i t h y o u r a p p l i a n c e appliance. -
Page 6: Assembly And Components
Familiarising yourself with your appliance Assembly and components... -
Page 7: Display And Operating Controls
Familiarising yourself with your appliance Function selector positions Display and controls Shelf, e.g. for a cup Water tank with cover Accessory drawer (for quick reference guide and accessories) Bean container Grinding level adjustment Magnetic holder (for milk hose connecting element) Ground coffee drawer Protective cover (for brewing unit) Position... -
Page 8: Colours And Display
Familiarising yourself with your appliance Colours and display Automatic door opening Colours The appliance door springs open when you touch the symbol and you can open it fully by using the recessed The different colours are used to guide the user in the handle on the side. -
Page 9: Accessories
Switching the appliance on and off Accessories Switching the appliance on and off The fully automatic espresso machine has a drawer for storing accessories such as the quick reference guide M ain switch or measuring spoon inside the appliance. After opening S w i t c h i n g t h e a p p l i a n c e o n a n d o f f the door, you can use the magnetic holder and the clip for the individual parts, such as the milk hose set. -
Page 10: Hibernate Mode
– settings" on page 19 – In Basic settings, you can select whether the Gaggenau logo is to be displayed during hibernate Switch on the appliance at the main switch. "Basic settings" on page 19 mode. ~ The preset language appears in the display. -
Page 11: Setting The Water Hardness
Water filter Setting the water hardness Water filter It is important to set the water hardness correctly so that the appliance indicates in good time when the O peration with or without a water descaling programme should be run. The preset water W a t e r f i l t e r hardness is level 4. -
Page 12: Inserting The Water Filter
Fill bean container Inserting the water filter Fill bean container New water filters must always be rinsed after being fitted. U sing your appliance, you can prepare coffee using F i l l b e a n c o n t a i n e r Rotate function selector to S. -
Page 13: Preparing Beverages
Preparing beverages You may be able to select further options depending on Preparing beverages your choice of beverage: ¦ Size Small - Medium - Large - Very large B everage selection ˆ Strength Very mild - Mild - Medium - Strong - P r e p a r i n g b e v e r a g e s Very strong - Extra strong etc., not Notes... -
Page 14: Preparing Coffee Using Freshly Ground Beans
Preparing beverages Preparing coffee using freshly ground Set the temperature using the rotary selector. beans The appliance must be switched on. The bean container must be filled. Rotate function selector to position 2. ™ 10 Press to confirm the settings. 11 Press I to start. -
Page 15: Preparing Coffee Using Ground Coffee
Preparing beverages Preparing coffee using ground coffee Preparing a coffee with milk Warning – Risk of burns! The appliance must be switched on. The milk system becomes very hot. After use, allow it to Important: Remove cups or glasses before opening the cool down first before touching it. -
Page 16: Preparing Milk Froth And Warm Milk
Preparing beverages To prepare a drink: Notes The appliance must be switched on. The bean container & – While the beverage is dispensed, the symbol is must be filled. displayed. Touch this symbol to stop the beverage being prepared. Rotate function selector to position 2. ‡... -
Page 17: Setting The Grinding Level
Individual beverages Setting the grinding level Individual beverages Warning – Risk of injury! Do not reach into the grinding unit. Y ou can define and save instructions for up to I n d i v i d u a l b e v e r a g e s 8 individual beverages. -
Page 18: Child Lock
Child lock ™ Save with or cancel with and exit the menu. Child lock Press I to start. Depending on the beverage selected, the beans will be ground first, then the milk prepared and finally the T he appliance has a child lock to prevent children C h i l d l o c k coffee brewed. -
Page 19: Basic Settings
Basic settings Basic settings Y our appliance can be individually adjusted in the basic Touch the symbol. B a s i c s e t t i n g s settings. Set the basic setting using the rotary selector. Turn the function selector to S. ™... - Page 20 Basic settings Weight unit g*/oz. Set the weight unit "Setting Setting for weight detection. ~ Milk container weight Standard*/Individual the milk container weight" on page 21 Language German* / French / Italian / Spanish / Select language for text display Portuguese / Dutch / Danish / Swedish Note: / Norwegian / Finnish / Greek / Turkish...
-
Page 21: Setting The Milk Container Weight
Basic settings Setting the milk container weight Messages Using the weight, the appliance detects the quantity of Depending on the setting in "Basic settings" or when milk in the milk container to ensure that there is always dispensing a beverage with milk, various reminders or sufficient milk to dispense e.g. -
Page 22: Daily Care And Cleaning
Daily care and cleaning Caution! Daily care and cleaning Not all of the appliance components can be cleaned in the dishwasher. D aily maintenance D a i l y c a r e a n d c l e a n i n g Not dishwasher-safe: Every time the appliance is switched on or switched to Shelf... -
Page 23: Cleaning The Milk System
Daily care and cleaning Cleaning the milk system Press the snap lever to the left of the beverage dispenser downwards and pull the beverage The milk system is automatically cleaned with a short jet dispenser straight forwards. of steam directly after preparing a milk drink. Important: Clean the milk system manually on a weekly basis, or more frequently if required. -
Page 24: Cleaning The Brewing Unit
Daily care and cleaning Cleaning the milk container 10 Remove the cover and clean the filter under running water. For reasons of hygiene the milk container must be cleaned regularly. Only the individual parts of the lid are dishwasher-safe. Clean the stainless steel milk container by hand using a mild cleaning agent. -
Page 25: Service Programmes
Service programmes – At the end of a service programme, wipe down the Service programmes appliance using a soft, damp cloth to immediately remove any descaler residue. This residue may cause corrosion. ( Also see the quick reference guide) S e r v i c e p r o g r a m m e s –... -
Page 26: Descaling
Service programmes Descaling Cleaning and descaling Duration: approx. 21 minutes Duration: approx. 26 minutes Turn the function selector to S. The cleaning and descaling programme combines the individual cleaning and descaling functions. If the two Select "Descaling programme" using the rotary programmes are both due at around the same time, the selector. -
Page 27: Fill The Water Tank With Fresh Water
Emptying programme 12 Touch the I symbol. Emptying programme The programme will run for approx. 7 minutes and rinse the appliance. The programme has finished. T he emptying programme is a service programme which E m p t y i n g p r o g r a m m e is used to remove coffee bean residue and to prevent ™... -
Page 28: Simple Troubleshooting
Simple troubleshooting Simple troubleshooting S i m p l e t r o u b l e s h o o t i n g Problem Cause Solution The personally selected capacity is not Grinding level is too fine. The Adjust the grinding level to a coarser set- reached. - Page 29 Simple troubleshooting Problem Cause Solution Display screen "Milk container con- Container is outside the range of Position the container at the right-hand edge. nected?" despite connected milk con- the sensor. tainer. Material, e.g. milk carton, is not Confirm the display query with "Yes" or use the recognised.
-
Page 30: Technical Data
Simple troubleshooting Technical data AQUA-STOP guarantee In addition to warranty claims against the vendor based Electrical connection 220–240 V ~, on the purchase agreement and to our appliance (voltage – frequency) 50 / 60 Hz warranty, we will provide compensation under the Power rating 1600 W following conditions: Maximum static pump pressure...
