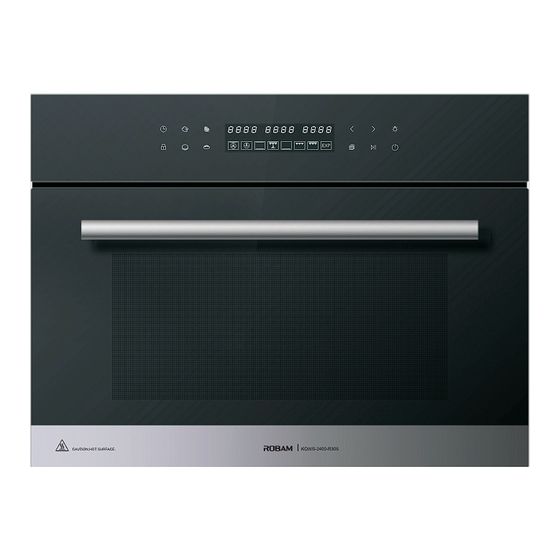

- Page 1 User Manual CAUTION,HOT SURFACE. KQWS-2400-R305 KQWS-2400-R305 Electric Oven...
-
Page 2: Table Of Contents
Contents ..................Safety Precautions . -
Page 3: Electric Oven
Electric Oven Safety Precautions In order to avoid any harm or property damage to the users and other persons, following distinctions and signs are specially given. All these are the important notices concerned with safety, so please abide by these notices strictly. And, please use this product correctly on the premise that all the contents herein are understood fully. - Page 4 Electric Oven Warning Use a separate 16A or higher socket, and If the supply cord is damaged, it must be be sure not to connect several appliances replaced by the manufacturer, its service to the same power socket at the same agent or similarly qualified persons in Abide by To be...
-
Page 5: Product Introduction
Product Introduction Dear users: We take this opportunity to express our heartfelt thanks to you for your choosing of ROBAM brand electric oven series products. We especially recommend that you shall read this Manual carefully before installing and using this product and keep it properly for later reference. - Page 6 Electric Oven Product Structure （The picture is for reference only，specifications are subject to the physical product） Control panel Shelf Fan cover plate Grill layers Hinge Cavity The side with holes Wire rack Ovenware Note: when placing the ovenware, the side with holes shall be placed inward. Wire rack should be placed in the shelf...
-
Page 7: Installation Instructions
Electric Oven Installation Instructions Drill a square hole on the setting position of the cabinet according to the installation drawing as shown below, insert the electric oven into this square hole stably and keep the electric oven horizontal. The specific dimensions of the hole are as shown in following table: Name Dimensions of the hole for full insertion... -
Page 8: Operation Instructions
Electric Oven Operation Instructions Introduction to Control Panel Preset key Temperature Heating time Adjusting key Lighting key Time Functions Power Screen lock One-button Change OK/pause button menu button button button Operation Instructions First use of the electric oven will generate the abnormal odor, due to protective coating on the heating components at the storage and the coating evaporated after heating up. - Page 9 Electric Oven 3. Starting up Press and hold the “ ” button to power on the unit and enter to the default quick heat up mode. The icons “ ” and “ ” flash, indicating adjustable state (see below figure); 4.
- Page 10 Electric Oven Note: During the operation, the working state may be stopped by pressing “ ” button. Pay attention to the baking process from time to time. If necessary, reset the time and temperature or end the baking to avoid undesirable baking effect. For better food baking effect, it is recommended to preheat the unit before placing the food into the oven.
- Page 11 Electric Oven Note: according to the food weight & thickness, customers may adjust the baking time by pressing “ ” or “ ” button when menu is selected. For easily baking the good tasted food, the (recipe & preparation method) is customized for the one-touch menu and for your reference.
- Page 12 Electric Oven Soft Bread Ingredient: high-gluten flour 1000g, fresh yeast 30g, salt 15g, berry sugar 160g, butter 140g, egg 4each, water 360g. 1. Cut the butter into small pieces. 2. Stir all ingredients together. Add proper amount of water as needed. 3.
- Page 13 Electric Oven Baking Reference Table Apparatus Temperature Baking Time Position Function Food Remarks Adopted ℃ (min) of Grill Corn Wire rack 215-225 25-30 Vegetable Wire rack 200-210 8-15 Rapid heating Egg tart Ovenware 200-220 15-20 Kebab Wire rack 175-185 10-15 Potato chips Ovenware 175-185...
- Page 14 Electric Oven Baking & Heating Modes Default Default Upper Inner Rear Upper Outer Bottom Rear Cooling Function Temperature Time Fan Lighting Heating Heating Heating Heating （min） （℃ ） Tubes Tubes Tubes Tubes Rapid heating Wind baking Baking Fan baking Bottom heating Barbecue Strong grill Upper160...
-
Page 15: Common Faults And Fault Dropping
Note: If the above problems could not be solved, contact ROBAM service center or the distributor. Disassembly by unqualified personnel is not allowed. Maintenance and Care Important instruction: before cleaning the electric oven, power supply must be disconnected. Do not use steam to clean the oven. - Page 16 Electric Oven 4. Disassembly and assembly of the fan lid: the fan lid is fixed by the 4 crews inside the chamber. Remove the fan lid by rotating the screws in the anticlockwise direction.Note: the fan lid must be reassembled after cleaning 5.
-
Page 17: Electrical Schematic Diagram
Electric Oven Electrical Schematic Diagram Over-temperature protector Plug Upper sensor 220V~ 50Hz Computer controller Lower sensor Upper inner heating tube Over-temperature protector Upper outer heating tube Rear heating tube Bottom heating tube Heating fan Cooling fan Lighting lamp Special Statements Technical improvements of the product (if any) will be incorporated in the User Manual of a new version without notice. - Page 18 Edition: A 0 / Publication Date: August,01,2017...
