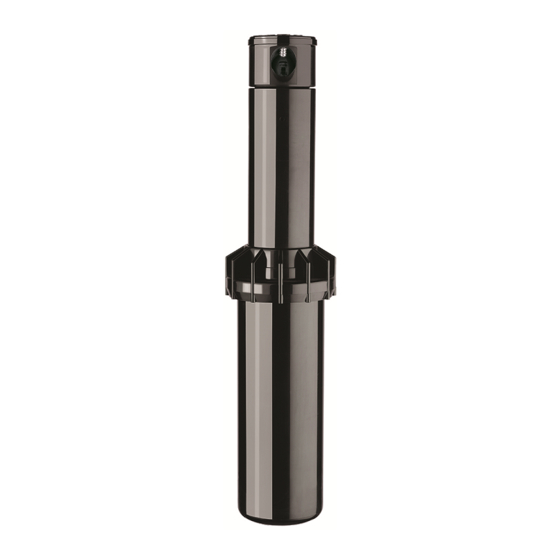

RPS Select Gear Driven Sprinkler Setting Instructions
®
NOTE: The RPS Select is factory preset with a 180° arc setting, and includes a pre-installed #2 nozzle.
NOZZLE SELECTION
The RPS Select is designed to conserve
water by matching the flow rate to the arc.
The following settings are recommended:
ARC NOZZLE
40° to 135° Use #1 Nozzle
136° to 225° Use #2 Nozzle
226° to 315° Use #3 Nozzle
316° to 360° Use #4 Nozzle
SETTING THE ARC ADJUSTMENT
NOTE: The RPS SELECT Gear Driven Sprinkler
has a fixed right start and an adjustable left stop.
POSITIONING NOZZLE TURRET TO ITS "RIGHT START"
1
Place your fingers on the top center of the nozzle turret (G).
Rotate the turret counter-clockwise to the left stop to
complete any interrupted rotation cycle. Rotate the nozzle
turret clockwise to the right start. This is the fixed side of
the arc. The nozzle turret must be held in this position for
arc adjustments. The right start does not change.
ADJUSTING THE RIGHT (FIXED) SIDE OF ARC
2
If the right side of the arc is not properly aligned, the
sprinkler may spray areas not intended for watering such
as driveways or adjacent properties. The right side arc can
easily be realigned.
OPTION 1: REPOSITION CAN ON THE FITTING
Turn the sprinkler can (H) left or right to the desired position.
This may require temporary removal of the soil around the
sprinkler to allow you to grip the sprinkler can.
OPTION 2: REMOVE INTERNAL RISER ASSEMBLY
AND REPOSITION
Unscrew the top (J) counter-clockwise and remove the
Sprinkler Assembly (K) from the can. Once removed with
nozzle turret (G) at its right start, reposition the sprinkler
assembly so that nozzle arrow (A) points to the desired
start position. Replace the sprinkler assembly back in the
can and screw on the top. At this point you have realigned
the right arc start, and you can adjust the left arc to your
desired setting.
ADJUSTING THE LEFT (VARIABLE) SIDE OF ARC
SETTING THE ARC
Insert Adjustment Key (I) into the arc adjustment slot (D).
While holding the nozzle turret (G) at the right start, turn the
Key (I) until the Arc Indicator (E) shows the desired radius.
TO SELECT NOZZLE:
Insert Adjustment Key (I)
into Nozzle Selector (B)
and turn to desired nozzle.

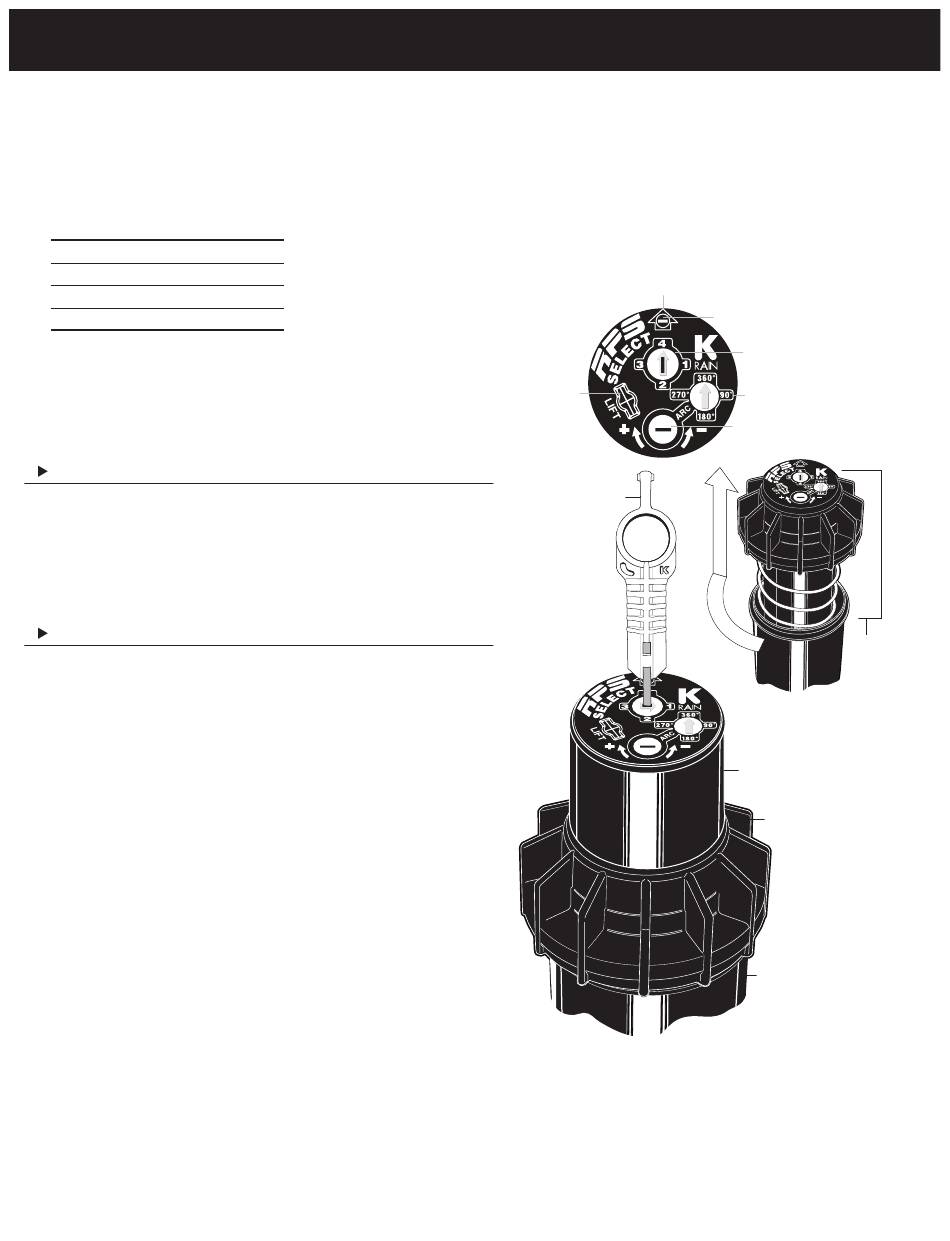

A. Nozzle Arrow (Right Start Position)
C. Keyhole
I. Adjustment Key
F. Break Up Screw
B. Nozzle Selector
E. Arc Indicator
D. Arc Adjustment Slot
K. Sprinkler
Assembly
G. Nozzle Turret
J. Top
H. Sprinkler Can
