6.2. Carrying handle

On one side of the housing - opposite to the inputs - a handle to carry the device is installed:

6.3. Cover panel

On one side of the housing is the cover panel. By pressing the knob on the panel it is released and
can be removed. By doing so you can connect the gas hose or respectively install the cartridge holder.
Furthermore you gain access to the four nozzle holders which are in the enclosure. To close the cover
panel insert it into the guides on the bottom and push it towards the housing so that the holding
mechanism is latching.

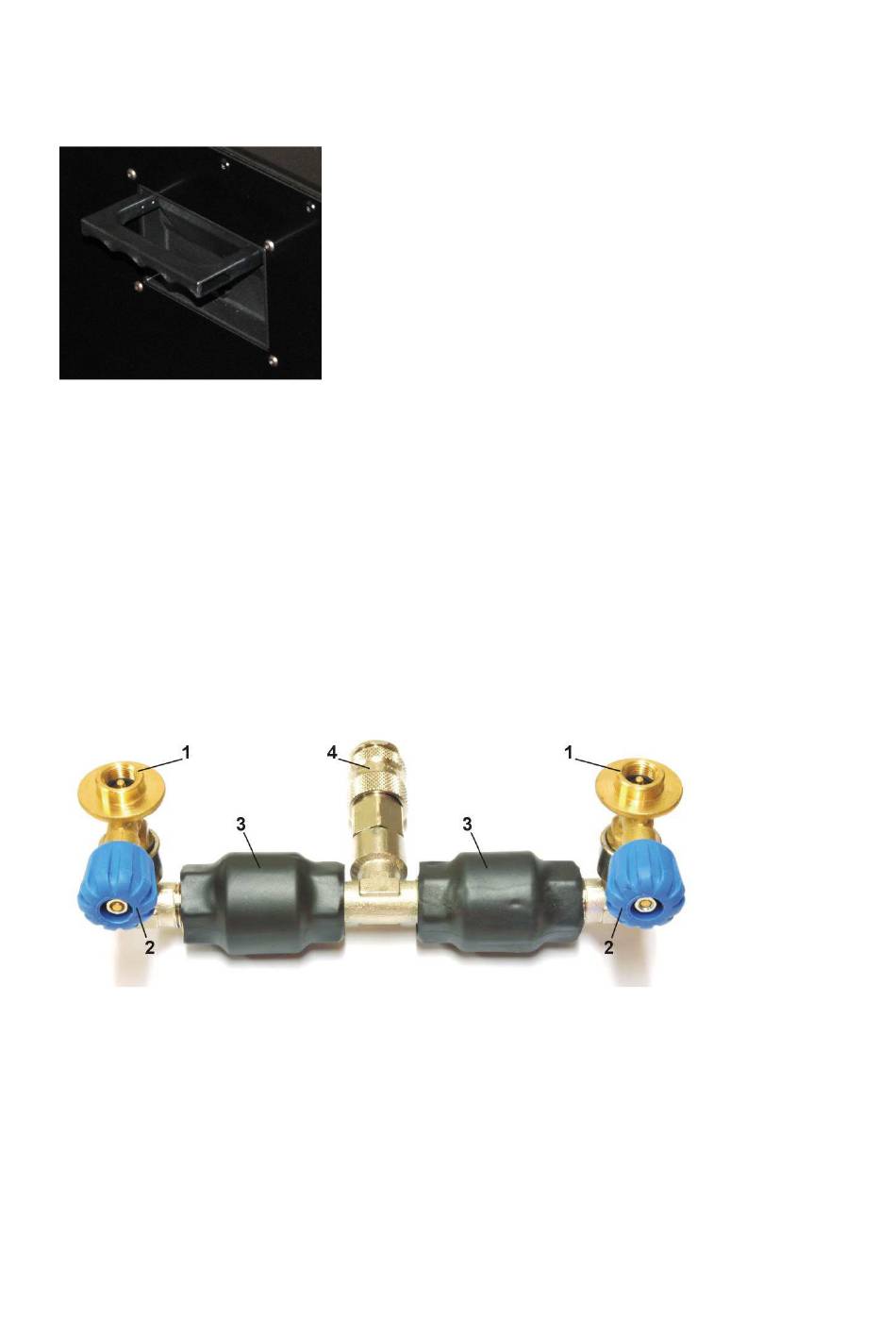

6.4. Cartridge holder

This T-shaped cartridge holder is included in the delivery of the gas cartridge option:
1 Reception for gas cartridges
2 Shut-off valve
3 Non-return valve
4 Quick-coupler
14
To carry the device swing out the handle. Use one hand to grab
the handle and use the other hand to grab the housing on the
other side where the recess is.
Push back the handle if you do not need it any longer.
Screw in the cartridges here. The thread is right-handed.
Opens or closes the fuel supply between cartridge and device.
Can also be used to throttle the fuel flow to some extent to
reduce the flame height.
Ensures that no fuel will be able to escape if the shut-off valve
on the other side is not closed.
To be connected with the opposing quick-coupler of the device.
Can be released by pulling back the knurled ring.
