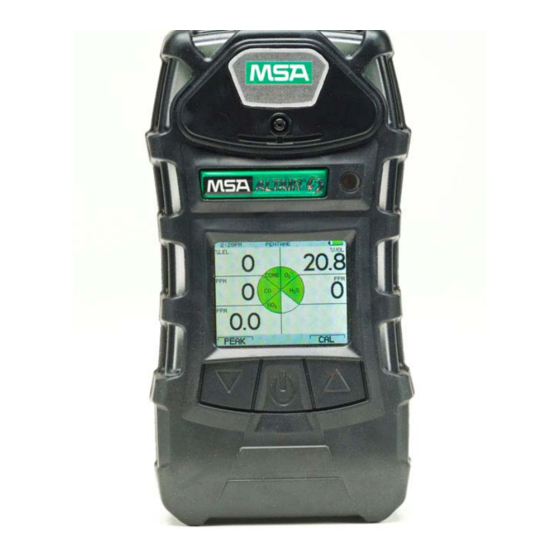

MSA Altair 5 Quick Start Card

Multigas Detector Quick Start Card
Please review the back of this card for a detailed illustration of the following
components:
1
Button
l
Charge battery until green LED is lit (rechargeable units only).
l
Turn the instrument ON with the
sensor warm up, then displays sensor information & set points.
l
A flow test must be performed during startup. Block pump inlet when instructed. See
section 3.2.1 of the manual.
l
Fresh Air Setup: press 'YES' or 'NO' buttons.
l
To page through the screens, use the
Operation screen; follow display instructions and press corresponding buttons to
advance to next page.
l
To reset alarms press
l
Perform a Bump Test / Calibration Check daily for each installed sensor per section
3.7 of the manual.
l
To Calibrate: ensure you are in fresh air and press and hold the
button and follow instructions on the screen. See section 3.8 of the manual for
complete calibration instructions.
l
To activate / deactivate MotionAlert feature, use the
screen appears, and follow display instructions.
l
To activate the Instant Alert feature, press and hold
l
Turn the instrument OFF by holding the
Note: MSALINK USERS VISIT WWW.MSANORTHAMERICA.COM FOR LATEST
VERSION OR CONTACT CUSTOMER SERVICE FOR ASSISTANCE
This quick start card provides only a brief description of the operating
instructions for the ALTAIR 5 and ALTAIR 5X Multigas Detector. The
user of this instrument must be fully aware of the limitations and
instructions supplied in the operating instruction manual. Failure to
follow the instructions may lead to serious personal injury or death.
0121 Rev. 0
2 Button
button.
TM
WARNING
CRANBERRY TWP., PENNSYLVANIA, U.S.A. 16066
1-800-MSA-2222 / www.MSAnet.com
3 Button
button. Instrument performs a self test and
TM
button.
button from the Normal
button until MotionAlert
button.
10117074
