Majestic MARQUIS Series Owner's Manual

Hide thumbs Also See for MARQUIS Series:
Table of Contents

Advertisement

Quick Links

Download this manual
CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity.
High temperatures could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!
MARQUIS
SERIES
Models:
MARQ36IN-B, MARQ42IN-B
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Majestic • MARQ36IN-B, MARQ42IN-B Owner's Manual • 2614-981 Rev. C • 4/19
Owner's Manual
Operation and Maintenance
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
Decorative barrier front provided with this appliance.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARQUIS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Majestic MARQUIS Series

Summary of Contents for Majestic MARQUIS Series

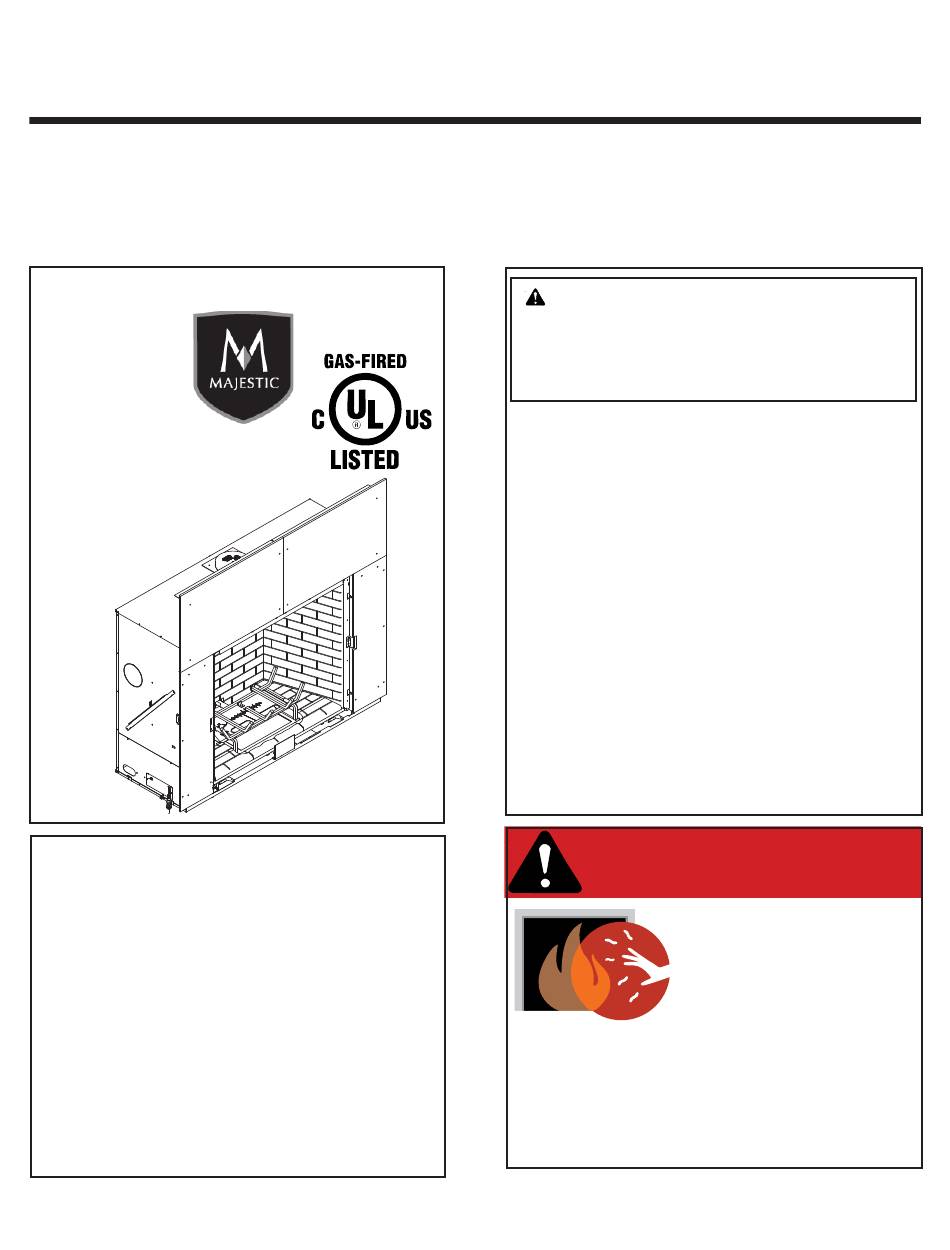

  • Page 1 Decorative barrier front provided with this appliance. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 2: Welcome

    00,000 00,000 00,000 00,000 MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial XXXXXXXX XXXXXXXX ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX (Serie): (Serie): Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 3: Table Of Contents

    C. Contact Information ......29  = Contains updated information. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 4: Limited Lifetime Warranty

    3 years Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645H 10/15 Page 1 of 2 Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...
  • Page 5 THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645H 10/15 Page 2 of 2 Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 6: Product Specific Information

    This appliance is equipped with 5 mm ceramic glass with an anti-reflective coating. Replace glass only with 5 mm ceramic glass. Please contact your dealer for replace- ment glass. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 7: Important Safety And Operating Information

    • Keep remote controls out of reach of children. Figure 3.1 Clear Space Requirement • Never leave children alone near a hot fireplace, whether operating or cooling down. • Teach children to NEVER touch the fireplace. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 8: General Operating Parts

    To access the glass clip tool, remove the screw that secures it to the appliance bottom. RATING PLATE GLASS CLIP TOOL Figure 3.3 Rating Plate/Glass Clip Tool Location Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 9: Good Faith Wall Surface/Tv Guidelines

    Use appropriate finishing materials that are able to withstand these conditions. For additional finishing guidelines, see Section 10 in the appliance installation manual. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...
  • Page 10 Sugges ons on how to further reduce TV temperatures: Increase “A” dimension. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended typically results in higher temperatures. Figure 3.5. Good Faith TV Guidelines Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 11: Lighting Instructions (Ipi)

    Propane Installation code, CSA B149.1. P65Warnings.ca.gov. For additional information on operating your Keep burner and control compartment clean. See installation and operating instructions accompanying appliance. refer to www.hearthnhome.com. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 12: Appliance Break-In

    If this occurs, restart the appliance. NOTICE! Open windows for air circulation during fire- place break-in. • Some people may be sensitive to smoke and odors. • Smoke detectors may activate. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 13: Operation During A Power Outage - Intellifire™ Touch

    3.6 Battery Pack and Module Reset Switch Location  NOTICE: Some functionality will be lost when using battery backup including fan, lights, or any other auxiliary functions that require household 110-120 VAC power. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 14: Detailed Component Operating Instructions - Intellifire

    See Figure 3.6 for approximate location. switch, IFT-RC400 or IFT-RC150. The wired wall switch is NOT available if a Power Vent is used. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 15: Touch

    Refer to the RC400 quick using the transformer, and unplug the transformer before reference guide in section 6.C. installing the batteries. Battery polarity must be correct or module damage will occur. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 16: Maintenance And Service

    CAUTION! Risk of Burns! The fireplace should be turned off and cooled before servicing. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 17: Maintenance Tasks - Qualified Service Technician

    Tools Needed: Protective gloves, ceramic glass cleaner, drop cloth and a stable work surface. WARNING! Risk of Injury! Glass installation and re- moval must be performed only by a qualified service tech- nician. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...
  • Page 18 WARNING! Risk of Shock! Replace damaged wire with type 105º C rated wire. Wire must have high temperature Figure 4.1 IPI Pilot Flame Patterns insulation. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 19: Frequently Asked Questions And Troubleshooting

    Surfaces above and around the appli- Section 3. Specifications of the attached non-combustible material are listed in the Install- ance feel hot to the touch. er’s Manual for this appliance. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 20: Frequently Asked Questions - Intellifire™ Touch Controls

    “Remote Control Communication Power outage. Install new batteries in battery backup. Error.” Contact your dealer for additional information regarding operation and troubleshooting. Visit www.majesticproducts.com to locate a dealer. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 21: Troubleshooting

    If open or shorted, replace valve. Check valve harness wire continuity, if open replace 6-pin harness. Pilot won’t light, there is no noise Spark coil failure. Replace ECM. or spark, 2 Red/2 Green Lockout. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...
  • Page 22 Check re- IFT- Damaged pilot assembly. sistance between tip of sense rod and ECM connector, should be less than 1 ohm. Replace pilot assembly if damage is detected. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 23: Reference Materials

    Kit is available for your appli- ® ance. It must be installed by a qualified service techni- cian during the appliance installation process. Follow the instruction supplied with the kit for operation. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 24: Service Parts

    Finishing Spacer 2281-113 LED Tub Assembly 2280-017 Inner Glass Frame Assembly 2280-019 Burner Assembly 2270-007 Orifice Bracket Flex 2012-008 Access Plate 2281-117 Additional service parts on following page. 4/19 Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...
  • Page 25 Finishing Spacer 2281-113 LED Tub Assembly 2281-017 Inner Glass Frame Assembly 2281-019 Burner Assembly 2271-007 Orifice Bracket Flex 2012-008 Access Plate 2281-117 Additional service parts on following page. 4/19 Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...
  • Page 26 Orifice NG (#26C) 582-826 MARQ42IN-B Orifice Propane (#45C) 582-845 **Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 3A fuse, 3/4” long Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...
  • Page 27 #24 Black Glass Refractory MARQ36IN-B 2614-053 Refractory, Black (Base & Top) MARQ42IN-B 2615-053 MARQ36IN-B GLMQ36 Black Glass Refractory (Sides & Back) MARQ42IN-B GLMQ42 Additional service parts on following page. Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...
  • Page 28 LPKMARQ36 Conversion Kit NG NGKMARQ42 MARQ42IN-B Conversion Kit Propane LPKMARQ42 Pilot Orifice NG SRV593-528 Pilot Orifice Propane SRV593-527 Regulator NG w/stepper motor NGK-DXV-50 Regulator Propane w/stepper motor SRVLPK-DXV-50 Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

  • Page 29: Contact Information

    6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7074035, 7098269, 7258116, 7322819, 7470729, 7726300, 8147240, 9625149 or other U.S. and foreign patents pending. 2000-945D Printed in U.S.A. - Copyright 2019 Majestic • MARQ36IN-B, MARQ42IN-B Owner’s Manual • 2614-981 Rev. C • 4/19...

This manual is also suitable for:

Marquis marq36in-bMarquis marq42in-b

Table of Contents
