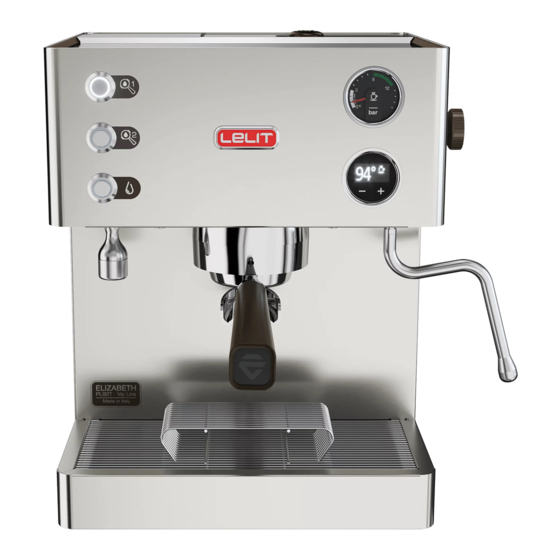

User Manual
for the following models:
Vip Line
Elizabeth - PL92T
Dimensions:
31x27x38 cm
Net weight:
12 kg
Power supply:
230V 50Hz / 120V 60Hz
Power:
Coffee heating element: 1200 W
Steam heating element: 1000 W
Pump pressure:
15 bar
Water Tank Capacity:
2.5 lt
Brass boiler capacity:
300 ml
Stainless steel steam boiler capacity:
600 ml
EN
Advertisement
Table of Contents
Related Manuals for Lelit Vip Line Elizabeth-PL92T
Summary of Contents for Lelit Vip Line Elizabeth-PL92T
- Page 1 User Manual for the following models: Vip Line Elizabeth - PL92T Dimensions: 31x27x38 cm Net weight: 12 kg Power supply: 230V 50Hz / 120V 60Hz Power: Coffee heating element: 1200 W Steam heating element: 1000 W Pump pressure: 15 bar Water Tank Capacity: 2.5 lt Brass boiler capacity:...
- Page 2 Write down the serial number of your product Serial number Purchased from Date of purchase For more information, please register your product on care.lelit.com...
-
Page 3: Table Of Contents
Lelit Espresso - English Index Safety notes Main specifications LCC - Lelit Control Center Product overview Instructions for use Programming menu parameters The art of Espresso coffee Cleaning and maintenance Solving the most common problems Warranty terms... -
Page 4: Safety Notes
VIP Line - Elizabeth - PL92T Safety notes Warnings - Please read carefully before use. This espresso machine is suita- ble for the preparation of 1 or 2 cups of coffee; it is equipped with 2 wands for dispensing steam and hot water. The controls on the front panel have easy understandable symbols. - Page 5 Lelit Espresso - English IMPORTANT involved. Cleaning and user maintenan- ce shall not be made by children unless SAFEGUARDS they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
- Page 6 VIP Line - Elizabeth - PL92T - Any use other than that described above - No liability is accepted for repairs not is improper and could be hazardous; the carried out by authorized service centres. manufacturer accepts no liability whatso- - The manufacturer accepts no liability ever for any damage arising from impro- for tampering with any of the appliance...
- Page 7 Lelit Espresso - English pliance, these should be replaced only - Do not touch the plug with wet hands. and exclusively by the Service Centre. - Ensure that the electrical outlet is always - Unplug from outlet when not in use.
- Page 8 VIP Line - Elizabeth - PL92T - Take care to avoid contact with water spray or jets of steam. - When the appliance is switched on, do not touch the cup warming plate as it is hot. - Never direct the steam or water spray towards your body.
-
Page 9: Main Specifications
Lelit Espresso - English Main specifications We design our machines based on our customers’ needs. We are sure that the features selected for this model will meet all your wishes, so you can make perfect tasting espresso for yourself and your guests. -
Page 10: Lcc - Lelit Control Center
VIP Line - Elizabeth - PL92T LCC - Lelit Control Center LCC (Lelit Control Center) is the brain of the new Lelit espresso machines. It has an elegant, graphic LED display of the latest generation. It controls all the func- tions of the machine and allows you to adjust the settings, as well as giving valu- able tips on how to achieve the best results. -
Page 11: Product Overview
Coffee distribution group Self-cleaning cup-holding grate Removable water drainage tray Water tank cover What’s in the box Plastic tamper Coffee measuring spoon Power cord Blind filter Filterholder with filter for 1 and 2 cups Espresso cup rack LELIT Resin filter, code MC747... -
Page 12: Instructions For Use
VIP Line - Elizabeth - PL92T Instructions for use Lelit coffee machines are not automatic. To make a good cup of coffee, you must know how to use them properly and will need a bit of practice. Follow the instructions carefully. You can also refer to the Quick start guide where you will find illustrated instructions. - Page 13 During this operation, water will flow from the coffee distribution group for about 40 seconds and the Lelit logo will flash on the LCC display. C.3 On the LCC display (11) you’ll see the water boiler temperature flashing.
- Page 14 Preparing the machine for making coffee E.1 Turn on the espresso machine by pressing the main on/off switch (1). The display (11) will show the Lelit logo, the three switches and the gauge will go on for a short time.
- Page 15 Lelit Espresso - English filter holder edge. F.4 Insert the filter holder (e) in the distribution unit (13) and fasten it firmly, at least up to align the handle with the padlock symbol indicated on the group F.5 Place one or two coffee cups on the cup-holding plate (6), under the filter holder (e).
- Page 16 Adjusting the LCC settings The LCC - Lelit Control Center (11) has pre-set default settings. Here you can discover how to adjust them. Changing the factory settings J.1 Press the “-” button to enter settings mode, and scroll through the menu.
-
Page 17: Programming Menu Parameters
Lelit Espresso - English Programming menu parameters Coffee boiler temperature Variable value: from 80°C to 110°C. Steam boiler temperature Variable value: from 120°C to 145°C. Brewing time for coffee switch (2) and (3) If you program a brewing time higher than zero, when you press the switch (2) or (3), the coffee dispensing starts and it will automatically stop once the programmed time has been reached. - Page 18 VIP Line - Elizabeth - PL92T If you program a pre-infusion time which is higher than zero, by pressing the switch (2) or (3) to start the coffee dispensing, the ground coffee in the filterholder will be made wet by the water without the pressure of the pump, for the programmed time.
-
Page 19: The Art Of Espresso Coffee
Espresso. Coffee should always be pressing, water temperature and pres- ground just before it is used so that it sure, not just to make an Espresso, but preserves its taste and aroma. The Lelit... - Page 20 VIP Line - Elizabeth - PL92T to make the one that is just right for you. No variety of coffee can make an ideal Espresso on its own. 5 - Manutenzione (Maintenance) The perfect Espresso has a top layer Daily maintenance, scheduled main- of cream 2-3 mm thick, a nut brown to tenance and care of the machine will dark brown colour, with reddish tinges...
- Page 21 The best jug, on the other hand, is one made of stainless steel, provided with a spout, such as Lelit models (co- des PL101 PL102-not included). The level of milk should never exceed half the volume of the jug.
- Page 22 VIP Line - Elizabeth - PL92T a least half a minute, so we suggest you always prepare it before making the coffee. The doses for a cappucci- no should be one part Espresso and two equal parts of milk and froth. milk coffee Clean the steam wand with a damp...
-
Page 23: Cleaning And Maintenance
Use a soft cloth, preferably microfiber, like the Lelit cloth (code MC972 - not inclu- ded), and moisten it with plain water. Do not use abrasive detergents and do not immerse the machine in water. - Page 24 To avoid the formation of limescale, which can also deposit in the internal circuits, we recommend the use of our Lelit resin filter to soften the water. Please insert the filter in the tank fol- In order to backflush, follow these in-...
- Page 25 Lelit Espresso - English the coffee switch (2) to start dispen- sing and rinse the filter holder under the hot water that comes out of the group (13). Press again the switch (2) to stop dispensing. h) Clean the distribution group (13)
-
Page 26: Solving The Most Common Problems
VIP Line - Elizabeth - PL92T Solving the most common problems We recommend careful reading of this guide in order to solve the most common problems before referring to an authorised service centre. The coffee is too cold when dispensed The machine has not reached its operating Follow the instructions in the “Prepare an temperature yet. - Page 27 Lelit Espresso - English Alarms shown on the display There is no water into the tank. Remove the water tank from its housing (7). Fill the tank with water at room temperature. Reposition the tank in the housing Missing water into the tank.
-
Page 28: Warranty Terms
VIP Line - Elizabeth - PL92T Warranty terms Legal warranty This product is covered by the warran- ty laws valid in the country where the product has been sold; specific infor- mation about the warranty terms can be given by the seller or by the importer in the country where the product has been purchased. - Page 29 Lelit Espresso - English IMPORTANT INFORMATION For the correct disposal of the product in accordance with EU DI- RECTIVE 2002/96/EC and with Legislative Decree no. 151 of 25 July 2005. At the end of its working life, the product must not be disposed of as urban waste.
- Page 30 User manual code 7800034, REV 01, dated 20/09/18 Art. PL92T ©2018 Gemme Italian Producers Srl. All Rights Reserved The information and pictures provided may be changed without notice to improve the machine performance.
