Lelit Elizabeth - LCC Quick Reference
guide
LCC Basic user functions

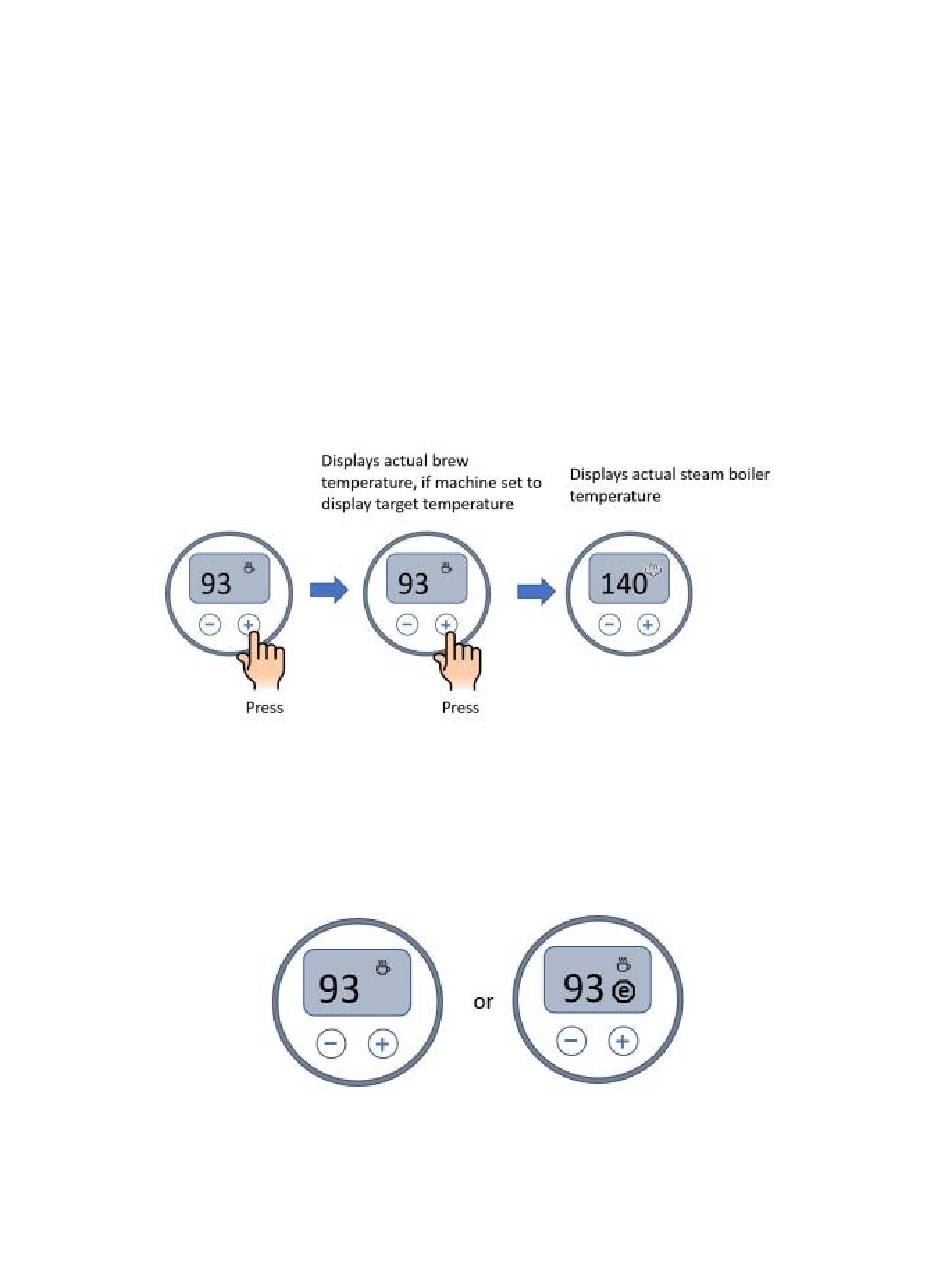

Actual brew and steam temperature
The Lelit Elizabeth can actually be set to show the target brew temperature rather than the actual brew
temperature. It would be unusual to set the machine like this in the advanced settings, however if it is
set that way, Lelit give you the option of viewing actual brew temperature. If the machine is already set
to show actual brew temperature the first press of the + button will appear to have no effect. The
second press of the + button shows the steam boiler temperature
After a few seconds of no button press, the display returns to it's "home Screen" where the actual or
preset brew temperature will be displayed along with the status of the steam boiler.
Home Screen
The display with either display brew temperature, or brew temperature with an eco symbol if the steam
boiler is off.
Other functions
These are selected by pressing the minus (-) button.
Advertisement
Table of Contents
Related Manuals for Lelit Elizabeth
Summary of Contents for Lelit Elizabeth
- Page 1 Actual brew and steam temperature The Lelit Elizabeth can actually be set to show the target brew temperature rather than the actual brew temperature. It would be unusual to set the machine like this in the advanced settings, however if it is set that way, Lelit give you the option of viewing actual brew temperature.
- Page 2 This button can scroll to various parameters, when you see a parameter you want to change, press the plus button to select it, then the - and + buttons will change the value. If no button is pressed for a few seconds the machine will return to the home screen. Shortcut to quickly switch steam boiler on or off...
- Page 3 Programming automatic shot times The Lelit Elizabeth can have shot times programmed to each button. These allow for the espresso shot to end when the program time has been reached. e.g. if you program 30 seconds, the shot will stop 30...
- Page 4 preinfusion with a shot time programmed of 30s will still take 30s in total 10 seconds of which will be preinfusion. For button 2 the procedure is similar.
- Page 5 Setting Preinfusion times button 1 Preinfusion times can be set here. This is the total time for preinfusion. It comprises a pump on time (set in the advanced menu) which becomes part of the preinfusion time. e.g. if the advanced menu for preinfusion has a pump on time of 3s and you set a total preinfusion time of 10 seconds.
- Page 6 Preinfusion for button 2 Steam On or Off Steam can be set on and off in the menu system in the same way as any other functions.
- Page 7 This powers down the machine after a preset period (about 30 minutes). A feature of all modern espresso machines, part of EU Law. I don’t personally find it useful, even though the Elizabeth has a very fast warm up of about 15 – 17 minutes. The standby function is toggled on/off by; switching the machine on while holding in coffee button 2.
- Page 8 Purge water through the group To automatically flush a set amount of water through the group for cleaning, press the coffee1 and coffee2 buttons at the same time. Automatic Backflush routine This performs a series of automatic backflushes when using cleaner in a portafilter with a blind basket. I use this to finish off a couple of manual backflushes as part of my recommended hybrid backflush routine.
- Page 9 Lelit Elizabeth Advanced LCC Settings To access the advanced menu Below are my recommended advanced settings for the Lelit Elizabeth LCC Pressing the – button scrolls through the list. Pressing the + button puts the selected value into change mode where + & - increment and decrement the value. If you change a value, wait for the value to stop flashing and be accepted before pressing –...
- Page 10 The Values below you can change to suit your situation and needs Preinfusion Type - Steam, Bloom or auto Lelit Elizabeth can perform steam pressure preinfusion and bloom preinfusion automatically selecting the type used depending on either the on/off state of the steam boiler, or it's temperature (if it is too low).
- Page 11 EVS = 1 (Electrovalve steam -this can be either on = 1 or off = 0). It controls preinfusion and is critically important. Set to 0 and NO steam preinfusion functions will work, only bloom phase preinfusions. Set to 1 and the machine will automatically select steam preinfusion if the steam boiler is; on and above 115C.
- Page 12 BLP1 = 5 (Button 1 bloom preinfusion pump on time in seconds, 4-7 is recommended I use 5 or 6 for a double basket) BLP2 = 5 (Button 2 bloom preinfusion pump on time in seconds, 4-7 is recommended I use 5 or 6 for a double basket) Using preinfusion functions when flushing the group for cleaning can give unwanted thermal and void effects within the brew boiler.
