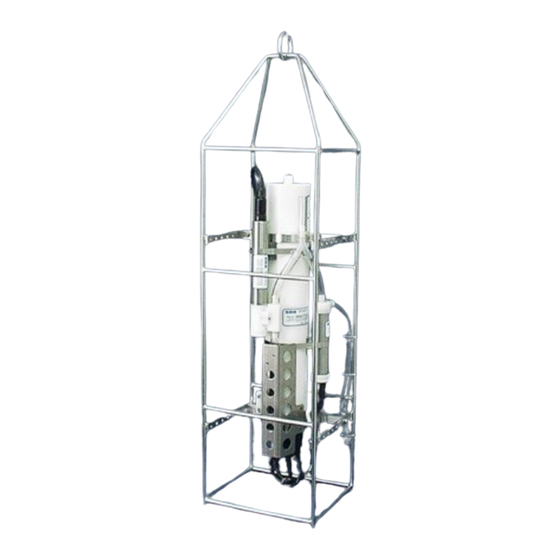

Page 1 SBE 19plusV2 SEACAT PROFILER Conductivity, Temperature, and Pressure Recorder with RS-232 Interface Serial Number: 19P53231-6266 User Manual, Version 003 Sea-Bird Electronics, Inc. 1808 136 Place NE Bellevue, Washington 98005 USA Tel: 425/643-9866 Fax:425/643-9954...
Page 2 This page Intentionally Left Blank.
Page 3: Table Of Contents
Quick Reference Sheet - Version 003....................Ni-MH Battery Charger Manual - Version 002................Specifications............................ Calibrations............................Pressure Test Certificates........................Appnotes............................Drawings............................Warranty............................Service Request Form........................SEA-BIRD ELECTRONICS, INC. 1808 136 Place NE Bellevue, Washington 98005 USA Phone: (425) 643 9866 Fax: (425) 643 9954 Email: seabird@seabird.com...
Page 4: Manual Generation Date
Manual Generation Date: 11 February 2009...
Page 5: Limited Liability Statement
SEA-BIRD ELECTRONICS, INC. disclaims all product liability risks arising from the use or servicing of this system. SEA-BIRD ELECTRONICS, INC. has no way of controlling the use of this equipment or of choosing the personnel to operate it, and therefore cannot take steps to comply with laws pertaining to product liability, including laws which impose a duty to warn the user of any dangers involved in operating this equipment.
Page 6 This page intentionally left blank.
Page 7: Warning
WARNING !! Do not submerge this instrument (S/N 19P53231-6266) beyond the depth rating of the lowest rated component listed below! Main Housing (Plastic) 600 meters Pressure Sensor (350 dBar) Druck 350 meters DO Sensor (SBE 43) 600 meters Pump (SBE 5P) 600 meters Seapoint Turbidity Meter 6000 meters...
Page 8: Configuration
SYSTEM CONFIGURATION 11 February 2009 Model SBE 19plusV2 S/N 19P53231-6266 Instrument Type SBE 19plusV2 SeaCaT Profiler Firmware Version Communications 4800 baud, 8 data bits, no parity, one stop bit Memory 64MB Housing 600 meter (Acetron Plastic) 0 Conductivity Raw Frequency 2534.35 Hz...
Page 9 IMPORTANT SOFTWARE & HARDWARE CONFIGURATION INFORMATION Sea-Bird supplies two versions of our software package for communication, real-time data acquisition, and data analysis and display: • SEASOFT-Win32 - Windows software for PC running Win 95/98/NT/2000/XP • SEASOFT-DOS - DOS software for IBM-PC/AT/386/486 or compatible computer with a hard drive Detailed information on the use of the Windows software follows: SEASOFT-Win32 SEASOFT-Win32 software was supplied on a CD-ROM with your CTD.
Page 10 The instrument type and instrument configuration settings of the .con file and the required setup for the SEATERM.ini file for the CTD as delivered are documented below. The calibration coefficients for the CTD's sensors are contained in the calibration coefficient section of the CTD manual. NOTE: SEATERM will not upload data correctly without a properly configured SEATERM.ini file.
Page 11: Manual - Version
SBE 19plus V2 SEACAT Profiler Conductivity, Temperature, and Pressure Recorder with RS-232 Interface User’s Manual Sea-Bird Electronics, Inc. 1808 136 Place NE Bellevue, Washington 98005 USA Manual Version #003, 11/03/08 Telephone: 425/643-9866 Firmware Version 2.1 and later Fax: 425/643-9954 SeatermV2 Version 1.00d and later E-mail: seabird@seabird.com...
Page 12 SEA-BIRD ELECTRONICS, INC. disclaims all product liability risks arising from the use or servicing of this system. SEA-BIRD ELECTRONICS, INC. has no way of controlling the use of this equipment or of choosing the personnel to operate it, and therefore cannot take steps to comply with laws pertaining to product liability, including laws which impose a duty to warn the user of any dangers involved in operating this equipment.
Page 13 Table of Contents Table of Contents Section 1: Introduction ................ 5 About this Manual .....................5 How to Contact Sea-Bird ...................5 Quick Start ......................5 Unpacking SBE 19plus V2 ................6 Section 2: Description of SBE 19plus V2 ........... 7 System Description ....................7 Specifications....................11 Dimensions and End Cap Connectors..............13 Batteries ......................14...
Page 14 Table of Contents Section 5: Routine Maintenance and Calibration ......85 Corrosion Precautions..................85 Connector Mating and Maintenance ..............85 Plumbing Maintenance ..................86 Replacing / Recharging Batteries..............87 Conductivity Cell Maintenance ...............91 Pressure Sensor Maintenance ................92 Pump Maintenance ..................92 Replacing Anti-Foulant Devices (SBE 16plus, SBE 19plus)......93 Sensor Calibration....................94 Section 6: Troubleshooting..............
Page 15: Section 1: Introduction
Sea-Bird welcomes suggestions for new features and enhancements of our products and/or documentation. Please e-mail any comments or suggestions to seabird@seabird.com. How to Contact Sea-Bird Sea-Bird Electronics, Inc. 1808 136 Place Northeast Bellevue, Washington 98005 USA Telephone: 425-643-9866...
Page 16: Unpacking Sbe 19Plus V2
Section 1: Introduction Unpacking SBE 19plus V2 Shown below is a typical SBE 19plus V2 shipment. SBE 19plus V2 SEACAT with SBE 5M plastic pump 25-pin to 9-pin adapter (for use with computer with DB-25 connector) I/O Cable 2-pin dummy plug Spare o-ring and and locking sleeve hardware kit...
Page 17: Section 2: Description Of Sbe 19Plus V2
Section 2: Description of SBE 19plus V2 Section 2: Description of SBE 19plus V2 This section describes the functions and features of the SBE 19plus V2 SEACAT Profiler, including system description and auxiliary equipment, specifications, dimensions and end cap connectors, batteries and battery endurance, external power and cable length limitations, data storage, communication settings, magnetic reed switch, and configuration options and plumbing.
Page 18 Section 2: Description of SBE 19plus V2 SBE 19plus V2 options / accessories include: • Titanium housing for use to 7000 meters (22,900 feet) • Internally mounted Quartz pressure sensor in place of strain-gauge sensor • SBE 5M miniature pump with titanium housing in place of plastic housing •...
Page 19 Section 2: Description of SBE 19plus V2 • SBE 36 CTD Deck Unit and Power Data Interface Module (PDIM) - These items provide power and real-time data handling capability over single-conductor sea cables using the same method employed in the SBE 32/SBE 33.
Page 20 Section 2: Description of SBE 19plus V2 • SBE 55 ECO Water Sampler - The SBE 55 has built-in capabilities Note: similar to that of an SBE 32 Carousel Water Sampler integrated with an The SBE 32 Carousel is a 12-, 24-, or Auto Fire Module, allowing the SBE 55 to operate autonomously on non- 36-bottle water sampler.
Page 21: Specifications
Section 2: Description of SBE 19plus V2 Specifications Temperature Conductivity Pressure (°C) (S/m) 0 to full scale range: • Strain-gauge sensor: 20 / 100 / 350 / 600 / 1000 / 2000 / 3500 / Measurement Range -5 to +35 0 to 9 7000 meters •...
Page 22 Section 2: Description of SBE 19plus V2 Continued from previous page Memory 64 Mbyte non-volatile FLASH memory Recorded Parameter Bytes/sample Temperature & Conductivity 6 (3 each) Strain-gauge or Quartz Pressure Data Storage each external voltage SBE 38 secondary temperature each Pro-Oceanus GTD 4 (pressure) + 3 (temperature) date &...
Page 23: Dimensions And End Cap Connectors
Section 2: Description of SBE 19plus V2 Dimensions and End Cap Connectors Dimensions in millimeters (inches) Note: 19plus V2 with optional Quartz pressure sensor is 190 mm (7.5 inches) * See note longer than shown in drawing. * See note Note: A Y-cable from this connector connects to the pump and to a...
Page 24: Batteries
Section 2: Description of SBE 19plus V2 Batteries Note: For the main battery, the SBE 19plus V2 uses nine D-cell alkaline batteries See Replacing / Recharging Batteries (Duracell MN 1300, LR20), or rechargeable Nickel Metal Hydride (NiMH) or in Section 5: Routine Maintenance Nickel-Cadmium (Ni-Cad) batteries.
Page 25 Section 2: Description of SBE 19plus V2 Moored Mode Examples A 19plus V2 with strain-gauge pressure sensor and standard alkaline batteries is set up to sample autonomously every 10 minutes (6 samples/hour). How long can it be deployed? Example 1 – SBE 5M pump on for 0.5 sec/sample , no auxiliary sensors, (MooredPumpMode=1) 1 measurement/sample...
Page 26: External Power
Section 2: Description of SBE 19plus V2 External Power The SBE 19plus V2 can be powered from an external source (9 - 28 volts DC) through the Y-cable connected to the Data I/O, Pump, and External Power bulkhead connector on the sensor end cap. The internal battery pack is diode- OR’d with the external source, so power will be drawn from whichever voltage source is higher.
Page 27 Section 2: Description of SBE 19plus V2 Supplying Enough Power to SBE 19plus V2 Another consideration in determining maximum cable length is supplying enough power at the power source so that sufficient voltage is available, after IR loss in the cable (from the turn-on transient, two-way resistance), to power the 19plus V2.
Page 28: Data Storage
Section 2: Description of SBE 19plus V2 Data Storage Note: The SBE 19plus V2 has a 64 Mbyte FLASH memory. Shown below are See Battery Endurance for power limitations. calculations of available data storage for several configurations. See Specifications for storage space required for each parameter. Example 1: Profiling mode, no auxiliary sensors, strain-gauge pressure T &...
Page 29: Configuration Options And Plumbing
Section 2: Description of SBE 19plus V2 Configuration Options and Plumbing The standard SBE 19plus V2 includes an externally mounted SBE 5M pump, Note: which provides a constant flow rate through the conductivity cell regardless of See Section 4: Deploying and descent rate.
Page 30 Section 2: Description of SBE 19plus V2 Shown below is the vertical mount plumbing arrangement of a 19plus V2 equipped with the standard SBE 5M miniature pump (standard plastic or optional titanium). Air bleed valve detail 0.5 mm (0.02 in.) Note: Periodically clean air bleed valve to ensure proper functioning.
Page 31 Section 2: Description of SBE 19plus V2 Shown below is the vertical mount plumbing arrangement of a 19plus V2 configured with the optional SBE 5T titanium or 5P plastic pump, SBE 43 Note: dissolved oxygen (DO) sensor, and SBE 18 pH sensor. Note that the SBE 43 is Sea-Bird recommends use of the pH sensor on the 19plus V2 plumbed into the system between the conductivity cell outlet and the Y-fitting.
Page 32: Horizontal Mount
Section 2: Description of SBE 19plus V2 Horizontal Mount Shown below is the horizontal mount plumbing arrangement of a 19plus V2 configured with the optional SBE 5T titanium or 5P plastic pump, and SBE 43 dissolved oxygen (DO) sensor. Note that the SBE 43 is plumbed into the system between the conductivity cell outlet and the pump inlet.
Page 33: Section 3: Power And Communications Test
Section 3: Power and Communications Test Section 3: Power and Communications Test This section describes software installation and the pre-check procedure for preparing the SBE 19plus V2 for deployment. The power and communications test will verify that the system works, prior to deployment. Software Installation Sea-Bird recommends the following minimum system requirements for installing the software: Windows 2000 or later, 500 MHz processor,...
Page 34: Test
Section 3: Power and Communications Test Test 1. Double click on SeatermV2.exe. The main screen looks like this: Note: See SeatermV2’s Help files. SeatermV2 is a launcher. Depending on the instrument selected, it launches Seaterm232 (RS-232 instruments), Seaterm485 (RS-485 instruments), or SeatermIM (inductive modem instruments). Note: See Seaterm232’s Help files.
Page 35 Section 3: Power and Communications Test Following is a description of the menus: Menu Description Equivalent Command* • Load command file – opens selected .XML command file, and fills Send Commands window with commands • Unload command file – closes command File file, and removes commands from Send Commands window...
Page 36 Section 3: Power and Communications Test 3. Seaterm232 will try to automatically connect to the 19plus V2. As it connects, it sends GetHD and displays the response, which provides Note: factory-set data such as instrument type, serial number, and firmware Seaterm232’s baud rate must be the version.
Page 37: Section 4: Deploying And Operating Sbe 19Plus V2
Section 4: Deploying and Operating SBE 19plus V2 Section 4: Deploying and Operating SBE 19plus V2 This section includes discussions of: • Sampling modes (Profiling and Moored), including example sets of commands Note: Separate software manuals on • CD-ROM and Help files contain Pump operation detailed information on installation, setup, and use of Sea-Bird’s real-...
Page 38: Profiling Mode
Section 4: Deploying and Operating SBE 19plus V2 Profiling Mode The SBE 19plus V2 samples data at 4 Hz (one sample every 0.25 seconds), Note: averages the data at pre-programmed intervals, stores the averaged data in its Use Stop to: FLASH memory, and transmits the averaged data real-time.
Page 39: Moored Mode
Section 4: Deploying and Operating SBE 19plus V2 Moored Mode Note: At pre-programmed intervals, the SBE 19plus V2 wakes up, samples data, Use Stop to: stores the data in its FLASH memory, and enters quiescent (sleep) state. • Stop autonomous sampling The 19plus V2 goes to sleep for a minimum of 3 seconds between each •...
Page 40: Pump Operation - General
Section 4: Deploying and Operating SBE 19plus V2 Pump Operation - General Do not run the pump dry. The pump is water lubricated; running it without water will damage it. If briefly testing your system in dry conditions, fill the inside of the pump head with water via the pump exhaust port.
Page 41: Pump Operation - Moored Mode
Section 4: Deploying and Operating SBE 19plus V2 Pump Operation - Moored Mode Pump operation is governed by two user-programmable parameters: • MooredPumpMode=0, 1, or 2 The 19plus V2 can be set up to operate with no pump (0), with the pump running for 0.5 seconds before each sample (1), or with the pump running during each sample (2).
Page 42: Moored Mode Pump Setting Recommendations
Section 4: Deploying and Operating SBE 19plus V2 Moored Mode Pump Setting Recommendations Sea-Bird provides the following recommendations for pump settings. Note that longer pump times increase power usage, reducing battery endurance. See Battery Endurance in Section 2: Description of SBE 19plus V2 for sample battery endurance calculations.
Page 43: Real-Time Setup
Section 4: Deploying and Operating SBE 19plus V2 Real-Time Setup Baud Rate and Cable Length Notes: • Set baud rate with BaudRate=. Without a Sea-Bird Deck Unit • Set data storage and real-time output rate with NAvg= (for Profiling The rate that real-time data can be transmitted from the SBE 19plus V2 Mode) or SampleInterval= is dependent on the amount of data to be transmitted per scan and the serial (for Moored Mode).
Page 44: Real-Time Data Acquisition
Section 4: Deploying and Operating SBE 19plus V2 With a Sea-Bird Deck Unit Set the 19plus V2 baud rate to 4800 if using the 19plus V2 with either of the following real-time data acquisition systems: • SBE 36 CTD Deck Unit and Power and Data Interface Module (PDIM) •...
Page 45: Command Descriptions
Section 4: Deploying and Operating SBE 19plus V2 Command Descriptions This section describes commands and provides sample outputs. See Appendix III: Command Summary for a summarized command list. When entering commands: • Input commands to the 19plus V2 in upper or lower case letters and register commands by pressing the Enter key.
Page 46 Section 4: Deploying and Operating SBE 19plus V2 Status Commands GetCD Get and display configuration data, which Notes: includes all parameters related to setup of • GetCD output does not include 19plus V2, including communication settings calibration coefficients. To display and sampling settings.
Page 47 Section 4: Deploying and Operating SBE 19plus V2 Status Commands (continued) Example: 19plus V2 in Profiling mode (user input in bold, command used to modify parameter in parentheses) getcd <ConfigurationData DeviceType='SBE19plus' SerialNumber='01906003'> [MP] <ProfileMode> [NAvg=] <ScansToAverage>1</ScansToAverage> <MinimumCondFreq>3000</MinimumCondFreq> [MinCondFreq=] [PumpDelay=] <PumpDelay>60</PumpDelay> [AutoRun=] <AutoRun>no</AutoRun>...
Page 48 Section 4: Deploying and Operating SBE 19plus V2 Status Commands (continued) Notes: • The DS response contains similar GetSD Get and display status data, which contains information as the combined data that changes while deployed. responses from GetSD and GetCD, List below includes, where applicable, but in a different format.
Page 49: Calibrations
Section 4: Deploying and Operating SBE 19plus V2 Status Commands (continued) Notes: • DCal and GetCC responses contain GetCC Get and display calibration coefficients, similar information, but in different which are initially factory-set and should formats. agree with Calibration Certificates shipped •...
Page 50 Section 4: Deploying and Operating SBE 19plus V2 Status Commands (continued) GetEC Get and display event counter data, which can help to identify root cause of a malfunction. Event counter records number of occurrences of common timeouts, power-on resets, etc. Can be cleared with ResetEC.
Page 51 Example: (user input in bold, command used to modify parameter in parentheses) gethd <HardwareData DeviceType = 'SBE19plus' SerialNumber = '01906003'> <Manufacturer>Sea-Bird Electronics, Inc.</Manufacturer> <FirmwareVersion>2.1</FirmwareVersion> <FirmwareDate>24 September 2008 13:00</FirmwareDate> <CommandSetVersion>1.0</CommandSetVersion> [SetPcbSerialNum1=, SetPCBAssembly1=] <PCBAssembly PCBSerialNum = 'not assigned' AssemblyNum = '41054F'/>...
Page 52 Section 4: Deploying and Operating SBE 19plus V2 Status Commands (continued) Notes: Get and display operating status and • The DS response contains similar configuration parameters, which vary information as the combined depending on whether in Profiling or responses from GetSD and GetCD, Moored mode.
Page 53 Section 4: Deploying and Operating SBE 19plus V2 Status Commands (continued) Moored Mode (MM) • Firmware version, serial number, date and time [DateTime=] • Voltages and currents (main and back-up lithium battery voltages, currents – operating, pump, external voltage sensors, RS-232 sensor) •...
Page 54: Calibrations
Section 4: Deploying and Operating SBE 19plus V2 Status Commands (continued) Notes: • The DCal and GetCC responses DCal Get and display calibration coefficients, contain the same information, but which are initially factory-set and should in different formats. agree with Calibration Certificates shipped •...
Page 55 Section 4: Deploying and Operating SBE 19plus V2 General Setup Commands DateTime=mmddyyyyhhmmss Set real-time clock month, day, year, hour, minute, second. Example: Set current date and time to 05 October 2007 12:05:00 (user input in bold). datetime=10052007120500 Notes: BaudRate=x x= baud rate (600, 1200, 2400, 4800, •...
Page 56 Section 4: Deploying and Operating SBE 19plus V2 General Setup Commands (continued) Notes: • The 19plus V2 requires verification InitLogging Initialize logging - after all previous data when InitLogging, has been uploaded, initialize logging SampleNumber=, or before starting to sample again to make HeaderNumber= are sent.
Page 57 Section 4: Deploying and Operating SBE 19plus V2 Pressure and Voltage Sensor Setup Commands Notes: • The 19plus V2 requires verification PType=x Pressure sensor type. when these commands (PType= through Volt5=) are sent. The x=1: Strain-gauge. 19plus V2 responds: x=3: Quartz with temperature this command will change compensation.
Page 58 Section 4: Deploying and Operating SBE 19plus V2 RS-232 Sensor Setup Commands Notes: The SBE 19plus V2 can interface with an SBE 38 secondary temperature • The 19plus V2 requires verification sensor, or up to 2 Pro-Oceanus Gas Tension Devices (GTDs). when SBE38=, GTD=, or DualGTD= is sent.
Page 59 Section 4: Deploying and Operating SBE 19plus V2 RS-232 Sensor Setup Commands (continued) Notes: GTD=x x=Y: Enable RS-232 GTD. • A 19plus V2 with dual GTDs is x=N: Do not enable GTD. shipped with a Y-cable installed for the GTDs. The GTD ends are DualGTD=x x=Y: Enable dual (2) GTDs.
Page 60 Section 4: Deploying and Operating SBE 19plus V2 Output Format Setup Commands See Data Output Formats after the command descriptions for complete details on all the formats. Note: OutputFormat=x x=0: Output raw frequencies and voltages Output format does not affect how in hexadecimal.
Page 61: Specifications
Section 4: Deploying and Operating SBE 19plus V2 Note: Profiling Mode Setup Commands The 19plus V2 requires verification when MP is sent. 19plus V2 responds: Profiling mode setup commands following MP apply to Profiling mode this command will change the only, and have no effect on operation if the 19plus V2 is in Moored mode.
Page 62: Specifications
Section 4: Deploying and Operating SBE 19plus V2 Moored Mode Setup Commands Note: The 19plus V2 requires verification Moored mode setup commands following MM apply to Moored Mode when is sent. 19plus V2 responds: only, and have no effect on operation if the 19plus V2 is in Profiling mode. this command will change the scan length and/or initialize logging.
Page 63 Section 4: Deploying and Operating SBE 19plus V2 Logging Commands Notes: • In Seaterm232, to save real-time Logging commands direct the SBE 19plus V2 to sample data. When data to a file, click the Capture menu commanded to start sampling, the 19plus V2 takes samples and stores the data before beginning logging.
Page 64 Section 4: Deploying and Operating SBE 19plus V2 Logging Commands (continued) Notes: StartNow Start logging now. • If using StartNow or StartLater to start logging, the 19plus V2 must be set to Moored mode (MM), or if in Profiling mode (MP) must be set to ignore the magnetic switch StartDateTime= (IgnoreSwitch=Y).
Page 65 Section 4: Deploying and Operating SBE 19plus V2 Data Upload Commands Stop logging before uploading data. If manually sending a data upload Notes: command, data is uploaded in the format defined by OutputFormat=. • Use the Upload menu to upload data that will be GetSamples:b,e or DDb,e Upload data from sample b to sample e.
Page 66 Section 4: Deploying and Operating SBE 19plus V2 Polled Sampling Commands These commands request a single sample. The 19plus V2 always stores data Notes: for the most recent sample in its buffer. Some polled sampling commands also • The 19plus V2 has a buffer that store data in FLASH memory - the 19plus V2 will not execute the store data stores the most recent data in FLASH memory portion of those commands while logging data.
Page 67 Section 4: Deploying and Operating SBE 19plus V2 Testing Commands The 19plus V2 takes and outputs 100 samples for each test (except as noted); Note: data is not stored in FLASH memory. Press the Esc key (or send a break Testing commands do not character) to stop a test.
Page 68 Section 4: Deploying and Operating SBE 19plus V2 Calibration Coefficients Commands Calibration coefficients are initially factory-set and should agree with Notes: Calibration Certificates shipped with the 19plus V2. • F = floating point number Temperature S = string with no spaces TCalDate=S S=calibration date •...
Page 69 Section 4: Deploying and Operating SBE 19plus V2 Hardware Configuration Commands The following commands are used to set manufacturing date, PCB serial numbers, PCB assembly numbers, and auxiliary channel sensor types and serial number, at the factory. Factory Settings – do not modify in the field SetMfgDate= SetPcbSerialNum1= SetPcbSerialNum2=...
Page 70: Data Output Formats
Section 4: Deploying and Operating SBE 19plus V2 Data Output Formats The SBE 19plus V2 stores data in a compact machine code. Data is converted and output in the user-selected format without affecting data in memory. Note: Because memory data remains intact until deliberately overwritten, you can Moored mode - For date and time upload in one format, then choose another format and upload again.
Page 71 Section 4: Deploying and Operating SBE 19plus V2 OutputFormat=0 (raw frequencies and voltages in Hex) Data is output in the order listed, with no spaces or commas between parameters. Shown with each parameter is the number of digits, and how to calculate the parameter from the data (use the decimal equivalent of the hex data in the equations).
Page 72 Section 4: Deploying and Operating SBE 19plus V2 OutputFormat=1 (engineering units in Hex) Data is output in the order listed, with no spaces or commas between the parameters. Shown with each parameter is the number of digits, and how to calculate the parameter from the data (use the decimal equivalent of the hex data in the equations).
Page 73 Section 4: Deploying and Operating SBE 19plus V2 OutputFormat=2 (raw frequencies and voltages in decimal) Data is output in the order listed, with a comma followed by a space between each parameter. Shown with each parameter are the number of digits and the placement of the decimal point.
Page 74 Section 4: Deploying and Operating SBE 19plus V2 OutputFormat=3 (engineering units in decimal) Data is output in the order listed, with a comma followed by a space between each parameter. Shown with each parameter are the number of digits and the placement of the decimal point.
Page 75 Section 4: Deploying and Operating SBE 19plus V2 OutputFormat=4 (pressure and scan number in Hex) Data is output in the order listed, with no spaces or commas between Note: parameters. Shown with each parameter is the number of digits, and how to OutputFormat=4 is listed in the calculate the parameter from the data (use the decimal equivalent of the hex GetCD and DS response as...
Page 76 Section 4: Deploying and Operating SBE 19plus V2 Uploaded Data (from GetSamples:b,e or DDb,e): <?xml?> Note: <datapacket> For ease in reading, the data <hdr> structure is shown with each XML tag <mfg>Sea-Bird</mfg> on a separate line. However, there <model>19plus</model> are no carriage returns or line feeds <sn>nnnnnnn</sn>...
Page 77: Optimizing Data Quality For Profiling Applications
Section 4: Deploying and Operating SBE 19plus V2 Optimizing Data Quality for Profiling Applications Our deployment recommendations are only general guidelines, and are focused primarily on maximizing data quality. Actual sea state conditions, and winch and deck gear configurations, may require some adaptation in order to achieve best data quality and avoid mechanical problems.
Page 78 Section 4: Deploying and Operating SBE 19plus V2 When very heavy seas cause severe ship motion, the 19plus V2 descent can actually stop or reverse direction if the ship heaves upward faster than the package can descend. These occurrences can often be seen as loops in the real- time temperature trace.
Page 79: Installing Anti-Foul Fittings For Moored Applications
Section 4: Deploying and Operating SBE 19plus V2 Installing Anti-Foul Fittings for Moored Applications The SBE 19plus V2 is intended primarily for use as a profiling instrument, and does not come standard with anti-foulant device cups and caps. Some customers, finding that they use the 19plus V2 in Moored mode on occasion, choose to install the optional moored mode conversion kit, which includes anti-foulant device cups and caps.
Page 80 Section 4: Deploying and Operating SBE 19plus V2 4. Intake – A. Remove the two hex head screws attaching the existing intake duct to the end cap. B. Remove the existing intake duct, pulling it straight up to avoid damaging the thermistor. C.
Page 81: Setup For Deployment
Section 4: Deploying and Operating SBE 19plus V2 Setup for Deployment 1. Install new batteries or ensure the existing batteries have enough capacity to cover the intended deployment (see Replacing/Recharging Batteries in Section 5: Routine Maintenance and Calibration). 2. Program the 19plus V2 for the intended deployment using Seaterm232 (see Section 3: Power and Communications Test for connection information;...
Page 82: Deployment
Section 4: Deploying and Operating SBE 19plus V2 Deployment 1. Install a cable or dummy plug for each connector on the 19plus V2 sensor end cap: CAUTION: A. Lightly lubricate the inside of the dummy plug/cable connector with Do not use WD-40 or other silicone grease (DC-4 or equivalent).
Page 83: Acquiring Real-Time Data With Seasave
Section 4: Deploying and Operating SBE 19plus V2 Acquiring Real-Time Data with SEASAVE Notes: Verifying Contents of .con File • When we ship a new instrument, we include a .con file that reflects the current instrument configuration as SEASAVE, our real-time data acquisition and display program, requires a .con we know it.
Page 84 Section 4: Deploying and Operating SBE 19plus V2 3. The configuration information appears on the Instrument Configuration tab. Verify that the sensors match those on your 19plus V2, and that auxiliary sensors are assigned to the correct channels. Click Modify to bring up a dialog box (shown below) to change the configuration and/or to view / modify calibration coefficients.
Page 85: Acquiring Real-Time Data
Section 4: Deploying and Operating SBE 19plus V2 Acquiring Real-Time Data Instructions below are for an SBE 19plus V2 with a conventional single-core armored cable, used without a Sea-Bird Deck Unit. If using the 19plus V2 with the SBE 33 or 36 Deck Unit or the SEACAT/SEALOGGER RS-232 and Navigation Interface Box, see the Deck Unit or Interface Box manual.
Page 86 Section 4: Deploying and Operating SBE 19plus V2 5. In the Start Real-Time Data Acquisition dialog box, click Start. A. If you selected Begin archiving data immediately or Begin archiving Notes: data when ‘Start Archiving’ command is sent above, and selected •...
Page 87: Recovery
Section 4: Deploying and Operating SBE 19plus V2 Recovery WARNING! Physical Handling If the 19plus V2 stops working while underwater, is unresponsive to 1. Rinse the instrument and conductivity cell with fresh water. commands, or shows other signs of (See Section 5: Routine Maintenance and Calibration for cell cleaning flooding or damage, carefully secure it away from people until you and storage.)
Page 88: Uploading Data
Section 4: Deploying and Operating SBE 19plus V2 Uploading Data Note: 1. Double click on SeatermV2.exe. The main screen appears. Data may be uploaded during deployment or after recovery. If 2. In the Instruments menu, select SBE 19plus V2. Seaterm232 opens. uploading after recovery, connect the I/O cable as described in Section 3: 3.
Page 89 Section 4: Deploying and Operating SBE 19plus V2 6. Click Upload to upload stored data. Seaterm232 responds as follows: A. Seaterm232 sends GetSD and displays the response. GetSD provides Note: information on the instrument status, and number of samples in If binary upload is selected, memory.
Page 90 Section 4: Deploying and Operating SBE 19plus V2 7. Click the Header Form tab to customize the header: Defines header information included with uploaded data: • Prompt for header information – Each time data is uploaded, user is prompted to fill out user- defined header form.
Page 91 Section 4: Deploying and Operating SBE 19plus V2 9. Ensure all data has been uploaded by reviewing and processing the data: Notes: A. Use SEASAVE to display and plot the raw hexadecimal data in To prepare for redeployment: engineering units (see Verifying Contents of .con File and 1.
Page 92: Processing Data Using Sbe Data Processing
Section 4: Deploying and Operating SBE 19plus V2 Processing Data Using SBE Data Processing Notes: 1. Convert the .hex (raw data) file (real-time file from SEASAVE or • See the SBE Data Processing uploaded from 19plus V2 memory) to a .cnv (engineering units) file in manual and/or Help files.
Page 93 Section 4: Deploying and Operating SBE 19plus V2 In the Open dialog box, select the appropriate .con file and click Open. Verify that the sensors match those on your 19plus V2, auxiliary sensors are assigned to the correct voltage channels, and calibration coefficients for all sensors are up-to-date.
Page 94: Editing Raw Data File
Section 4: Deploying and Operating SBE 19plus V2 Editing Raw Data File Sometimes users want to edit the raw .hex data file before beginning processing, to remove data at the beginning of the file corresponding to instrument soak time, to remove blocks of bad data, to edit the header, or to add explanatory notes about the cast.
Page 95: Section 5: Routine Maintenance And Calibration
Section 5: Routine Maintenance and Calibration Section 5: Routine Maintenance and Calibration This section reviews corrosion precautions, connector mating and maintenance, plumbing maintenance, replacement/recharging batteries, conductivity cell storage and cleaning, pressure sensor maintenance, replacement of optional Anti-Foulant Devices, and sensor calibration. The accuracy of the SBE 19plus V2 is sustained by the care and calibration of the sensors and by establishing proper handling practices.
Page 96: Plumbing Maintenance
Section 5: Routine Maintenance and Calibration Plumbing Maintenance For an SBE 19plus V2 with plumbing configured for vertical orientation - A clogged air release valve can trap air, preventing the pump from Y-fitting with air release functioning properly; this will affect the data quality. Periodically clean the (bleed) valve air release valve: Air release valve detail...
Page 97: Replacing / Recharging Batteries
Section 5: Routine Maintenance and Calibration Replacing / Recharging Batteries Note: Leave the batteries in place when storing the SBE 19plus V2 to prevent If changing from alkaline to Ni-Cad depletion of the back-up lithium batteries by the real-time clock. Even or NiMH batteries, or vice versa, exhausted main batteries will power the clock (20 microamperes) almost send BatteryType= to indicate the...
Page 98: Specifications
Section 5: Routine Maintenance and Calibration Recharging Optional Nickel Metal Hydride Batteries See the NiMH Battery Charger and Battery Pack manual for complete details on charging, error messages, battery specifications, etc. 1. Remove the battery end cap (end cap without connectors): A.
Page 99 Section 5: Routine Maintenance and Calibration 4. Reinstall the battery pack in the housing: A. Align the battery pack with the housing. The posts inside the housing are not placed symmetrically, so the battery pack fits into the housing Note: only one way.
Page 100 Section 5: Routine Maintenance and Calibration Recharging Optional Nickel-Cadmium Batteries 1. Remove the battery end cap (end cap without connectors): A. Wipe the outside of the end cap and housing dry, being careful to Unthread cap by rotating remove any water at the seam between them. counter- B.
Page 101: Conductivity Cell Maintenance
Section 5: Routine Maintenance and Calibration Conductivity Cell Maintenance The SBE 19plus V2’s conductivity cell is shipped dry to prevent freezing CAUTIONS: in shipping. Refer to Application Note 2D: Instructions for Care and Cleaning • Do not put a brush or any object of Conductivity Cells for conductivity cell cleaning and storage procedures inside the conductivity cell to and materials.
Page 102: Pressure Sensor Maintenance
Section 5: Routine Maintenance and Calibration Pressure Sensor Maintenance CAUTION: Pressure sensor maintenance varies, depending on the type of pressure sensor Do not put a brush or any object in in your SBE 19plus V2. the pressure port. Doing so may damage or break the pressure sensor.
Page 103: Replacing Anti-Foulant Devices (Sbe 16Plus, Sbe 19Plus)
Section 5: Routine Maintenance and Calibration Replacing Anti-Foulant Devices (SBE 16plus, SBE 19plus) The SBE 16plus and 19plus (moored option) have an anti-foulant device cup and cap on each end of the conductivity cell. A new SBE 16plus (or moored option 19plus) is shipped with an Anti-Foulant Device and a protective plug AF24173 Anti-Foulant...
Page 104: Sensor Calibration
Section 5: Routine Maintenance and Calibration Sensor Calibration Sea-Bird sensors are calibrated by subjecting them to known physical conditions and measuring the sensor responses. Coefficients are then computed, which may be used with appropriate algorithms to obtain engineering units. The conductivity, temperature, and pressure sensors on the Note: SBE 19plus V2 are supplied fully calibrated, with coefficients stored in After recalibration, Sea-Bird enters...
Page 105 Section 5: Routine Maintenance and Calibration Pressure Sensor The SBE 19plus V2 includes a standard strain-gauge pressure sensor or optional Quartz pressure sensor. These sensors are capable of meeting the 19plus V2 error specification with some allowance for aging and ambient- temperature induced drift.
Page 106: Section 6: Troubleshooting
Section 6: Troubleshooting Section 6: Troubleshooting This section reviews common problems in operating the SBE 19plus V2, and provides the most common causes and solutions. Problem 1: Unable to Communicate If OutputExecutedTag=N, the S> prompt indicates that communications between the SBE 19plus V2 and computer have been established. Before proceeding with troubleshooting, attempt to establish communications again by clicking Connect in the Communications menu in Seaterm232 or pressing the Enter key several times.
Page 107: Problem 3: Nonsense Or Unreasonable Data
Section 6: Troubleshooting Problem 3: Nonsense or Unreasonable Data The symptom of this problem is a data file that contains nonsense values (for example, 9999.999) or unreasonable values (for example, values that are outside the expected range of the data). Cause/Solution 1: A data file with nonsense values may be caused by incorrect instrument configuration: •...
Page 108: Glossary
Glossary Glossary Batteries – Nine alkaline D-cells (Duracell MN1300, LR20) standard. Available with optional rechargeable NiMH or Ni-Cad battery pack. Fouling – Biological growth in the conductivity cell during deployment. Typically a concern when SBE 19plus V2 is used in a moored application; install moored mode conversion kit with AF24173 Anti-Foulant Devices for these applications.
Page 109 Glossary TCXO – Temperature Compensated Crystal Oscillator. Triton X-100 – Reagent grade non-ionic surfactant (detergent), used for cleaning the conductivity cell. Triton can be ordered from Sea-Bird, but should also be available locally from chemical supply or laboratory products companies. Triton is manufactured by Mallinckrodt Baker (see http://www.mallbaker.com/changecountry.asp?back=/Default.asp for local distributors)
Page 110: Appendix I: Functional Description And Circuitry
Appendix I: Functional Description and Circuitry Appendix I: Functional Description and Circuitry Sensors The SBE19plus V2 embodies the same sensor elements (3-electrode, 2-terminal, borosilicate glass cell, and pressure-protected thermistor) previously employed in Sea-Bird’s modular SBE 3 and SBE 4 sensors and in the original SEACAT design.
Page 111: Battery Wiring
Appendix I: Functional Description and Circuitry Battery Wiring SBE 19plus V2 standard main battery is a series connection of D-cells that drop into the battery compartment as a cluster of end-to-end stacks, three batteries each (standard 9-cell battery pack has three stacks). The positive battery connections are contact areas on double-thick printed circuit disks that form the internal bulkhead and battery retainer plates.
Page 112: Appendix Ii: Electronics Disassembly/Reassembly
Appendix II: Electronics Disassembly/Reassembly Appendix II: Electronics Disassembly/Reassembly CAUTION: Use caution during disassembly and reassembly to avoid breaking the conductivity cell. Disassembly 1. As a precaution, upload any data in memory before beginning. Do not remove screw attaching guard to 2.
Page 113: Appendix Iii: Command Summary
Appendix III: Command Summary Appendix III: Command Summary CATEGORY COMMAND DESCRIPTION Get and display configuration data (setup GetCD parameters). GetSD Get and display status data. GetCC Get and display calibration coefficients. Get EC Get and display event counter data. Status Delete all events in event counter.
Page 114 Appendix III: Command Summary DESCRIPTION CATEGORY COMMAND x=0: output raw frequencies and voltages in Hex (required if using SEASAVE or SBE Data Processing). x=1: output converted data in Hex. OutputFormat=x x=2: output raw frequencies and voltages in decimal. x=3: output converted data in decimal. x=4: output pressure and scan number in Hex.
Page 115 Appendix III: Command Summary DESCRIPTION CATEGORY COMMAND Note: GetSamples:b,e Upload data from scan b to scan e. Use the Upload menu to or DDb,e Data Upload upload data that will be Stop logging GetCast:x or Profiling mode only. Upload data from cast x. processed by SBE Data before Processing.
Page 116: Calibrations
Appendix III: Command Summary DESCRIPTION CATEGORY COMMAND TCalDate=S S=Temperature calibration date. TAO=F F=Temperature A0. TA1=F F=Temperature A1. F=Temperature A2. TA2=F F=Temperature A3. TA3=F TOffset=F F=Temperature offset correction. CCalDate=S S=Conductivity calibration date. CG=F F=Conductivity G. CH=F F=Conductivity H. F=Conductivity I. CI=F Calibration CJ=F F=Conductivity J.
Page 117: Appendix Iv: Af24173 Anti-Foulant Device
AF24173 Anti-Foulant Devices supplied for user replacement are supplied in polyethylene bags displaying the following label: AF24173 ANTI-FOULANT DEVICE FOR USE ONLY IN SEA-BIRD ELECTRONICS' CONDUCTIVITY SENSORS TO CONTROL THE GROWTH OF AQUATIC ORGANISMS WITHIN ELECTRONIC CONDUCTIVITY SENSORS. ACTIVE INGREDIENT: Bis(tributyltin) oxide…………..…………………………..
Page 118 Appendix IV: AF24173 Anti-Foulant Device AF24173 Anti-Foulant Device FOR USE ONLY IN SEA-BIRD ELECTRONICS’ CONDUCTIVITY SENSORS TO CONTROL THE GROWTH OF AQUATIC ORGANISMS WITHIN ELECTRONIC CONDUCTIVITY SENSORS. ACTIVE INGREDIENT: Bis(tributyltin) oxide…………..…………………………..53.0% OTHER INGREDIENTS: ………………………………..47.0% Total………………………………………………………..100.0% DANGER See Precautionary Statements for additional information.
Page 119 Do not use or store near heat or open flame. Avoid contact with acids and oxidizers. DIRECTIONS FOR USE It is a violation of Federal Law to use this product in a manner inconsistent with its labeling. For use only in Sea-Bird Electronics’ conductivity sensors. Read installation instructions in the applicable Conductivity Instrument Manual.
Page 120 PESTICIDE DISPOSAL: Pesticide that cannot be used according to label instructions must be disposed of according to Federal or approved State procedures under Subtitle C of the Resource Conservation and Recovery Act. CONTAINER DISPOSAL: Dispose of in a sanitary landfill or by other approved State and Local procedures. Sea-Bird Electronics/label revised 01-31-05...
Page 121: Appendix V: Replacement Parts
Appendix V: Replacement Parts Appendix V: Replacement Parts Quantity Part Part Application Description in 19plus Number Alkaline D-cell batteries, 22018 Power 19plus V2 Duracell MN 1300 (LR20) 41124B Battery cover plate Retains alkaline batteries 801511 NiMH battery pack Optional rechargeable 9-cell battery pack 90504 NiMH battery pack charger For NiMH batteries...
Page 122 Appendix V: Replacement Parts continued from previous page Quantity Part Number Part Application Description in 19plus O-rings and hardware, including: • 30145 Screw, 6-32 x 1 /2 Phillips-head, stainless steel (secures battery cover plate to battery posts) Spare battery end cap 60021 •...
Page 123 Appendix V: Replacement Parts continued from previous page Quantity Part Number Part Application Description in 19plus Includes o-rings, hardware, bulkhead connectors, dummy plugs, etc.: • 50087 Conductivity cell filling and storage kit • 50273 Spare hardware kit (see above) • 50274 Spare o-ring kit (see above) •...
Page 124: Index
Index Index Configuration file · 47, 48, 58, 71, 73, 82, 94 Configuration options · 19 Connectors · 13, 85 .con file · 47, 48, 58, 71, 73, 82, 94 Corrosion precautions · 85 About Sea-Bird · 5 Data bits · 18 Anti-foul fittings ·...
Page 125: Specifications
Index Parity · 18 Sampling modes · 27 Parts moored · 29, 31, 69 replacement · 111 profiling · 28, 30, 67 Plumbing · 19, 86 SBE 38 · 48 Polled sampling · 56 SBE Data Processing · 10, 23, 81, 82 Power ·...
Page 126 SBE 19plus V2 SEACAT Profiler Reference Sheet (see SBE 19plus V2 User’s Manual for complete details) Sampling Modes • Profiling (MP) –Vertical profiles, sampling at 4 Hz. SBE 19plus V2 runs continuously. • Moored (MM) – Time series measurements once every 10 seconds to once every 4 hours. SBE 19plus V2 powers down between samples.
Page 127 Command Instructions and List (see manual for complete list and descriptions) • Input commands in upper or lower case letters and register commands by pressing Enter key. • 19plus V2 sends an error message if an invalid command is entered. •...
Page 128 Nickel-Metal Hydride (NiMH) Battery Charger and Battery Pack User’s Manual Sea-Bird Electronics, Inc. 1808 136 Place NE Bellevue, Washington 98005 USA Telephone: 425/643-9866 Fax: 425/643-9954 E-mail: seabird@seabird.com Manual Version #002, 08/01/05 Website: www.seabird.com Firmware Version 1.0...
Page 129 SEA-BIRD ELECTRONICS, INC. disclaims all product liability risks arising from the use or servicing of this system. SEA-BIRD ELECTRONICS, INC. has no way of controlling the use of this equipment or of choosing the personnel to operate it, and therefore cannot take steps to comply with laws pertaining to product liability, including laws which impose a duty to warn the user of any dangers involved in operating this equipment.
Page 130: Specifications
Table of Contents Table of Contents Section 1: Introduction ................ 4 About this Manual .....................4 How to Contact Sea-Bird ...................4 Quick Start ......................4 Unpacking NiMH Charger.................5 Shipping Precautions ..................6 Section 2: Description of Charging System ........7 Description......................7 Specifications.....................8 Charger Controls and Display................9 Charger Display Messages................10 Section 3: Charging Battery Pack ............
Page 131: Section 1: Introduction
Sea-Bird welcomes suggestions for new features and enhancements of our products and/or documentation. Please e-mail any comments or suggestions to seabird@seabird.com How to Contact Sea-Bird Sea-Bird Electronics, Inc. 1808 136 Place Northeast Bellevue, Washington 98005 USA Telephone: 425-643-9866...
Page 132: Unpacking Nimh Charger
Section 1: Introduction Unpacking NiMH Charger Shown below is a typical NiMH Battery Charger and Battery Pack shipment. NiMH Battery Pack (12-cell pack shown; 6- and 9-cell packs also available) NiMH Charger AC power cable Charger cable Nickel-Metal Hydride (NiMH) Battery Charger and Battery Pack Spare fuses (2) for...
Page 133: Shipping Precautions
Section 1: Introduction Shipping Precautions The battery pack was shipped from the factory: • Partially discharged (holding no more than 30% of its energy capacity), NiMH Battery • Packaged separately within the shipping box (i.e., if you order the battery Pack pack and charger with an instrument such as an SBE 17plus V2 (12-cell...
Page 134: Section 2: Description Of Charging System
Section 2: Description of Charging System Section 2: Description of Charging System This section describes the functions and features of the Nickel Metal Hydride (NiMH) charging system. Description The NiMH battery charger is an externally powered (100-250 VAC or 124-370 VDC), microprocessor-controlled, intelligent, battery-conditioning charger designed for indoor shipboard or laboratory use.
Page 135: Specifications
Section 2: Description of Charging System Specifications Battery Charger 2 line display, 20 characters each line, Display character height 5 mm (0.2 inch) 200 Watts maximum Input Power 100-250 VAC, 47-63 Hz, or 124-370 VDC Environmental For indoor use; do not get wet Materials Anodized aluminum housing Dimensions...
Page 136: Charger Controls And Display
Section 2: Description of Charging System Charger Controls and Display There are three user-selectable control buttons: • Discharge – The Discharge button starts a discharge cycle, in which the battery pack is discharged across a 2-ohm shunt, leaving the battery pack with (nominally) no energy.
Page 137: Charger Display Messages
Section 2: Description of Charging System Charger Display Messages Note: Values for voltage, current, etc. in the The LCD displays the following messages, depending on operation status: table are typical values you might see for a 12-cell battery pack. Charger User Action Active LCD Display Text...
Page 138 Section 2: Description of Charging System Looking at a typical LCD display during charging: FAST CHARGE 1:23:45 15.5V 25C 5.0A 350KJ where • 1:23:45 = elapsed time since charging began • 15.5V = output of battery pack in Volts • 25C = temperature of battery pack in °C •...
Page 139: Section 3: Charging Battery Pack
Section 3: Charging Battery Pack Section 3: Charging Battery Pack This section describes charging the battery pack. Sea-Bird recommends discharging the battery pack first, and then recharging it. • The charge cycle display shows the total energy added to the battery pack during the charge.
Page 140: Section 4: Charger Maintenance
Section 4: Charger Maintenance Section 4: Charger Maintenance The charger uses two fuses. If one fuse blows, Sea-Bird recommends that you replace both fuses. The charger has a storage compartment for spare fuses. To access the fuses and spares: WARNING! Do not open the fuse 1.
Page 141: Section 5: Battery Characteristics And Handling
Section 5: Battery Characteristics and Handling Section 5: Battery Characteristics and Handling See Specifications in Section 2: Description of Charging System for battery capacity, discharge time, and charge time. Battery Self-Discharge All batteries show a decline in charge over time, even when not connected to a load.
Page 142: Battery Storage
Section 5: Battery Characteristics and Handling Battery Storage Store battery packs in a cool place, free from excessive temperature or humidity. High temperatures significantly increase the aging process. To reduce aging, fully charge battery packs before long-term storage (30 days or more).
Page 143: Appendix I: Replacement Parts
Appendix I: Replacement Parts Appendix I: Replacement Parts Part Part Application Description Quantity Number 12-cell, 14.4-volt battery For use with SBE 17plus 801512 pack SEARAM For use with SBE 19plus 9-cell, 10.8-volt battery 801511 SEACAT CTD or SBE 25 pack SEALOGGER CTD 6-cell, 7.2-volt battery 801510...
Page 144: Index
Index Index About Sea-Bird · 4 Fuse · 13 Batteries LCD · 9, 10 shipping precautions · 6 Battery characteristics · 14 charging · 12, 14 Maintenance · 13 conditioning · 14 discharging · 12, 14 handling · 14 life · 15 Operating ·...
Page 145: Specifications
SPECIFICATIONS SBE 19plus-V2 Specifications....................SBE 5T-5P Pump........................SBE 43 Dissolved Oxygen.....................
Page 146 The SBE 19plus V2 is supplied with a powerful Windows 2000/XP software package, SEASOFT -Win32, which includes programs for communication and data retrieval, real-time data acquisition and display, and data processing (filtering, aligning, averaging) and plotting. Sea-Bird Electronics, Inc. E-mail: seabird@seabird.com 1808 136th Place NE, Bellevue, Washington 98005 USA Telephone: (425) 643-9866 Website: http://www.seabird.com...
Page 147: Specifications
(for 19plus V2 with strain-gauge pressure) 1016 x 241 x 279 mm (40 x 9.5 x 11 in.), 6.3 kg (14 lbs) (for 19plus V2 with Digiquartz pressure) 1219 x 241 x 279 mm (48 x 9.5 x 11 in.) 02/08 Sea-Bird Electronics, Inc. E-mail: seabird@seabird.com 1808 136th Place NE, Bellevue, Washington 98005 USA Telephone: (425) 643-9866 Website: http://www.seabird.com...
Page 148: Specifications
Weight: SBE 5T - 0.7 kg (1.5 lbs) in air, 0.3 kg (0.7 lbs) in water; SBE 5P – 0.5 kg (1.0 lb) in air, 0.1 kg (0.2 lbs) in water Sea-Bird Electronics, Inc. E-mail: seabird@seabird.com 1808 136 Place NE, Bellevue, Washington 98005 USA Telephone: (425) 643-9866 Website: http://www.seabird.com...
Page 149 16plus-IM, or 19plus with pumped auxiliary sensor(s) #3 Winding, Standard Voltage, 3000 RPM – typical for SBE 9plus 07/08 Sea-Bird Electronics, Inc. E-mail: seabird@seabird.com 1808 136 Place NE, Bellevue, Washington 98005 USA Telephone: (425) 643-9866 Website: http://www.seabird.com Fax: (425) 643-9954...
Page 150 No other processing was performed. surface oxsat = 4.7 ml/l Downcast Salinity Upcast 1000 Temperature, ITS-90 [ C] Salinity, PSS-78 Sea-Bird Electronics, Inc. Email: seabird@seabird.com 1808 136th Place NE, Bellevue, Washington 98005 USA Telephone: (425) 643-9866 Website: http://www.seabird.com Fax: (425) 643-9954...
Page 151: Specifications
(0.10 in.) 9.3 mm (0.37 in.) 13 mm 9.3 mm (0.51 in.) (0.37 in.) 69.9 mm (2.75 in.) 12/07 Sea-Bird Electronics, Inc. Email: seabird@seabird.com 1808 136th Place NE, Bellevue, Washington 98005 USA Telephone: (425) 643-9866 Website: http://www.seabird.com Fax: (425) 643-9954...
Page 152 CALIBRATION SHEETS Temperature Calibration - S/N 6266..................Conductivity Calibration - S/N 6266..................Pressure Calibration - S/N 6266..................... SBE 5P Configuration - S/N 055194..................SBE 43 Oxygen Calibration - S/N 431571................WETLabs ECO-FL Calbration - S/N FLRT-1299..............
Page 153 0.02 29-Jan-09 0.00 0.01 0.00 -0.01 -0.02 Temperature, Degrees C...
Page 154 0.002 29-Jan-09 1.0000000 0.001 0.000 -0.001 -0.002 Conductivity (Siemens/m)
Page 155 0.50 20-Jan-09 -0.00 0.25 0.00 -0.25 -0.50 Pressure (PSIA)
Page 156 Sea-Bird Electronics, Inc. 1808 136th Place NE, Bellevue, Washington 98005 USA Tel: (425) 643-9866 Website: http://www.seabird.com Email: seabird@seabird.com Fax: (425) 643-9866 SBE 5P SUBMERSIBLE PUMP CONFIGURATION SHEET LAUREL LAUREL LAUREL LAUREL 2/12/2009 2/12/2009 2/12/2009 2/12/2009 Customer: Delivery Date: 90617 90617...
Page 157 30-Jan-09p 1.0000 -0.1 -0.2 Oxygen (ml/l)
Page 158 32 %R[ $SSOHJDWH 6W ZZZ ZHWODEV FRP 3KLORPDWK 25 (&2 &KORURSK\OO )OXRURPHWHU &KDUDFWHUL]DWLRQ 6KHHW 'DWH )/57 &KORURSK\OO FRQFHQWUDWLRQ H[SUHVVHG LQ —J O FDQ EH GHULYHG XVLQJ WKH HTXDWLRQ &+/ —J O 6FDOH )DFWRU 2XWSXW 'DUN &RXQWV $QDORJ $QDORJ $QDORJ 5DQJH 5DQJH 5DQJH GHIDXOW...
Page 159: Pressure Test Certificates
PRESSURE TEST CERTIFICATES SBE 19plus Pressure Test Certificate - S/N 6266..............SBE 5P Pressure Test Certificate - S/N 055194..............SBE 43 Pressure Test Certificate - S/N 431571..............
Page 160 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE, Bellevue, Washington 98005 USA FAX: (425) 643-9954 Website: http://www.seabird.com Email: seabird@seabird.com SBE Pressure Test Certificate Test Date: 1/20/2009 Description SBE-19Plus SeaCat Profiler Customer Name LAUREL Job Number: 53231 SBE Sensor Information:...
Page 161 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE, Bellevue, Washington 98005 USA FAX: (425) 643-9954 Website: http://www.seabird.com Email: seabird@seabird.com SBE Pressure Test Certificate Test Date: 12/22/2008 Description SBE-5P Submersible Pump Customer Name LAUREL Job Number: 53231 SBE Sensor Information:...
Page 162 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE, Bellevue, Washington 98005 USA FAX: (425) 643-9954 Website: http://www.seabird.com Email: seabird@seabird.com SBE Pressure Test Certificate Test Date: 12/19/2008 Description SBE-43 DO Sensor Customer Name LAUREL Job Number: 53231 SBE Sensor Information:...
Page 163 APPLICATION NOTES Appnote 2DConductivity......................Appnote 6Sound Velocity....................... Appnote 10Conductivity......................Appnote 141978 Practical Salinity Scale................Appnote 27DMinimizing Strain Gauge Errors............... Appnote 31Coefficient Corrections..................Appnote 34Cell Storage......................Appnote 405T-5P Pump Speed Adjustment................Appnote 42ITS-90 Temperature Scale................... Appnote 57Connector Care..................... Appnote 67Editing .HEX Files....................Appnote 68USB Ports......................
Page 164 APPLICATION NOTES Appnote 56Interfacing to RS-485 Sensors................Appnote 64SBE 43 Dissolved Oxygen................... Appnote 64-1SBE 43 Dissolved Oxygen................Appnote 64-2SBE 43 Dissolved Oxygen................Appnote 48Seapoint Turbidity Meter..................Appnote 62WETLabs ECO-FL Fluorometer................Appnote 72WETLabs ECO-FL with Bio-Wiper..............
Page 165 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 2D Revised September 2008 Instructions for Care and Cleaning of Conductivity Cells This application note presents new recommendations (as of October 2006), based on our recent research, for cleaning and storing conductivity sensors.
Page 166 Rinsing, Cleaning, and Storage Procedures SBE 4 Conductivity Sensor Note: See Cleaning Materials below for discussion of appropriate sources / concentrations of water, Triton X-100, bleach, and tubing. CAUTIONS: Soaker tube • The conductivity cell is primarily glass, and can break if mishandled.
Page 167 Cleaning Materials Water De-ionized (DI) water, commercially distilled water, or fresh, clean, tap water is recommended for rinsing, cleaning, and storing sensors. • On ships, fresh water is typically made in large quantities by a distillation process, and stored in large tanks. This water may be contaminated with small amounts of oil, and should not be used for rinsing, cleaning, or storing sensors.
Page 168 Acid In rare instances, acid cleaning is required for mineral contamination of the conductivity cell. Sea-Bird recommends that you return the equipment to the factory for this cleaning. Information below is provided if you cannot return the equipment to Sea-Bird. CAUTIONS: •...
Page 169: Specifications
Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 6 Revised August 2004 DETERMINATION OF SOUND VELOCITY FROM CTD DATA Use of CTD measurement for determination of sound velocity is appealing because these instruments are simpler and more rugged, and because their resolution, accuracy, and stability lead to far better precision than can be obtained with direct SV measuring devices.
Page 170 We draw the following conclusions from the research papers listed above: Investigators using specialized equipment under scrupulously controlled laboratory conditions report measurements of SV vs. changes in temperature, salinity, and pressure which differ by 0.5 meters/second and more. It is unrealistic to expect that commercial direct-measurement instruments will be more accurate under field conditions than the laboratory equipment used by successions of careful researchers.
Page 171: Calibrations
Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 10 Revised March 2008 COMPRESSIBILITY COMPENSATION OF SEA-BIRD CONDUCTIVITY SENSORS Sea-Bird conductivity sensors provide precise characterization of deep ocean water masses. To achieve the accuracy of which the sensors are capable, an accounting for the effect of hydrostatic loading (pressure) on the conductivity cell is necessary.
Page 172 DISCUSSION OF PRESSURE CORRECTION Conductivity cells do not measure the specific conductance (the desired property), but rather the conductance of a specific geometry of water. The ratio of the cell’s length to its cross-sectional area (cell constant) is used to relate the measured conductance to specific conductance.
Page 173 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 14 January 1989 1978 PRACTICAL SALINITY SCALE Should you not be already familiar with it, we would like to call your attention to the January 1980 issue of the IEEE Journal of Oceanic Engineering, which is dedicated to presenting the results of a multi-national effort to obtain a uniform repeatable Practical Salinity Scale, based upon electrical conductivity measurements.
Page 175 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE 27Druck Revised April 2008 Minimizing Strain Gauge Pressure Sensor Errors The following Sea-Bird instruments use strain gauge pressure sensors manufactured by GE Druck: •...
Page 176 RELATIONSHIP BETWEEN PRESSURE AND DEPTH Despite the common nomenclature (CTD = Conductivity - Temperature - Depth), all CTDs measure pressure, which is not quite the same thing as depth. The relationship between pressure and depth is a complex one involving water density and compressibility as well as the strength of the local gravity field, but it is convenient to think of a decibar as essentially equivalent to a meter, an approximation which is correct within 3% for almost all combinations of salinity, temperature, depth, and gravitational constant.
Page 177: Specifications
CHOOSING THE RIGHT SENSOR Initial accuracy and resolution are expressed as a percentage of the full scale range for the pressure sensor. The initial accuracy is 0.1% of the full scale range. Resolution is 0.002% of full scale range, except for the SBE 25 (0.015% resolution).
Page 178 MINIMIZING ERRORS Offset Errors Note: Follow the procedures below for all instruments except the SBE 26plus (see the 26plus manual for details). The primary offset error due to drift over time can be eliminated by comparing CTD readings in air before beginning the profile to readings from a barometer.
Page 179 Hysteresis Errors Hysteresis is the term used to describe the failure of pressure sensors to repeat previous readings after exposure to other (typically higher) pressures. The Druck sensor employs a micro-machined silicon diaphragm into which the strain elements are implanted using semiconductor fabrication techniques. Unlike metal diaphragms, silicon’s crystal structure is perfectly elastic, so the sensor is essentially free of pressure hysteresis.
Page 180: Calibrations
Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 31 Revised July 2007 Computing Temperature and Conductivity Slope and Offset Correction Coefficients from Laboratory Calibrations and Salinity Bottle Samples Conductivity Sensors The conductivity sensor slope and offset entries in the configuration (.con) file in SEASOFT permit the user to make...
Page 181: Calibrations
To correct conductivity data taken between pre- and post-cruise calibrations: islope = 1.0 + (b / n) [(1 / postslope) - 1.0] where islope = interpolated slope; this is the value to enter in the .con file b = number of days between pre-cruise calibration and the cast to be corrected n = number of days between pre- and post-cruise calibrations postslope = slope from calibration sheet as calculated above (see Appendix I: Example Conductivity Calibration Sheet)
Page 182: Calibrations
Example Three salinity bottles are taken during a CTD profile; assume for this discussion that shipboard analysis of the bottle salinities is perfect. The uncorrected CTD data (from SEASAVE V7) and bottle salinities are: CTD Raw Approximate CTD Raw CTD Raw CTD Raw Bottle Conductivity...
Page 183: Calibrations
Temperature Sensors The temperature sensor slope and offset entries in the configuration (.con) file in SEASOFT permit the user to make corrections for sensor drift between calibrations. The correction formula is: corrected temperature = slope * (computed temperature) + offset where : slope = (true temperature span) / (instrument reading temperature span) offset = (true temperature - instrument reading temperature) * slope...
Page 184: Calibrations
Correcting for Temperature Drift Based on Pre- and Post-Cruise Laboratory Calibrations Suppose a temperature sensor is calibrated (pre-cruise), then immediately used at-sea, and then returned for post- cruise calibration. The pre-and post-cruise calibration data can be used to generate an offset correction for data obtained between the pre- and post-cruise calibrations.
Page 185 Appendix I: Example Conductivity Calibration Sheet...
Page 186 Appendix II: Example Temperature Calibration Sheet...
Page 187 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 34 Revised March 2008 Instructions for Use of Conductivity Cell Filling and Storage Device PN 50087 and 50087.1 This application note provides instructions for use of PN 50087 / 50087.1 syringe and tubing assembly in...
Page 188: Drawings
Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 40 Revised June 2007 SBE 5T and SBE 5P PUMP SPEED ADJUSTMENT Equipment: DC power supply Drawings:...
Page 189 Supply power: • Low voltage pump (pump with LV in the serial number) - Supply 6 volts DC power to the bulkhead connector or directly to the PCB (P8 is positive, P19 or P18 is common, drawing 41250A). • Normal voltage pump - Supply 12 volts to the bulkhead connector or directly to the PCB (P8 is positive, P19 or P18 is common, drawing 41250A).
Page 192: Calibrations
Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 42 Revised March 2008 ITS-90 TEMPERATURE SCALE Beginning in January 1995, Sea-Bird's temperature metrology laboratory (based upon water triple-point and gallium melt cell, SPRT, and ASL F18 Temperature Bridge) converted to ITS-90 (T90).
Page 193 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 57 Revised May 2003 I/O Connector Care and Installation This Application Note describes the proper care and installation of standard I/O connectors for Sea-Bird CTD instruments.
Page 194 3. Using a tube of 100% silicone grease (Dow DC-4 or equivalent), squeeze approximately half the size of a pea onto the end of your finger. CAUTION: Do not use WD-40 or other petroleum-based lubricants, as they will damage the connectors. 4.
Page 195 Locking Sleeve Installation After the connectors are mated, install the locking sleeve. The locking sleeve secures the inline connector to the bulkhead connector and prevents the cable from being inadvertently removed. Important points regarding locking sleeves: • Tighten the locking sleeve by hand. Do not use a wrench or pliers to tighten the locking sleeve. Overtightening will gall the threads, which can bind the locking sleeve to the bulkhead connector.
Page 196 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 67 October 2001 Editing Sea-Bird .hex Data Files After acquiring real-time .hex data or uploading .hex data from CTD memory, users sometimes want to edit the header to add or change explanatory notes about the cast.
Page 197 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 68 November 2006 Revised Using USB Ports to Communicate with Sea-Bird Instruments Most Sea-Bird instruments use the RS-232 protocol for transmitting setup commands to the instrument and receiving data from the instrument.
Page 198 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 69 July 2002 Conversion of Pressure to Depth Sea-Bird’s SEASOFT software can calculate and output depth, if the instrument data includes pressure.
Page 199 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 71 Revised March 2008 Desiccant Use and Regeneration (drying) This application note applies to all Sea-Bird instruments intended for underwater use. The application note covers: •...
Page 200 Regeneration (drying) of Desiccant Replacement desiccant bags are available from Sea-Bird: • PN 60039 is a metal can containing 25 1-gram desiccant bags and 1 humidity indicator card. The 1-gram bags are used in our smaller diameter housings, such as the SBE 3 (plus, F, and S), 4 (M and C), 5T and 5P, 37 (-SI, -SIP, -SM, -SMP, -IM, and –IMP), 38, 39, 39-IM, 43, 44, 45, 48, 49, and 50.
Page 201 Sud-Chemie Performance Packaging 101 Christine Dr. Belen, New Mexico 87002 Phone: (505) 864-6691 ISO 9002 CERTIFIED Fax: (505) 864-9296 MATERIAL SAFETY DATA SHEET – August 13, 2002 ® SORB-IT Packaged Desiccant SECTION I -- PRODUCT IDENTIFICATION Trade Name and Synonyms: Silica Gel, Synthetic Amorphous Silica, Silicon, Dioxide Chemical Family:...
Page 202 Sud-Chemie Performance Packaging 101 Christine Dr. Belen, New Mexico 87002 Phone: (505) 864-6691 ISO 9002 CERTIFIED Fax: (505) 864-9296 MATERIAL SAFETY DATA SHEET – August 13, 2002 ® SORB-IT Packaged Desiccant SECTION IV -- FIRE EXPLOSION DATA Fire and Explosion Hazard - Negligible fire and explosion hazard when exposed to heat or flame by reaction with incompatible substances.
Page 203 Sud-Chemie Performance Packaging 101 Christine Dr. Belen, New Mexico 87002 Phone: (505) 864-6691 ISO 9002 CERTIFIED Fax: (505) 864-9296 MATERIAL SAFETY DATA SHEET – August 13, 2002 ® SORB-IT Packaged Desiccant NOTE TO PHYSICIAN: This product is a desiccant and generates heat as it adsorbs water.
Page 204 Sud-Chemie Performance Packaging 101 Christine Dr. Belen, New Mexico 87002 Phone: (505) 864-6691 ISO 9002 CERTIFIED Fax: (505) 864-9296 MATERIAL SAFETY DATA SHEET – August 13, 2002 ® SORB-IT Packaged Desiccant * No Information Available HMIS (Hazardous Materials Identification System) for this product is as follows: Health Hazard Flammability...
Page 205 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 73 Revised July 2005 Using Instruments with Pressure Sensors at Elevations Above Sea Level This application note covers use of a Sea-Bird instrument that includes a pressure sensor at elevations above sea level, such as in a mountain lake or stream.
Page 206 SBE 9plus and 25 Sea-Bird software (SEASAVE or SBE Data Processing) uses calibration coefficients programmed in a configuration (.con) file to convert raw data from these instruments to engineering units. Follow this procedure to correct the pressure: With the instrument in the air, place it in the orientation it will have when deployed. In SEASAVE, in the .con file, set the pressure offset to 0.0.
Page 207 SBE 37 (all models) The SBE 37 is able to directly output data that is already converted to engineering units (pressure in decibars), using calibration coefficients that are programmed into the instrument. The SBE 37 does not use a .con file. Follow this procedure to correct the pressure: With the SBE 37 in the air, place it in the orientation it will have when deployed.
Page 208 SBE 52-MP The SBE 52-MP is able to directly output data that is already converted to engineering units (pressure in decibars), using calibration coefficients that are programmed into the instrument. The SBE 52-MP does not use a .con file. Follow this procedure to correct the pressure: With the SBE 52-MP in the air, place it in the orientation it will have when deployed.
Page 209 SBE 39 The SBE 39 directly outputs data that is already converted to engineering units (pressure in decibars), using calibration coefficients that are programmed into the SBE 39. The SBE 39 does not use a .con file. The SBE 39 is a special case, because its programmed calibration coefficients do not currently include a pressure offset term.
Page 210 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 75 Revised June 2007 Maintenance of SBE 5T, 5P, and 5M Pumps This application note is intended to assist you in maintaining your pump: •...
Page 211 Routine Rinsing after Recovery (applies to all pumps) At the end of a day of taking casts: Remove the Tygon tubing from the pump head’s hose barbs. Leaving the pump head on the housing, thoroughly rinse the inside of the pump head, pouring clean, fresh water through a hose barb.
Page 212 Yearly Maintenance for SBE 5T PN 30571 Unscrew the pump head from o-ring the housing. End cap PN 30009 impeller/ Replace the o-ring and 2 thrust magnet washers on the shaft: 30010 thrust A. Remove the o-ring from the 30010 washer thrust shaft.
Page 213 Non-Functioning or Poorly Functioning SBE 5T Perform the inspection procedures listed above in Yearly Maintenance for SBE 5T. If you do not discover the problem there, proceed as follows. Connector Retaining ring Unscrew the connector end cap retaining ring. Install a 2-pin end cap dummy plug with locking sleeve over the bulkhead connector to provide a good grip and protect the connector...
Page 214 SBE 5M or SBE 5P Periodic Cleaning for SBE 5M or SBE 5P End cap o-rings If you are going to store the pump for more than 1 week, or have removed the pump from a mooring, perform a more thorough cleaning: CAUTION: Remove the end cap and impeller from the housing before cleaning the impeller.
Page 215 Yearly Maintenance for SBE 5M or SBE 5P PN 31011 PN 30571 o-ring CAUTION: Remove the end cap and impeller from the housing o-ring before cleaning the impeller. The end cap o-rings seal the electronics chamber. The end cap may walk out of the housing after the pump head is removed, allowing water to enter the electronics chamber if you clean the impeller without first removing the end cap from the housing.
Page 216 Non-Functioning or Poorly Functioning SBE 5M or SBE 5P Perform the inspection procedures listed above in Yearly Maintenance for SBE 5M or SBE 5P. If you do not discover the problem there, proceed as follows. Unscrew the pump head from the housing. Pull out the end cap from the housing.
Page 217 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 83 revised March 2008 Deployment of Moored Instruments This Application Note applies to Sea-Bird instruments intended to provide time series data on a mooring or fixed site: •...
Page 218 Preparation for Deployment Task Completed If applicable, upload existing data in memory. Perform preliminary processing / analysis of data to ensure you have uploaded all data, that data was not corrupted in upload process, and that (if uploading converted data) instrument EEPROM was programmed with correct calibration coefficients.
Page 219 Recovery Immediately upon recovery Task Completed? Rinse instrument with fresh water. Remove locking sleeve on dummy plug or cable, slide it up cable (if applicable), and rinse connection (still mated) with fresh water. For instrument with pump (external or integral), stop sampling. Connect to instrument in terminal program and send command to stop sampling (Stop or #iiStop).
Page 220: Calibrations
Later Task Completed? Clean conductivity cell, as needed: • Do not clean cell if you will be sending instrument to Sea-Bird for post-deployment calibration to establish drift during deployment. • Clean cell if you will not be performing a post-deployment calibration to establish drift. See cleaning instructions in instrument manual and Application Note 2D: Instructions for Care and Cleaning of Conductivity Cells.
Page 221 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 84 July 2006 Using Instruments with Druck Pressure Sensors in Muddy or Biologically Productive Environments This Application Note applies to Sea-Bird instruments with Druck pressure sensors, for moored applications or other long deployments that meet either of the following conditions: •...
Page 222 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com Application Note 56 Revised September 2003 Interfacing to RS-485 Sensors A few Sea-Bird instruments use the RS-485 protocol for transmitting setup commands to the instrument and receiving data from the instrument.
Page 223 • Terminal Program Compatibility - If the Interface Card uses shared interrupts, SEATERM (our Windows terminal program) must be used to communicate with the instrument. If the Interface Card is configured as a standard COM port, either SEATERM or our DOS-based terminal programs may be used to communicate with the instrument.
Page 224 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 64 Revised November 2008 SBE 43 Dissolved Oxygen Sensor – Background Information, Deployment Recommendations, and Cleaning and Storage...
Page 225 Temperature differences between the water and oxygen sensor can lead to errors in the oxygen measurement. The SBE 43 minimizes this difference by using materials that equilibrate rapidly with the environment and incorporating a thermistor placed under the membrane, at the cathode, for accurate temperature compensation. As a result, the SBE 43 is less susceptible to error when profiling through areas of high temperature gradients than previous oxygen sensors.
Page 226 Summary of Response Times for Moored Applications The first plot below is derived from the preceding plot and may be used to determine the time required from power- up and pump turn-on to the availability of an acceptable dissolved oxygen sample with a 0.5-mil membrane. For simplicity, we generally recommend a minimum pump time of 15 seconds for 15 °C and warmer water, and reference the 1% curve below for colder water.
Page 227 Use in Hydrogen Sulfide (H S) Environments SBE 43 oxygen sensors can be used for hours in hydrogen sulfide rich environments with no ill effects to sensor elements or signal calibration. Poisoning of oxygen sensors in hydrogen sulfide environments was a phenomenon common to early sensor designs that used silver as the cathode element.
Page 228 Tau Correction Note the derivative term [tau(T,P) * δV/δt]; this correction term’s function is to improve the response of the measured signal in regions of large oxygen gradients. However, this term also amplifies residual noise in the signal (especially in deep water), and in some situations this negative consequence overshadows the gains in signal responsiveness.
Page 229 Notes: 1. There are several types of oxygen data that can be calculated, as desired, in all of these software versions: • Oxygen, SBE (units of ml/l, mg/l, or micromoles/kg, as selected) – measured SBE 43 oxygen, based on the equation shown above in Oxygen Algorithm.
Page 230 • Preventive Field Maintenance Between Profiles: After each cast, flush with a 0.1% solution of Triton X-100, using a 60 cc syringe (see Application Note 34). Then rinse thoroughly with fresh water. Between casts, ensure that the sensor remains shaded from direct sunlight and stays cool and humidified. Plugging the inlet and exhaust of the plumbing after rinsing will trap sufficient humidity.
Page 231 Appendix A - Computation of Oxygen Solubility (Oxsol) Ts = ln [(298.15 – T) / (273.15 + T)] Oxsol(T,S) = exp {A0 + A1(Ts) + A2(Ts) + A3(Ts) + A4(Ts) + A5(Ts) S * [B0 + B1(Ts) + B2(Ts) + B3(Ts) ] + C0(S) Where •...
Page 232 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Website: www.seabird.com APPLICATION NOTE NO. 64-1 revised April 2008 Plumbing Installation - SBE 43 DO Sensor and Pump on a CTD This Application Note describes installation of an SBE 43 Dissolved Oxygen (DO) Sensor and pump (and associated plumbing) for: •...
Page 233 Horizontal Configuration Schematic and Details The horizontal configuration is most commonly used when the CTD is integrated with an SBE 32 Carousel Water Sampler with an extension stand. When installing plumbing for the horizontal configuration: • Configure the system as follows: Place the DO sensor intake above the conductivity sensor exhaust.
Page 234 Horizontal Configuration Schematic and Details (continued) Secure each tubing connection with two cable ties (not shown). Overall View Pump DO sensor Tygon (vertically above (plenum intake vertically Conductivity sensor Temperature sensor tubing DO sensor) above conductivity sensor exhaust) Details Pump exhaust –above DO Slide larger diameter Tygon Quick release TC Duct intake...
Page 235 Vertical Configuration Schematic and Details When installing plumbing for the vertical configuration: • (For SBE 9plus only) Place the opening of the intake and exhaust on the same horizontal plane. Attach exhaust tubing from the pump to the cage, as shown in the schematic below. Failure to place the exhaust tubing properly can lead to acceleration of water in the plumbing, with resulting errors in conductivity data.
Page 236 Vertical Configuration Schematic and Details (continued) Secure each tubing connection with two cable ties. Overall View See Y fitting Detail below DO sensor Pump Note: Exhaust tubing is usually omitted by Sea-Bird for an SBE 19, 19plus, 19plus V2, or 25. Exhaust tubing –...
Page 237 MOORED APPLICATIONS Preparation Parts Included in PN 90087 Universal Plumbing Kit Description Quantity 30388 Tygon tubing, 19 mm (0.75 in.) OD, 13 mm (0.5 in.) ID 4 ft 30579 Tygon tubing, 13 mm (0.5 in.) OD, 9.5 mm (0.375 in.) ID - for connections to DO sensor 0.5 ft 30389 Cable tie, 102 mm (4 in.) - to secure tubing connections...
Page 238 Schematic and Details...
Page 239 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 64-2 Revised April 2008 SBE 43 Dissolved Oxygen Sensor Calibration and Data Corrections using Winkler Titrations Figure 1. SBE 43...
Page 240 The SBE 43 is expected to provide an output voltage that is linear with respect to oxygen concentration. Normal calibration drift manifests itself as a loss of sensitivity and is evident as a change of slope (and less so in offset) in the linear relationship between oxygen concentration and voltage output.
Page 241 Example The example plot below shows Winkler oxygen divided by φ versus SBE 43 output voltage, and includes a linear regression line calculated from the data. 1.20 1.00 0.80 Figure 2. Winkler oxygen / φ 0.60 W/phi = 0.4586V - 0.2378 0.40 = 0.9997 0.20...
Page 242 Processing Procedure Using SBE Data Processing The linear regression that yields a new Soc and Voffset may be accomplished with spreadsheet software, a hand-held calculator with statistical capability, or (with perseverance) a calculator, graph paper, and pencil. As a first step, extract pressure, temperature, salinity, oxygen saturation, and SBE 43 voltage from the parts of your CTD data collected when the water sampler closures occurred.
Page 243 In the example above, Data Conversion will begin extracting data 5 seconds before each water sampler closure (Scan range offset = -5 s) and will extract a total of 10 seconds of data (Scan range duration = 10 s). Note that 10 seconds is longer than the SBE 43 response time.
Page 244 Create a table with average pressure, temperature, salinity, oxygen saturation, and SBE 43 output voltage for each water sampler closure depth, by importing the .btl file into a spreadsheet. Then, enter by hand the Winkler titration dissolved oxygen values from your titration log, matching water sampler closures to pressures. φ...
Page 245: Calibrations
SBE 43 Calibration Adjustment or Data Correction for Long-Term Deployments using Sparse Reference Values The following methods are used to correct fouled SBE 43 sensor data collected primarily in moored applications. They can be applied to oxygen data when only sparse reference samples are available to verify sensor calibration. The methods should be applied only to individual sensors (i.e., a correction calculated for one sensor cannot be applied to other sensors on the mooring).
Page 246 The loss of sensitivity attributed to fouling of the sensor membrane is observed as a linear change in the sensor output when compared to a set of reference samples (Figure 7 and Table 2). The ratio of the reference sample values to the SBE 43 measured DO concentrations remains constant over the range of the sensor (for multiple values of DO).
Page 247 Example of In Situ Data Correction for Continuous Real-Time Mooring Data Applications In this example, we use data collected with an SBE 43 dissolved oxygen sensor deployed in an urban marina for 4 months during the biologically active spring and summer seasons. The integrated SBE 43 and CTD (conductivity, temperature, and depth sensor) was moored at 2 meters water depth and sampled every 10 minutes following a 30-second flush cycle.
Page 248 Example of Post-Processing Data Correction Sometimes, in-field validation is not possible. This restricts correction of possibly fouled data to post-processing, and requires a reference validation sample be taken at the end of the deployment or soon after the instrument is recovered.
Page 249 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 48 Revised May 2007 Entering Calibration Coefficients for the Seapoint Turbidity Meter The Seapoint Turbidity Meter measures turbidity by detecting scattered light from suspended particles in the water using dual 880 nm light sources and dual silicon photodiode detectors with visible light blocking filters.
Page 250: Calibrations
Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 62 Revised May 2007 Calculating Calibration Coefficients for the WET Labs ECO-AFL or ECO-FL Fluorometer, or ECO-FL-NTU Fluorometer/Turbidity Meter This Application Note applies to the following WET Labs fluorometers: •...
Page 251: Calibrations
Example Calculation of Scale Factor from field calibration: Seawater sample analysis shows chlorophyll-a is 50 μg/l when fluorometer reads 3.2 volts; measured signal for seawater blank is 0.05 volts. concentration (μg/l) = (Vsample - Vblank) * Scale Factor → 50 = (3.2 - 0.05) * Scale Factor Solving: Scale Factor = (50) / (3.2 - 0.05) = 15.87 μg/l →...
Page 252 Sea-Bird Electronics, Inc. Phone: (425) 643-9866 1808 136th Place NE Fax: (425) 643-9954 Bellevue, WA 98005 E-mail: seabird@seabird.com Web: www.seabird.com APPLICATION NOTE NO. 72 Revised March 2008 Setting Up WET Labs ECO-FL Fluorometer with Bio-Wiper™ This application note applies to the following models of the WET Labs ECO-FL Fluorometer with Bio-Wiper: •...
Page 253 Setting Up/Using the CTD in Moored Mode General Delay before sampling sets the amount of time to wait after switching on external voltages before sampling. The ECO-FL requires approximately 3.5 seconds to sample, if set up to take a single measurement for each sample (longer time required for multiple measurements per sample).
Page 254: Drawings
DRAWINGS Dwg 32421ACable Assy, Data I/O, RMG-4FS to DB-9S, PN 801225................... Dwg 31551bY-Cable, Pump-Data I/O, PN 17709........................... Dwg 33235BSEACAT Plus-V2 Internal Wiring..........................Dwg 32496Cable, SBE 43 Interface, PN 172447..........................Dwg 32073CCable, Seapoint Interface [1X Gain], PN 171099....................... Dwg 32491ACable, WETLabs ECO-AFL Interface, PN 171953....................Dwg 32935Ni-MH Battery Charger Cable Assembly, PN 801509....................
Page 257 RXFROM38 EXTPWR_IN IMPULSE_TI (WB) 172021 + 10V EC16P TVSB RS-485 DA TA I/O CS_GND SEA-BIRD ELECTRONICS, INC. 171382 (optional) 13139 N O T E : HOUSIN G GROUND Title IMPULSE XSG/AG306 CONNECTORS WITH STAINLESS STEEL BASE ARE STANDARD. AT PCB MOUNT H OLE SEACAT PLUS: INTERNAL WIRING V2 IMPULSE MCBH (WB) CONNECTORS WITH TITANIUM BASE ARE OPTIONAL.
Page 261 Manually connect pins 1 and 2 with 20AWG solid tinned copper wire Mini-plug Mini-plug 171934 171934 Black Mini-plug Mini-plug 171934 171934 These six pins and two PCB's form a custom White connector assembly in the DB25 hood. Swage & 171934 171934 solder pins 1 and 6, solder the rest.
Page 262 DATE DATE DATE REVISION RECORD REVISION RECORD REVISION RECORD AUTH AUTH AUTH ( ) * ( ) * ( ) * + '+ + '+ + '+ + '+ ) + '+ ) + '+ ) '+ '+ '+ '+ '+ '+ CONTRAST +24v...
Page 263 Active LED 15311 15311 100K 100K MMBT5089LT1 MMBT5089LT1 15311 15311 13096 13096 100K 100K Charge Button Discharge Button 100K 100K 15311 15311 15311 15311 100K 100K Reset Button MMBT5087LT1 MMBT5087LT1 13095 13095 LCD Contrast 15469 15469 .1uF .1uF .1uF .1uF .1uF .1uF 100K...
Page 264 HEAT SINK HEAT SINK +24v 31259 31259 SBG2040 SBG2040 IRF4905 IRF4905 13140 13140 13141 13141 Battery + 56uH 56uH 22uH 22uH 20159 20159 20160 20160 Battery - .1uF .1uF 17647 17647 .1uF .1uF 14089 14089 2200uF 2200uF SBG2040 SBG2040 .1uF .1uF 15283 15283...
Page 265: Warranty
Instruments found defective should be returned to the factory carefully packed, as the customer will be responsible for freight damage. Incidental or consequential damages or costs incurred as a result of product malfunction are not the responsibility of SEA-BIRD ELECTRONICS, INC...
Page 266: Warranty
Warranty Administration Policy Sea-Bird Electronics, Inc. and its authorized representatives or resellers provide warranty support only to the original purchaser. Warranty claims, requests for information or other support, and orders for post- warranty repair and service, by end-users that did not purchase directly from Sea-Bird or an authorized representative or reseller, must be made through the original purchaser.
Page 267 Service Request Form To return your instrument for calibration or other service, please take a few moments to provide us with the information we need, so we can serve you better. PLEASE: Get a Returned Material Authorization (RMA) number from Sea-Bird (phone 425-643-9866, fax 425-643-9954, or email seabird@seabird.com).
Page 268 Include your RMA number in the e-mail. Option B. Ship via EXPRESS COURIER directly to Sea-Bird Electronics: If you choose this option, we recommend shipping via UPS, FedEx, or DHL. Their service is door-to-door, including customs clearance.
