SBE 37-SMP MicroCAT
Conductivity, Temperature, and (optional) Pressure Recorder
RS-232
with
Interface and Integral Pump

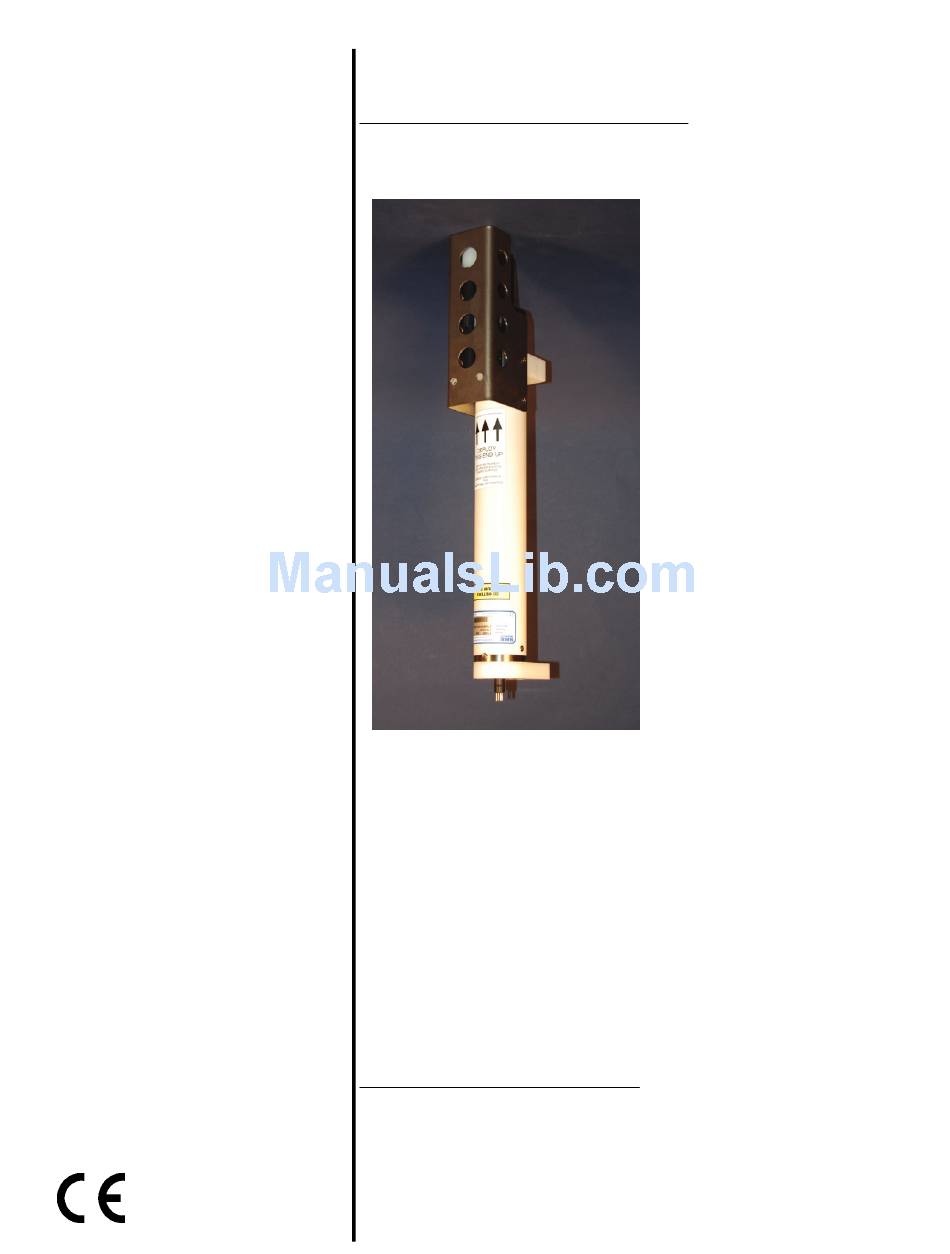

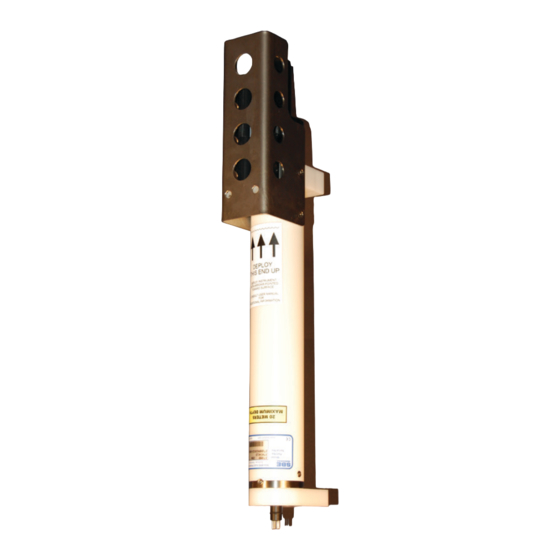

Shown with optional ShallowCAT plastic housing;
standard titanium housing available
User's Manual
Sea-Bird Electronics, Inc.
th
13431 NE 20
Street
Bellevue, Washington 98005 USA
Telephone: +1 425-643-9866
Fax: +1 425-643-9954
E-mail: seabird@seabird.com
Website: www.seabird.com
For most
applications,
deploy in
orientation
shown
(connector
end down) for
proper
operation
Manual version #019, 09/19/13
Firmware version 4.1 and later
SeatermV2 version 2.3.0 and later
SBE Data Processing version 7.23.1 and later
