This appliance shall be installed in accordance with:
• Manufacturer's Installation Instructions
• Current AS/NZS 3000
• Local Regulations and Municipal Building Codes including local OH&S requirements
This appliance must be installed, maintained and removed only by an Authorised Person.
For continued safety of this appliance it must be installed and maintained in
accordance with the manufacturer's instructions.

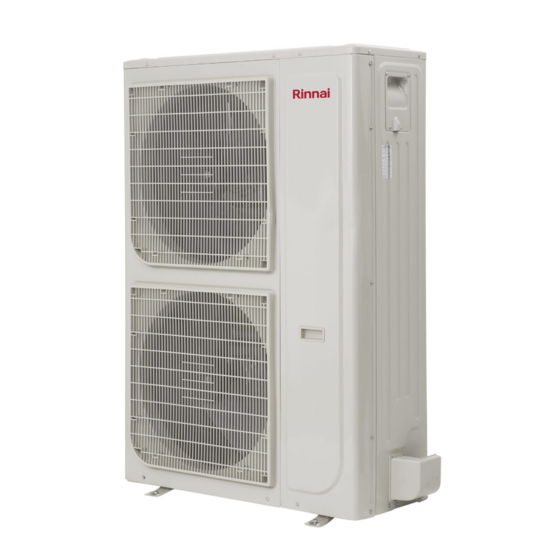

Ducted Reverse Cycle Inverter
Rinnai Ducted Models
Outdoor Units
DONSR07Z72
DONSR10Z72
DONSR12Z72
DONSR14Z72
DONSR17Z72
Owner's Manual
Indoor Units
DINLR07Z72
DINLR10Z72/Z721
DINLR12Z72
DINLR14Z72
DINLR17Z72

Advertisement

Table of Contents
loading

Summary of Contents for Rinnai DONSR07Z72

  • Page 1 Owner’s Manual Ducted Reverse Cycle Inverter Rinnai Ducted Models Outdoor Units Indoor Units DONSR07Z72 DINLR07Z72 DONSR10Z72 DINLR10Z72/Z721 DONSR12Z72 DINLR12Z72 DONSR14Z72 DINLR14Z72 DONSR17Z72 DINLR17Z72 This appliance shall be installed in accordance with: • Manufacturer’s Installation Instructions • Current AS/NZS 3000 • Local Regulations and Municipal Building Codes including local OH&S requirements This appliance must be installed, maintained and removed only by an Authorised Person.
  • Page 2 This page is intentionally blank Rinnai Ducted Reverse Cycle Inverter OM...
  • Page 3: Table Of Contents

    Heating Cycle ��������������������������������������������������������������������������������������������������������������������������������������������������� 13 Zoned Systems ������������������������������������������������������������������������������������������������������������������������������������������������ 13 Performing Routine Maintenance ��������������������������������������������������������������������������������������������������������������������� 13 Checking The Air Filter ������������������������������������������������������������������������������������������������������������������������������������� 14 Unit Support ����������������������������������������������������������������������������������������������������������������������������������������������������� 14 Non–Rinnai Field Supplied Accessories ����������������������������������������������������������������������������������������������������������� 14 When to Call for Service ����������������������������������������������������������������������������������������������������������������������������������� 14 Disposal Guidelines ������������������������������������������������������������������������������������������������������������������������������������������ 15 Warranty Contacts...
  • Page 4: Warnings And Important Information

    -15°C ~ 24°C WARRANTY EXCLUSIONS Rinnai product warranty excludes faults and failures caused by improper use and abuse; fair wear and tear; or failure to follow instructions regarding service and maintenance� It is very important that you maintain your appliance and have it serviced regularly� It is a condition of warranty that you adhere to the maintenance and service requirements as set out in this manual�...
  • Page 5 A NOTE ON ILLUSTRATIONS The illustrations used in this manual are for explanatory purposes only and the shape of your indoor unit NOTE may vary slightly from that which is shown in this manual� Rinnai Ducted Reverse Cycle Inverter OM...
  • Page 6: Care & Maintenance

    NOTE For replacement filters, please contact Rinnai. Turn off the power before you perform any maintenance; otherwise it may cause electric shock. When removing filter, do not touch metal parts in the unit. The sharp metal edges can cut you.
  • Page 7: General Maintenance

    • Check for damaged wires • Clean all filters • Check for leaks • Replace batteries • Make sure nothing is blocking all air inlets and outlets of both the indoor or outdoor units� Rinnai Ducted Reverse Cycle Inverter OM...
  • Page 8: Installation Record - Installer Details

    Please ensure you register your product warranty on line at rinnai�com�au� The Rinnai Customer Care Program is designed to help you get the most out of your new system� Service and maintenance in accordance with the Service Maintenance Schedule on page 9 is essential in ensuring the prolonged useful life of your system, and help ensure it operates at optimum efficiency.
  • Page 9: Service Maintenance Schedule - Ducted Air Conditioning Systems

    SERVICE MAINTENANCE SCHEDULE - DUCTED AIR CONDITIONING SYSTEMS Your Rinnai Ducted Air Conditioning System should be maintained annually after the date of installation by a qualified licensed technician in accordance with the Schedule below. Failure to do so during the product warranty period may void your warranty�...
  • Page 10: Save A Service Call

    Check the air conditioner has not been turned off automatically by a programmed off timer. Press the power button on the remote control� Circuit Breaker tripped or fuse blown� Reset or replace, if problem persists contact Rinnai� Timer is activated. Turn timer off Rinnai Ducted Reverse Cycle Inverter OM...
  • Page 11 Too many sources of heat in the room (people, computers, and electronics etc)� Where possible reduce the amount of heat sources� Low refrigerant due to a leak or after long-term use, contact Rinnai� Poor heating performance� The outdoor temperature is lower than 7°C� Use an auxiliary heating device�...
  • Page 12: General User Guide

    Your system removes humidity from your home during the cooling season� The Indoor unit has a (primary) condensate connected to your drainage system; but an overflow (secondary) drain should also be installed. If water is observed in the overflow drain - it may be clogged, and your installer or Rinnai should be contacted for inspection�...
  • Page 13: Cooling Cycle

    Close off all doors to areas that are not being conditioned – i.e. effectively isolate unconditioned spaces. • Set your zoning configuration with your zone controls before starting your Rinnai system. • Do not attempt to shut down more zones than the minimum as specified by your installer, as this may lead to system shut down�...
  • Page 14: Checking The Air Filter

    • Filters are supplied and fitted by your installer and are not part of the Rinnai system. A dirty air filter will cause excessive strain on the compressor and fan blower motor� This can cause the compressor to overheat and automatically shut down�...
  • Page 15: Disposal Guidelines

    Special notice – Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain. IMPORTANT Rinnai Ducted Reverse Cycle Inverter OM...
  • Page 16: Warranty

    WARRANTY TERMS OF WARRANTY – AUSTRALIA Rinnai Australia Pty� Ltd� ABN 74 005 138 769, 100 Atlantic Drive, Keysborough VIC 3173� NOTICE TO CONSUMERS UNDER AUSTRALIAN CONSUMER LAW Our goods and services come with guarantees that cannot be excluded under the Australian Consumer Law�...
  • Page 17 Normal Business Hours by an Authorised Service Representative� Repair by persons other than an Authorised Service Representatives may void the Warranty� 2�4 Alternatively to clause 2�3 above, Rinnai can at its discretion elect to pay you an amount equivalent to the cost of repairing or replacing the Product�...
  • Page 18 “7 Purchaser’s Responsibilities” on page 19; c) notifies Rinnai within 30 days of a defect occurring or, in the case of a latent defect, becoming apparent, that a claim is being made under this Warranty; and d) provides, in support of the claim made under this Warranty, a Proof of Purchase�...
  • Page 19 Rinnai to enquire about alternative arrangements� If you wish to make a warranty claim in respect of any fixed Product, please contact Rinnai on the details set out below to make arrangements for an Authorised Service Representative to inspect the product�...
  • Page 20: Contacts

    Braeside, Victoria 3195 AU45204 Rinnai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your Rinnai appliance. If your appliance requires service, please call our National Help Line. Rinnai recommends that this appliance be serviced at least every 2 years.
